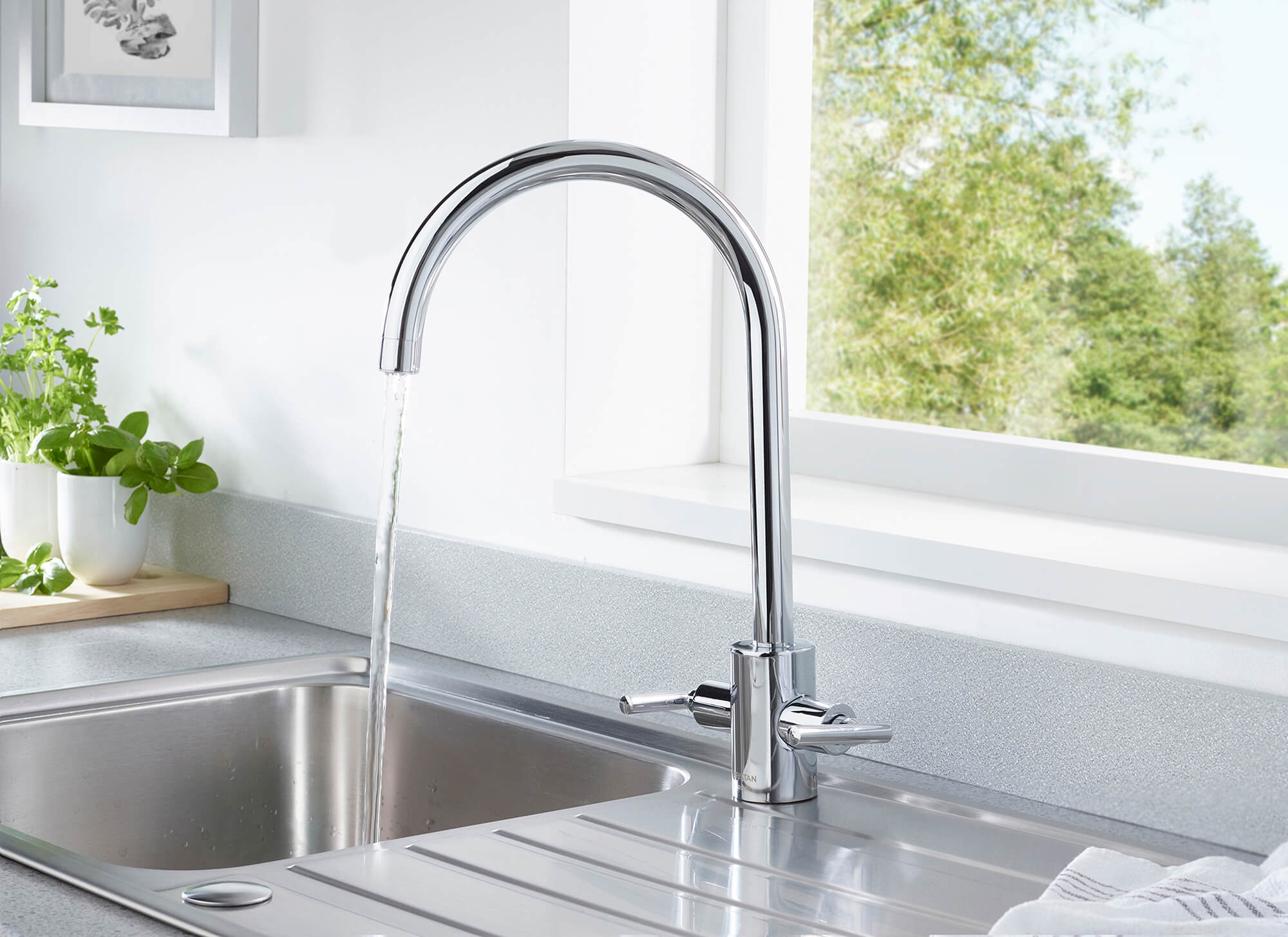

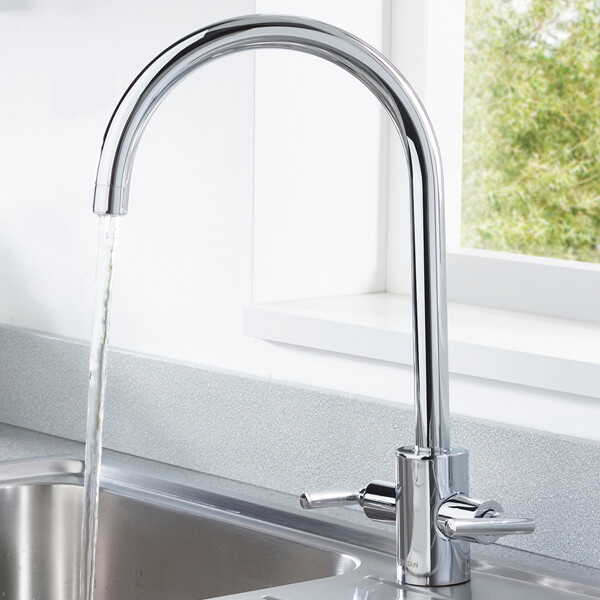

Bristan Artisan Kitchen Sink Mixer Tap With Easyfit Base

Technical drawing QS-V6869 / AR SNK EF C

Additional image of Bristan Artisan Kitchen Sink Mixer Tap With Easyfit Base

Additional image for QS-V6869 Bristan - AR SNK EF C

Bristan Artisan Kitchen Sink Mixer Tap With Easyfit Base

Finishes Available : Chrome / Brushed Nickel

QS-V6869

MFC CODE: AR SNK EF C

£157.64

RRP: ~~£269.00~~

STOCK AVAILABILITY

3-4 Working Days Approx

5.0 out of 5

2 out of 2 customers rated 100%

Review this Product

Shipping: FREE* Check Postcodes

Variations

Technical

Select Finishes Available

OP-145584 - Chrome

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

Colour	Chrome
Warranty/Guarantee	10 Years
Material	Brass
Theme	Modern
Installation Type	Deck Mounted
No. of Holes Required	1
Spout type	Fixed
Base To Spout	254
Spout Reach	216
Overall Height	379
Inlet Connections	G1/2 inch
Minimum Operating Pressure (Bar)	0.3
Flow Rates (l/min)	36.1 (l/min) at 3 bar
Handle Style	Lever
Technologies	Ceramic Disc

INFO / SIZE (mm)

Tap
Pipe Centre: 216 mm

QTY

Bristan Artisan AR SNK EF C Details

Endow your kitchen with a stylish appeal by adorning it with this stylishly graceful Kitchen Sink Mixer Tap from the exquisite Artisan range of one of UK's leading brassware brand Bristan. Only the best quality brass has gone into the construction of this unit, which ensures that it will deliver excellent long-term performance. This unit is suitable for deck mounted installation and is suitable for both low and high water pressure system. The manufacturer provides a full 10 year guarantee on this unit against any manufacturing defects.

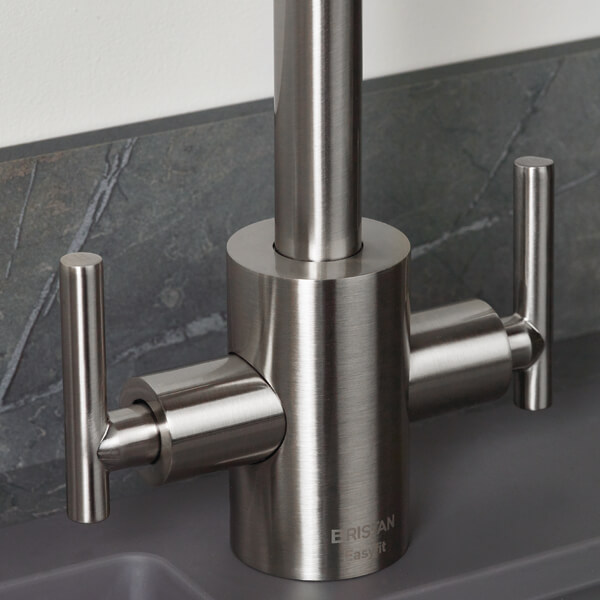

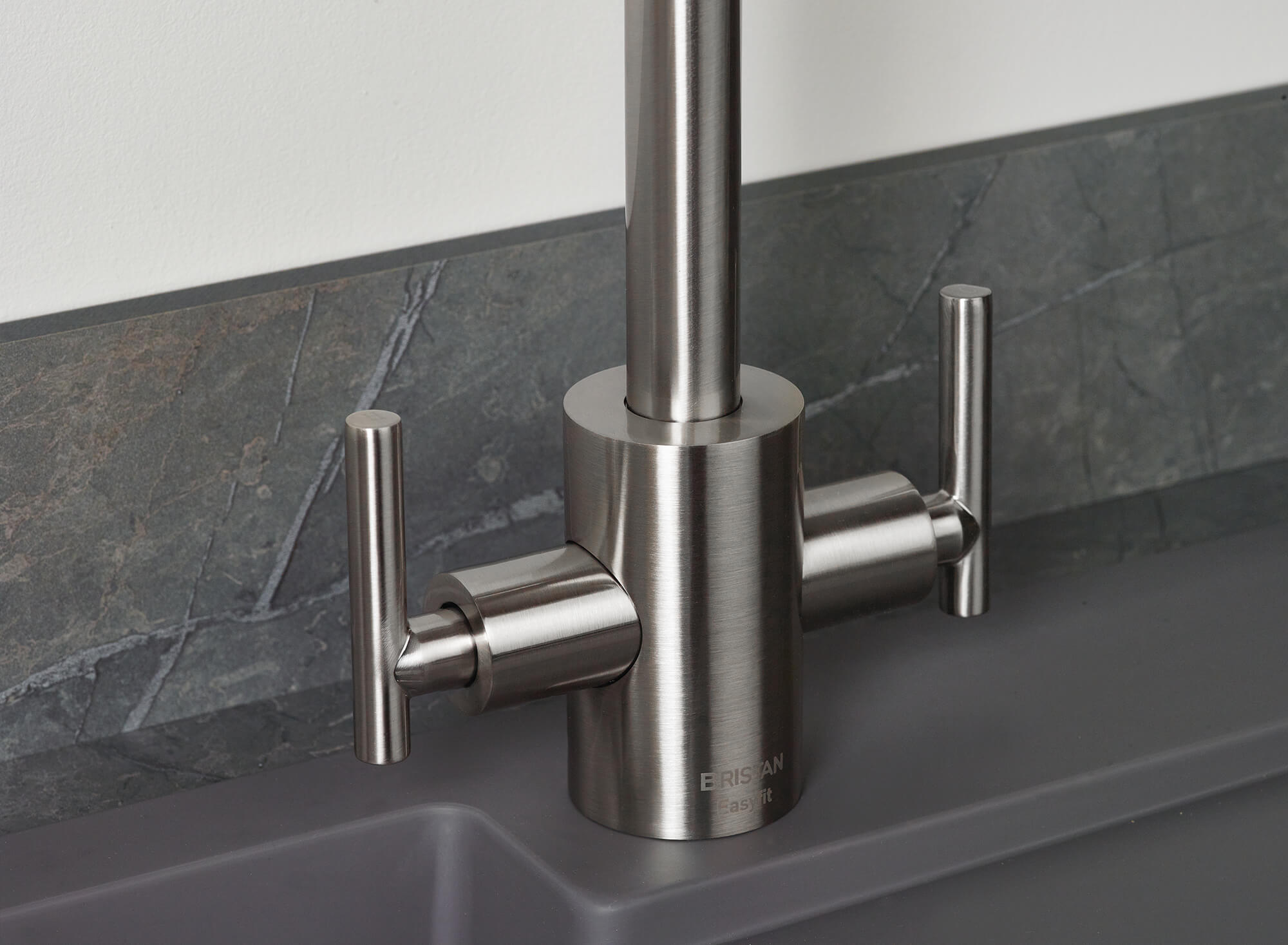

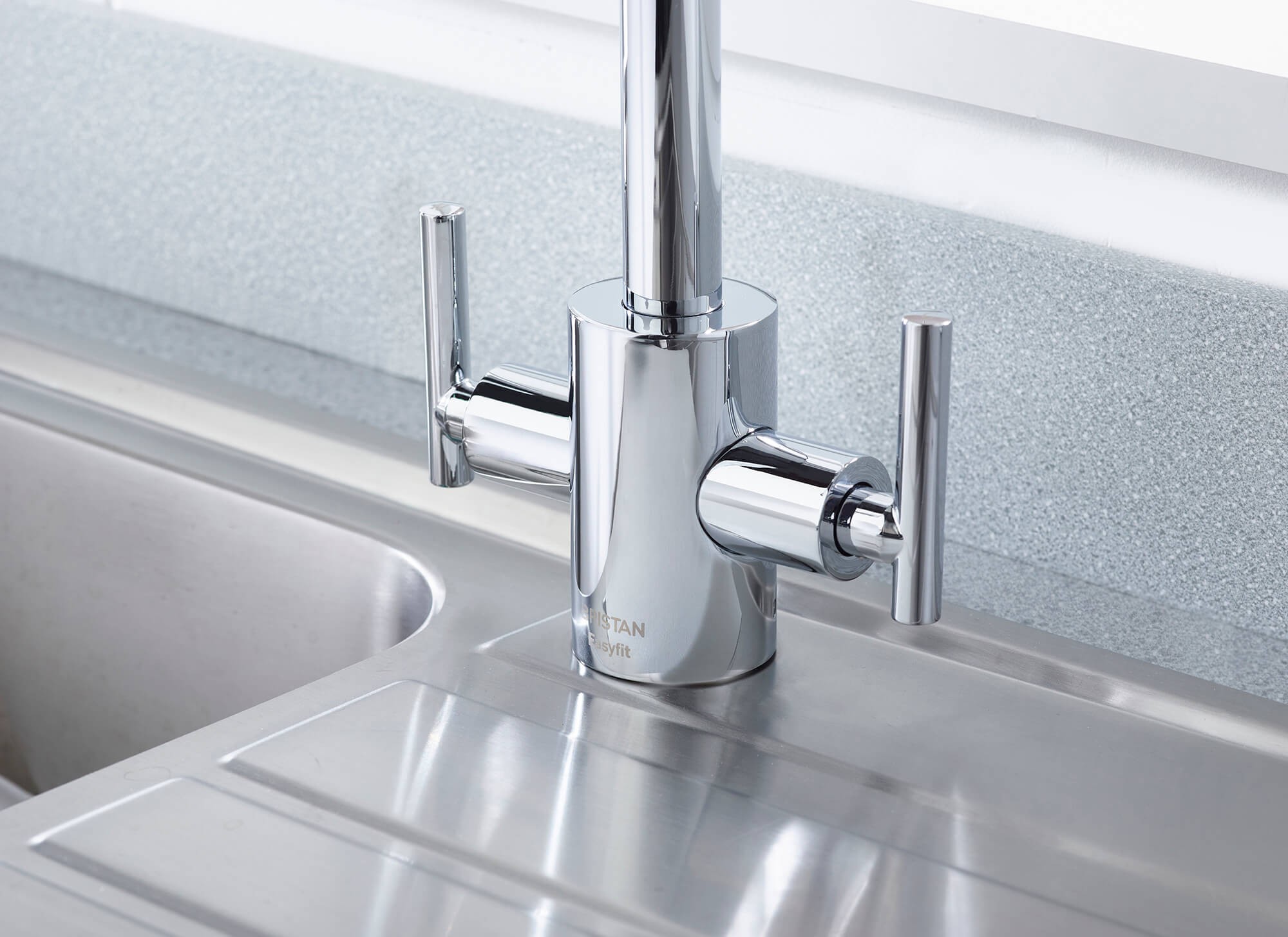

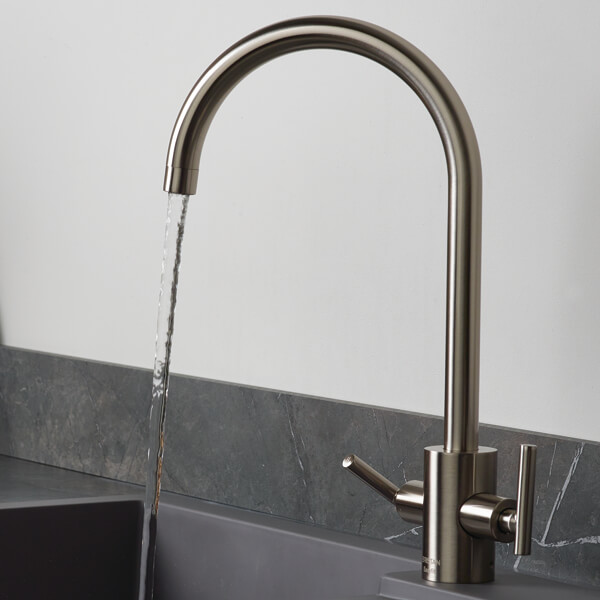

Finishes Available : Chrome and Brushed Nickel
Manufactured using brass material
Deck mounted installation

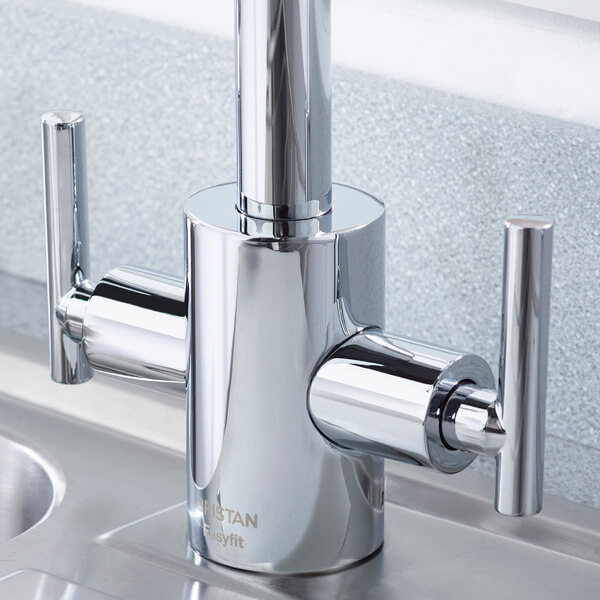

Tap supplied with EasyFit base
Maximum hot water temperature : 65°c
Maximum static pressure : 10 bar
Long life and easy to use 1/4 turn ceramic disc valves
Metal fixing nut for added durability

Center of inlet to center of outlet : 226
Base to spout : 262mm
Inlet connections : 1/2 inch
Suitable for low and high water pressure system
Required minimum 0.3 bar or above 5.0 bar water pressure
Download installation instruction PDF
Refer technical diagram for complete technical dimensions
10 years guarantee against any manufacturing defects.

Features Included In This Product Explained

Step1 Fitting the Base
The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position which is indicated by the word ‘FRONT facing forward. Now tighten the fitting to the surface with a hex key. Lastly, the plain barrel must be replaced.
Step 2 Fitting the Tails
Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves.
Step 3 Fitting the Tap Body
Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

Additional Info

Download the Installation instruction Pdf File

Product Variations Info & MFC Code

Available Finishes :
Chrome Tap With Easy Fit Base - AR SNK EF C
Brushed Nickel Tap With Easy Fit Base - AR SNK EF BN

Total: £157.64 3-4 Working Days Approx QS Supplies

Add-on Selected: Total Price Now:

You May Also Require

Reviews & Ratings

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Graham ULCEBY Date: November 10, 2021

Bristan Artisan Kitchen Mixer Tap

Okay, so we had the tap fitted by our local plumbing/heating company during the summer months due to our previous tap leaking from the hot side on/ off the handle. This tap was recommended to us by our local plumbing/ heating company so I order it for them to fit. Some modifications were required under our kitchen unit below the tap but other than that fitting was okay. During use, the tap performs as expected but should really be supplied with an for the spout to prevent capillary action causing the dripping. The spout also actually feels quite loose when it is turned but I was told by the plumber that this was okay. The overall finish of the tap is okay but the screw on the spout nozzle could be a better machine threaded fit. I have since seen some negative reports about this type of tap so will just have to see how things go.

Helpful?

Images Uploaded by the users:

OVERALL RATING 4 Stars

Quality:
Value For Money:
Style:

Catherine LITTLEHAMPTON Date: November 15, 2017

Lovely solid tap at a good price

This is a lovely solid tap at a good price. At first it dribbled a bit after turning off the tap but after about a week or so this stopped. It's lovely to use and looks good too. Recommended. Was easy for a plumber to fit.

Helpful?

OVERALL RATING 5 Stars
