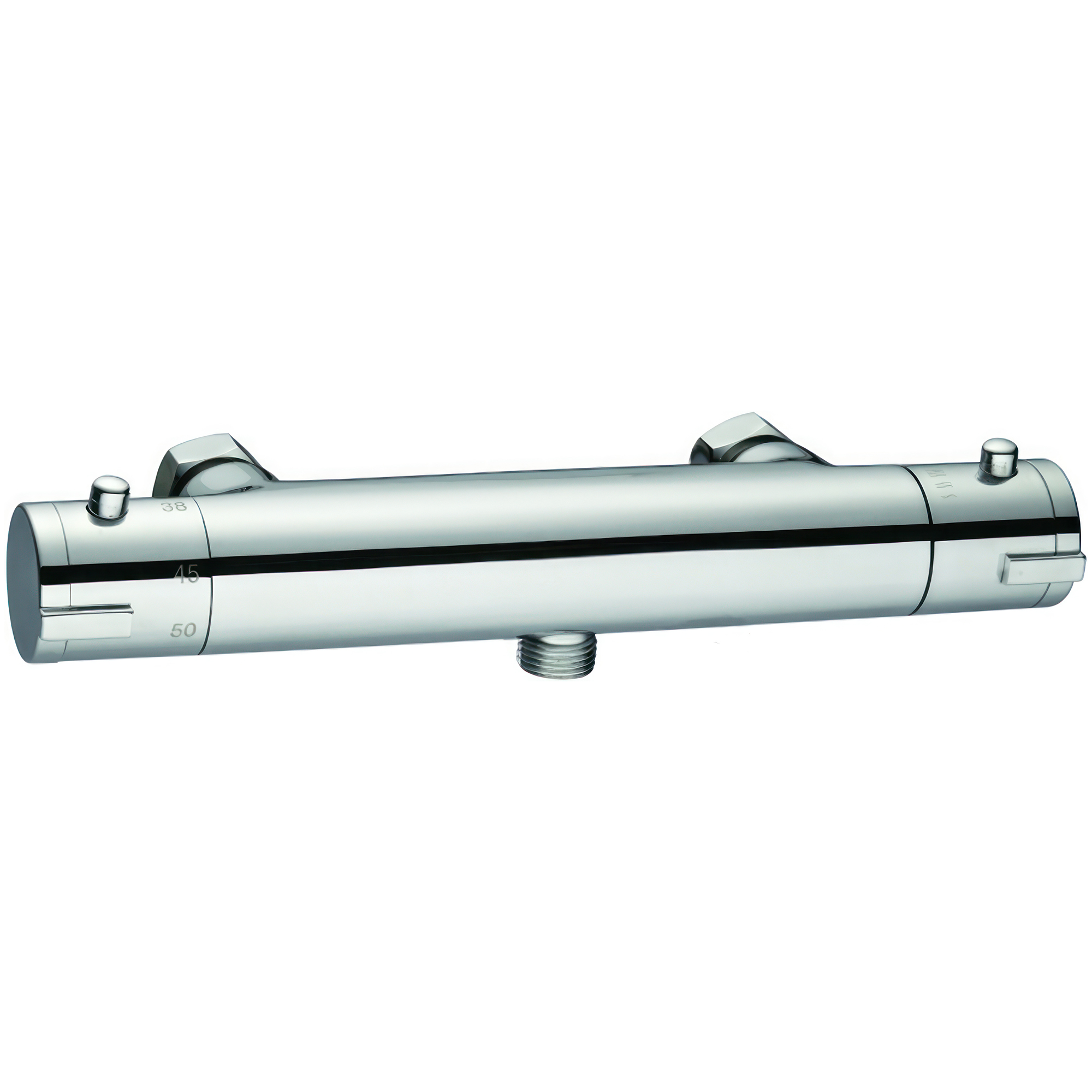

Lecico Aqua-R Exposed Round Thermostatic Chrome Bar Shower Valve, 2 Controls

Lecico Aqua-R Details

MFC: TPAQR11

Lecico Aqua-R Thermostatic Exposed Chrome Bar Shower Valve - 2 Controls - Knob Handles.

Key Features

✔Manufactured Using Brass, ABS Material
✔Temperature Factory Set to at 38ºC
✔1/2-Inch Quarter-Turn Cartridge
✔Automatic Shut-Off in the Event of Cold Water Supply Failure
✔10-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Manufacturing Code of this Product: TPAQR11
Comes in a Chrome Finish
Cool Touch Technology: The valve body remains cool to the touch during operation, enhancing safety by preventing burns from accidental contact with hot surfaces
Dual Control - Flow and Temperature are Controlled Separately
Size [mm]: 271 x 74 x 40mm [Width x Depth x Height]
Size [cm]: 27.1 x 7.4 x 4cm [Width x Depth x Height]
Inlet Connection: G3/4-Inch
Outlet Connection: G1/2-Inch
Inlet Centres: 150mm [15cm]
The Thermostatic Cartridge Maintains the Showering Temperature to +/- 2 °C, Giving a Stable Outlet Temperature
Suitable for Medium and High Water Pressure Systems
Requires a Minimum of 0.2 Bar or Above 5.0 Bar of Water Pressure
Flow Rates: 5.8ltr at 0.5 Bar, 8.3ltr at 1 Bar, 14.5ltr at 3 Bar
Weight: 1.3kg
Refer to the Technical Drawing for Size Details
Easy Fix Kit with Round Shrouds - [Optional]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Aqua R
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Centres
: 150
⤷ Width
: 271
⤷ Inlet Connections
: G 3/4"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 5.7ltr at 0.5 Bar, 8.3ltr at 1 Bar, 14.4ltr at 3 Bar

⤷ Handle Style
: Knob
⤷ Technologies
: Cool Touch
⤷ Depth
: 74
⤷ Temperature Control
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: G 1/2"
⤷ Orientation
: Landscape
⤷ Barcode
: 5057199983701
⤷ Product Type
: Bar Shower Valve
⤷ Plumbing Option
: Exposed
⤷ Maximum Operating Pressure (Bar)
: 5
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Quarter Turn Cartridge
⤷ Separate Flow and Temperature Controls
: Yes

Lecico Aqua-R Exposed Round Thermostatic Chrome Bar Shower Valve - 2 Controls

£126.56

RRP: ~~£158.20~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
