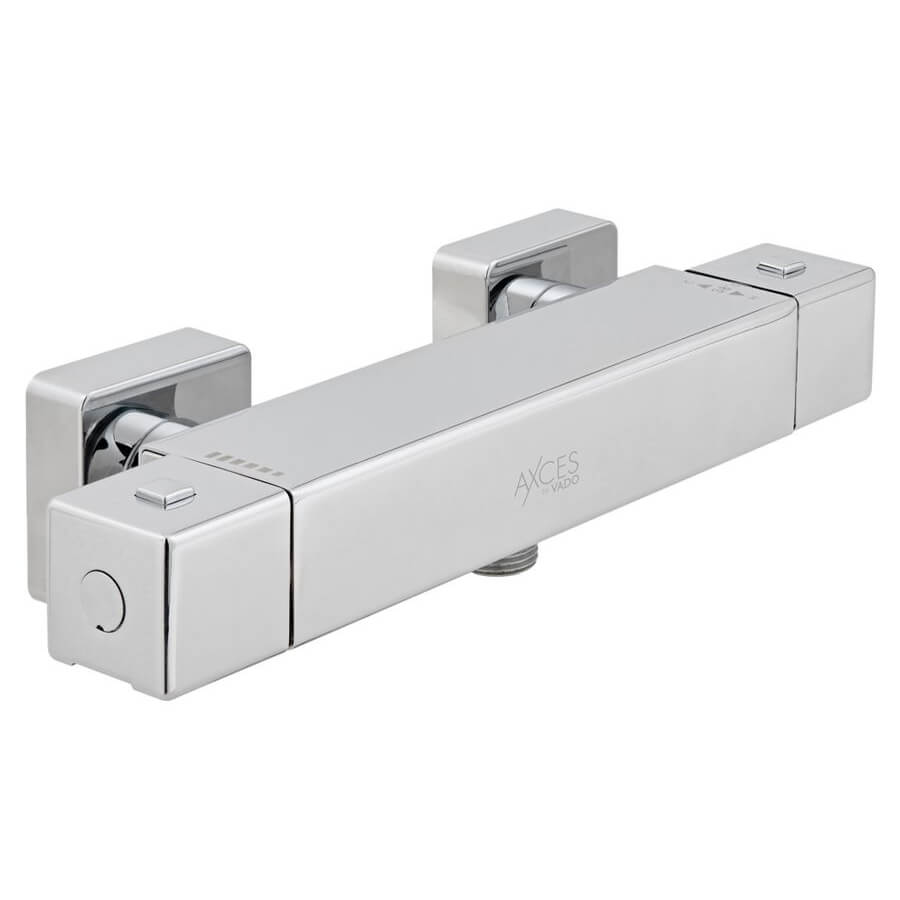

Vado Axces Bokx Exposed Square Thermostatic Chrome Shower Valve, 1 Outlet

Vado Axces Bokx Details

MFC: AX-BOK-149T-CP

Vado Axces Bokx Exposed Contemporary Square Thermostatic Chrome Shower Valve - 1 Outlet - 2 Controls

Manufacturing Code of this Product: AX-BOK-149T-CP
It Comes in a Chrome Finish
Mounting: Wall Mounted
Handles: 2 Handles
Size [mm]: 282 x 84 x 60mm [Width x Depth x Height]
Size [cm]: 28.2 x 8.4 x 6cm [Width x Depth x Height]
Inlet Centres: 150mm [15cm]
Compatible with Easy-Fix Brackets
Connections/Fittings: 1/2 Inch x 3/4 Inch x 50mm eccentrics
Thermostatic Technology Ensures the Protection of All Users
Sirkel Features Cool Touch Technology to Prevent the Risk of Scalding
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Suitable for High Water Pressure Systems
Works On a Minimum 1.0 Bar to a Maximum 5.0 Bar Water Pressure System

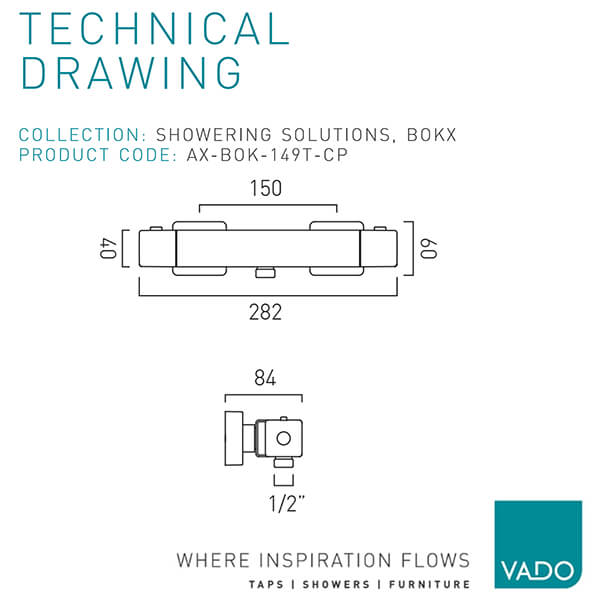

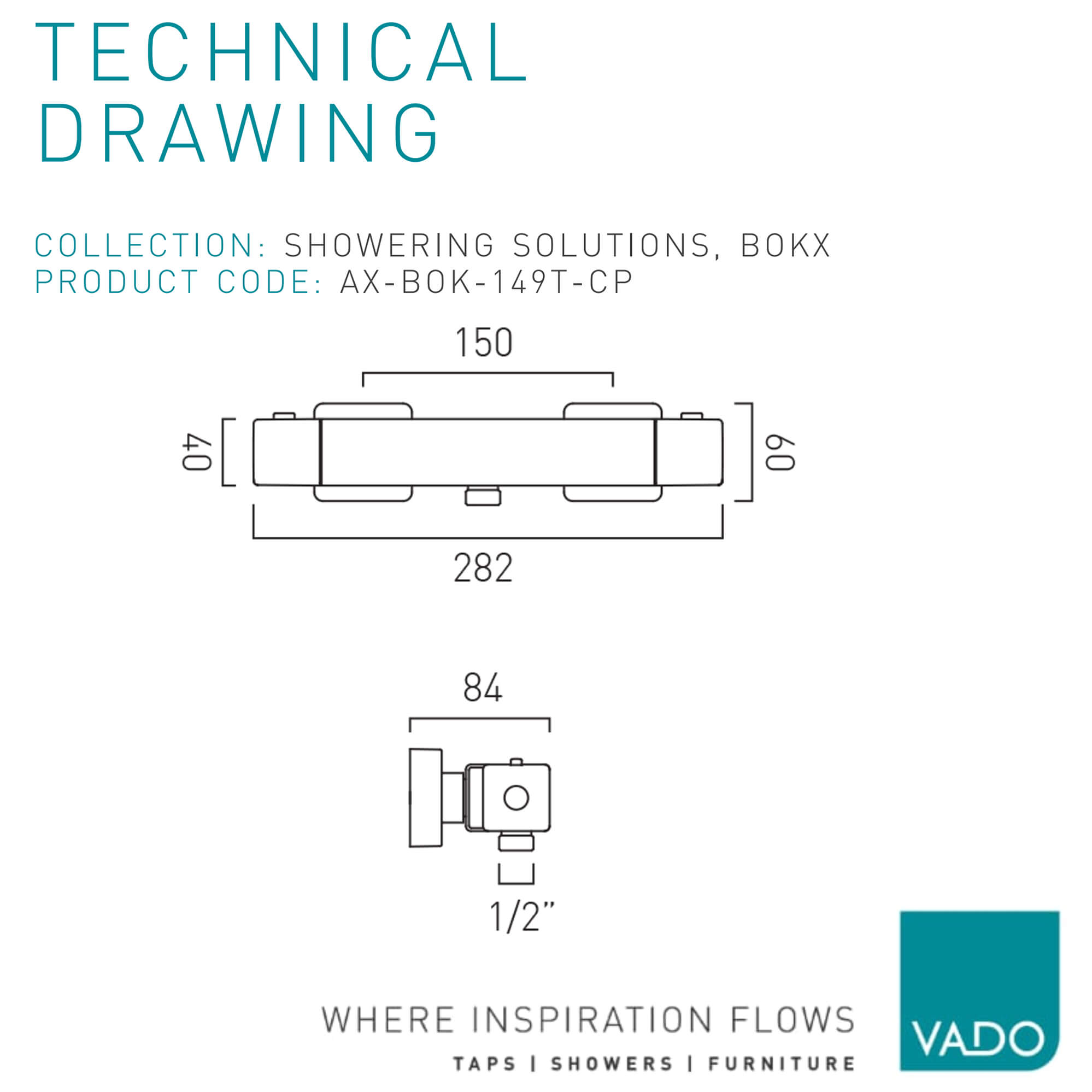

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axces
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left And Right
⤷ Colour
: Chrome
⤷ Shape
: Square
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Inlet Centres
: 150
⤷ Overall Height
: 60
⤷ Width
: 282

⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Knob
⤷ WRAS Approved
: Yes
⤷ Depth
: 84
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Orientation
: Landscape
⤷ Barcode
: 5052120236031
⤷ Product Type
: Shower Valve
⤷ Plumbing Option
: Exposed
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

This item can also be found in:

Exposed Shower Valves

Vado Axces Bokx Exposed Contemporary Square Thermostatic Chrome Shower Valve - 1 Outlet - 2 Controls

£96.00

RRP: ~~£160.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
