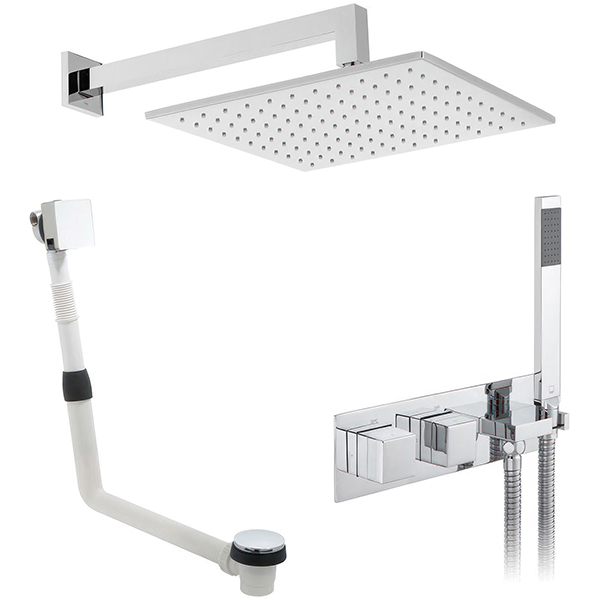

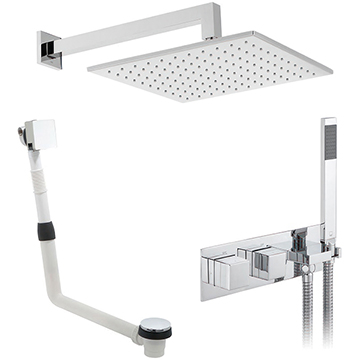

Vado Tablet iO Notion 3 Controls Thermostatic Chrome Shower Set

Vado Tablet iO Notion Details

MFC: TAB-1753/WO-NOT-CP

Get the most out of your showering experience by being in control of every aspect with the Vado Tablet Notion 3 Outlet Thermostatic Chrome Shower Set. The Set includes three outlets thermostatic shower valves with an integrated outlet, head, arm, handset, hose and all-flow function. It is ideal for use with medium-pressure water systems. It features a chrome finish that makes it simple to incorporate into any of the decors in your modern bathroom. Its high quality construction with chrome finish justifies the 15 Years guarantee. The product also includes a mortar/tile guard.

Manufacturing Code of this Product: TAB-1753/WO-NOT-CP

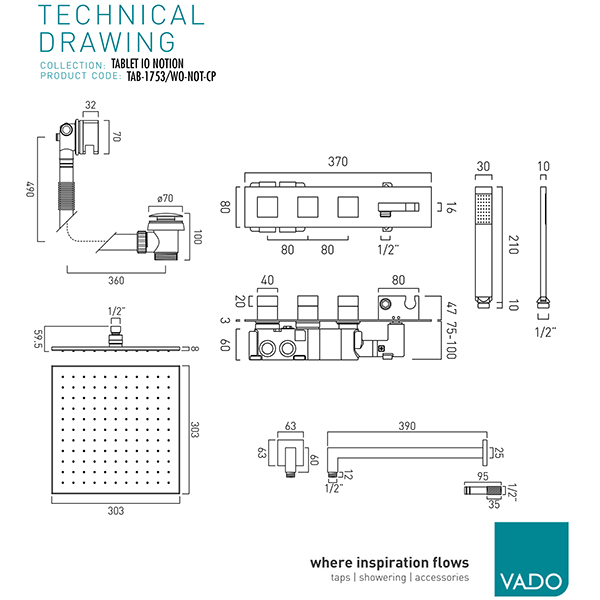

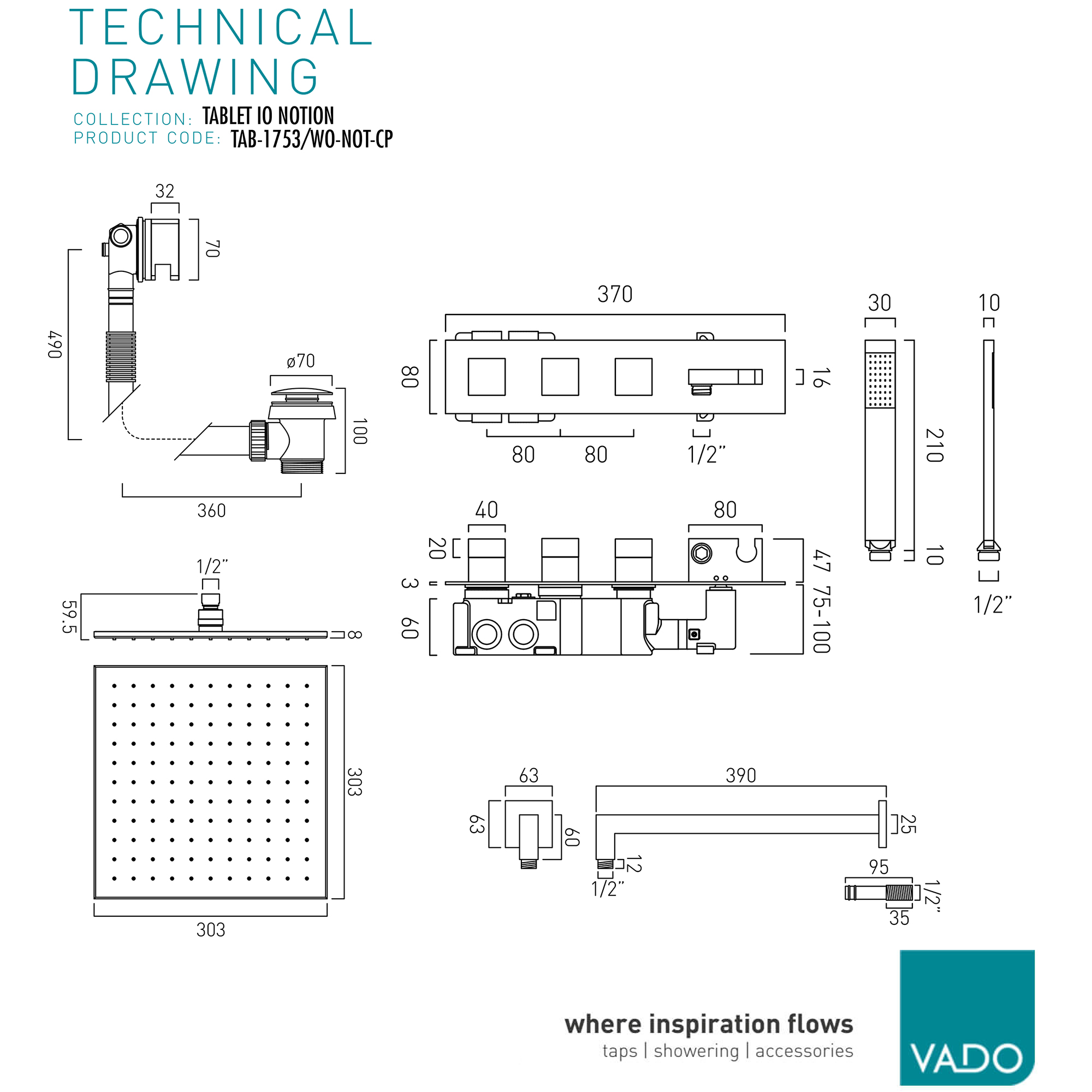

Refer to the Technical Drawing for Complete Size Details
Download the Installation Instruction PDF File from the Additional Info Section
Shower Set Includes:
3 Outlets 3 Controls Thermostatic Shower Valve with Integrated Outlet, Handset, Hose and All-Flow Function: TAB-128/3WO-NOT-CP
Nebula 300mm Square Head and Shower Arm: NEB-SQ/30-SA-CP
Square Clic-Clac Bath Filler Waste and Overflow: WG-81389/SQ-C/P
Features of Shower Kit
WRAS Approved
Size of Valve [mm]: 370 x 75-100 x 80mm [Width x Depth x Height]
Size of Valve [cm]: 37 x 7.5-10 x 8cm [Width x Depth x Height]
Size of Handset [mm]: 30 x 210mm [Width x Height]
Size of Handset [cm]: 3 x 21cm [Width x Height]
Number of Outlet: 3
Orientation: Horizontal
Valve Type: Concealed
Supplied with Mortar/ Tile Guard
All-Flow' Function - Delivers Water to Either Outlet Independently or All Outlets Simultaneously
Thermostatic Cartridge: V-704-34S
Diverter Cartridge: FL-802-33/2MX
Flow Cartridge: FL-301-RTC
Minimum Operating Pressure: 0.2 Bar LP [Shower] / 1.0 Bar MP [Bath]
Maximum Operation Pressure: 5.0 Bar [High Pressure]
Connection Fittings: 2 x 3/4 Inch Female Inlets 2 x 3/4 Inch Female Outlets, 1 x 1/2 Inch Male Outlet
Installation Tolerances: Min-Max Wall Mount 75-100mm [7.5-10cm]
Optimum Installation: Depth 87mm [8.7cm]
With Thermostatic Technology: Yes
Compatible with Studfast
Flow Regular For Shower Handset: FR-SHOWER/9-C/P - [Optional]
Features of Shower Head with Arm
Square Single Function Shower Head
Rub-Clean Nozzles
Comes with Shower Arm
Size [mm]: 303 x 59.5 x 303mm [Width x Depth x Height]
Size [cm]: 30.3 x 5.95 x 30.3cm [Width x Depth x Height]
Arm Length: 390mm [39cm]
Installation: Wall Mounted
Flow Regular For Shower Head: FR-SHOWER/9-PLA - [Optional]
Features of Bath Filler Waste
Clic-Clac Bath Filler Waste and Overflow
2 x 1/2” inlets [One is Blanked off]
1.1/2” x 10mm Threaded Outlet Connection
Min-Max Overflow Bath Thickness 1mm-18mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Inlet Connections
: 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar LP [Shower] / 1.0 Bar MP [Bath]
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 370

⤷ Backplate Height
: 80
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Pumped System, Combination Boiler, Pressurised System
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 303

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Vado Tablet iO Notion 3 Controls Thermostatic Chrome Shower Set

£797.50

RRP: ~~£1450.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.

All Flow

The All flow function within the shower valves enables the water to flow to either individual shower outlets or all outlets simultaneously.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.
