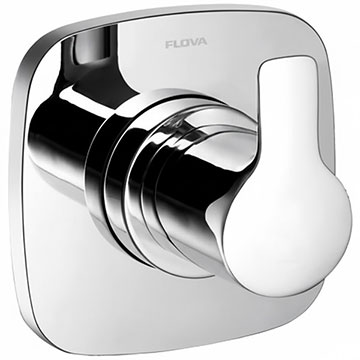

Flova Urban Concealed Thermostatic Shower Mixer Valve, 1 Control, URT111

Flova Urban Details

MFC: URT111

The Flova Urban Concealed Thermostatic Shower Mixer Valve is suitable for installation within any medium-pressure water system, requiring only 0.5 bar of water pressure to function as intended. Designed for use with a single outlet, this product will also require a banking plug separately alongside it if installed for single outlet use. Complete with a safety lock and anti-scalding, this model allows two outlets to be run simultaneously if needed as well. This is a sleek and stylish unit that makes the perfect addition to any modern shower set-up, anywhere.

Manufacturing Code of this Product: URT111
Number of Outlets: 1
Installation Type: Wall Mounted / Concealed
Comes in a Diamond Chrome Finish
Size [mm]: 100 x 100mm [Width x Height]
Size [cm]: 10 x 10cm [Width x Height]
Requires Separate Flow Control
Minimum Water Pressure Recommended for Smooth Working is 0.5 bar [MP-Medium Pressure]
Fully Compatible with UK Plumbing Systems
Refer to the Technical Image for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Urban
⤷ Colour
: Diamond Chrome
⤷ Shape
: Square
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 35-50
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Lever

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100
⤷ Backplate Height
: 100
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Orientation
: Portrait
⤷ Barcode
: 5057199929747
⤷ Product Type
: Shower Valve
⤷ Plumbing Option
: Concealed
⤷ Concealed Body Included
: Yes

Additional Info & Downloads

This item can also be found in:

Concealed Shower Valves

Flova Urban Concealed Thermostatic Chrome Shower Mixer Valve - 1 Control - Square Trim

£420.00

RRP: ~~£525.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
