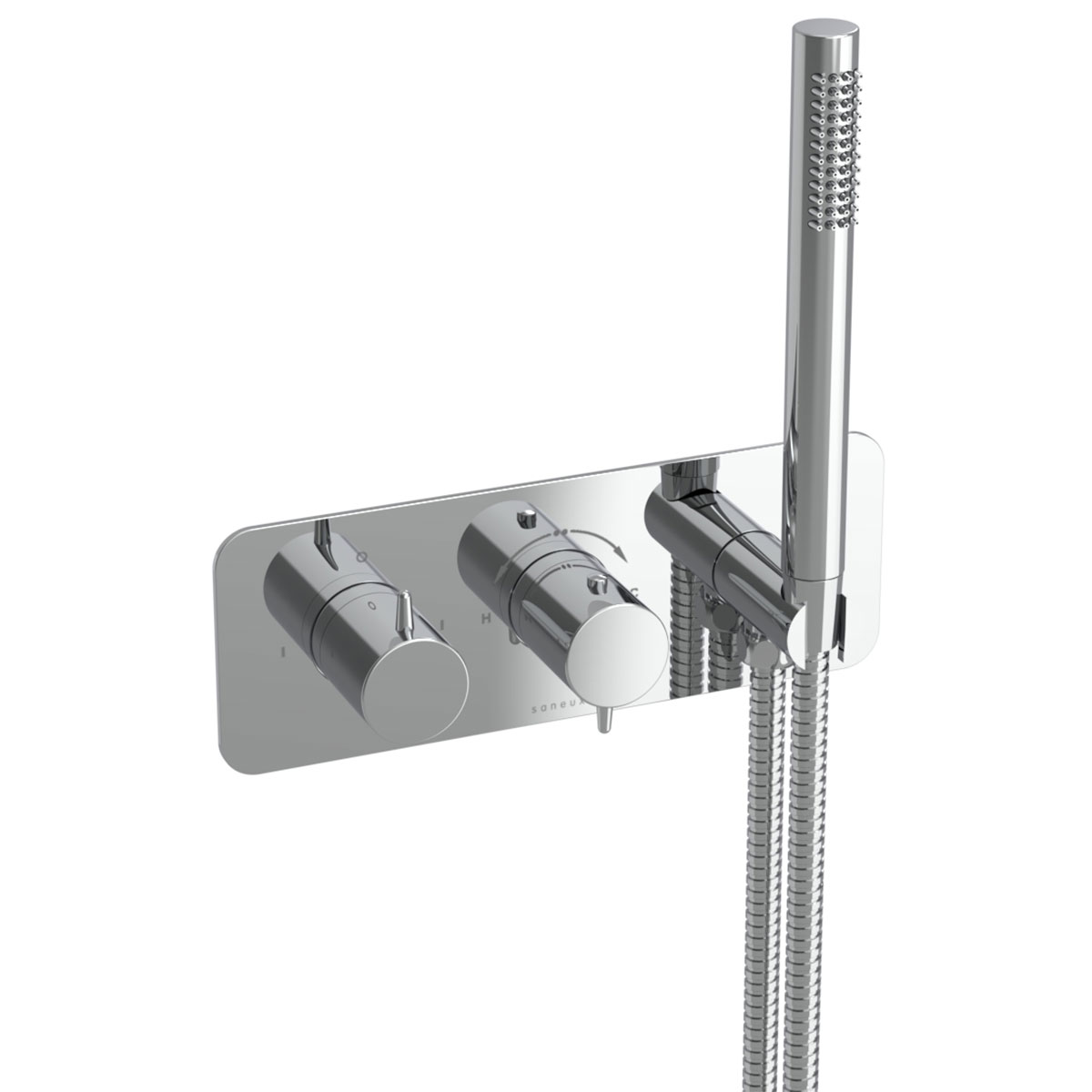

Saneux Eden Concealed 2-Way Thermostatic Shower Valve Kit with Hand Spray

Details

MFC: ED020L.H

Saneux Eden Concealed 2-Way Thermostatic Shower Valve Kit with Hand Spray - Landscape.

Key Features

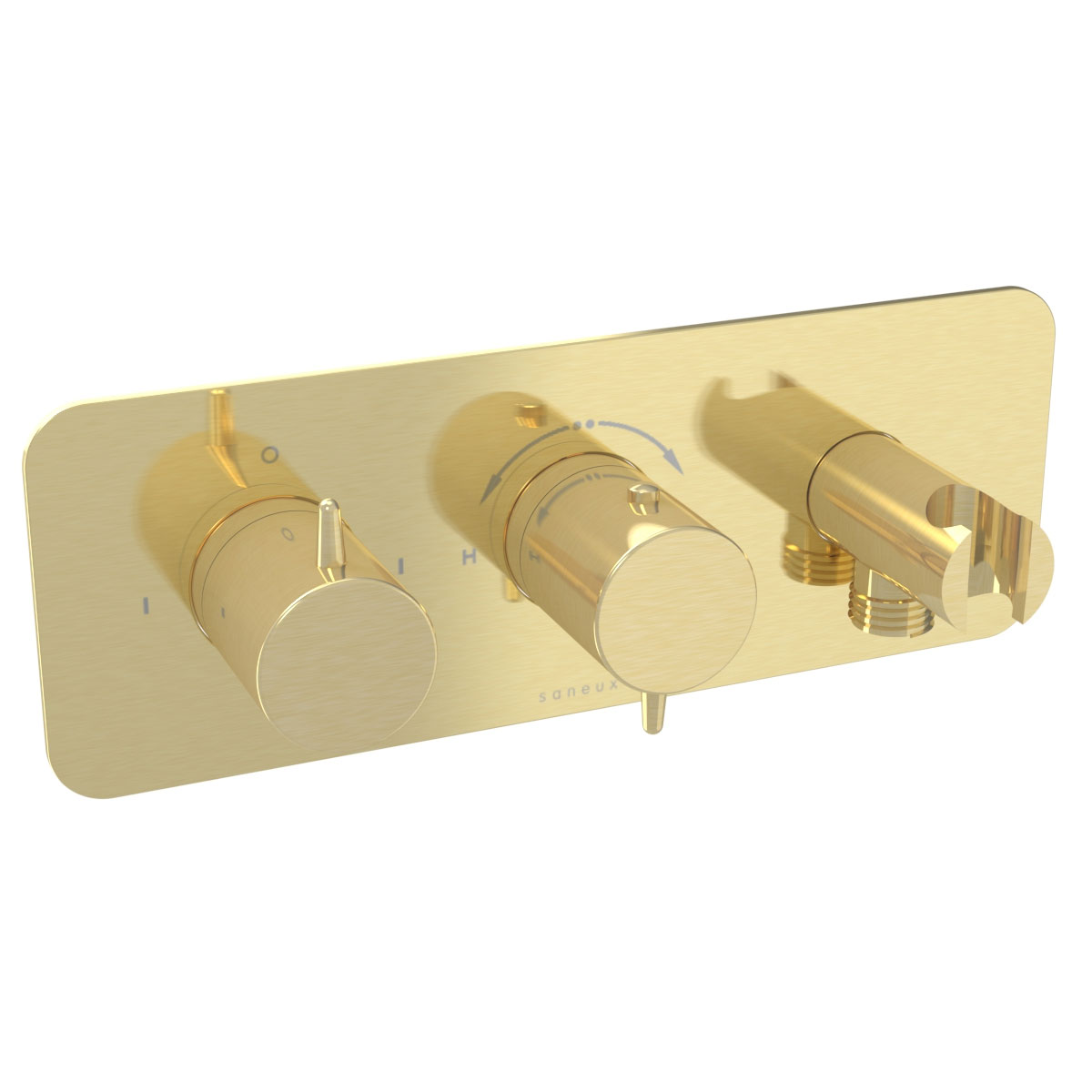

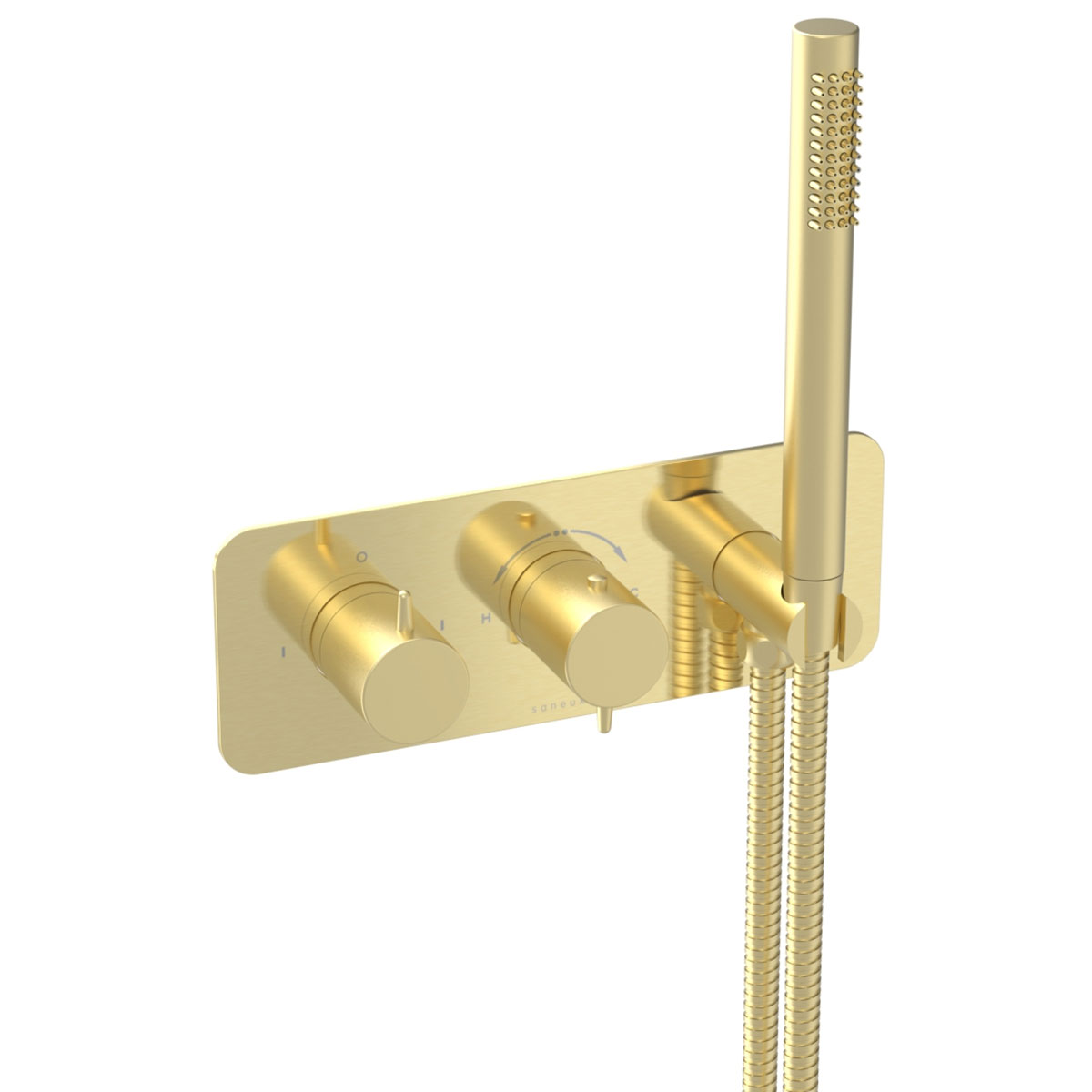

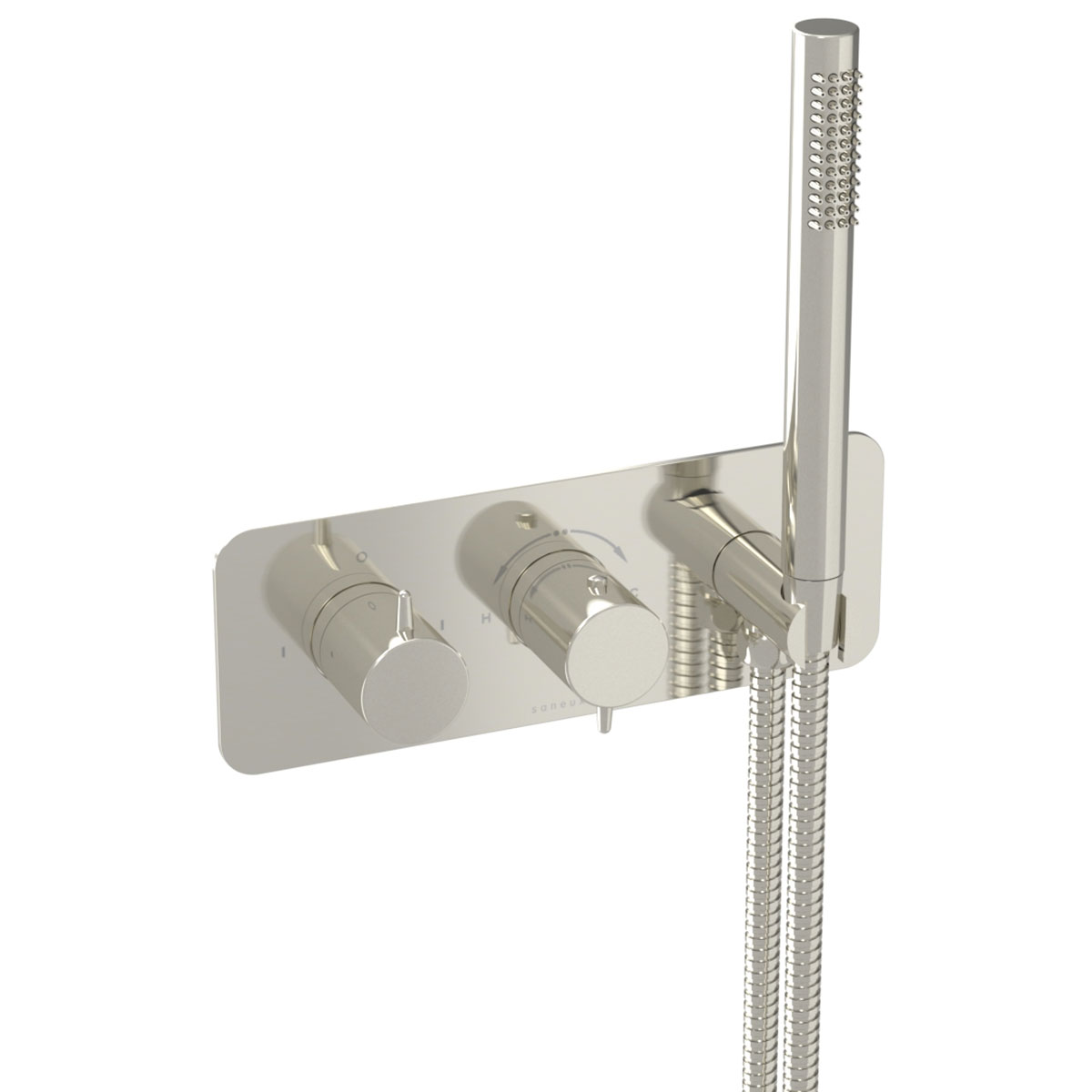

✔Available Finishes: Chrome, Brushed-Brass and Brushed-Nickel [Optional]
✔Kit Includes: Valve Body, Trim-Set, Shower Hose and Handset
✔Material: Stainless Steel, Brass
✔Guarantee: 5-Years from Saneux against manufacturing defects

Suitable for Landscape Installation
WRAS Approved
Refer to the technical Drawing for more technical details
Download Customer Datasheet from the Additional Info & Download section

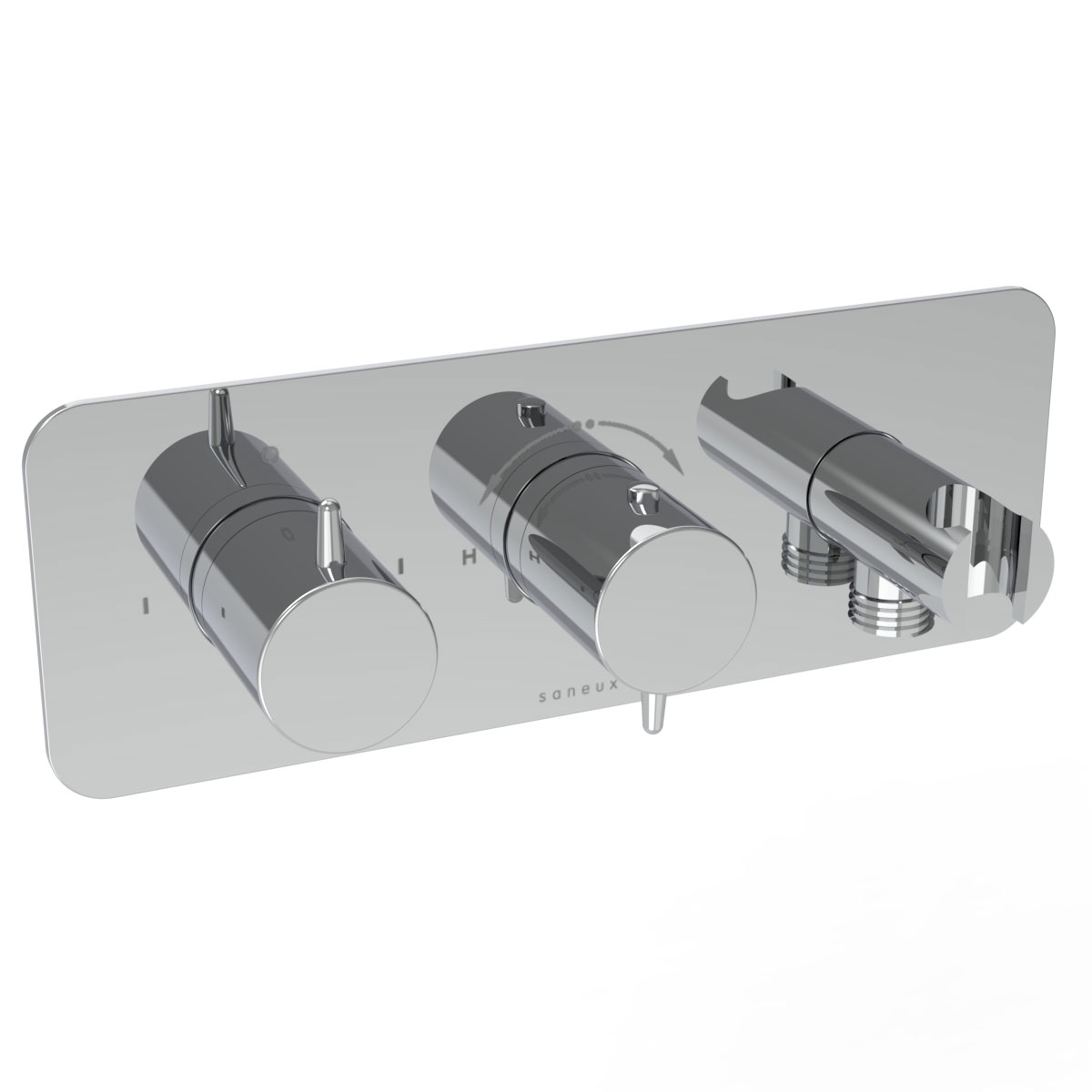

Trim Set
Backplate
2 Handles
Outlet Elbow
Size of Backplate: Width 275 x Height 100mm
Valve Body
Wall Cavity required: Minimum 80 and Maximum 95mm
Inlet Centres: 80mm
Thermostatic Control
2 Holes
Material: Brass
2 Outlets - control of a shower head and handset, a handset and bath filler, or a shower head and bath filler
The left handle operates the on/off function for both outlets
The right handle controls the water temperature
Supplied complete with a handset and holder
Shower Hose
Braided design
Material: Stainless-Steel
1500mm Length
Weight: 0.24 Kg
WRAS approved
G1/2 Inch Outlet Connection
Handheld Shower
Range: COS
Slim Round Shower Handset
Single Function Handset
Size: Ø24 x Height 210mm
Depth: 27.5mm
Material: Brass
Weight: 0.2 Kg
G1/2 Inch Inlet Connection

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Eden
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Stainless-Steel | Brass
⤷ Theme
: Modern
⤷ Installation Type
: Concealed
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 80
⤷ Inlet Connections
: G1/2 Inch
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500mm
⤷ Hand-Shower Included
: Yes

⤷ Flow Rates (l/min)
: 1Bar - 16 | 2Bar - 22.5 | 3Bar - 28.5
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Depth
: 50
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 275
⤷ Backplate Height
: 100
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 2
⤷ Outlet Connection
: G1/2
⤷ Orientation
: Landscape
⤷ Product Type
: Shower Valve | Handset
⤷ Building-in Depth Required
: 80-95
⤷ Concealed Body Included
: Yes

Additional Info & Downloads

Download the Customer DataSheet Pdf File Download the AfterCare Pdf File Download the Manual Instruction Pdf File

This item can also be found in:

Saneux Eden Concealed 2-Way Thermostatic Shower Valve Kit with Hand Spray - Landscape

£436.00

STOCK AVAILABLITY: 7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
