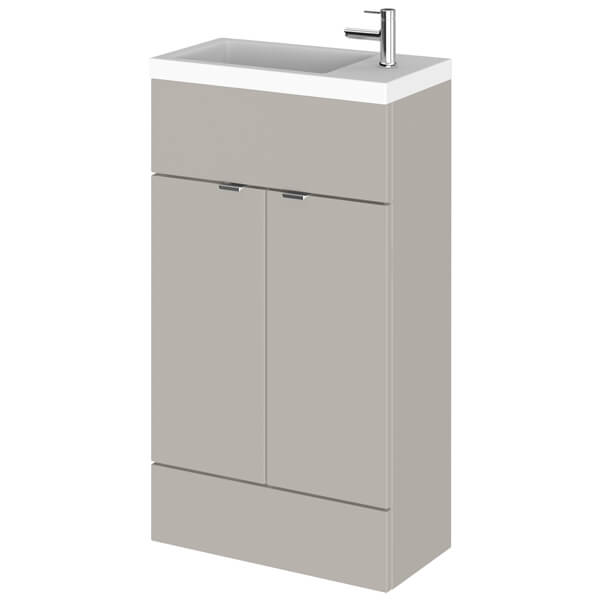

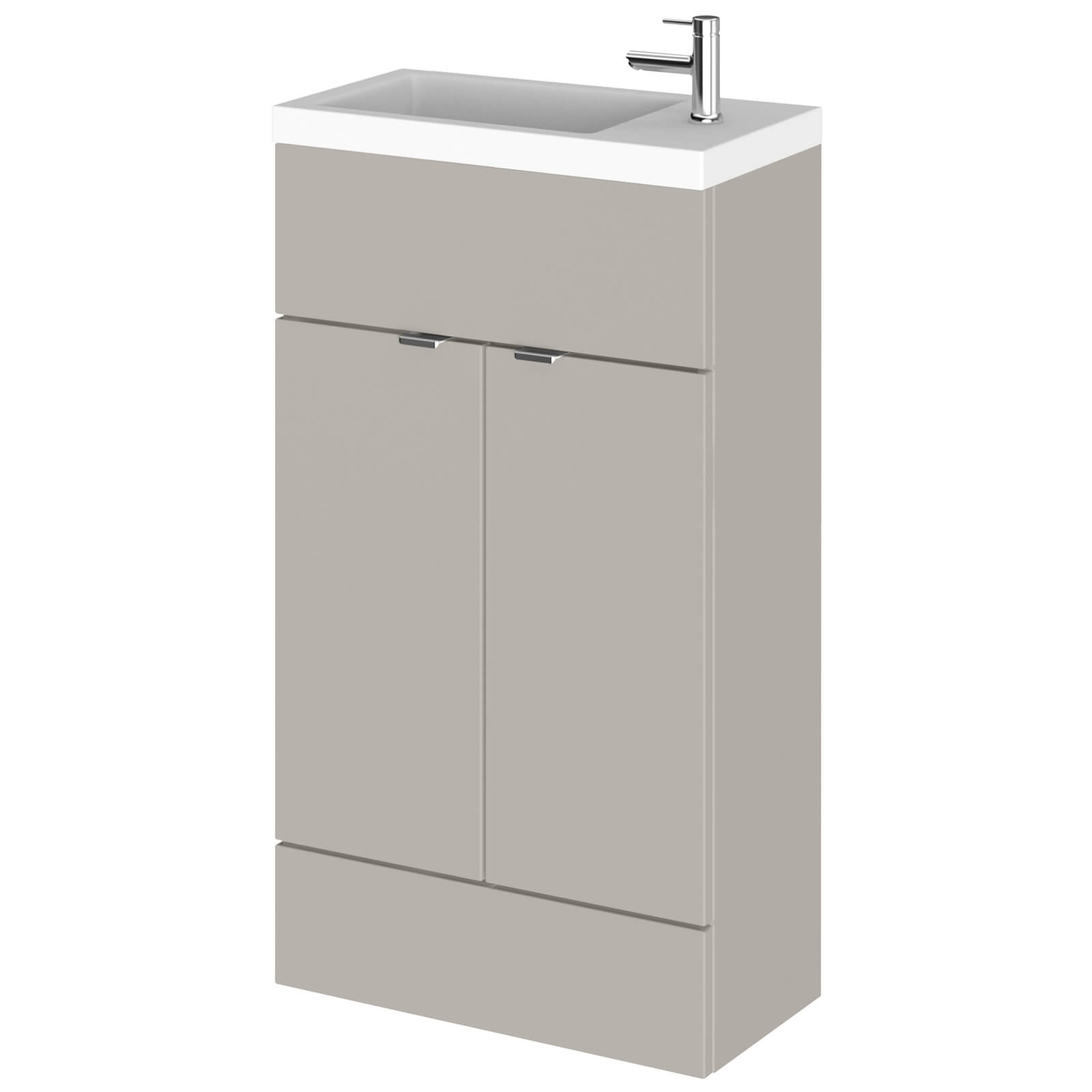

Hudson Reed Fusion 505 X 260mm Floor-Standing Slimline Vanity Unit And Basin

Hudson Reed Fusion CBI122 Details

The Hudson Reed Fusion Floor-standing Slimline Vanity Unit and Basin is a simple, spacious product that is supplied rigid and features cam and wood dowel construction with a poly-marble crafted basin placed on top. Designed with a thinner depth ideal for inclusion within cloakrooms or bathroom areas with especially limited space, this model also boasts 1 tap hole and overflow and cover. Complete with the fixings required for secure and proper installation; this product is suitable for installation within any modern bathroom design.

Choice of different finish: Gloss White, Natural Oak, Gloss Grey Mist, Grey Woodgrain, Black Woodgrain and Gloss Grey - [Optional]
Overall Size [mm]: 505mm x 260mm x 904mm [Width x Depth x Height]
Overall Size [cm]: 50.5cm x 26cm x 90.4cm [Width x Depth x Height]
Made in Britain to the highest quality standard
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the technical drawing for more technical specifications
Detail For Vanity Unit:
Size [mm]: 500mm x 253mm x 864mm [Width x Depth x Height]
Size [cm]: 50cm x 25.3cm x 86.4cm [Width x Depth x Height]
Cabinet Finish: MFC Painted Gloss
2 Soft close doors with one internal shelf
Hinge type: 95 Degree Clip-On Soft Close
Cabinet thickness: 16mm (1.6cm)
Fascia thickness: 18mm (1.8cm)
FSC Certified
Supplied Rigid
A thinner depth unit is ideal for cloakrooms or smaller bathrooms
Contemporary Wrapover handle in Satin nickel finish included
Choice of other handles in different finishes available [Optional]
Detail For Basin:
Size [mm]: 505mm x 260mm x 135mm [Width x Depth x Height]
Size [cm]: 50.5cm x 26cm x 13.5cm [Width x Depth x Height]
Inner bowl depth: 103mm (10.3cm)
40mm (4cm) Profile basin
It comes in a white finish
CE and UKCA Approved
Material: Polymarble
1 Side Taphole
Overflow and cover included
The tap shown in the image is not included

Info / Size (mm)

Unit
Width: 500 mm
Depth: 255 mm
Height: 864 mm

Basin
Width: 505 mm
Depth: 255 mm
Height: 135 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 135
⤷ Sink Projection
: 255
⤷ Sink Width
: 503
⤷ Range
: Fusion
⤷ Finish Front
: Gloss
⤷ Handle Finish
: Satin Nickel
⤷ Colour
: Gloss White
⤷ Weight in kg
: 23
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Floorstanding
⤷ Waste Included
: Sold Separately
⤷ Width
: 505
⤷ Depth
: 260
⤷ Compact Design
: Yes
⤷ Height
: 904
⤷ Fixings included
: Yes
⤷ No. of Tap Holes
: 1

⤷ Overflow Included
: Yes
⤷ Compliance/Approvals/Standard
: FSC Certification
⤷ Barcode
: 5055275887240
⤷ Number Of Doors
: 2
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit
⤷ Furniture Material
: MFC Painted Gloss
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Door Opening
: Left Right
⤷ Sink Material
: Polymarble
⤷ Number Of Sinks
: 1
⤷ Sink Shape
: Rectangular
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Hudson Reed Fusion 505 X 260mm Floor-Standing Slimline Vanity Unit And Basin

£184.37

RRP: ~~£528.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V98011	-	600mm Wide	CBI106

Back to QS-V98010 / MFC Code: CBI122

4 Features Included In This Product Explained

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Judith Asked :
Can the tap be used on either side?

Answered By QS Team

The tap can be used on the tap ledge of the basin only. However, the basin can be rotated to get the tap on either side.

Was this answer helpful?

James Asked :
Hi, no one was answering your phones so I’m writing this email to ask whether this unit has a shelf inside, and also what the recommended taps and waste are to go with it. A quick reply would be appreciated as we need to make a decision today

Answered By QS Team

The unit comes with 1 internal shelf. Any of the slotted waste would fit with the basin And For taps, you can refer our basin tap category.
For more information on basin and unit, you can download the Datasheet PDF available in "ADDITIONAL INFO" Section below the product. OR you can even download it from the link here

Was this answer helpful?
