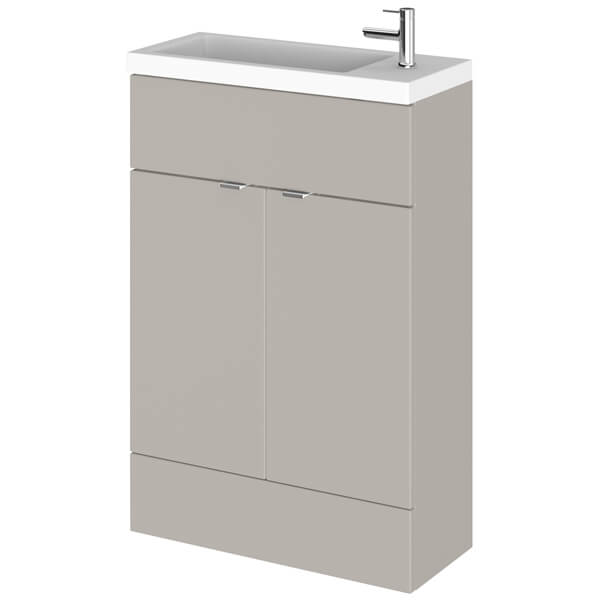

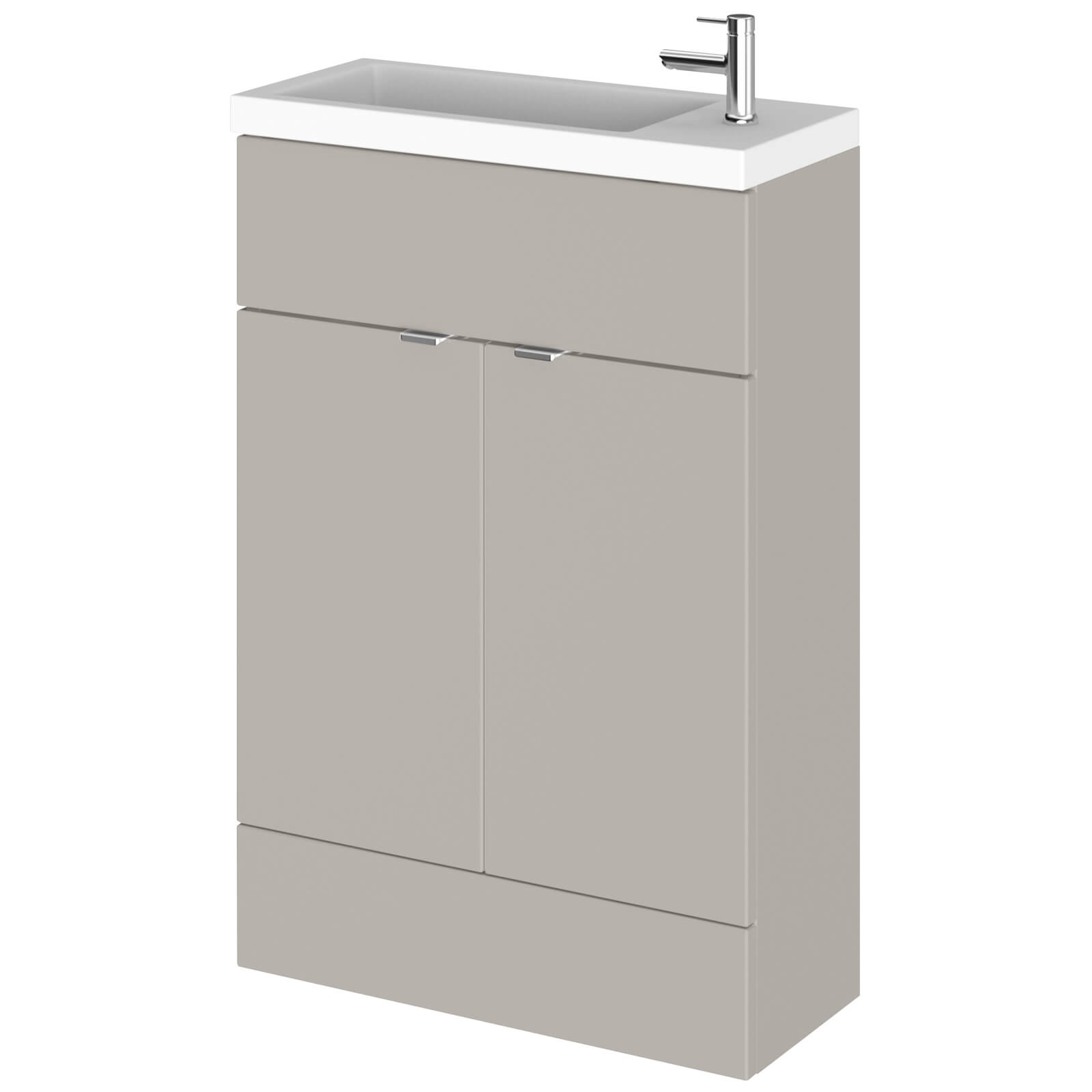

Hudson Reed Fusion Floor-Standing Slimline Vanity Unit And Basin

Hudson Reed Fusion CBI106 Details

The Hudson Reed Fusion Floor-standing Slimline Vanity Unit and Basin is a simple, spacious product supplied rigidly and features cam and wood dowel construction with a poly-marble crafted basin placed on top. Designed with a thinner depth ideal for inclusion within cloakrooms or bathroom areas with especially limited space, this model also boasts 1 tap hole and overflow and cover. Complete with the fixings required for secure and proper installation, this product is suitable for installation within any modern bathroom design. Pair it up with a mirror to give your bathroom a fab look.

Choice of finish available - Gloss White, Anthracite Woodgrain, Charcoal Black, Gloss Grey and Bleached Oak [Optional].
Overall Size [mm]: 605mm x 260mm x 904mm [Width x Depth x Height].
Overall Size [cm]: 60.5cm x 26cm x 90.4cm [Width x Depth x Height].
Made in Britain to the highest quality standard.
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.
Refer to the technical drawing for more technical specifications.
Details of Vanity Unit:.
Size [mm]: 600mm x 253mm x 864mm [Width x Depth x Height].
Size [cm]: 60cm x 25.3cm x 86.4cm [Width x Depth x Height].
2 Soft close doors with one internal shelf.
Hinge type: 95 Degree Clip-On Soft Close.
FSC Certified.
Fascia Finish: MDF Painted Gloss.
Cabinet Thickness: 16mm (1.6cm).
Fascia thickness: 18mm (1.8cm).
Supplied Rigid.

The thinner depth unit is ideal for cloakrooms or smaller bathrooms.
Contemporary Wrap over handle in Satin nickel finish included.
Choice of other handles in different finishes available [Optional].
Details of Basin:.
Size [mm]: 603mm x 255mm x 135mm [Width x Depth x Height].
Size [cm]: 60.3cm x 25.5cm x 13.5cm [Width x Depth x Height].
Inner bowl depth: 175mm (17.5cm).
40mm (4cm) Profile basin.
It comes in a white finish.
Material: Polymarble.
CE and UKCA approved.
1 Side Taphole.
Overflow and cover included.
Refer to the Technical drawing for More technical specifications.
The tap shown in the image is not included.

Info / Size (mm)

Unit
Width: 600 mm
Depth: 255 mm
Height: 864 mm

Basin
Width: 605 mm
Depth: 255 mm
Height: 135 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 135
⤷ Sink Projection
: 255
⤷ Sink Width
: 603
⤷ Range
: Fusion
⤷ Finish Front
: Gloss
⤷ Handle Finish
: Satin Nickel
⤷ Colour
: Gloss White
⤷ Weight in kg
: 26
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Floorstanding
⤷ Waste Included
: Sold Separately
⤷ Width
: 605
⤷ Depth
: 260
⤷ Compact Design
: Yes
⤷ Height
: 904
⤷ Fixings included
: Yes
⤷ No. of Tap Holes
: 1

⤷ Overflow Included
: Yes
⤷ Compliance/Approvals/Standard
: FSC Certification
⤷ Barcode
: 5055275887080
⤷ Number Of Doors
: 2
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit
⤷ Furniture Material
: MFC Painted Gloss
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Door Opening
: Left Right
⤷ Sink Material
: Polymarble
⤷ Number Of Sinks
: 1
⤷ Sink Shape
: Rectangular
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet For 600mm Unit And Basin Pdf File Download the Installation Instructions Pdf File

Total: £185.86 3-4 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V98010	-	500mm Wide	CBI122

Back to QS-V98011 / MFC Code: CBI106

5 Features Included In This Product Explained

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.

Soft-Close Opening

This product has a mechanism for doors and drawers to open or close slowly, silently and without loud slamming.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Reviews & Ratings

By: Lynda From : Tewin Overall Rating: Date: November 14, 2022 Cloakroom vanity and basin

We received excellent service from QS Supplies. The first unit had a small flaw, which they replaced quickly with a perfect version. Helpful and quick to respond. The unit looks great and the price was the best we found online. I recommend this company.

Images Uploaded by the users:

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Kenneth Asked :
Can the internal mid-shelf be removed to enable access and provide extra work space during installation?

Answered By QS Team

Yes, the mid-shelf is removable.

Was this answer helpful?

Kenneth Asked :
Hi, I've read the Customer Data Sheet for the product, which is very helpful, but I am still unsure whether or not the taphole for the sink is reversible. Can it be plumbed into either the right or left side? Also, for connecting to a waste pipe, is the cabinet designed to be fitted only with a bottle trap (or a flexible waste trap for furniture) and from there to a drain outlet above the height of the back panel? From what I can gather from the side-elevation drawing, the back panel is flush against the wall. Could I cut a 45mm hole in the back panel to access my existing waste-pipe drain hole in the cloakroom wall?

Answered By QS Team

The basin tap can be plumbed on either the left or right-hand side. A standard bottle trap would work fine with this product. You can cut the unit, but as with any product, if you have to cut the item to make it fit, any warranty would be void
