Bristan Hourglass Chrome Shower Pack With Fixed Head

Bristan HOURGLASS SHWR PK3 Details

The Bristan Hourglass Shower Pack with Fixed Head is a dual-control design that comes in a fashionable, contemporary look that fits in beautifully to nearly any compatible shower set-up. Manufactured from a strong and long-lasting ABS brass material and coated in a striking chrome finish, this pack includes a 250mm round, slim-line fixed shower head and 430mm long shower arm and two-outlet diverter valve. Suitable for use in both low- and high-pressure water systems, this product works best when attached to a water system that flows between 0.2 bar and 5 bar of water pressure.

Manufacturing code of this product: HOURGLASS SHWR PK3.
It comes in an attractive chrome finish.
Contemporary and stylish design.
Suitable for all plumbing systems.
Pack Includes:.

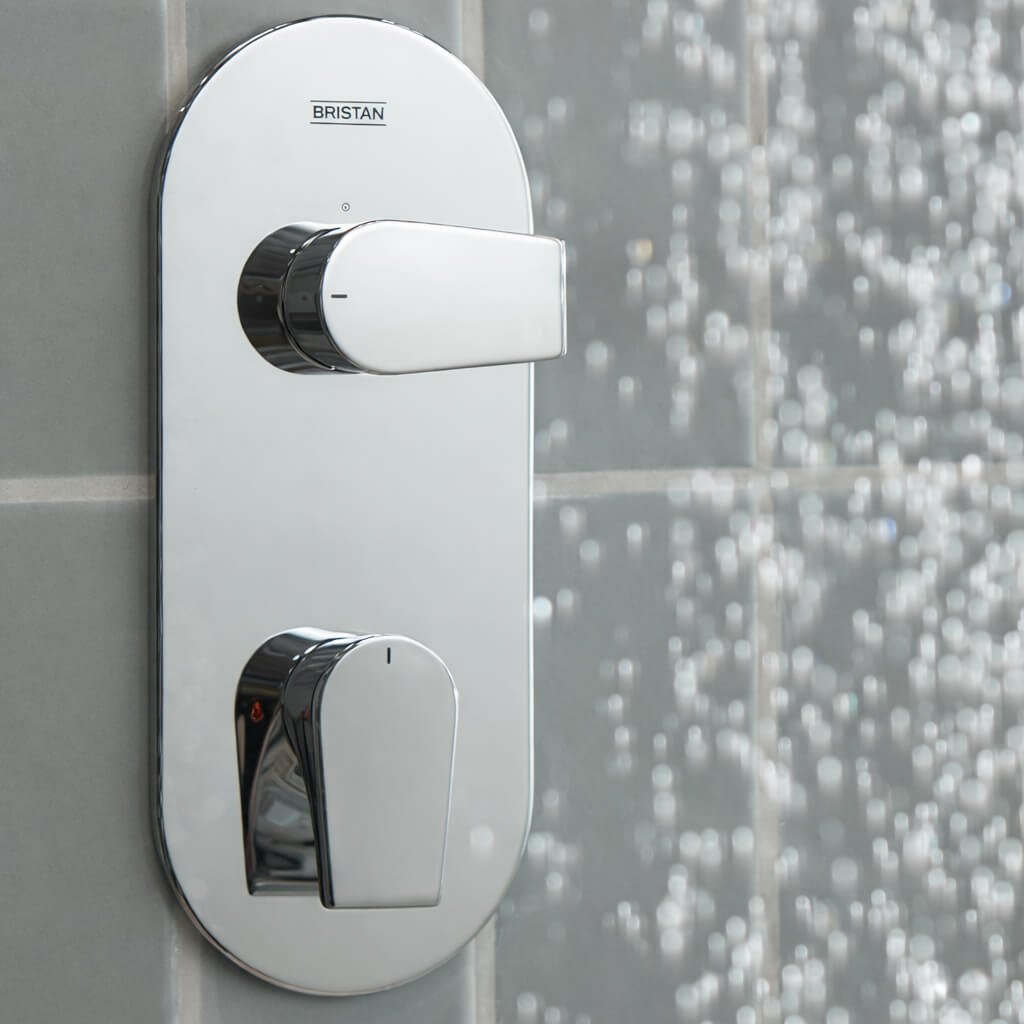

Intergal two outlet diverter valve.

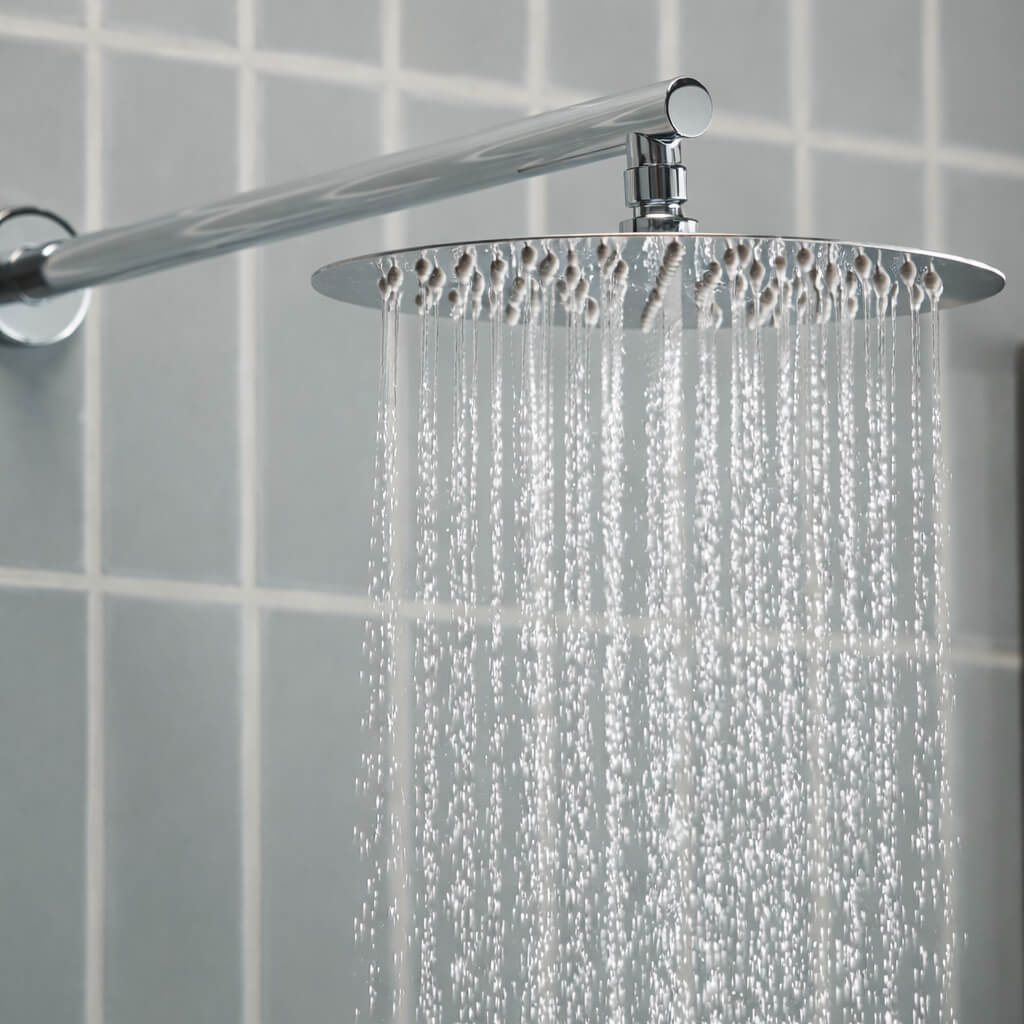

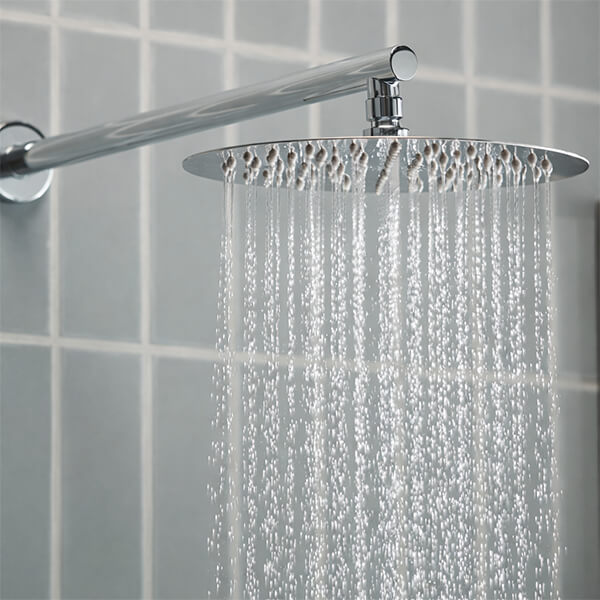

250mm round slimline fixed head with shower arm.

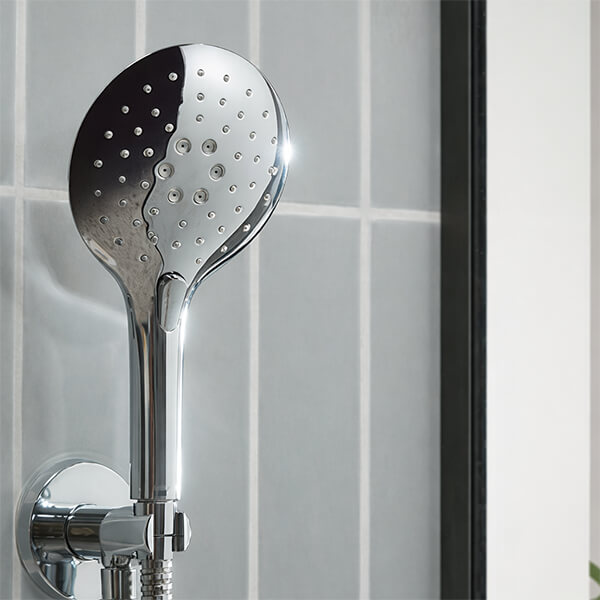

Large round three function push button handset and hose with integral handset holder and wall outlet.
Maximum hot water supply temperature: 65°C.
Size of shower head: Ø250mm - (25cm).

Shower arm length: 430mm - (43cm).
Inlet and outlet connection of shower arm: G 1/2 inch.
Inlet connections: 15mm compression.
Size of valve in [mm]: 100mm x 240mm [Width x Height].
Size of valve in [cm]: 10cm x 24cm [Width x Height].
Inlet centre: 150mm - (15cm).
Suitable for low and high water pressure systems.
Works on minimum 0.2 bar to maximum 5.0 bar water pressure system.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5-Years
⤷ Material
: ABS Brass
⤷ Theme
: Modern
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes

⤷ Backplate Width
: 100
⤷ Backplate Height
: 240
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Three Function
⤷ Shower Head Included
: Yes
⤷ Diverter Type
: Two Outlet Diverter

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £343.12 2 Working Days Approx QS Supplies

7 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
