Ideal Standard Ceratherm Alu+ Exposed Thermostatic Shower System

Ideal Standard Ceratherm Alu+ Details

MFC: BD579RO

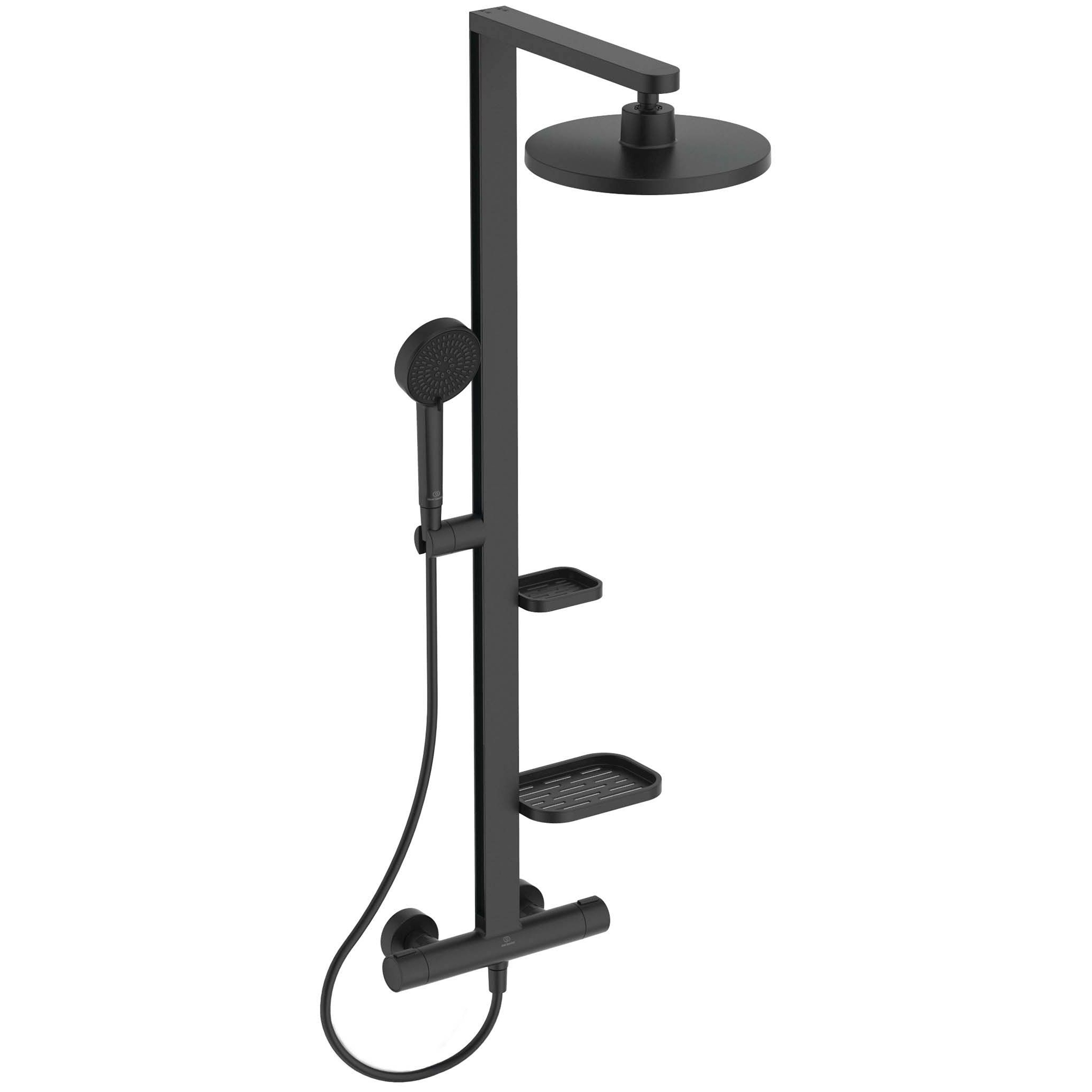

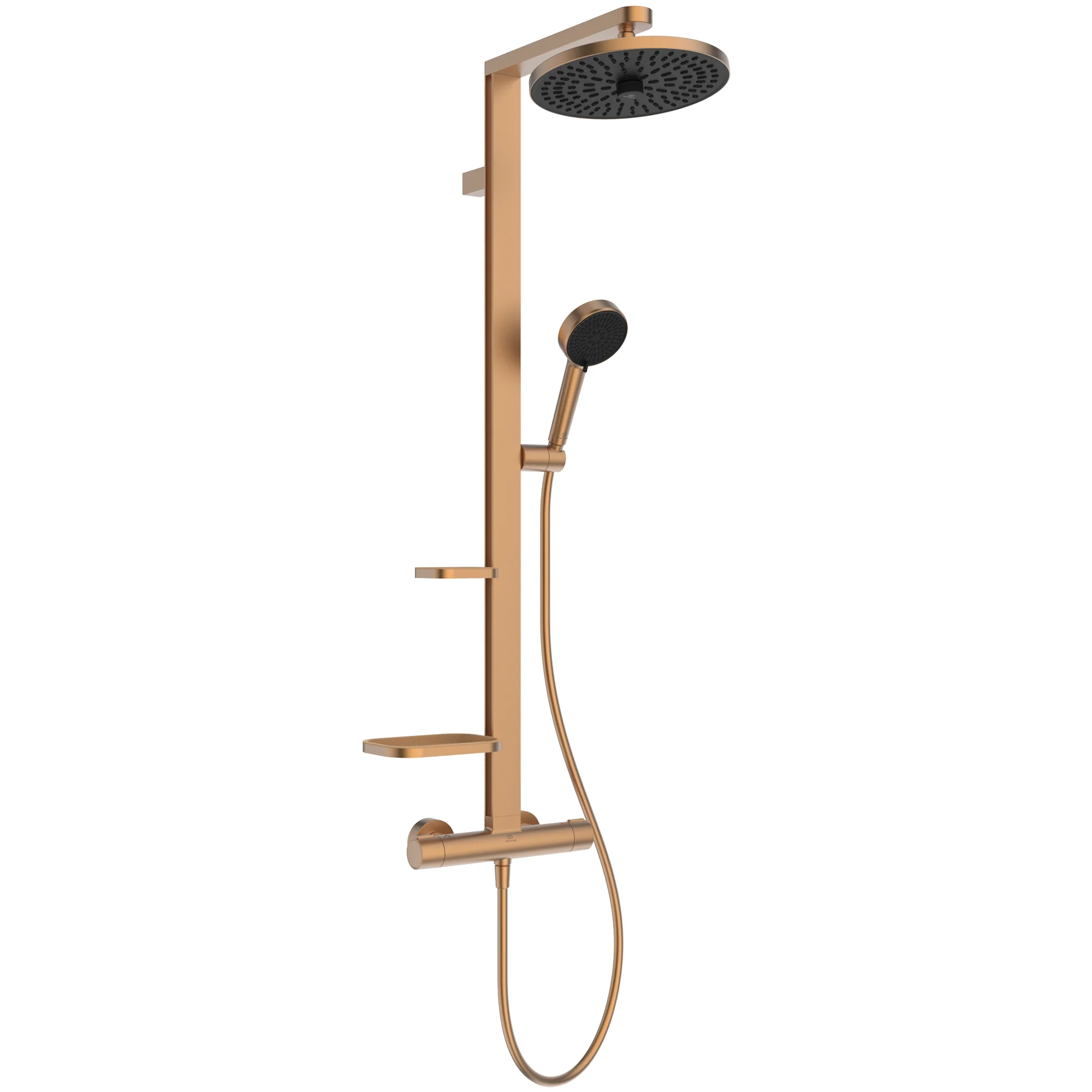

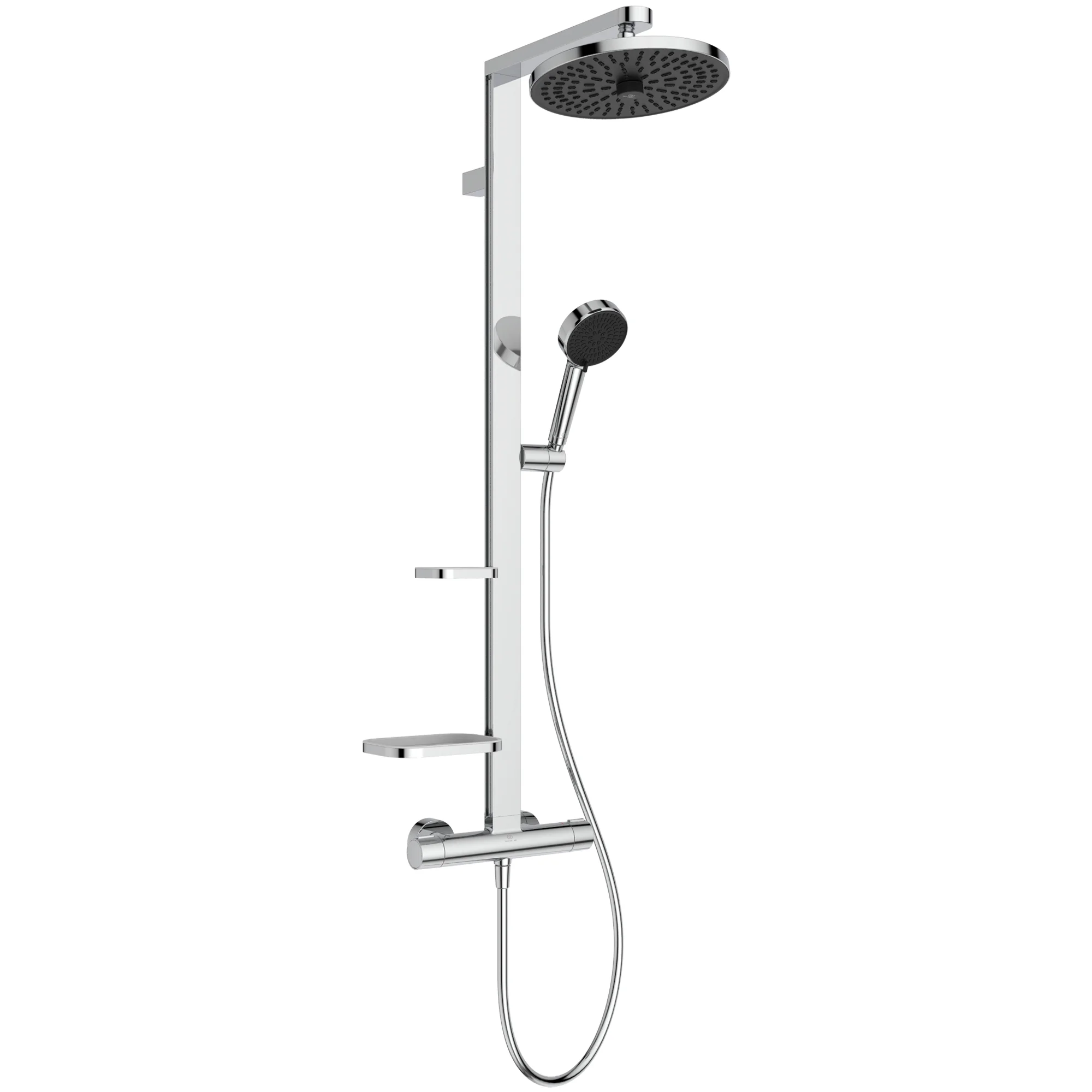

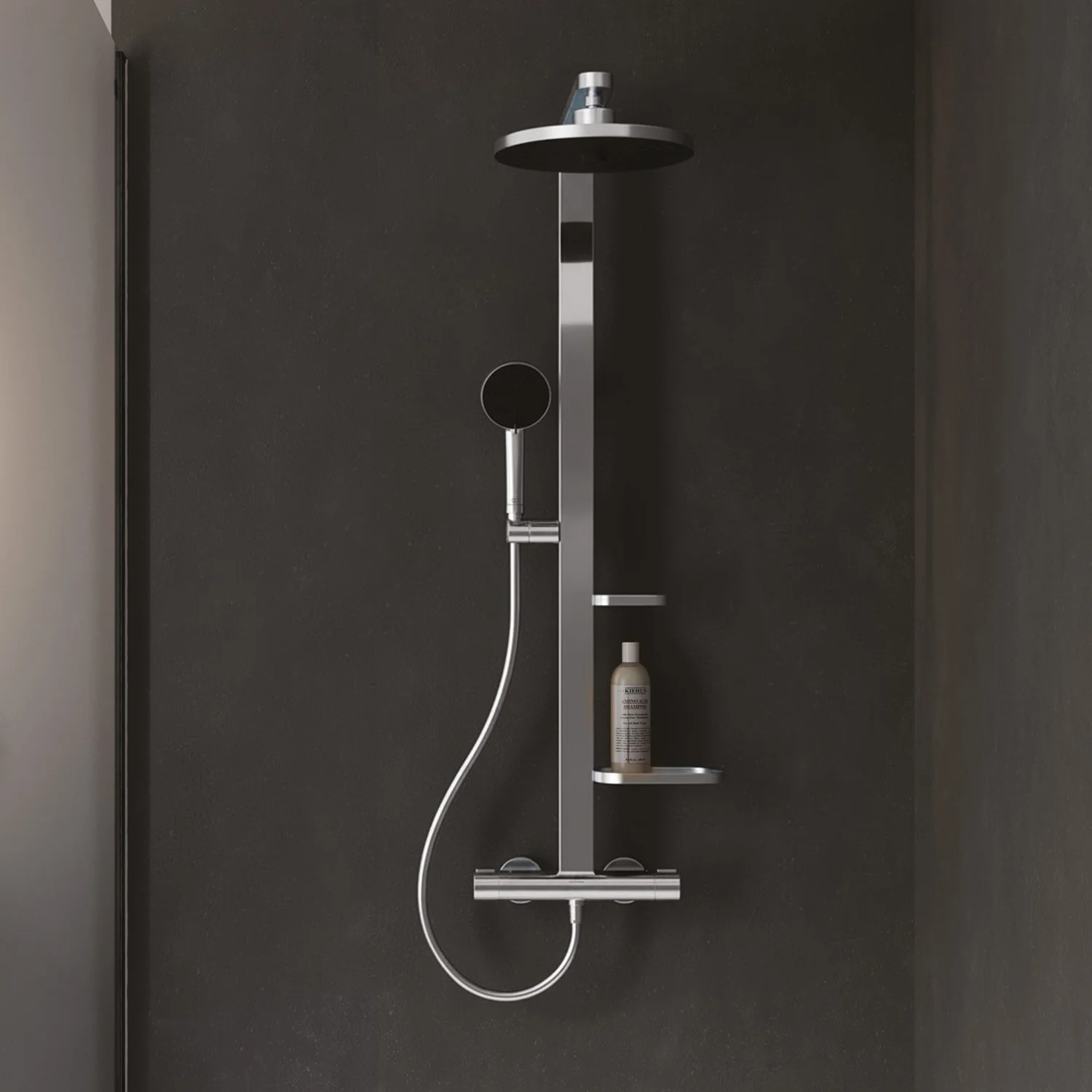

Ideal Standard Ceratherm Alu+ Exposed Thermostatic Shower System

Key Features

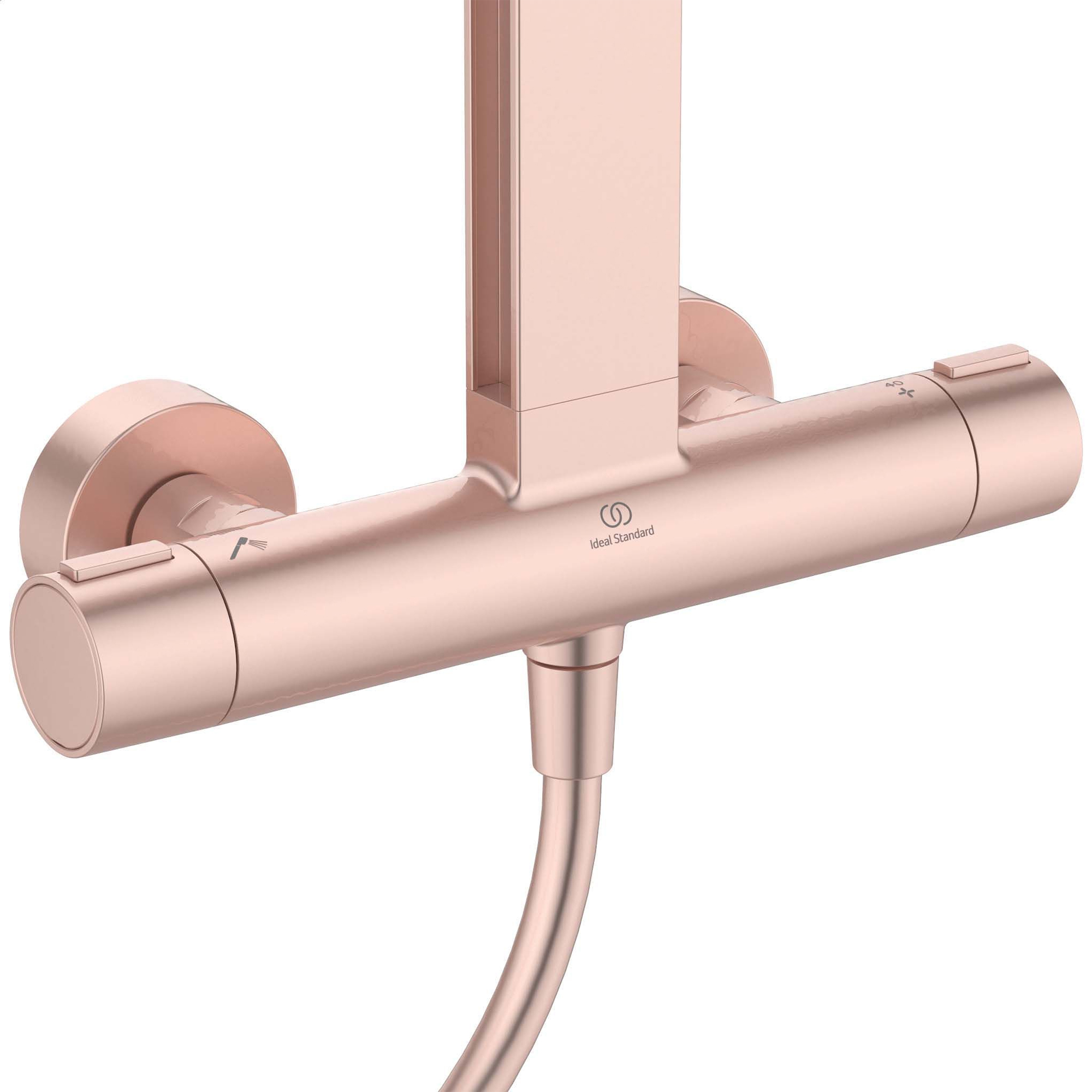

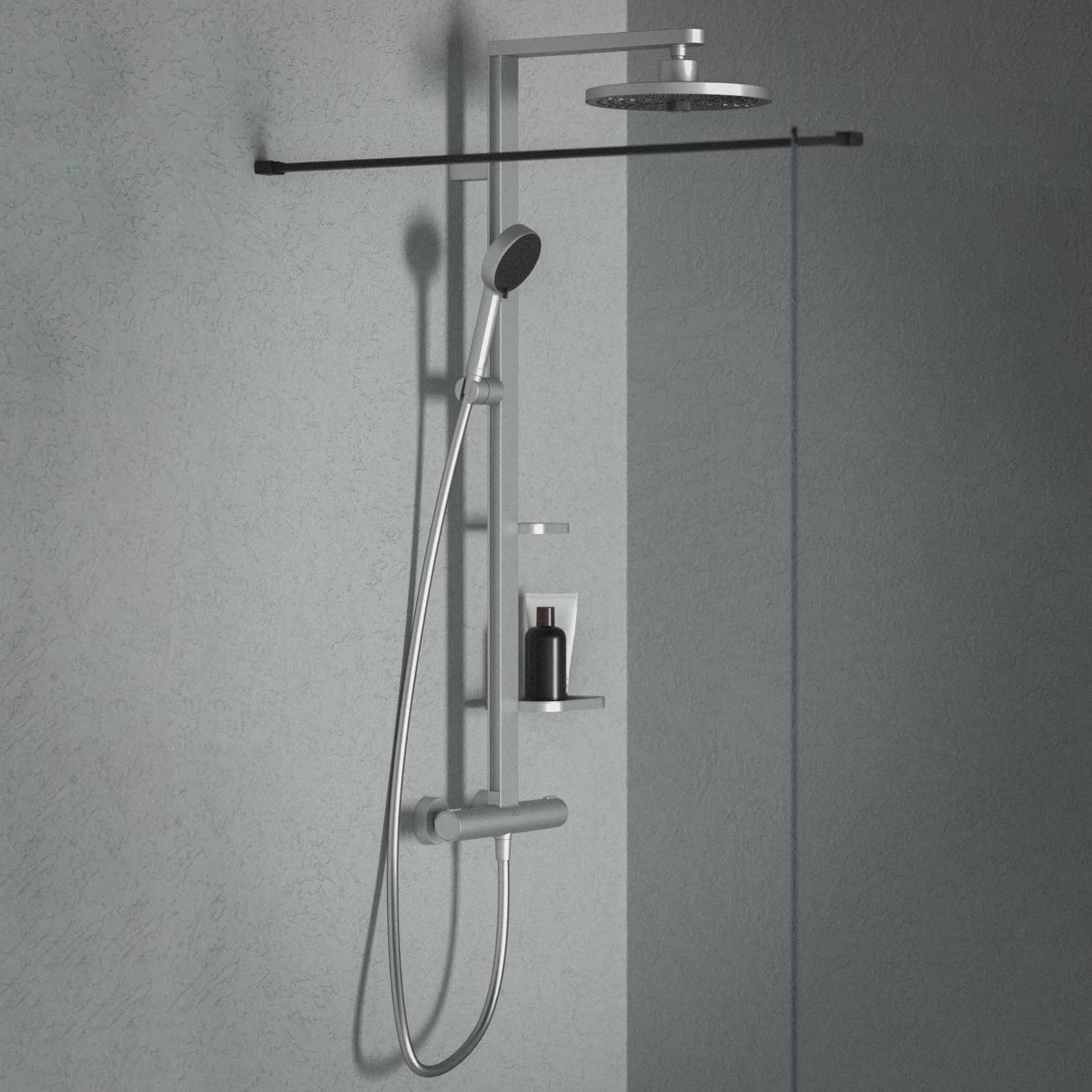

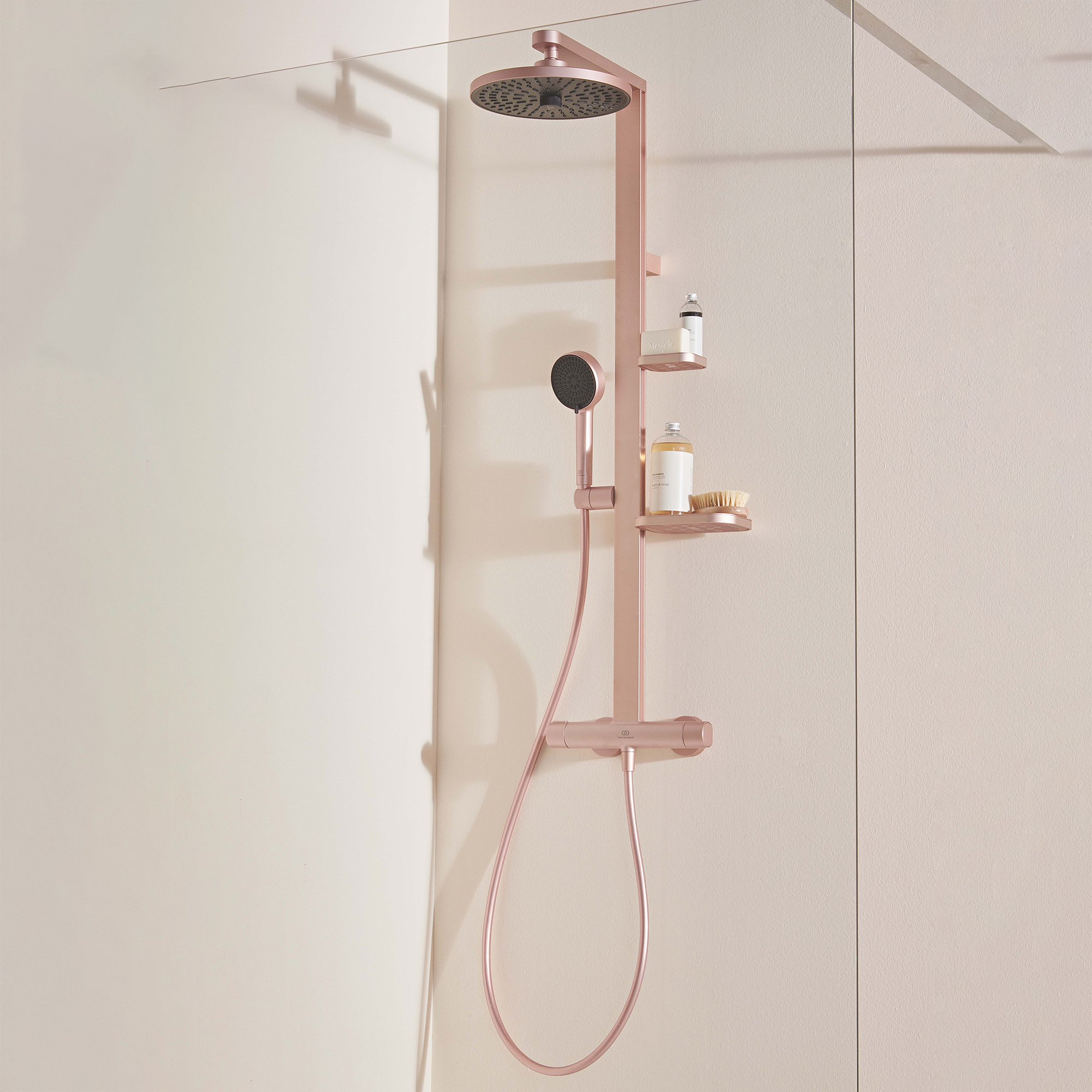

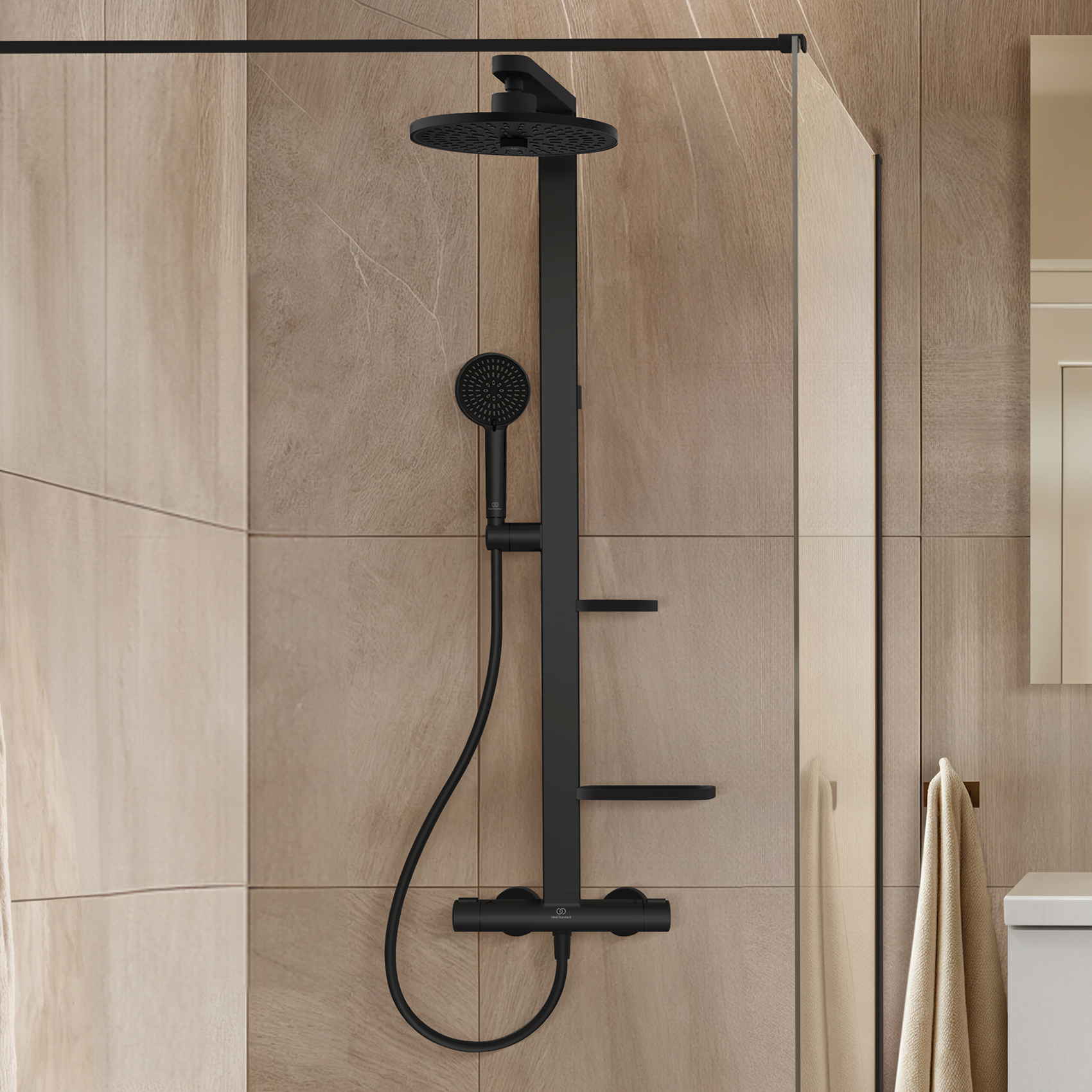

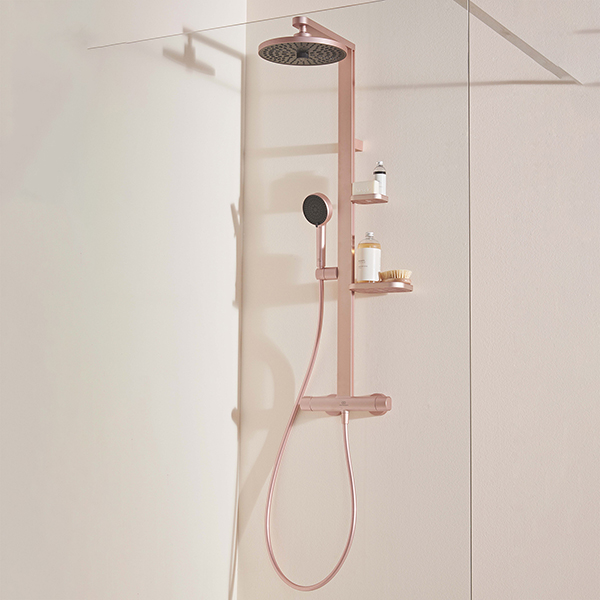

✔Available in 3 Finishes: Rose, Silver and Silk Black
✔Fabricated using Best-Quality Aluminium Material
✔WRAS Approved
✔Complies with EN1111 Standards
✔Five Years Guarantee from The Manufacturer Against any Manufacturing Defects

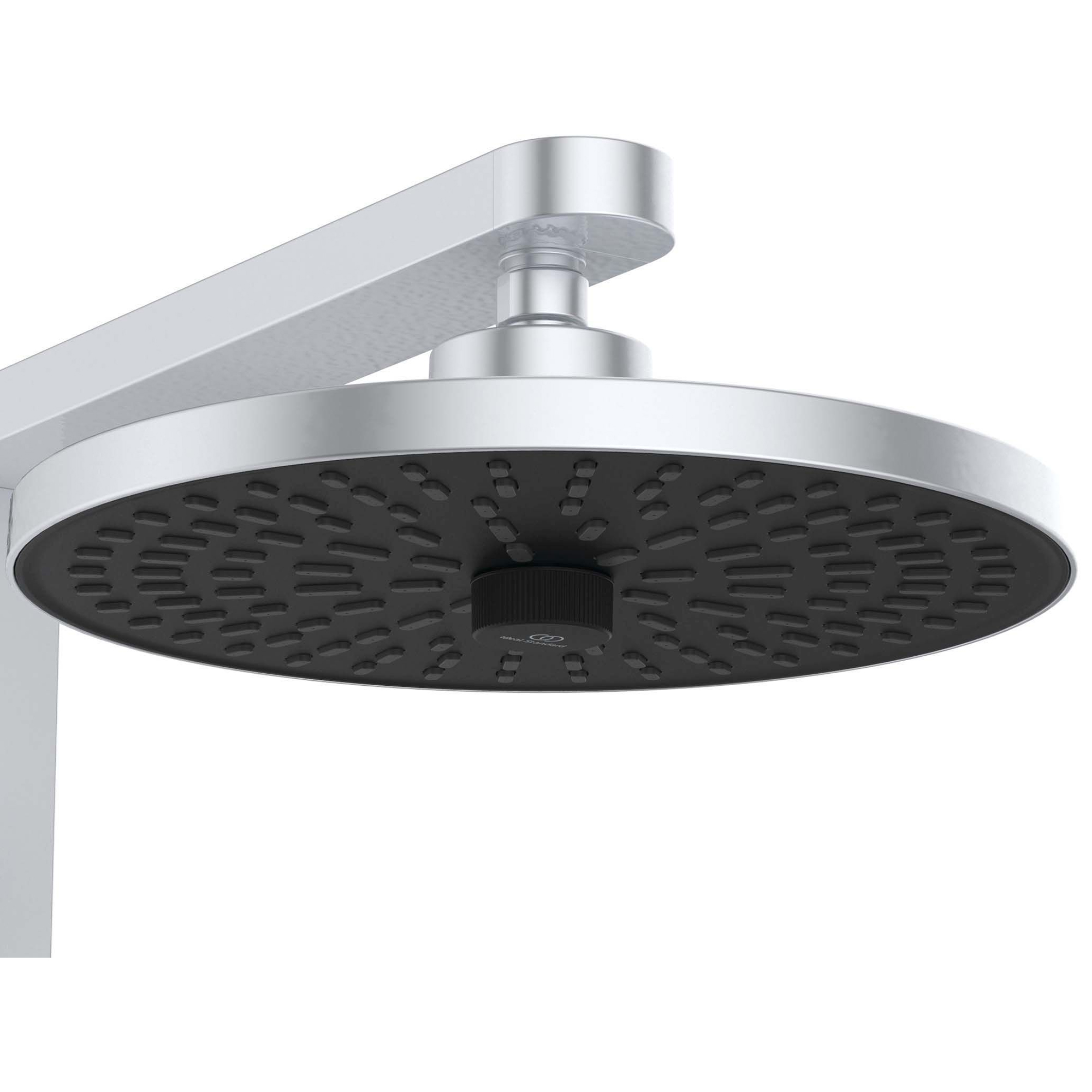

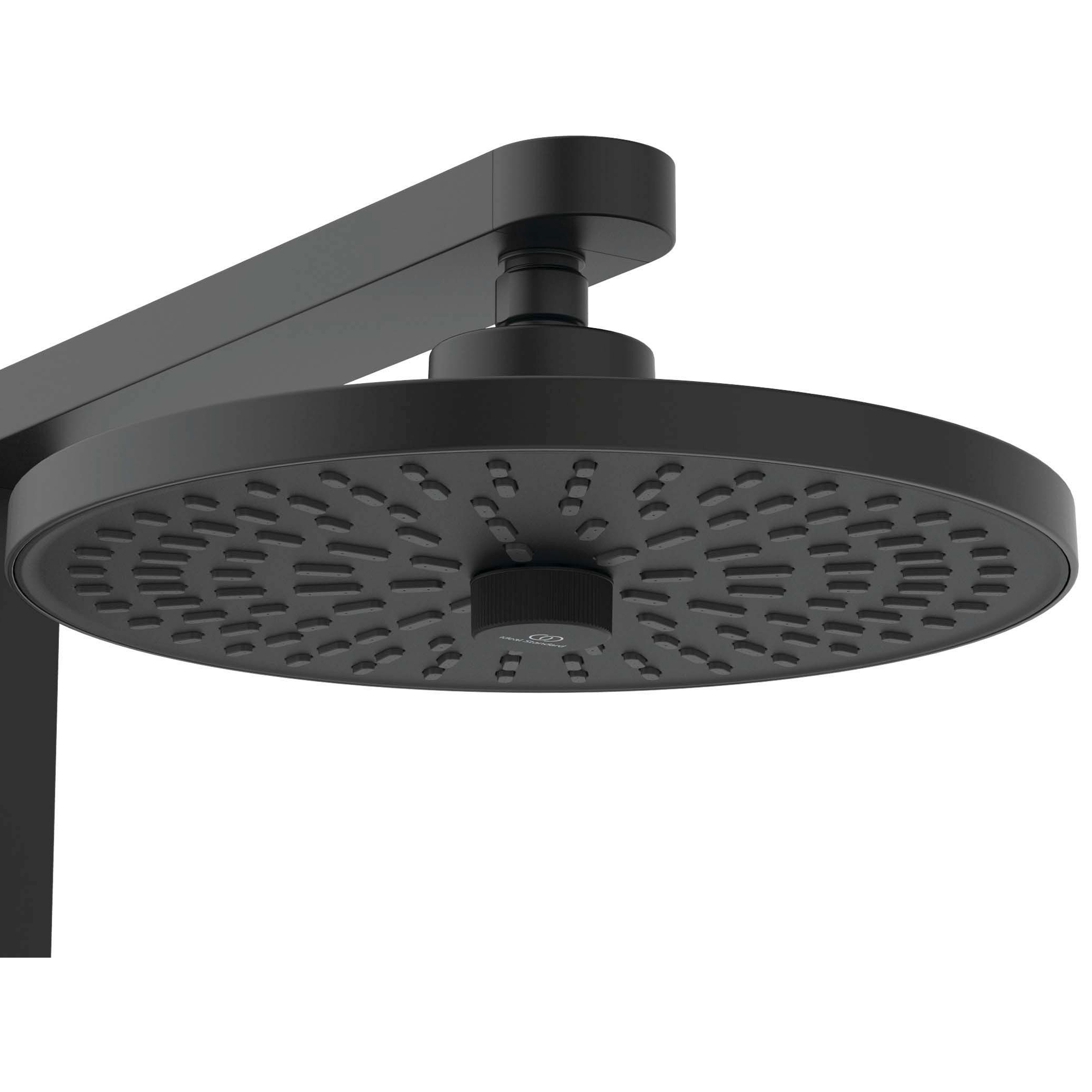

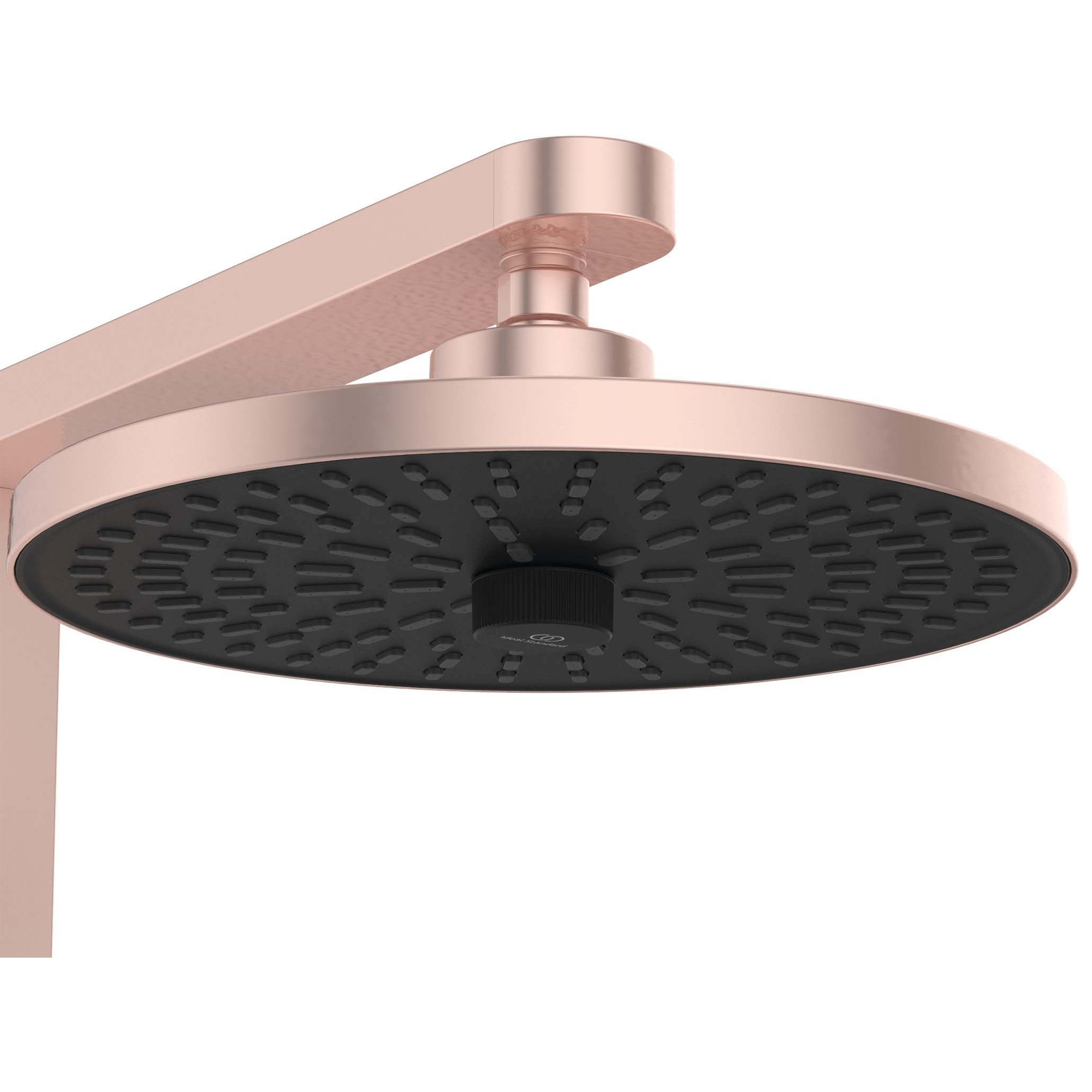

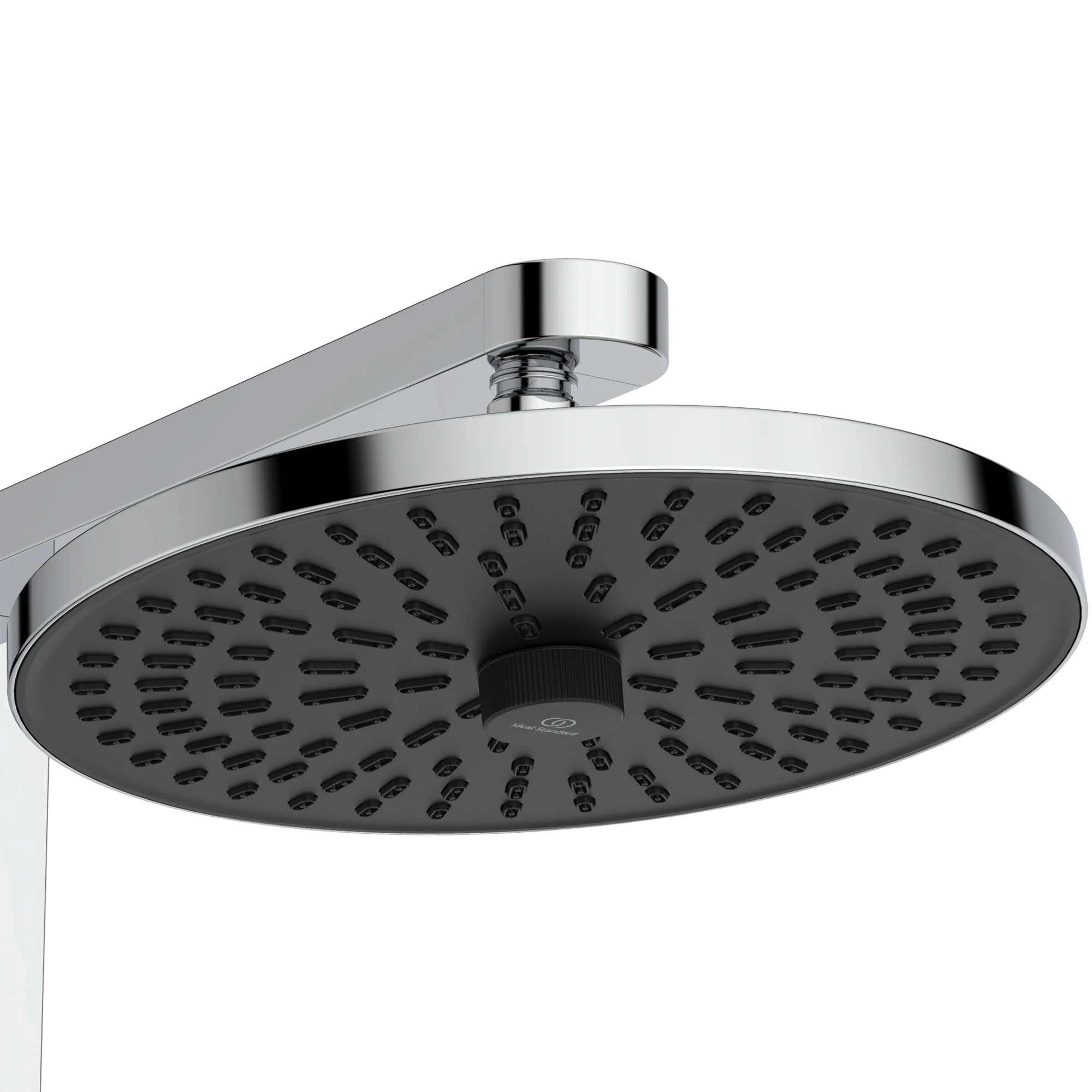

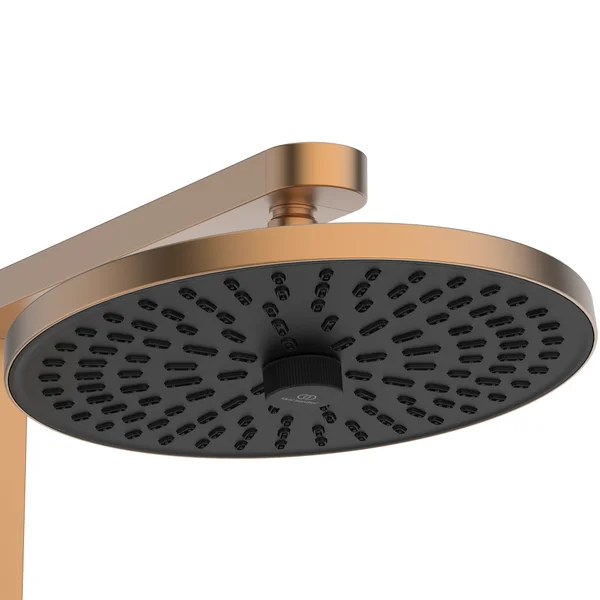

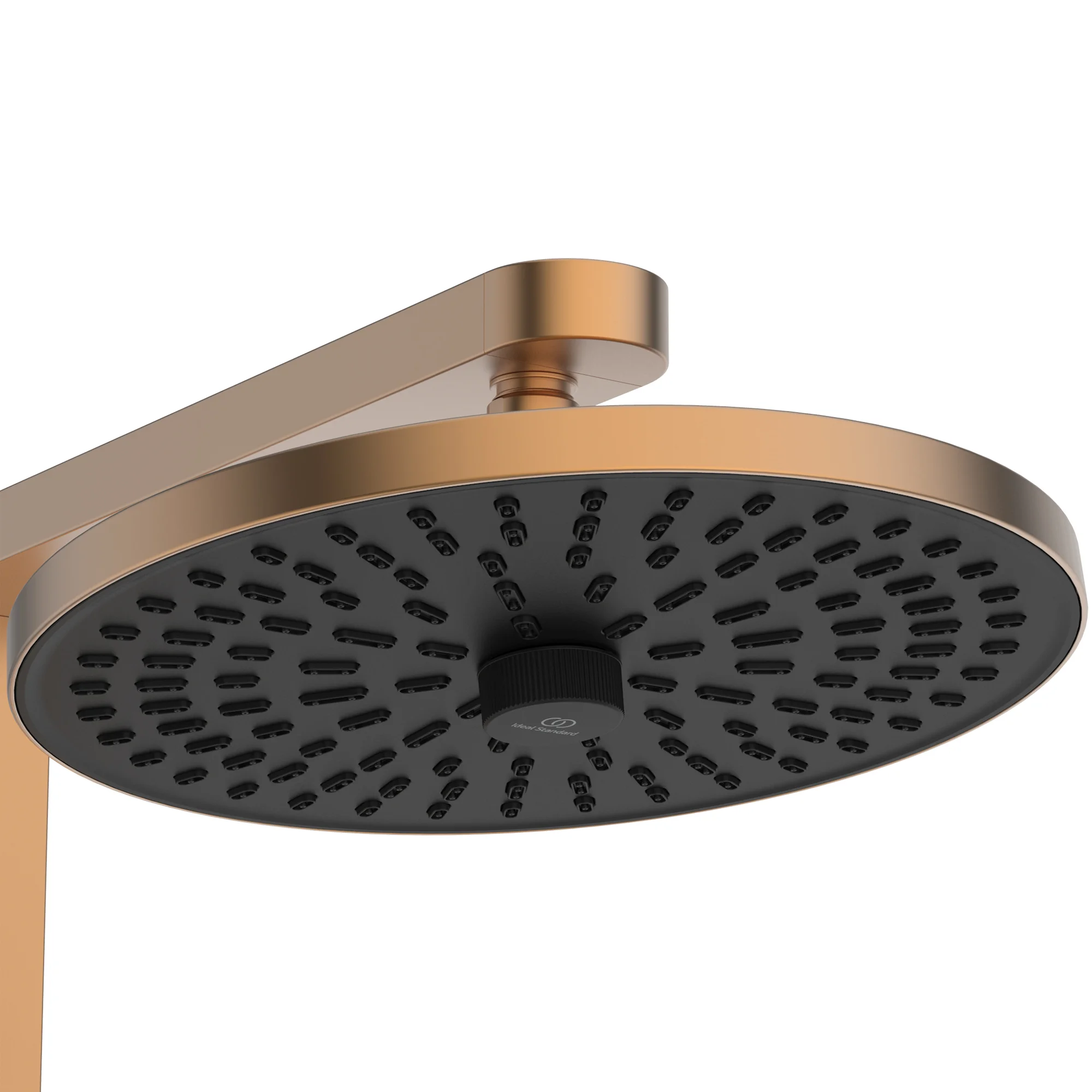

Ø260mm 2 Function Showerhead (12 l/Min) [Massage/Rain]

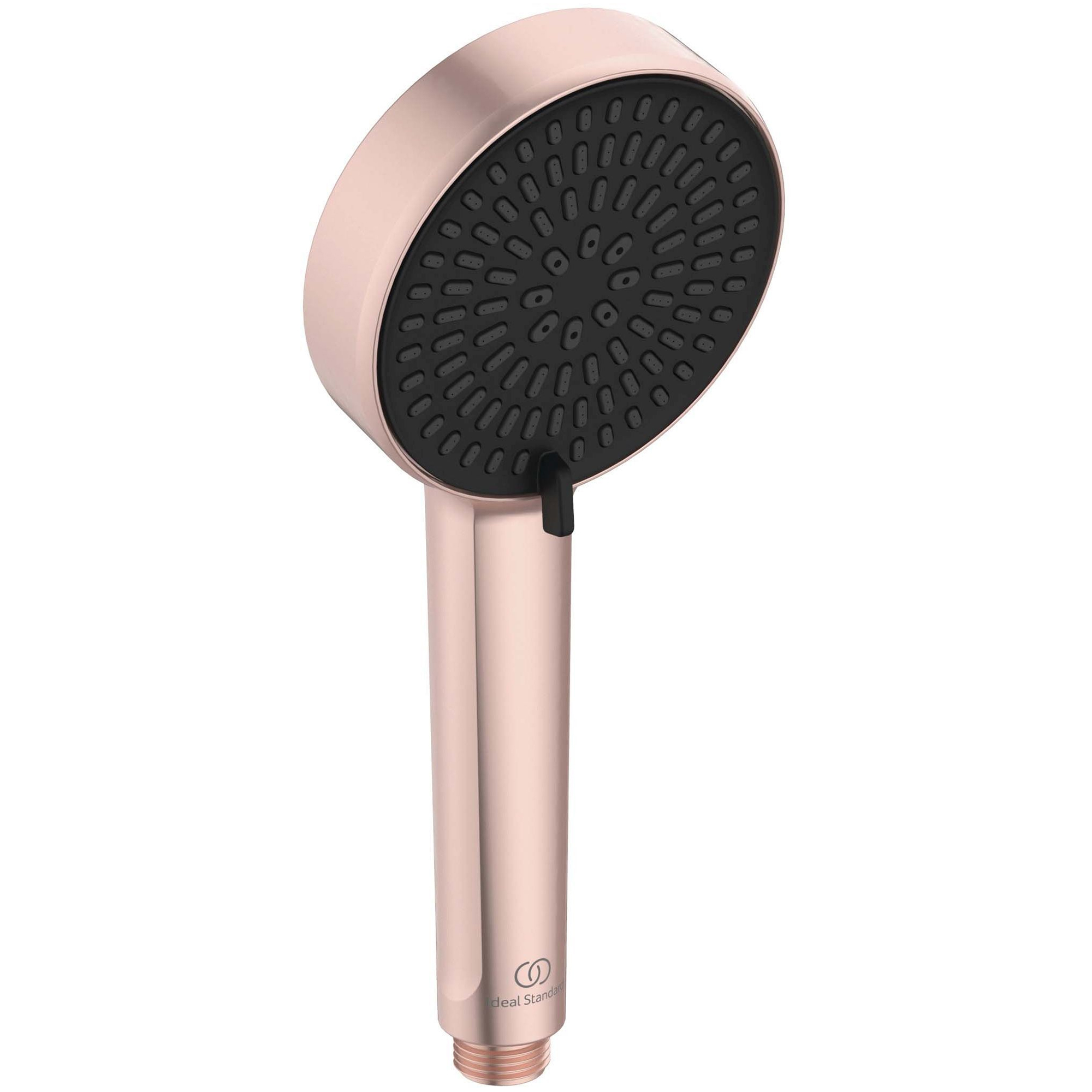

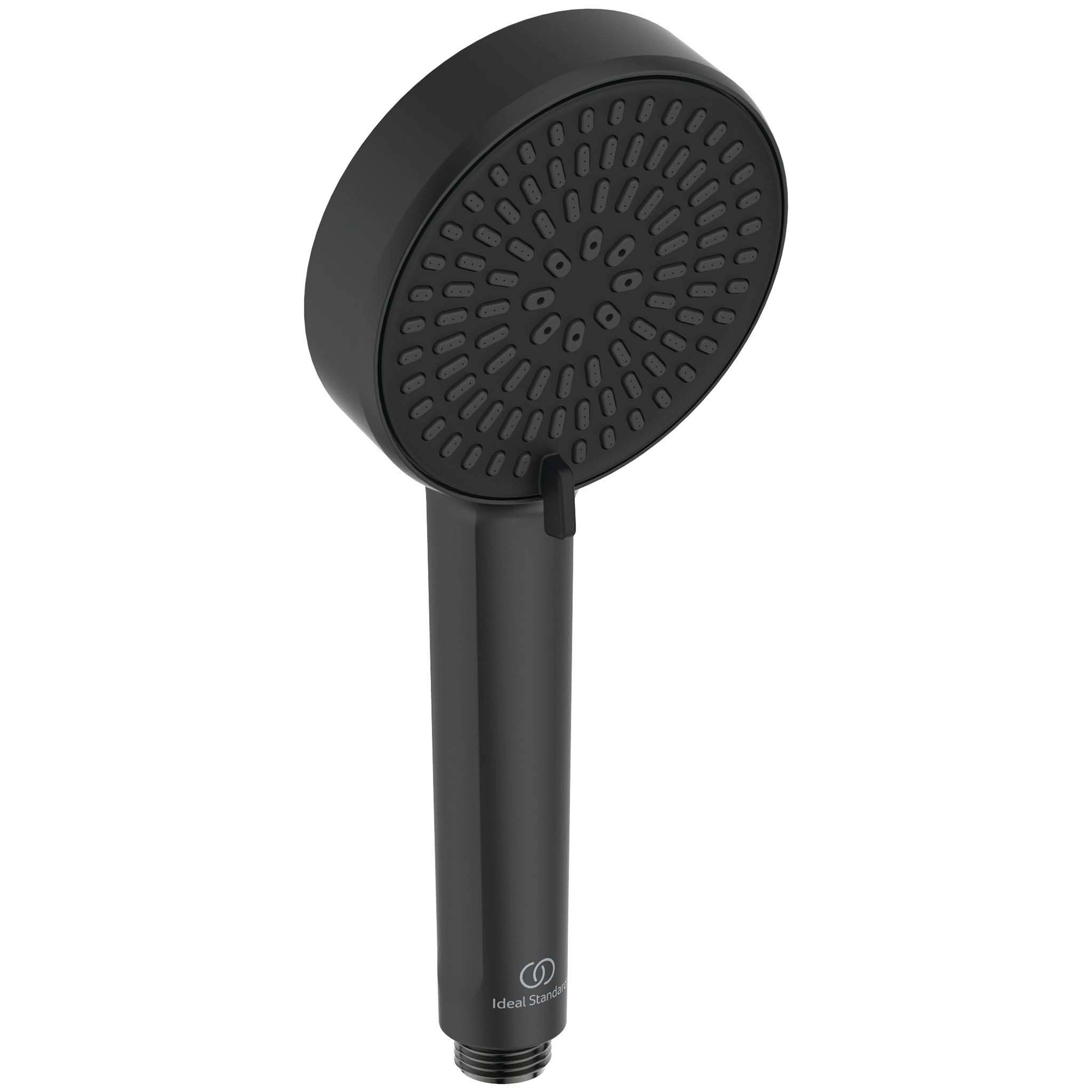

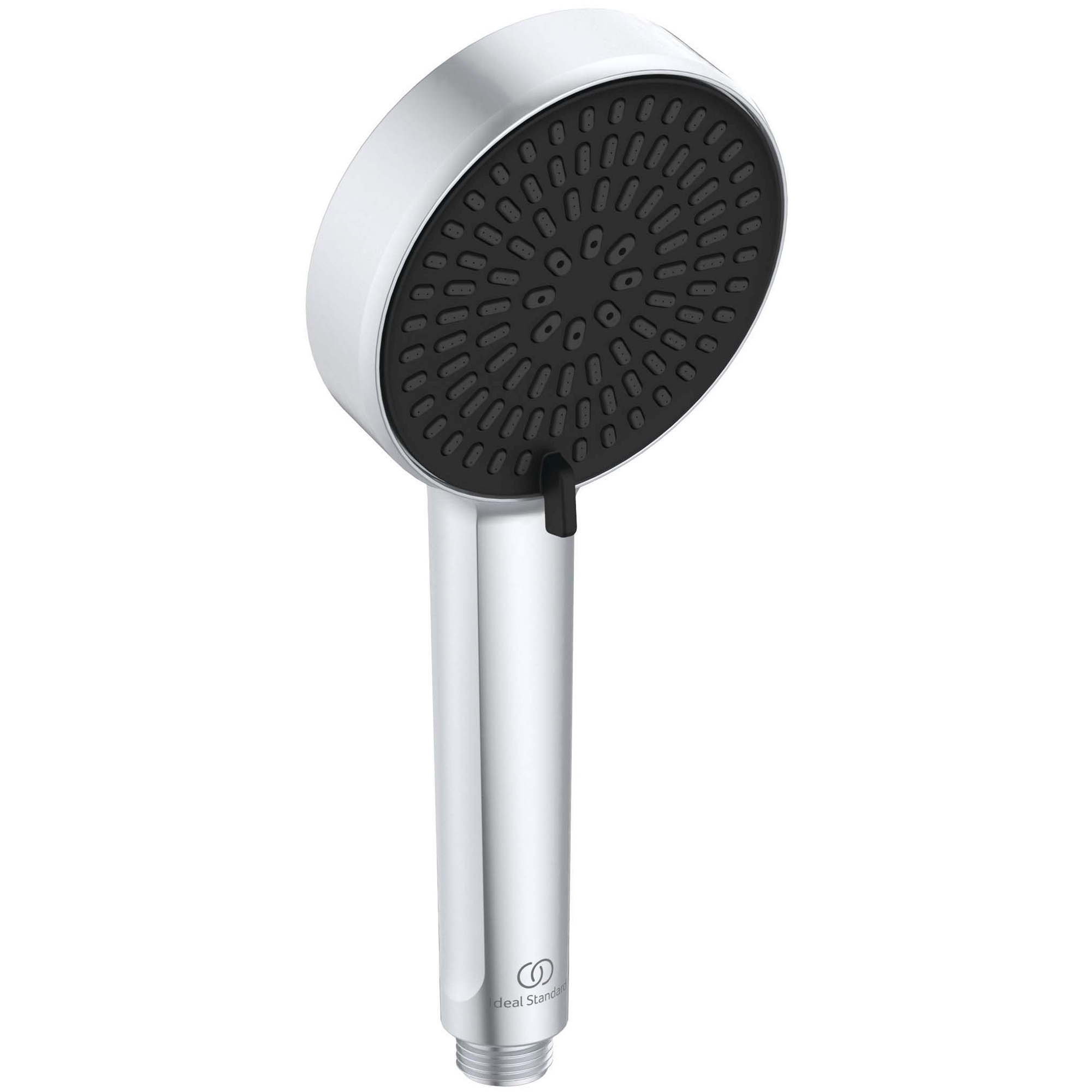

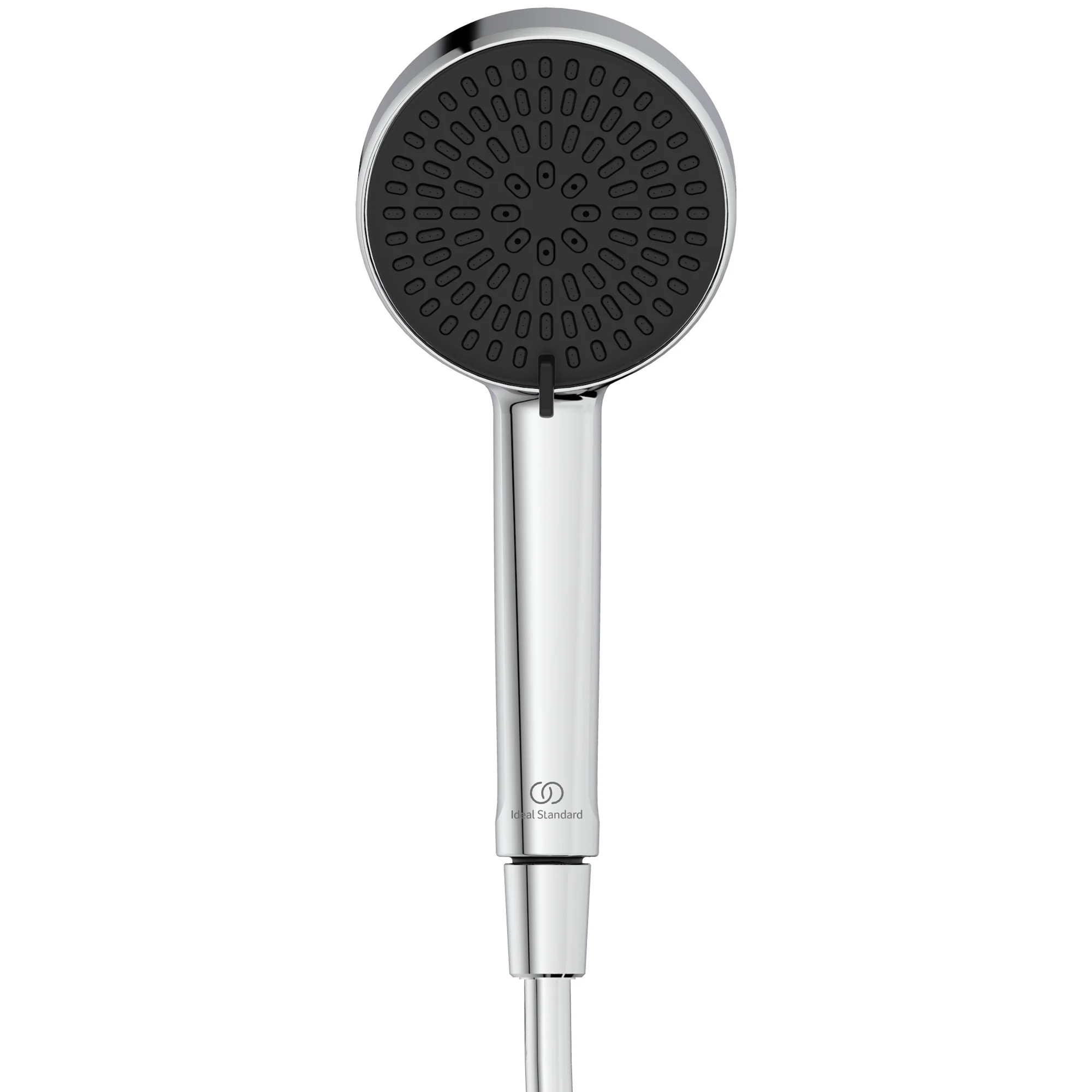

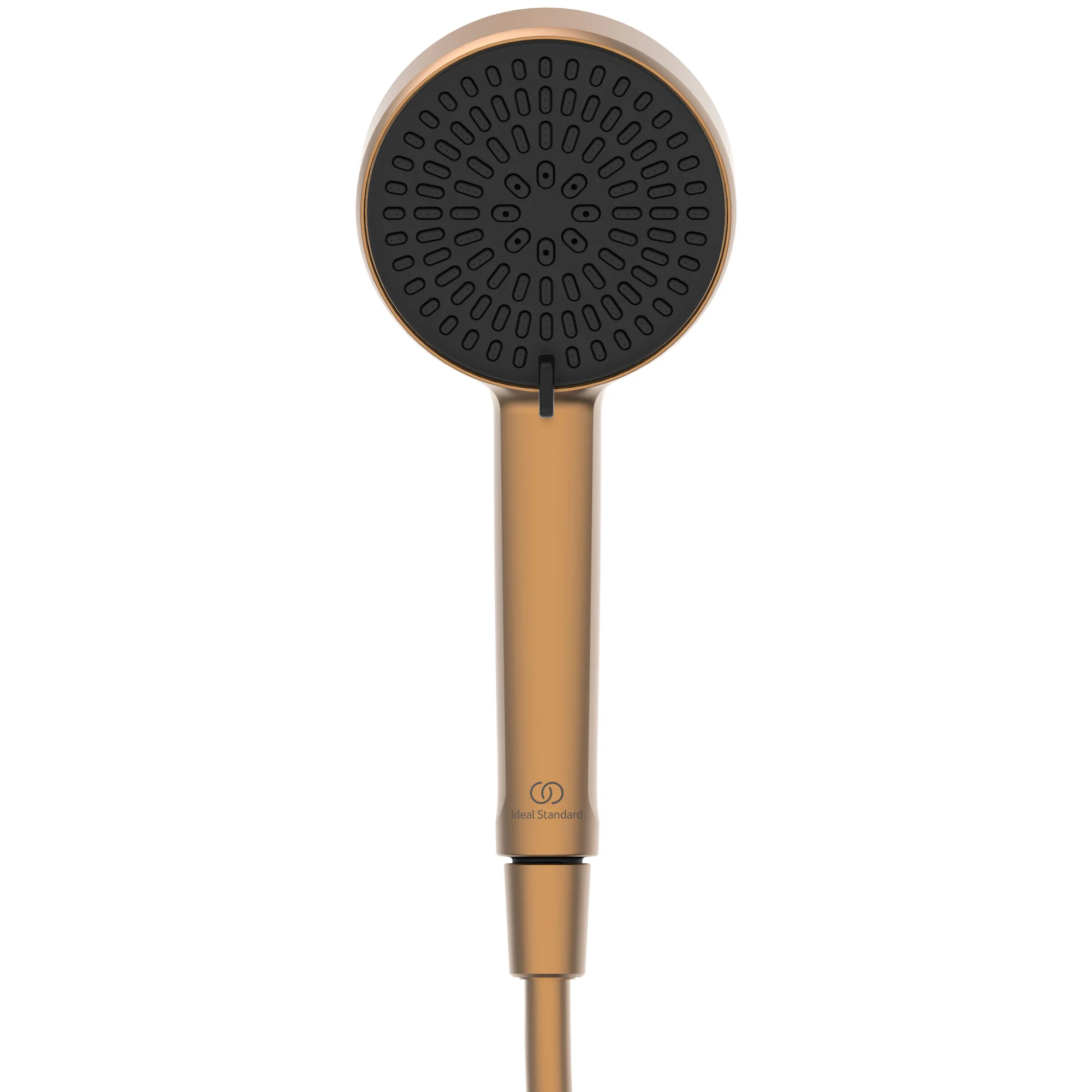

Ø100mm 2 Functions Idealrain Alu+ Hand Spray (8 l/Min) [Massage/Rain]
2 Shelves (Large and Small) for Clever Storage Space are Included
Smooth, Wipe-Clean, and Durable 1750mm Idealrain Hose Included
Valve Width: 296mm [29.6cm]
Inlet Centre of The Valve: 150mm [15cm]
Slide Rail Length: 1113mm [111.3cm]
Frequently Used in Hotels, Offices and Residential Applications
The Minimum Operating Water Pressure Recommended is 1 Bar
Horizontal Overhead Mounting Bar
Sliding Bracket for Rail [for Handset]
Height Adjustable Shower Holder on The Rail
Mounting Bracket for Vertical Riser Rail

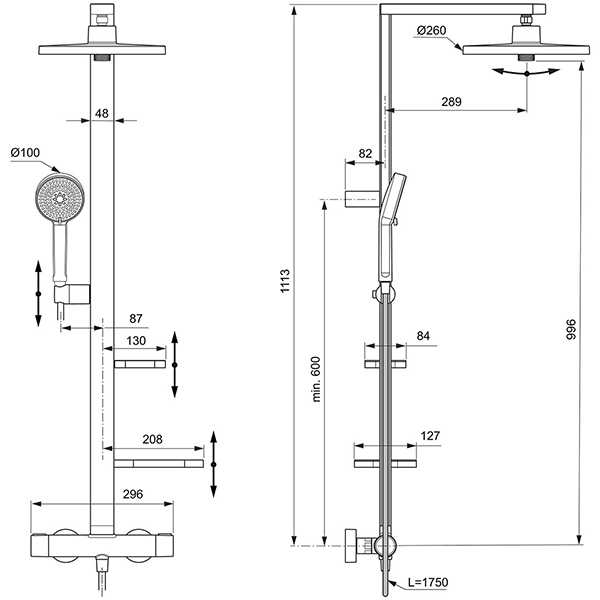

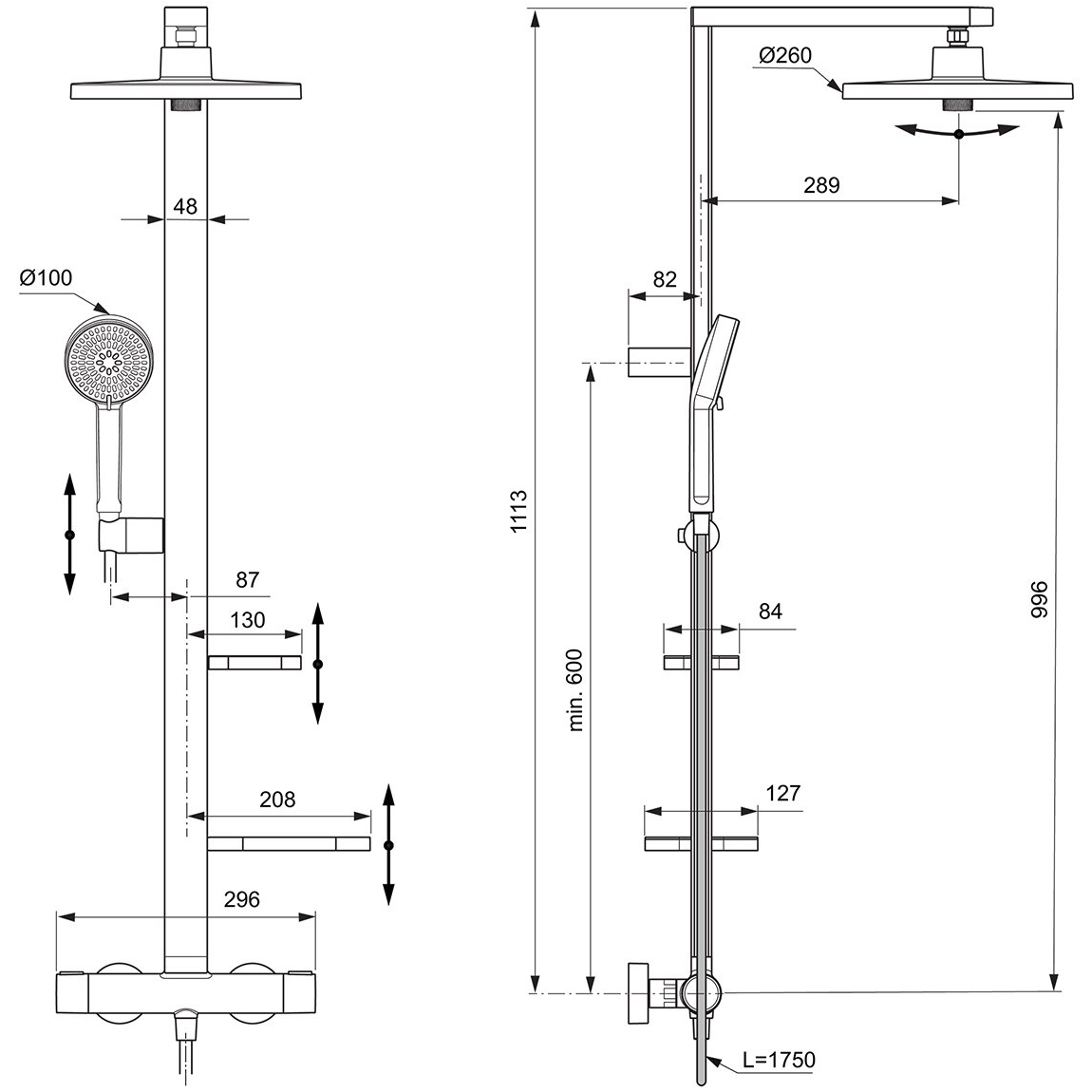

For Complete Size Details, Please Refer to The Technical Drawing
Download The Data Sheet And Installation Instruction PDF Provided In The Additional Info Tab
Specifications:
Easy to Clean
Thermostatic Function, Water & Energy Savings, Core Elements from Aluminum

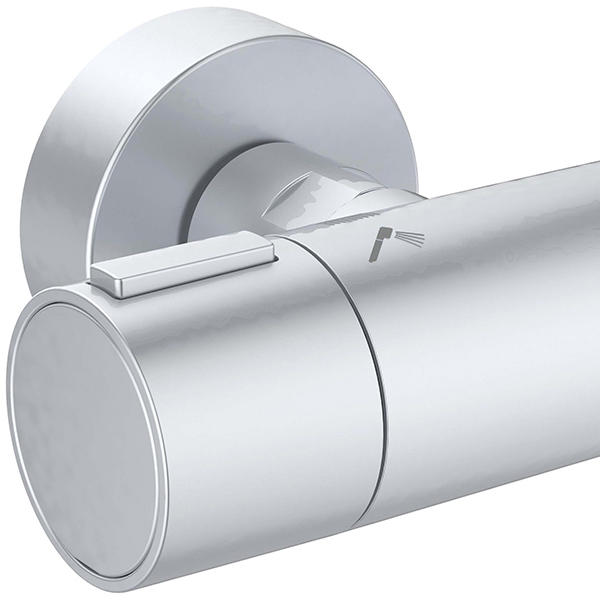

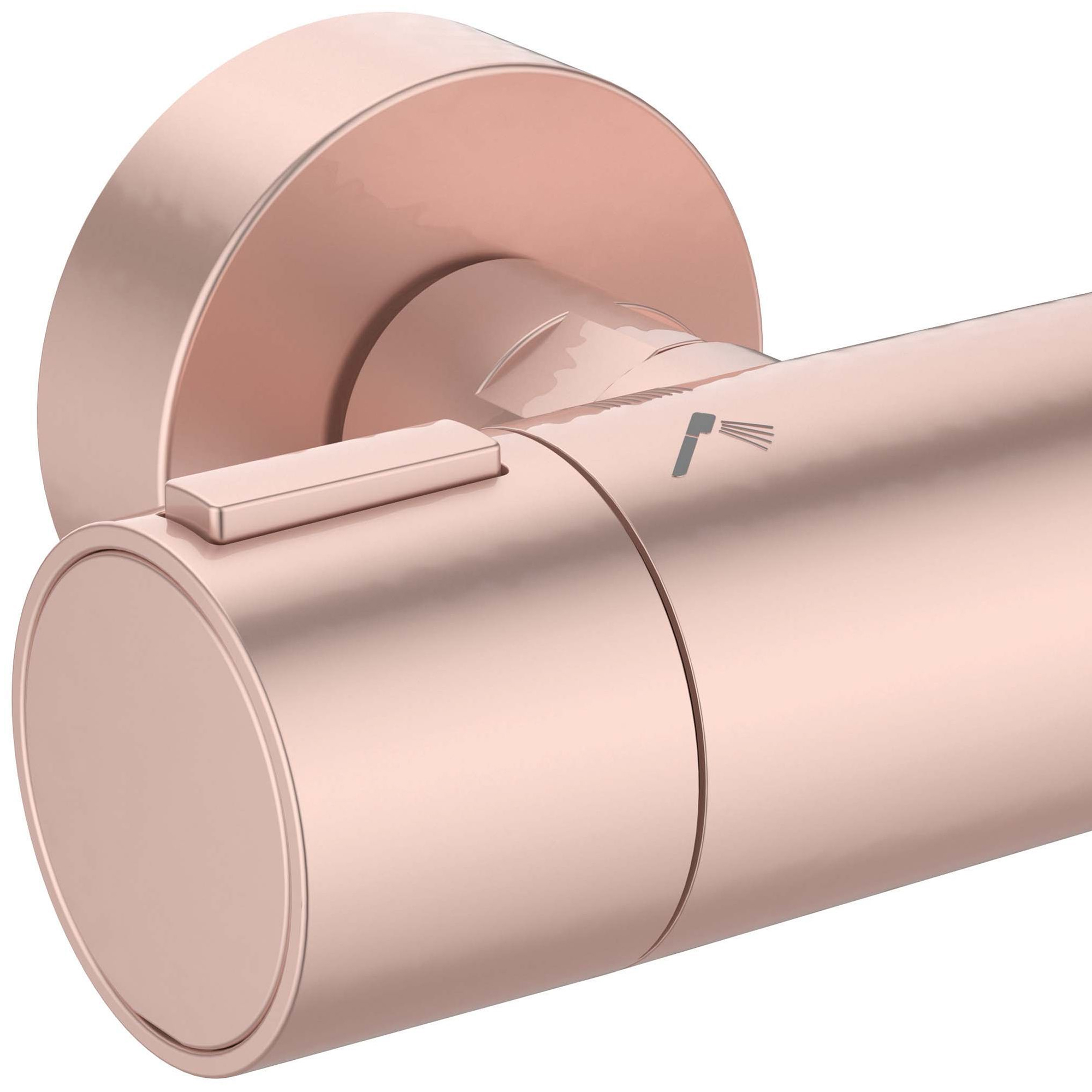

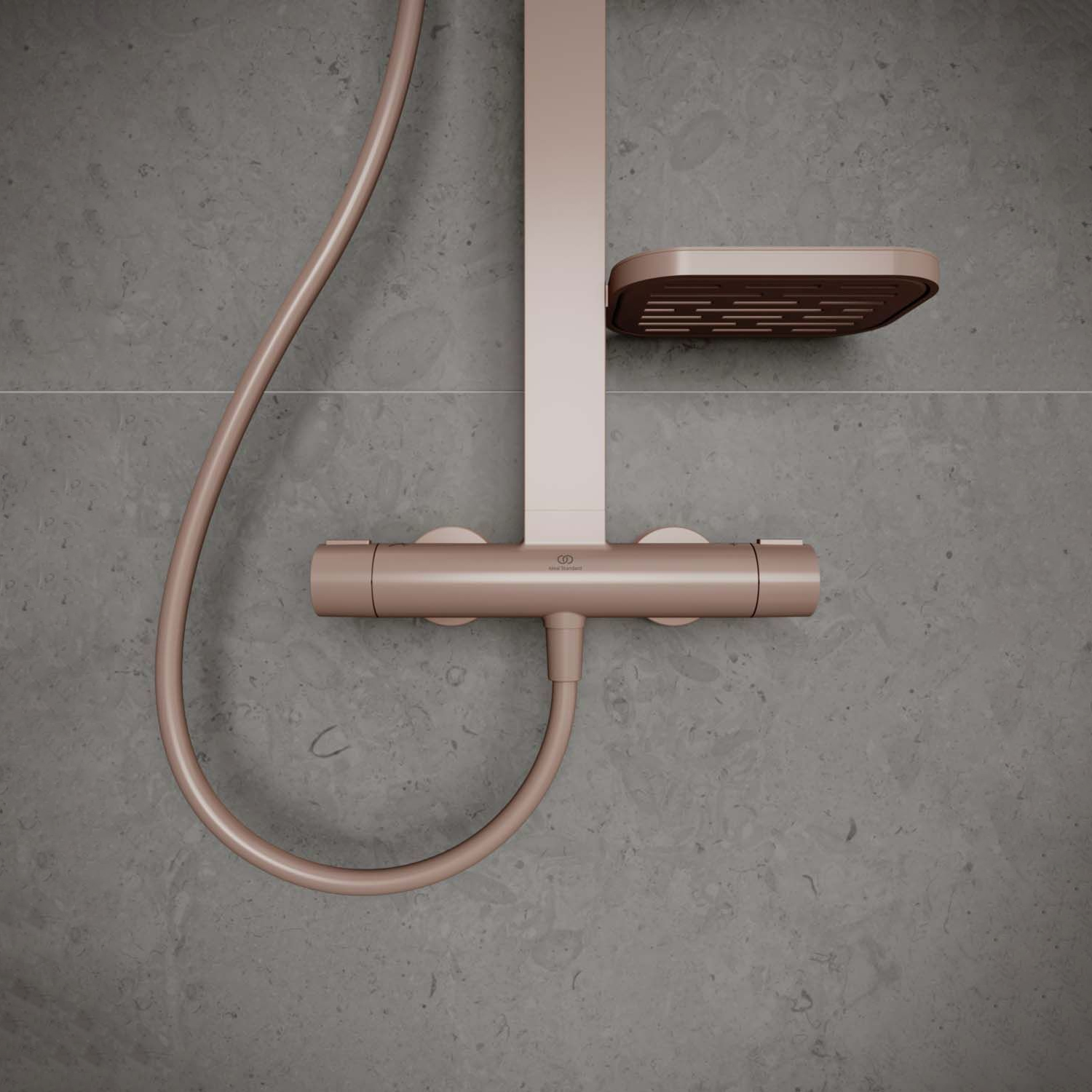

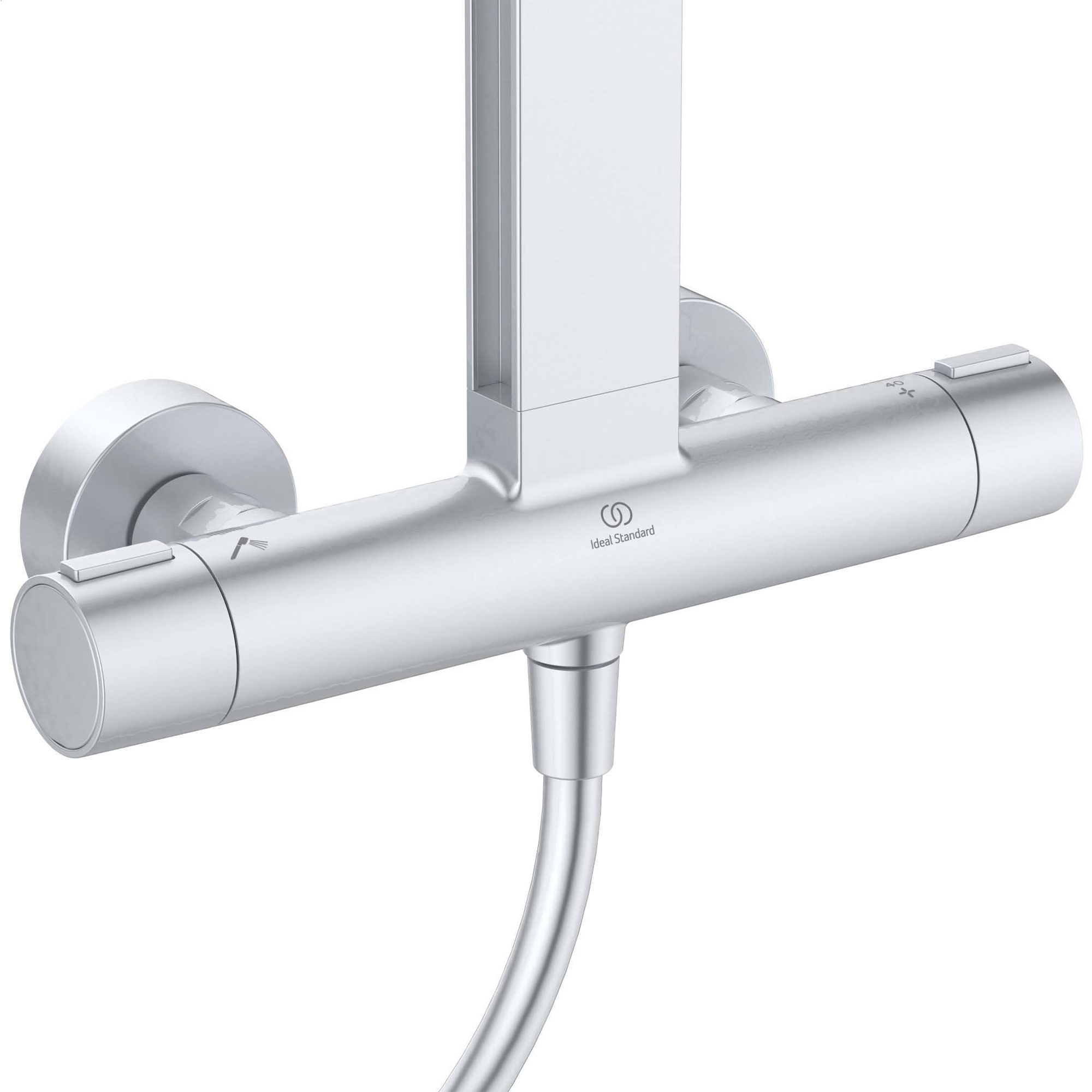

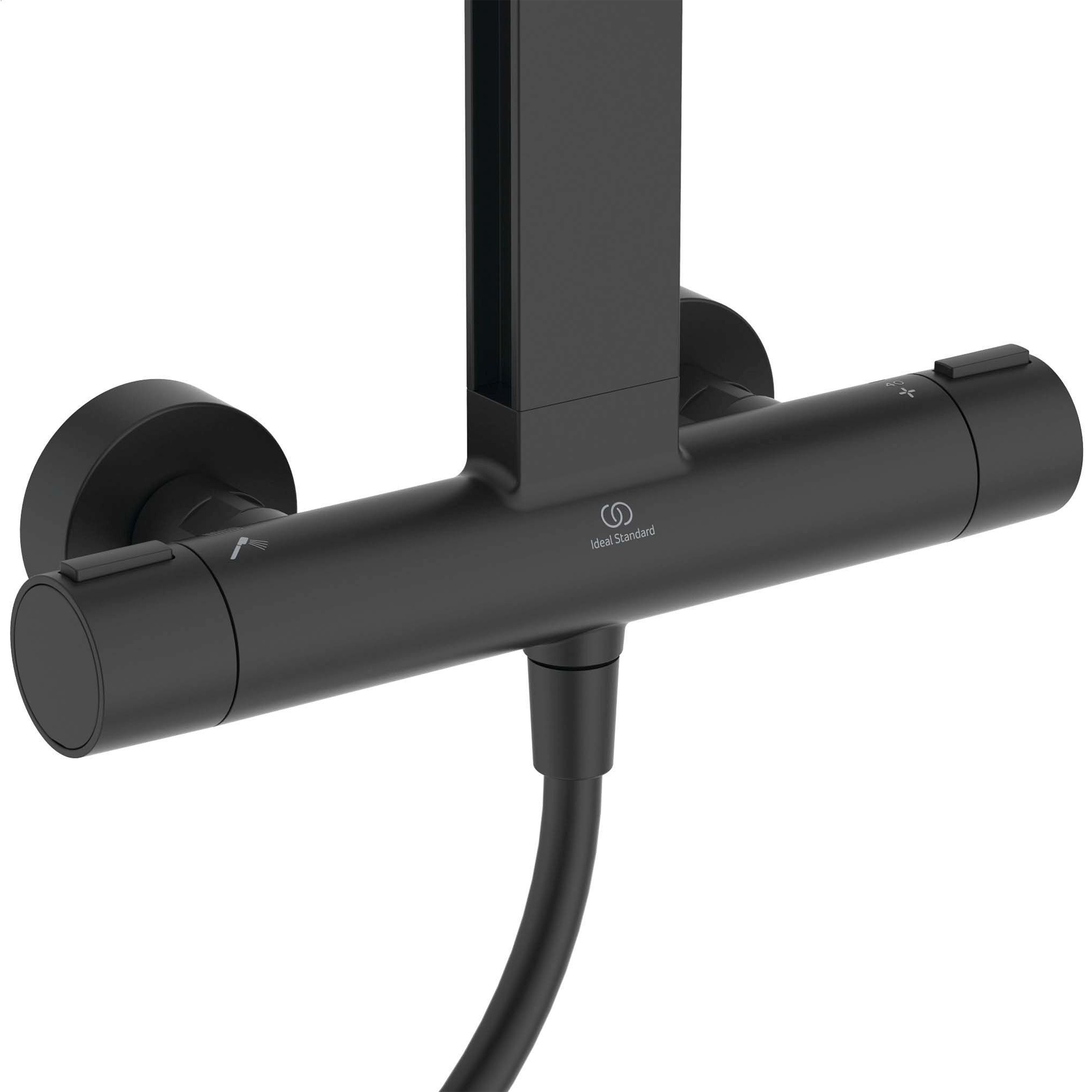

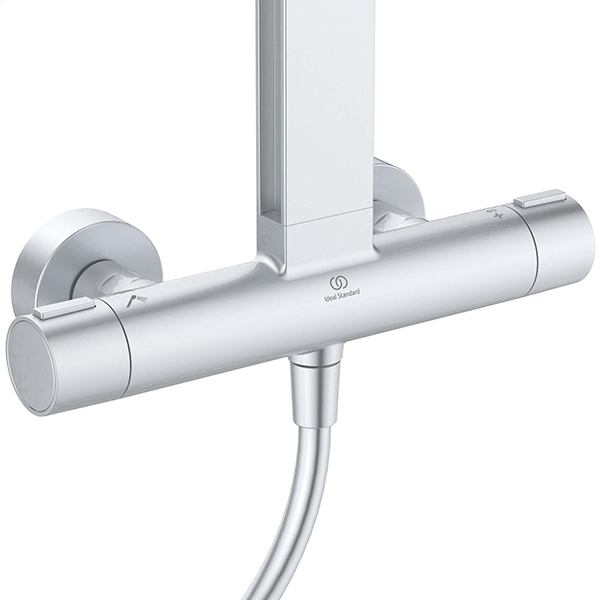

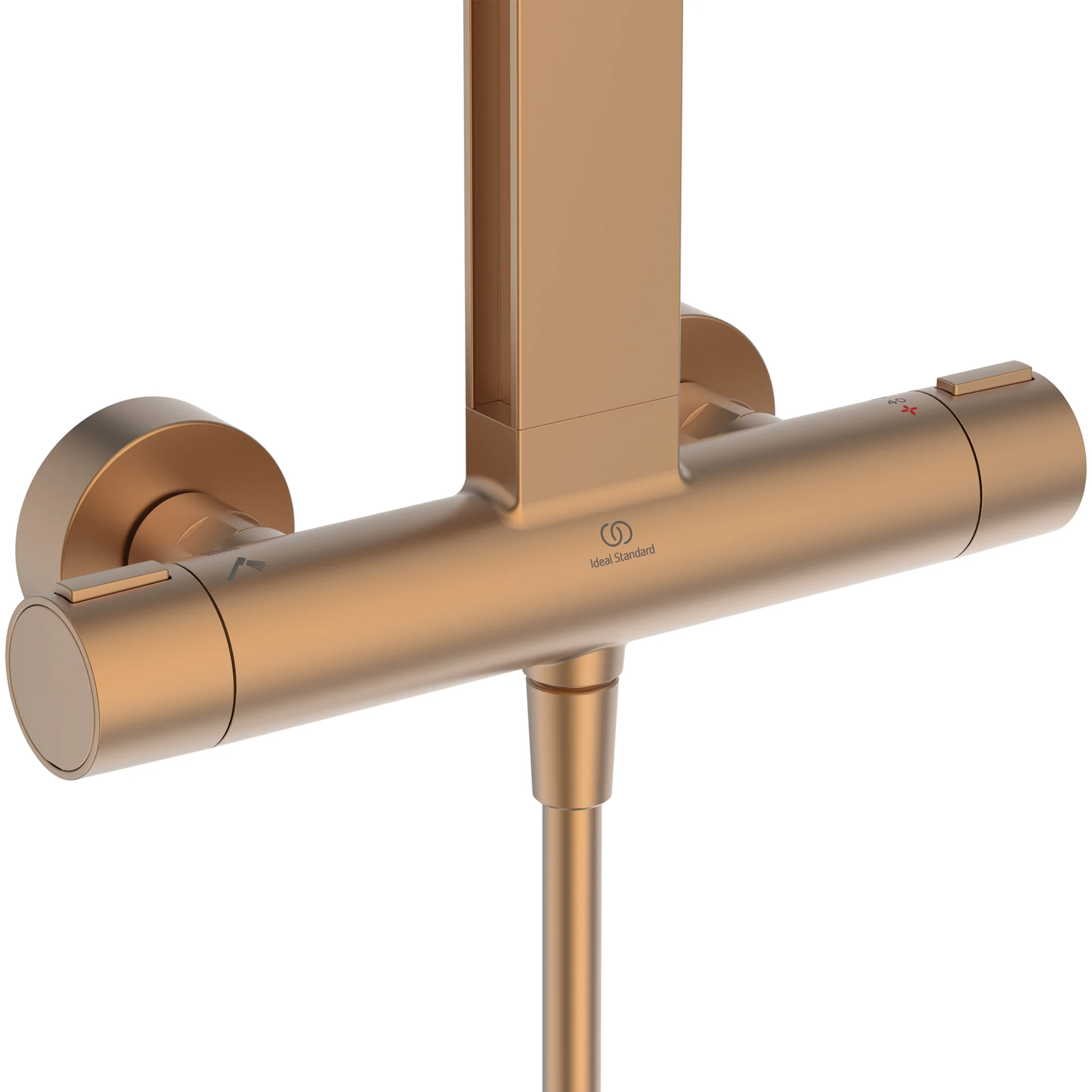

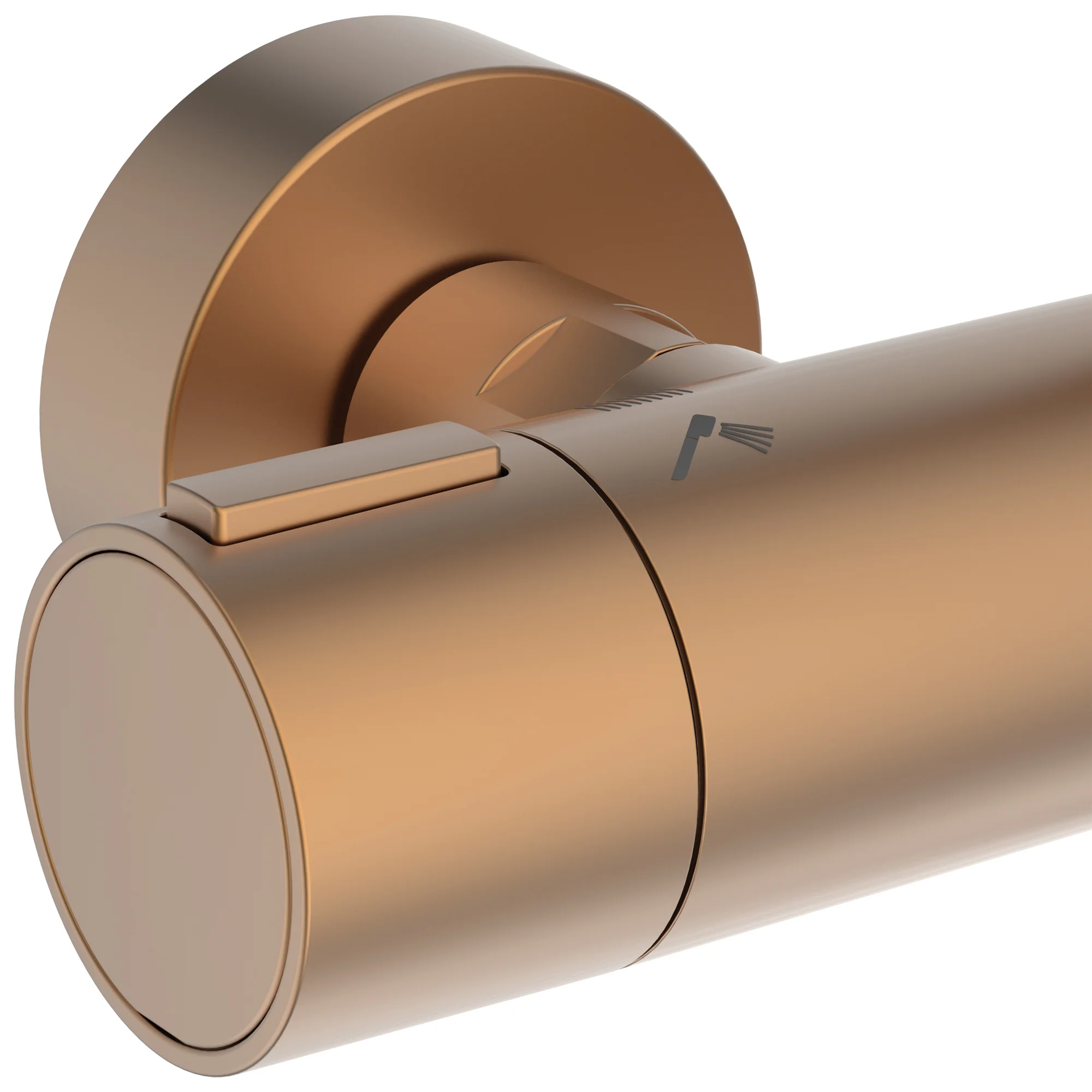

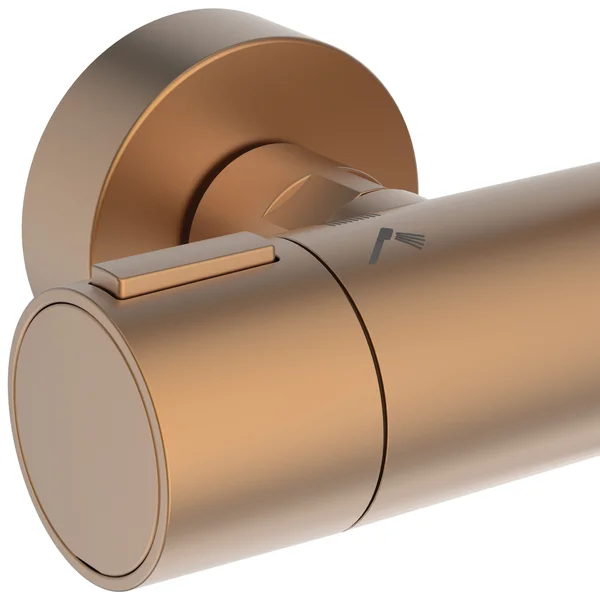

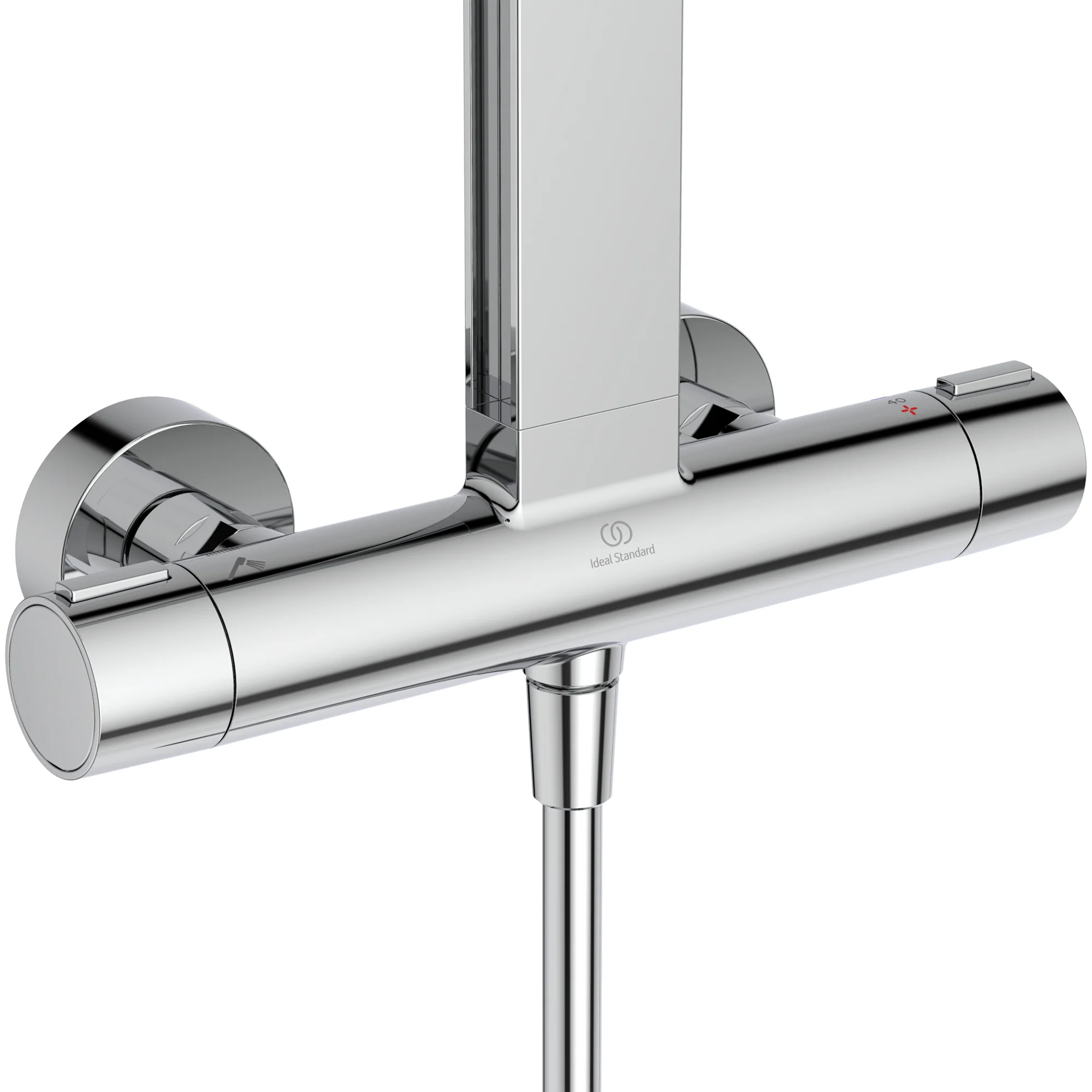

Thermostatic Control – Via Rotary Knob
The Diverter Integrated with the Handle
Easyfix Riser Pipe Allows Reuse of Existing Wall-Mounting Holes and Simple Adjustment

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Rose
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Hose Length
: 1750
⤷ Temperature Control
: Yes
⤷ Diverter Included
: Yes
⤷ Compliance/Approvals/Standard
: EN1111
⤷ Product Type
: Shower Set

⤷ Soap Dish Included
: Yes
⤷ Showerhead Finish
: Rose
⤷ Hose Type
: Idealrain
⤷ Riser Rail & Kit Finish
: Rose
⤷ Adjustable maximum temperature stop
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Massage, Rain
⤷ Spray Patterns (Shower Head)
: Massage, Rain
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 260
⤷ Rail Length
: 1113
⤷ Diverter Type
: Integrated
⤷ Adjustable Height
: Yes
⤷ Flow Limiters Supplied
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Pdf File Download the Spare Part List Pdf File Download the Flow Rate Pdf File Download the Declaration of Conformity Pdf File

Ideal Standard Ceratherm Alu+ Exposed Thermostatic Shower System

£322.92

RRP: ~~£403.66~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Hot Water Temperature Control (HWTC)

This HWTC feature mechanically limits the range of handle movement to different degrees to control the maximum hot water temperature to prevent scalding.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Temperature control

The Thermostatic mixers have a temperature control mechanism that keeps the temperature constant at all times.
