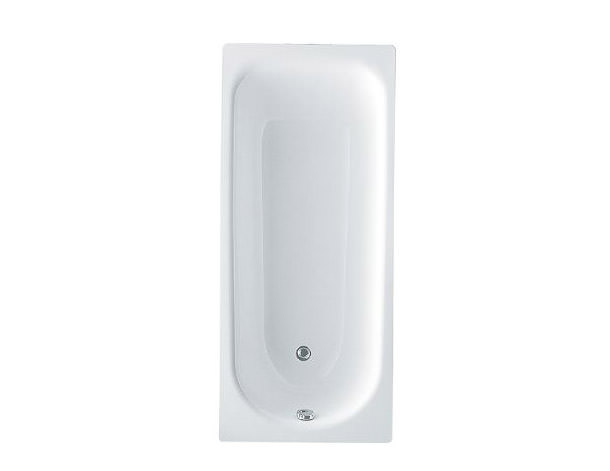

Kaldewei Eurowa 1700 x 700mm 2Th Steel Bath With Grips And Legset

Technical drawing QS-V19338 / Kaldewei - QS-V19338

Kaldewei Eurowa 1700 x 700mm 2Th Steel Bath With Grips

QS-V19338 MFC CODE: Kaldewei - QS-V19338

£156.00

RRP: ~~£175.00~~ You Save £19.00 on RRP

4.0 out of 5

4 out of 4 customers rated 80%

Review this Product

STOCK AVAILABILITY

3 Working Days Approx

Shipping: FREE

Description

Technical

It is just what you need at the end of a long, tiring day - this Bath from Kaldewei, to wash the weariness off your body and mind. The product, crafted from top quality steel enamel, boasts twin layers of superior grade porcelain enamel as well. Fitted with chrome grips and chrome leg set, it looks classy. The model, supplied with two tap-holes, is backed by two years guarantee against all manufacturing defects.

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

External Length	1700
External Width	700
Tub Depth	390
Feets Included	Yes
Height Including Feet or Panel	515-535
Colour	White
Grips Included	Yes
Internal Bottom Length	1150
Internal Bottom Width	390, 350
Internal Top Length	1530
Internal Top Width	550, 530
Height of Rim	32
Distance Tub edge to centre of drain hole	310
Distance Top edge to centre of overflow hole	63
Diameter of overflow hole	52
Diameter of Drain hole	52
Distance foot end of tub edge to center of foot	450
Distance between the feet	740
Rim Width	85, 75
Distance Between Centre Holes	212
Slip Resistant	No
Shape	Rectangular
Capacity in litres	86
Country of Origin	Germany
Warranty/Guarantee	2 Years
Material	Steel
No. of Bathers	1
Waste Included	Sold Separately
Tap Holes	Pre-drilled

INFO / SIZE (mm)

Bath
Length: 1700
Width: 700

QTY

HIGHLIGHTS

2.3mm steel enamel
2 Tap Holes
Chrome Grips
Size is :1700mm Length x 700mm Width
2.3 gauge Steel Bath
Double Porcelain enameled

Waste at foot end
Classic rectangular model
Bath Leg set [Optional]
Bath Waste [Optional]
Refer technical drawing for more specification
2 year of guarantee from the manufacturer.

CUSTOMISE YOUR PRODUCT

Waste

High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.

No Option Selected
OP-250 - High Flow Chrome Dedicated - BW001 + £20.15

Leg Set

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29520 - Leg Set 5030 - 581470000000 + £40.81

Total: £156.00 3 Working Days Approx QS Supplies

You've Selected which adds to a total of

REVIEWS & RATINGS

Rate this Item.:

WRITE A REVIEW

Questions & Answers

Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Ben Shirbini Asked :

Hi, what is the capacity to overflow for the kaldewei Eurowa 1700 x 700 bath? Do you have a datasheet with this information on, that you could send over to me?

Answered By QS Team :
Capacity of bath is 86 Litres. Unfortunately, we do not have the data sheet for this product now.
