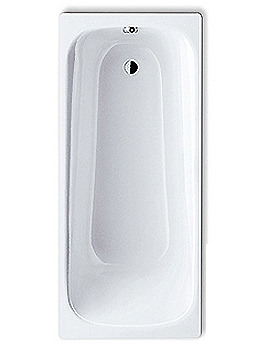

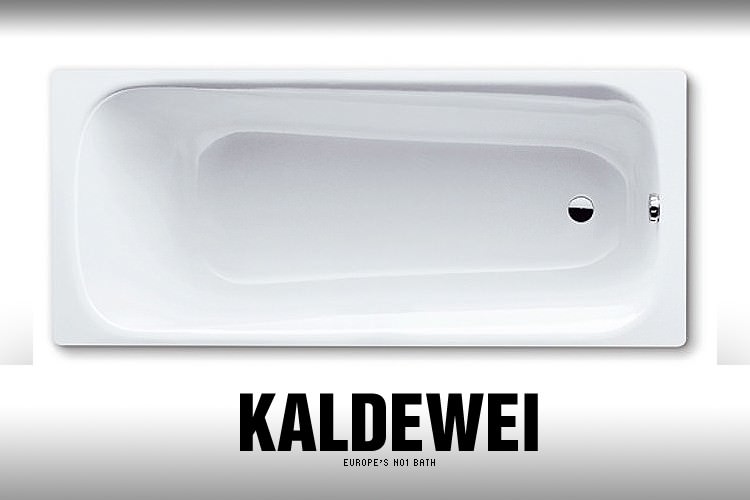

Kaldewei Dyna Set 620 Single Ended 1700 x 750mm Steel Bath

More Variation Available


MFC CODE: 226100010001


RRP: £1207.72


5 Working Days Approx

4.5 out of 5 4.5 out of 5

8 out of 8 customers rated 90%

Review this Product

Shipping: £29.95

Other Variation Available Step 1
OP-153239 - No Tap Hole
Available Variants Step 2
  • Bath
  • Length: 1700 mm
  • Width: 750 mm
Please Note all the measurements are in 'mm'
External Length 1700
External Width 750
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 561-586
Colour White
Grips Included No
Internal Bottom Length 1230
Internal Bottom Width 500, 520
Internal Top Length 1565
Internal Top Width 620, 640
Height of Rim 32
Distance Tub edge to centre of drain hole 285
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 410
Distance between the feet 760
Rim Width 75
Distance Between Centre Holes 206
Weight in kg 53
Slip Resistant No
Shape Rectangular
Capacity in litres 169
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled
Kaldewei Dyna 226100010001 DETAILS

This Kaldewei Dyna Set Single Ended Bath measures 1700mm x 750mm and boasts 3.5 steel enamel construction. Indulge in this 169-litre tub to ease daily stresses and rejuvenate for the week ahead. With Kaldewei's 30 year guarantee, you can rest easy in the knowledge that this tub is of the highest quality. QS Supplies offer this tub at an unbeatable price so don't delay, order yours today to enjoy tomorrow and beyond.

  • Bath with EasyClean, Anti-Slip and full Anti-Slip Also Available [Optional]
  • Bath without Tap hole or 2 Tap hole available [Optional]
  • Suitable for showering and bathing
  • One seater bathtub with outlet foot at the end waste at the end
  • Supplied with No Tap hole
  • Size of this item : 1700 x 750mm [Length x Width]
  • Made of 3.5mm Steel Enamel
  • Water Capacity : 169 Litres
  • Height with Feet : 561-586mm
  • Weight : 53kg
  • Bath waste shown in image is not included
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated (Tested Safety)
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable
  • Bath waste [Optional]
  • Leg Set Required, Please order adjustable feet set 5030 [Optional]
  • 30 years of guarantee from the manufacturer against any defects.

Please Note: Bath variants may be special order and delivery lead time may vary.

Leg Set

Leg Set

Installing a bathtub is particularly quick and straightforward with the all-round bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.



High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V19350 - 1600mm 226800010001
QS-V19349 - 1500mm 226600010001

  • Available Variation Along With Manufacturing Code
  • No Tap Hole - Bath -  226100010001
  • 2 Tap Hole - Bath -  226120000001
  • No Tap Hole - Bath With EasyClean -  226100013001
  • 2 Tap Hole - Bath With EasyClean -  226120003001
  • No Tap Hole - Bath With AntiSlip -  226130000001
  • 2 Tap Hole - Bath With AntiSlip -  226125000001
  • No Tap Hole - Bath With AntiSlip And With EasyClean - 226130003001
  • 2 Tap Hole - Bath With AntiSlip And With EasyClean - 226125003001
  • No Tap Hole - Bath with Full Antislip -  226134010001
  • 2 Tap Hole - Bath with Full Antislip -  226126090001
  • No Tap Hole - Bath with Full Antislip And With EasyClean - 226134013001
  • 2 Tap Hole - Bath with Full Antislip And With EasyClean - 226126093001.
