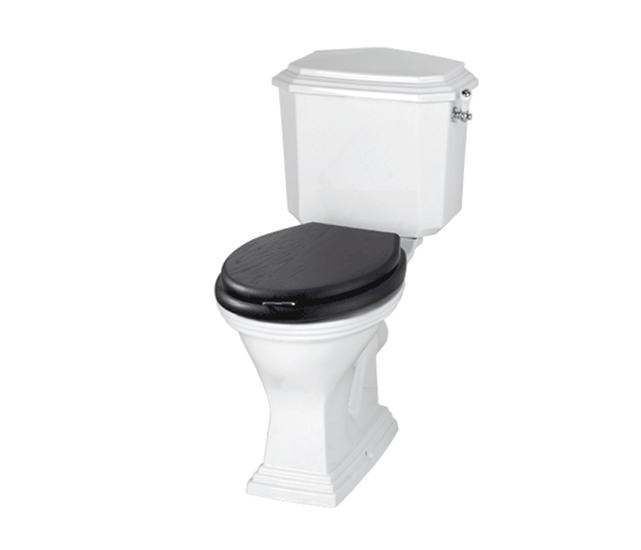

Imperial Astoria Deco WC Pan And Closed Coupled Cistern




RRP: £750.00


5-7 Working Days Approx

4.3 out of 5  4.3 out of 5
3 out of 3 customers rated 87%

Review this Product

Shipping: £29.95

Select WC Pan Colour Step 1

Select Cistern & Fitting Finish Step 2

Download the Windsor Seat Soft Close Pdf File
Download the Oval Seat Standard Pdf File

Please Note all the measurements are in 'mm'
Colour White / Black
Country of Origin UK
Warranty/Guarantee Lifetime
Material Ceramic
Theme Traditional
Installation Type Floor Mounted
Pan Width 360
Pan Height 408
Toilet Overall Height 800
Projection (Depth) 700
Cistern Included Yes
Cistern Width 412
Cistern Type Close Coupled
Cistern Height 370
Flush Mechanism Lever Operated
Cistern Lever Or Button Placement Left
Configuration Two Piece
Seat Included Sold Separately
Bowl Shape Round
Cistern Depth (projection) 220
Base width 190
Base Depth (projection) 390
Base to centre of outlet 200

Imperial Astoria AD1WC01030 DETAILS

Modern bathroom decor can easily absorb the Astoria Deco WC Pan, which comes with a Closed Coupled Cistern arrangement. Apart from aesthetics its design very competently addresses the challenge of saving space through its compactness and provides ease in maintenance due to its vitreous treated surface. Manufactured from the best quality of ceramic this unit is available in white colour with a cistern lever in either gold or chrome finish. Toilet seat is sold separately and is available in a wide range of finishes. This product comes with a lifetime guarantee from Imperial.

  • Manufacturing code of this WC pan is AD1WC01030
  • Price is for WC pan and cistern only all other item shown in the image are not included
  • Code of included closed coupled cistern is ZADCC01000C
  • White Cistern with  Chrome fittings
  • Cistern also available in Antique Gold & Polished Nickel finish
  • For use with the Windsor seat - sold separately [See Option Below].
  • Made from finest quality ceramic
  • Lifetime Guarantee against manufacturing defects
  • Pan Width 360mm
  • Overall Height 800mm
  • Pan Height : 408mm
  • Projection 700mm
  • Cistern Size : Width 415 x Height 370 x Depth 225mm
  • Horizontal outlet

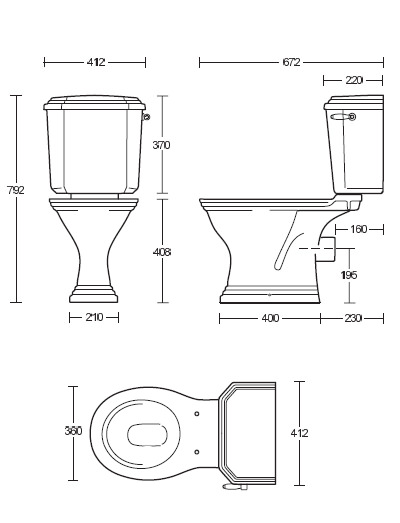

Technical Images

Imperial Seat Finishes

Imperial Seat Finishes

Imperial Toilet Seat available in variety of wooden finishes. Please note image is for illustration purpose only.

Pan Connector

Pan Connector

Made from ceramic, which enables easy installation of WC pans in awkward situations

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V106639 Black - AD1WC01230

Total: £562.50 5-7 Working Days Approx QS Supplies

You've Selected which adds to a total of



Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Louise Asked :
What size is the toilet seat? Would a seat measuring 375mm x 425mm fit?

Answered By QS Team :
Please find the technical specs from the technical tab above, for the seat to match the pan in standard and soft closing model.
