Flova Dekka Concealed Manual Chrome Shower Valve with Diverter, DESHVO/DIV

Flova Dekka Details

MFC: DESHVO/DIV

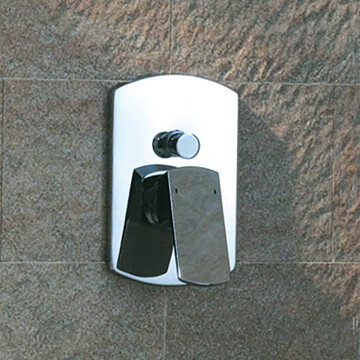

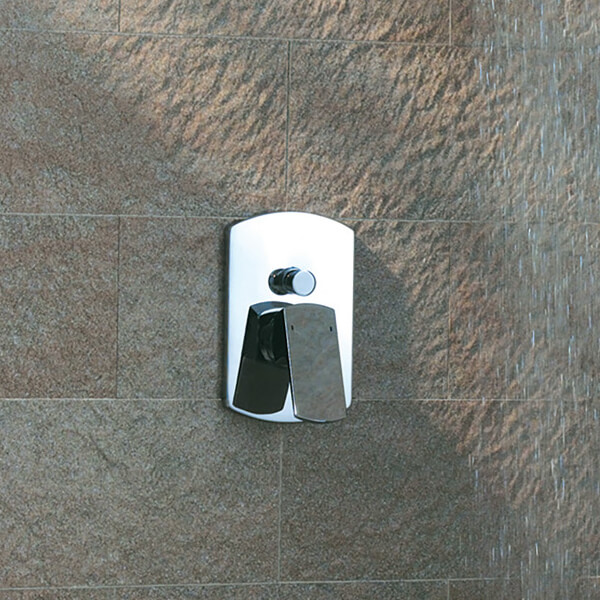

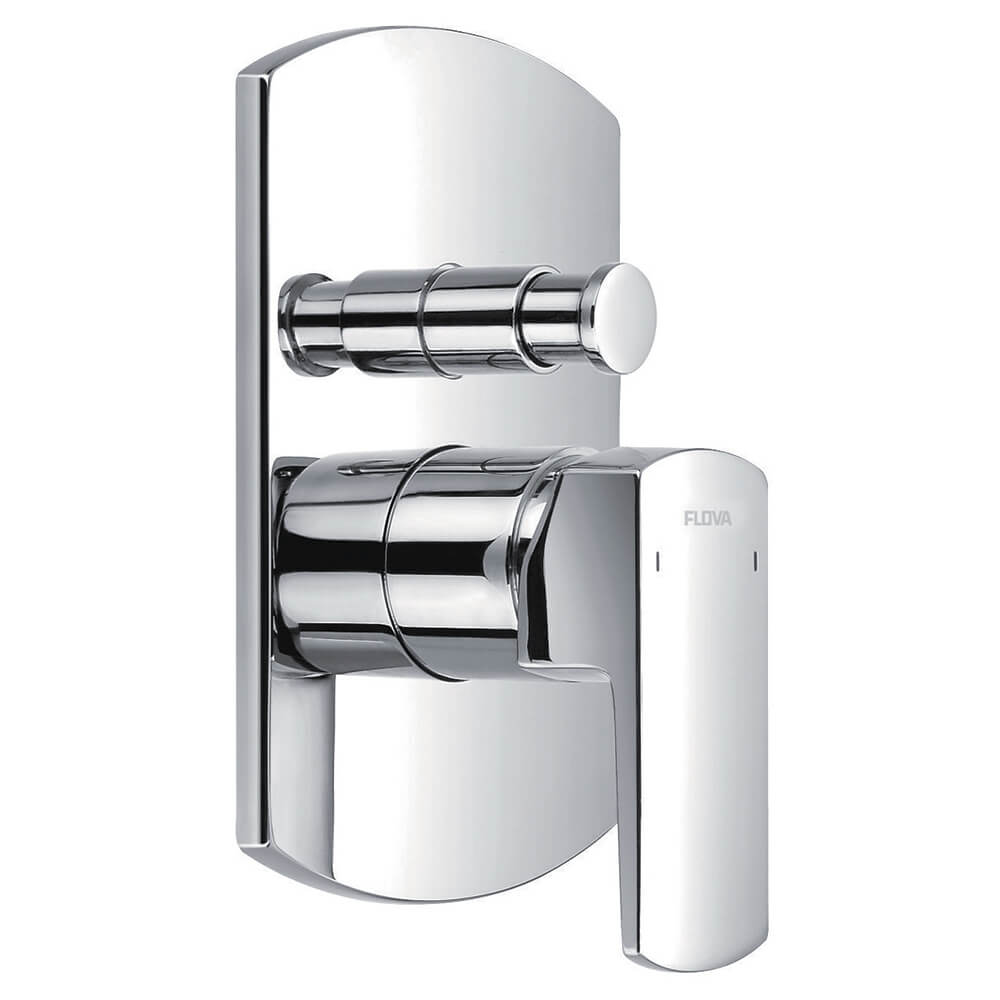

A portrait-style backplate covers the Dekka Concealed Manual Shower Valve with 2-Way Diverter. This apparatus is compatible with medium water pressure systems and requires a minimum pressure of 0.5 bars to deliver a flow rate of 11.25 litres per minute through a faucet spout and 7.69 litres per minute through a handset. Constructed from lead-resistant brass that makes it rust-free, and its exterior body is finished with diamond chrome coating as a durable cover. This product is guaranteed for a period of 15 years by Flova against any manufacturing defects.

Manufacturing Code of this Product: DESHVO/DIV
Easy to Clean
It Comes in a Diamond Chrome Finish
Wall-Mounted Installation
Outlets: 2-Outlet
Push/Pull Divert Mechanism
Temperature Control: Manual
Compact and Reliable Design
Valve with Portrait Backplate
Smart Box Concealed Flow Control System for Easy Installation
Smart Box System for Easy Installation
Suitable for a Medium Water Pressure System
Recommended Minimum Water Pressure: 0.5 Bar
Fully Compatible with Uk Plumbing Systems
Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Diamond Chrome
⤷ Shape
: Rounded Rectangle
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Lever
⤷ Temperature Control
: Manual

⤷ Backplate Width
: 115
⤷ Backplate Height
: 180
⤷ Control Type
: 2
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 2
⤷ Diverter Included
: Yes
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed

Additional Info & Downloads

This item can also be found in:

Concealed Shower Valves

Flova Dekka Concealed Manual Chrome Shower Valve with Diverter and SmartBox - 2 Outlets - 1 Control

£164.69

RRP: ~~£243.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

SmartBOX

The SmartBOX has been designed for use with one, two and three-outlet applications. It comes with everything you need for the first fix installation. It requires an installation depth of just 57mm, making it compatible with almost any wall depth. The multi-fix system allows for fixing at more than one point, both from the front and back. It comes with a Self-levelling spirit level for accurate installation. The design allows complete and easy access to all the components protected by the ridged box.

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Andrew Asked :
I am looking at the Flova Dekka Concealed Manual Shower Valve With 2 Way Diverter QS-V27189 MFC CODE: DESHVO/DIV. What are the dimensions of the portrait style back-plate, please? I have a hole 16.5 cms x 9.5 cms to cover from a previous mixer. There must be overlap to ensure a proper seal. Thank you

Answered By QS Team

The backplate measurement is 173mm high by 113mm wide, which seems suitable to replace your existing mixer with.

Was this answer helpful?
