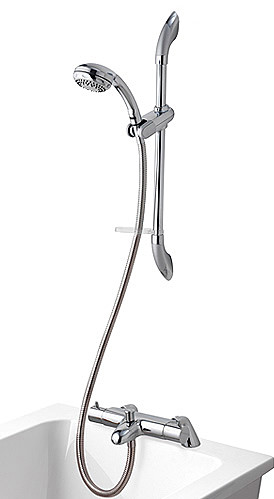

Aqualisa Midas 220 Chrome Thermostatic Bath Shower Mixer Tap With Slide Rail Kit

Aqualisa Midas Details

MFC: MD220BSM

Aqualisa Midas Thermostatic Bath Shower Mixer with slide rail kit is a modern, designer fixture that delivers comfort, technology and durability. Featuring brass fabrication in the chrome-plated finish and a multi-function shower head with three spray patterns, it is a bathroom essential.

Key Features

✔WRAS Approved

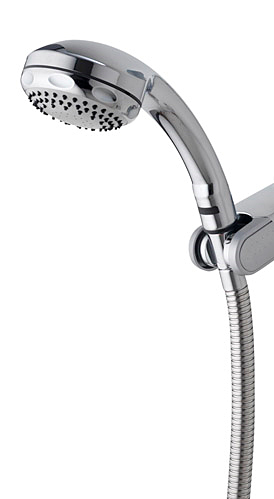

✔3 Spray Pattern Head
✔Constructed using Brass, Metal and Plastic
✔The Product's Surface is Safe to Touch with Minimal Heat Transmission of the Water
✔5-Year Guarantee on the Valve and 2-Year for Head and Kit from the Manufacturer Against All Manufacturing Defects

It comes in a chrome finish that blends marvellously with any bathroom style. Make your bathtub the centre of attraction in the washroom by fitting it with this exquisitely designed and extremely attractive mixer. This deck-mounted tap is suitable to use with high-pressure and combination boiler systems. Enjoy lavishness every day with this tap that comes to you with a guarantee of 5 years on the valve and two years for the head and kit from the manufacturer against all manufacturing defects.

The Manufacturing Code of this Product is MD220BSM
It comes in a Chrome Finish
Easy Clean Nozzles
Adjustable Height Slider
Flow Control
Instantly Reacts to Temperature Fluctuations and Water Flow for Consistent Performance
Stylish Diverter Knob
Wax-Stat Technology

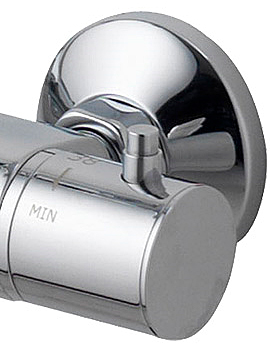

Safety Temperature Override Button
Wall or Bath Mounted
Combi and Balanced High Pressure
Minimum 1 Bar Pressure Required and Maximum 10 Bar
Rail Height: 865mm (86.5cm)
Valve Size [mm]: 275 x 150 x 75mm [Width x Depth x Height]
Valve Size [cm]: 27.5 x 15 x 7.5cm [Width x Depth x Height]
Inlet Connection: 3/4 Inch BSP
Outlet Connection: 1/2 Inch BSP
Inlet Supply Position: Hot/Left and Cold/correct (as viewed from the Front)
Suitable for Use with All Water Systems
Inlet Centre: 150mm (15cm) Wall-Mounted or 180mm (18cm) Bath Mounted. Pipe Centres Can be Adjusted Between 130-170mm (13-17cm) using Eccentric Elbows (not Supplied with the Product)
Supply Temperature: Cold Supply is 5 - 20 Degrees C, and Hot Supply is 55 - 65 Degrees C
Wall Mount Fitting Kit [See Option]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass Valve
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 180
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Technologies
: Wax-Stat

⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: HP Combi
⤷ Separate temperature and power controls
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: Width 275 x Depth 150
⤷ Rail Length
: 865

Additional Info & Downloads

Download the Installation Instruction Pdf File

Aqualisa Midas 220 Chrome Thermostatic Bath Shower Mixer Tap With Slide Rail Kit

£426.53

RRP: ~~£670.03~~

Stock Availablity: 3 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Easy Clean Nozzles

Shower heads and handsets can be easily cleaned with a damp cloth, preventing limescale build-up.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Reviews & Ratings

By: Joy From : Gloucester Overall Rating: Date: September 28, 2015 MD200BSM

I was worried that it might not be powerful enough but it turned out to be better than our electric power shower. A slightly longer hose would allow for taller users but having said that, the one provided is about long enough - just a bit of a stretch. I rate this product very highly. Top quality!

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Paul Asked :
Can you please tell me the difference between the Aqualisa Midas 110 & the 220? Also, what's the length of the hose, please? Many thanks & kind regards, Paul

Answered By QS Team

The Midas 110 has plastic control knobs and a standard shaped bar valve. It also has slightly lower flow rates to the Midas 220. The Midas 220 has metal control knobs, a different shaped bar valve, and a different style head kit to the Midas 110. The hose's length on the shower bar valves will be 1.5m, and the length of the hoses on the bath fillers with showerheads will be 1.75m.
