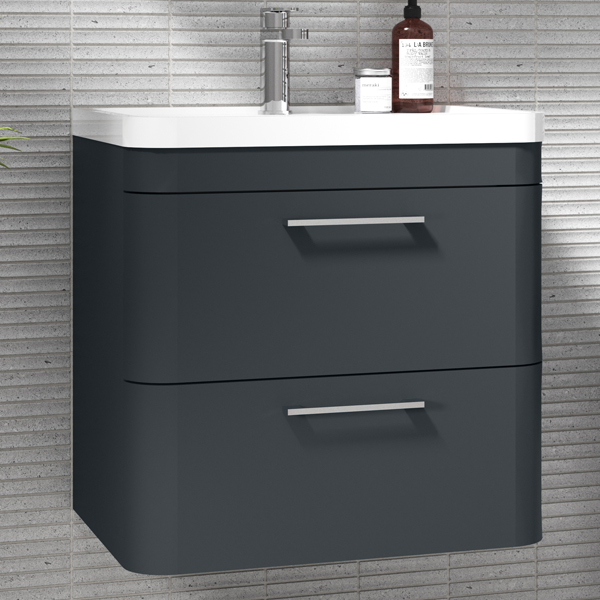

Nuie Parade Wall Mounted Curved Vanity Unit with Basin & Handles, 2 Drawer

Nuie Parade Details

MFC: FPA002

The amazingly spacious drawers of this beautiful Parade Wall Hung Drawer Cabinet and Basin from Nuie will surprise you with their large storage capacity. This cabinet is made from durable, high-quality material for long-term usage and comes in 2 sizes, 600mm wide and 800mm Wide, and in a choice of finishes such as Gloss White, Soft Black and Satin Green.

Elegant chrome handles ensure a hassle-free operation of the two soft-close drawers. Gentle curves give this unit a designer look and ample storage, perfect for storage for the entire family. The manufacturer provides a five-year guarantee on this wall-hung vanity unit. Enhance the style quotient of the product by using it with an elegant LED mirror.

Key Features

✔FSC-Certified
✔Cabinet Material Finish: MFC-Smooth Matt
✔Fascia Material Finish: MDF-Painted Gloss
✔Construction Method: Cam and Wood Dowel
✔5-Year Guarantee from Nuie against Manufacturing Defects

Wall-Hung Vanity Unit and Basin
Choice of Finishes: Gloss White, Satin Green and Soft Black
Choice of Widths: 600mm and 800mm
Choice of Basin Types: Polymarble, Ceramic and Thin-Edge Ceramic
The Wall-Hung Unit gives Ample Storage, perfect for a Busy Family Bathroom
Drawer Organiser - [Optional]
Leg Set - [Optional]
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Details
Detail For Unit:
Size [mm]: 445 x 500mm [Depth x Height]
Size [cm]: 44.5 x 50cm [Depth x Height]
Cabinet and Fascia Thickness: 18mm
2 Soft-Close Drawers limit the daily Wear and Tear and provide a Quieter Closing Action
Drawer Type: 80mm (8cm) High Metal Soft-Close Inc Galler
Chrome Finish Cup-Type Handle
Supplied with Rigid
Waste Shroud: Yes
Detail For Polymarble Basin:
Manufactured using Polymarble Material
Size [mm]: 450 x 157mm [Depth x Height]
Size [cm]: 45 x 15.7cm [Depth x Height]
40mm Profile Basin
Single Taphole
Overflow and Cover Included
Inner Bowl Depth 600mm: 110mm (11cm)
Inner Bowl Depth 800mm: 105mm (10.5cm)
Detail For Ceramic Basin:
Manufactured using Vitreous China Material
Size [mm]: 460 x 157mm [Depth x Height]
Size [cm]: 46 x 15.7cm [Depth x Height]
40mm Profile Basin
Single Taphole
Overflow and Cover Included
Inner Bowl Depth 600mm: 110mm (11cm)
Inner Bowl Depth 800mm: 105mm (10.5cm)
Detail For Thin-Edge Ceramic Basin:
Manufactured using Vitreous China Material
Size [mm]: 460 x 163mm [Depth x Height]
Size [cm]: 46 x 16.3cm [Depth x Height]
40mm Profile Basin
Single Taphole
Overflow and Cover Included
Inner Bowl Depth 600mm: 115mm (11.5cm)
Inner Bowl Depth 800mm: 115mm (11.5cm)
The Tap Shown in the Image is Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 157
⤷ Sink Projection
: 450
⤷ Sink Width
: 600
⤷ Range
: Parade
⤷ Colour
: Gloss White
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 596
⤷ Depth
: 445
⤷ Height
: 500
⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes
⤷ Compliance/Approvals/Standard
: FSC

⤷ Barcode
: 5055369021741
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit | Basin
⤷ Furniture Material
: MDF | MFC
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ Number Of Drawers
: 2
⤷ Soft-Close Drawer
: Yes
⤷ Sink Material
: Polymarble
⤷ Number Of Sinks
: 1
⤷ Sink Shape
: Rectangular
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet For 600mm Cabinet And Basin Pdf File Download the Customer Data Sheet For 800mm Cabinet And Basin Pdf File Download the Installation Instruction Pdf File

Technical Images

Nuie Parade Wall Mounted Curved Vanity Unit with Basin and Handles 500mm High - Two Drawer

Add-Ons

Bamboo Drawer Organiser

Keep all of your bathroom essentials in order with this luxury bamboo drawer organiser. Please note: The image shown is just for illustration purposes only.

No Option Selected
OP-225115 - Straight Organiser Insert + £11.08
OP-225116 - L Shaped Organiser Insert + £12.96

Decorative Leg Set

Add a modern touch to your wall-hung vanity with these stainless steel decorative legs. They are available in a variety of beautiful finishes and are non-weight bearing. Please note: The image shown is for illustration purpose only.

No Option Selected
OP-243628 - 70 x 260mm Chrome Leg Set + £33.67
OP-243629 - 70 x 260mm Matt Black Leg Set + £34.43
OP-243630 - 70 x 260mm Brushed Brass Leg Set + £35.56

£269.12

RRP: ~~£756.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it water resistant, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Reviews & Ratings

By: RG From : London Overall Rating: Date: November 14, 2024 Disappointed with the quality

The overflow ring is plastic with a silver coating. The coating has already started peeling off in a month. The cabinet top where it meets the basin is also not clean. Has ridges on the corner. Unfortunately did not see it earlier.

Helpful?

Reply By QS Supplies

Thank you for your feedback. We're sorry to hear about your experience with the cabinet top and the overflow ring. Regarding the ridges at the corner where the cabinet top meets the basin, this could potentially be a result of regular use, but we understand how this can be concerning. We strive to ensure the products we offer meet the highest standards of quality and durability, so we truly regret that this issue has occurred. We appreciate your input and will forward this to the manufacturer so they can improve the product in the next upgrade. Thank you for allowing us to make this right.

Quality:

Style

Value for Money

By: Alan From : ILKLEY Overall Rating: Date: October 31, 2022 Top Quality

High quality at a good price. Needed a minor DIY to accommodate waste pipes but no problem. Service and delivery were also very good. Have bought from QS twice now and I've been impressed.

Helpful?

Quality:

Style

Value for Money

By: William From : GALASHIELS Overall Rating: Date: December 1, 2021 Elegance and practicality

This compact cabinet is stylish and modern and has lots of storage. It would suit a smaller ensuite or bathroom. The basin has a lovely profile with sufficient depth. Highly recommended.

Helpful?

Quality:

Style

Value for Money

By: carolyn From : south croydon Overall Rating: Date: May 10, 2017 bathroom sink unit

great little unit and sink perfect for my daughters' bathroom. Drawers open really easily. fantastic price too

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

By: CLIVE From : NESTON Overall Rating: Date: March 31, 2021 Sink Unit

Good quality, nicely built.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 7 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Phil Asked :
Does it come with/Do you have an installation guide for the Nuie Parade 2 draw wall hung cabinet? In particular, are the draws easily removed for installation?

Answered By QS Team

Installations Instruction PDF is available in the Additional Info Section of this product. You can also download it from the attached link.

Was this answer helpful?

Paul Asked :
It looks from the drawing that the polymarble basin has a large volume than the ceramic basin - is that correct?

Answered By QS Team

The volumes on poly marble basins are not necessarily higher than the ceramic; for example, with ceramics, sometimes the edges are not perfectly straight, but on a poly marble basin, you get a straighter edge.

Was this answer helpful?

Paul Asked :
What diameter is the tap hole on the Polymarble basin - also 35mm?

Answered By QS Team

The tap hole size would be 35mm as a standard.

Was this answer helpful?

Carol Asked :
What is poly marble? Please.

Answered By QS Team

Poly Marble is a material used for making Countertop and Washbasin. It is made of Porcelain, Natural stone, and other materials. It is a calcium carbonate core with a gel coating of polyurethane resin, and it is highly durable and resistant to scratches and stains.

Was this answer helpful?

Victor Asked :
I have a Parade vanity unit 600. I have taken the top drawer out and can not get the drawer secure. Are there any fixing instructions?

Answered By QS Team

The fitting Instruction PDF is provided in the Additional Info section of the product. You can also download it from here

Was this answer helpful?

KAREN Asked :
Hi, does item number QS-V73267 come with the holes pre-drilled for the handles?

Answered By QS Team

The FPA002 does come pre-drilled from the inside of the doors.

Was this answer helpful?

David Asked :
Hello, I'm interested in the premier parade 600mm and 800mm wall-hung bathroom units. My water supply and drains come directly underneath the unit's proposed position. Is there a designed channel cut into the 2 drawers to vacillate these pipes? I cannot see from the drawing.

Answered By QS Team

There is a cut-out at the back of the panel and a top drawer for pipework.

Was this answer helpful?
