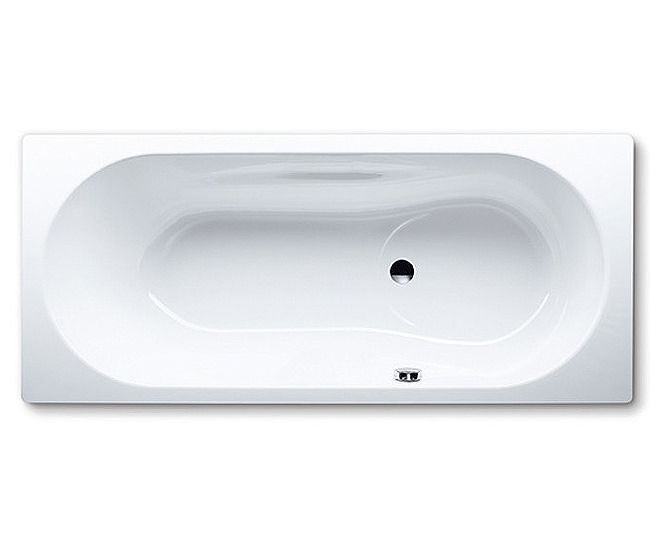

Kaldewei Vaio Set 954 Special Overflow Steel Bath 1700 x 750mm

Available Bath Variants: No Tap Hole / 2 Tap Holes


MFC CODE: 233423000001


RRP: £981.53


5 Working Days Approx

4.0 out of 5 4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

Shipping: £29.95

Other Variation Available Step 1
OP-153914 - No Tap Hole
Available Bath Variants Step 2

INFO / SIZE (mm)

  • Bath
  • Length: 1700 mm
  • Width: 750 mm
Please Note all the measurements are in 'mm'
External Length 1700
External Width 750
Tub Depth External - 430
Feets Included Sold Separately
Height Including Feet or Panel 560-580
Colour Alpine White
Internal Bottom Length 1300
Internal Bottom Width 450, 525
Internal Top Length 1560
Internal Top Width 505, 630
Height of Rim 32
Distance Tub edge to centre of drain hole 625
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 435
Distance between the feet 725
Distance tub edge(foot end) to where handle starts 720
Distance tub edge(foot end) to where handle ends 980
Rim Width 60, 80
Distance Between Centre Holes 310
Weight in kg 50
Slip Resistant No
Shape Rectangular
Capacity in litres 135
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled
Kaldewei Vaio 233423000001 DETAILS

Kaldewei's Vaio Set 954 Supersteel Bath has an irresistible physical appeal that will draw you and envelope you in its cosy confines in a compelling manner. Made of steel enamel and finished in White, this deep and comfortable bath has a sensuous scratch-resistant surface that is colourfast and lightfast. To elevate your comfort, it comes with integrated armrests and uniquely angled rim slopes towards the inner area of the bath and includes a 100% recyclable Earthing strap for Equipotential Bonding. This sturdy masterpiece comes with a massive 30-year guarantee against any manufacturing defects.

  • Available in No tap hole and 2 tap holes version [Optional]
  • Baths with Easy clean finish, Anti slip and Full anti slip variants also available [Optional]
  • Easy clean finish, Anti slip with Easy clean finish and Full anti slip with Easy clean finish variant is only available in No tap hole bath
  • Alpine white finish bath
  • Size: Length 1700mm x Width 750mm x Depth 430mm
  • Come with side overflow hole and integrated arm rests
  • Single ended bath
  • Suitable for both - bathing and showering
  • Made of steel enamel 3.5mm
  • Water Capacity: 135 Litres
  • Weight: 50 Kg
  • Bath waste shown in image is not included
  • Image shown for illustration purpose only
  • Leg set [Optional]
  • Bath waste [Optional]
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated Tested Safety
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable
  • Refer technical image for more technical details
  • 30 Years Guarantee against any manufacturing defects.

Please Note: Bath variants may be special order and delivery lead time may vary.

Leg Set

Leg Set

Installing a bathtub is particularly quick and straightforward with the all-round bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.



High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

Total: £505.49 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require



Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Tonbridge Date: August 22, 2015

We bought our Kaldewei bath from QS supplies about two years ago. It formed part of a larger bathroom refurbishment/ replacement project. Service by QS was excellent, with good advice given and prompt delivery. Installation was straightforward, and the bath has not given any problems in the period since. Altogether, we are very happy with our purchase.

1 of 1 People have found this Review useful


  • Quality:
  • Value For Money:
  • Style:

Questions & Answers

Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Andy Asked :
How do I specify left or right side waste? The description says the picture is only for reference and no mention of the side is made in the official dimensions.

Answered By QS Team :
This is a Left-hand hand Overflow bath.

Was this answer helpful? -

Hannah Asked :
Hi, I'm confused, is this bath a single-ended bath or a double-ended? On other websites, I've read that it is a double bathtub that is also suitable for showering, but I see no mention of that on yours. Also, are there other colours available? Thanks Hannah

Answered By QS Team :
This is a Single ended bath and is only available in white alpine finish and suitable for showering. The manufacturer has discontinued other Options of colours.

Was this answer helpful? -
