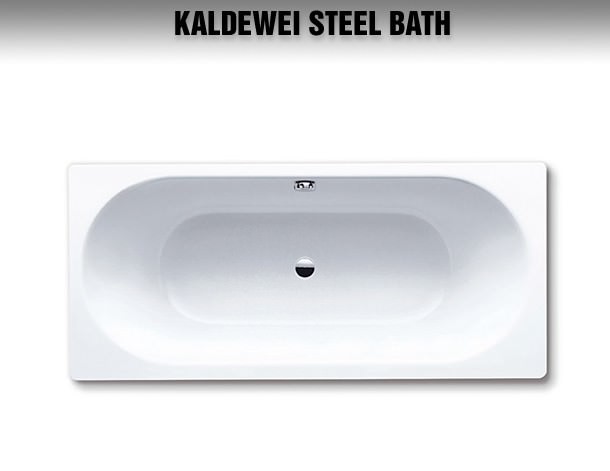

Kaldewei Classic Duo 110 Double Ended Steel Bath 1800 x 800mm

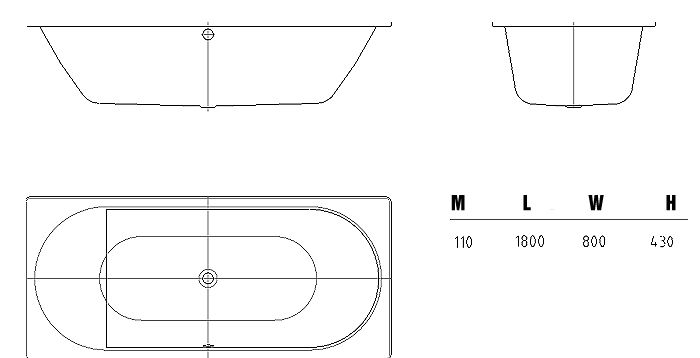

Technical drawing QS-V19345 / 291000010001

Kaldewei Classic Duo 110 Double Ended Steel Bath 1800 x 800mm 0 TH

QS-V19345 MFC CODE: 291000010001

£500.77

RRP: ~~£890.40~~ You Save £389.63 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

STOCK AVAILABILITY

5 Working Days Approx

Shipping: £29.95

Description

Technical

Kaldewei brings to you this Classic Duo Steel bath which combines form and function with design precision. This 158 litre bath is spacious enough for two to enjoy with identical back rests for complete comfort. This bath comes with a 30 year guarantee from Kaldewei.

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

External Length	1800
External Width	800
Tub Depth	External - 430
Feets Included	No
Height Including Feet or Panel	555-590
Colour	White
Grips Included	No
Internal Bottom Length	1230
Internal Bottom Width	550
Internal Top Length	1680
Internal Top Width	680
Height of Rim	32
Distance Tub edge to centre of drain hole	900
Distance Top edge to centre of overflow hole	70
Diameter of overflow hole	52
Diameter of Drain hole	52
Distance foot end of tub edge to center of foot	600
Distance between the feet	600
Rim Width	60
Distance Between Centre Holes	330
Weight in kg	53
Slip Resistant	No
Shape	Rectangular
Capacity in litres	158
Country of Origin	Germany
Warranty/Guarantee	30 Years
Material	Steel
No. of Bathers	2
Waste Included	Sold Separately
Tap Holes	Un-drilled

INFO / SIZE (mm)

+ Other Sizes & Variations Available

Bath
Length: 1800
Width: 800

QTY

HIGHLIGHTS

Manufacturing code of this product : 291000010001
Timeless Balanced Design
Two identical back rests slope
Centrally positioned waste hole
3.5 Steel Enameled
Supplied with No tap hole
Weight : 53kg
Height with feet: 555 - 590mm
Size : 1800 x 800mm [Length x Width]
Classic Four Cornered Model

Water Capacity 158 Litres - 70 Litres displacement on average
Bath waste shown in image is not included
30 years of Guarantee from the manufacturer
Being a Double ended you can have a pleasure bathing experience with your friend.
Comfort Level Waste & Overflow [Optional]
Also available in Easy Clean Finish [Optional]
Leg Set Required, Please order adjustable feet set 5037 [Optional]
Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated [Tested Safety]
Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable.

This Item is also available in:

+ See Available Variations

Please Note all the measurements are in mm

[L] 1800 x [W] 750 290900010001

CUSTOMISE YOUR PRODUCT

Bath Leg Set 5037

Installing a bathtub is particularly quick and simple with the all-round bathtub base frame model 5030 by Kaldewei. The positions of the tub feet on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29713 - Leg Set 5037 - 583170000000 + £63.20 RECOMMENDED

Easy clean finish

Kaldewei easy-clean finish makes water forms droplets and in the process takes nearly all the particles of dirt and limescale along with it even dried-up water stains and limescale deposits can simply be removed with a soft damp cloth.

No Option Selected
OP-1546 - Easy-Care Easy-Clean Finish + £74.88

Kaldewei Comfort Level

Now, with the new Comfort Level Side overflow, the water level can be increased by up to 50 mm. With its flat form and featuring chrome-coloured, this new overflow can be optimally combined with all bath and fittings.

No Option Selected
OP-1712 - 4002 Long Chrome Plated + £146.90

Comfort Level Plus

The COMFORT-LEVEL PLUS is an innovative development of the COMFORT-LEVEL and now provides even more comfort when bathing: With an integrated filling function, there is no additional fitting required to fill the bath.

No Option Selected
OP-29931 - COMFORT Level Plus 4012 EXT CP 687770620000 + £304.98

OTHER SIZES / FINISHES

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V21631	White	1800mm L x 750mm W	290900010001

Back to QS-V19345 / MFC CODE: 291000010001

Total: £500.77 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

AGATA GRZYCH LONDON Date: May 8, 2018

Happy client

Very good service,fast delivery and like always great price.

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

Quality:
Value For Money:
Style:

WRITE A REVIEW

Questions & Answers

Submit Your Questions 4 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

christel jackson Asked :

Can you drill hole in steel bath to fit tap? This would be for Kaldewei classic duo 1800x800. Tap is a bath Bristan Prism. Please advise Thank you

Answered By QS Team :
I am afraid the only drilling option for this bath is in the corner. If you can send through the technical specification details of the tap along with details of where on the bath you would require the drilling we can check with the technical department in Germany if this is technically possible.

Was this answer helpful? Yes - No

gray douglas Asked :

Does this bath accommodate with click-clack waste? Regards G.D

Answered By QS Team :
You will need to purchase the bath drilled, to accommodate the KALDEWEI waterfall bath inlet with integrated overflow and click-clack waste. If you want to just purchase the bath and source your own click-clack waste, you can do so, you will need an extended waste and overflow component in this instance.

Was this answer helpful? Yes - No

Peter Asked :

Can you put tap holes in this bath for me? Cheers Peter

Answered By QS Team :
We can potentially do what is called a special drilling. If you can provide details of where on the bath you require the drilling and the technical specification of the taps you wish to be fitted, we can see if it is possible.

Was this answer helpful? Yes - No

Charlotte Fry Asked :

I need to get bath legs for the bath I have ordered from you - please can you advise what is required? Thanks, Charlotte

Answered By QS Team :
Legset 5037 is required. It is available as an option above.

Was this answer helpful? Yes - No
