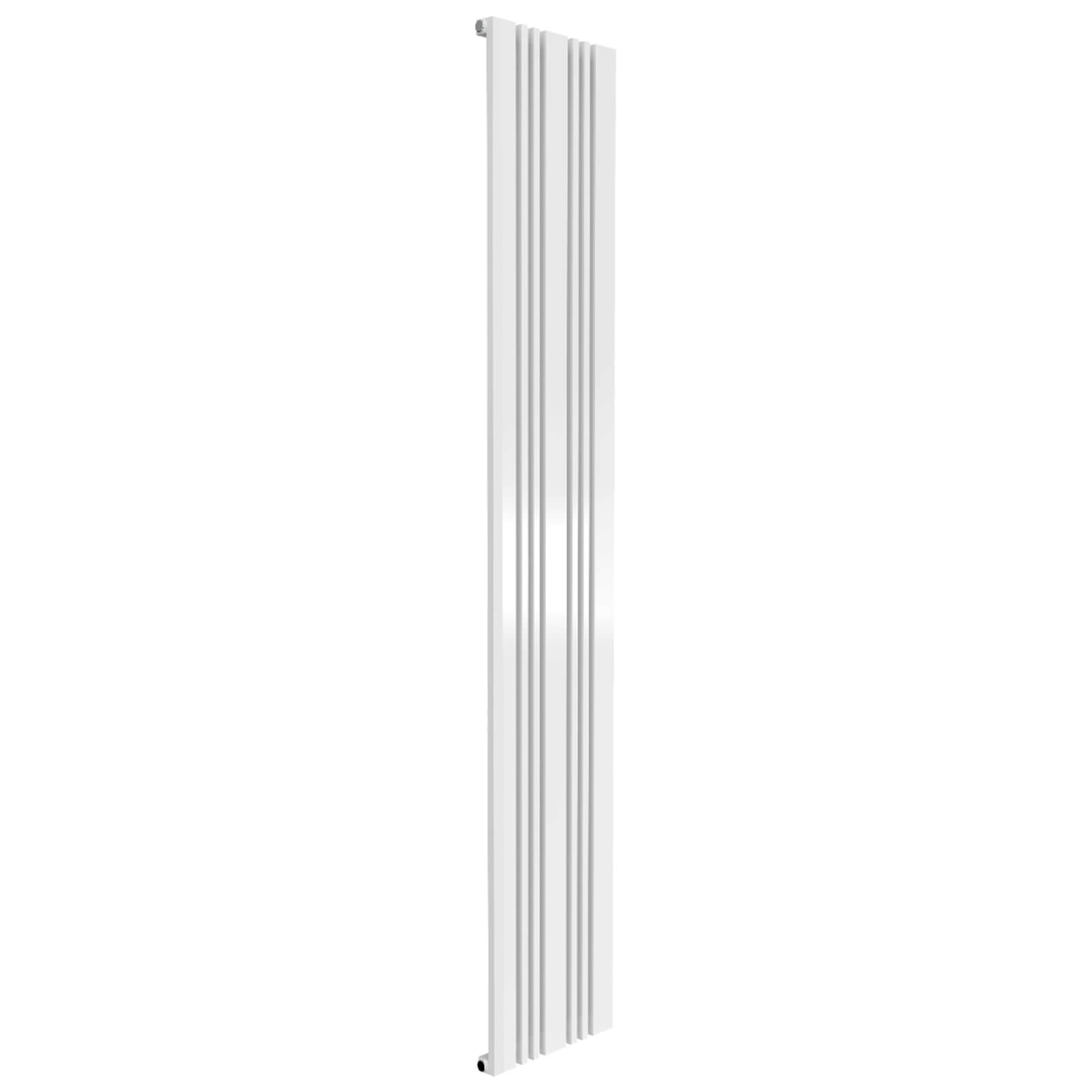

Reina Bonera Vertical Mild Steel Flat Designer Radiator 1800mm High with Brackets

Reina Bonera Details

MFC: RND-BNR3218W

The Reina Bonera Designer Radiator is a contemporary designed wall mounted radiator. This vertically oriented fixture spans the length of the wall and makes good use of space without compromising on aesthetics. With a range of finishes to play with, this eye-catching piece can be made to look even more irresistible by customising it as per your tastes and preferences. The heat output of this appliance which is ample will leave you in no doubt about its performance. Please note that this heating appliance is suitable for Central Heating Systems only. The inclusion of this model in your home will add a new visual dimension to the interiors.

Key Features

✔EN 442 Compliant Product
✔Supplied with Air Vent and End Plug
✔Manufactured using Mild Steel Material
✔5-Year Guarantee from Reina Against Manufacturing Defects

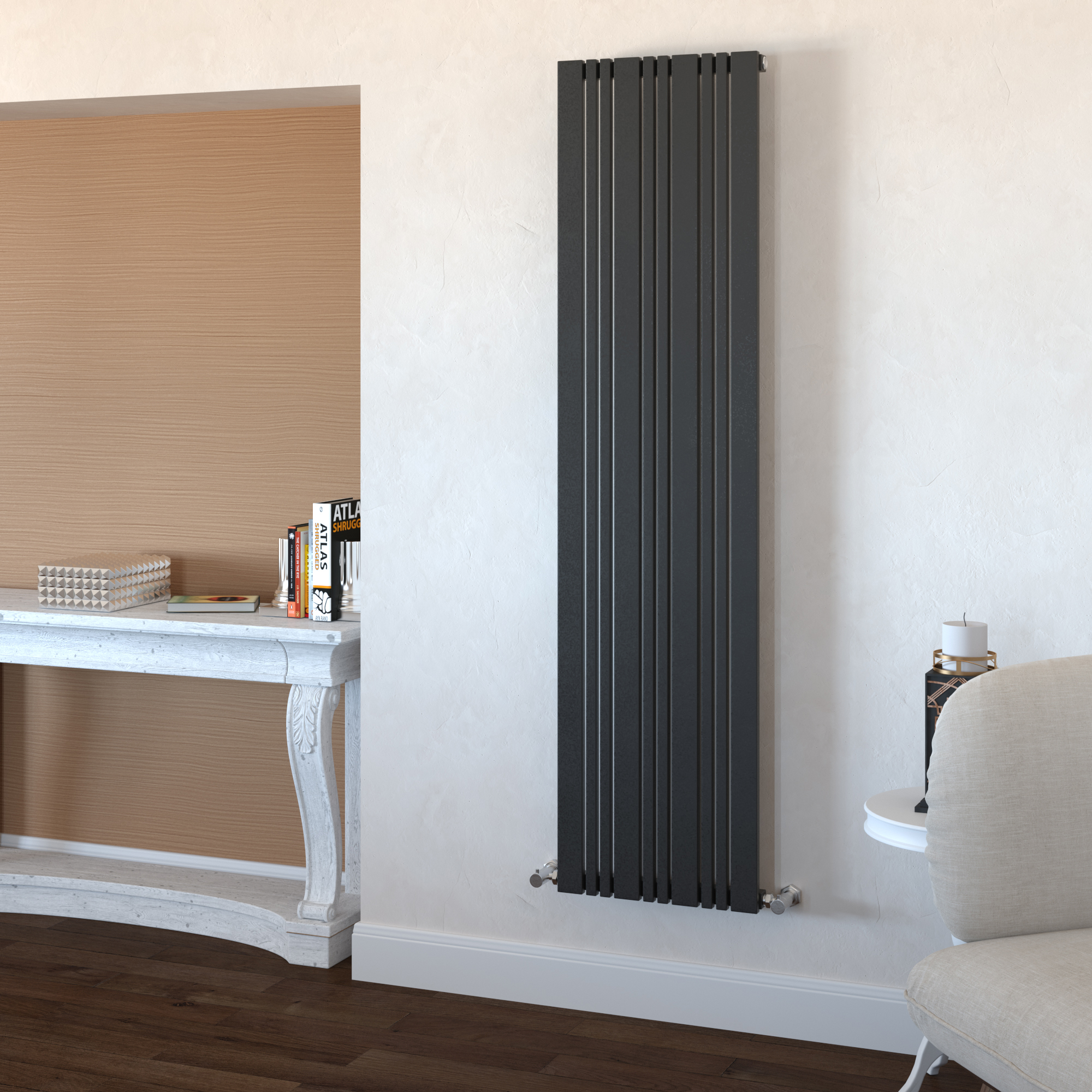

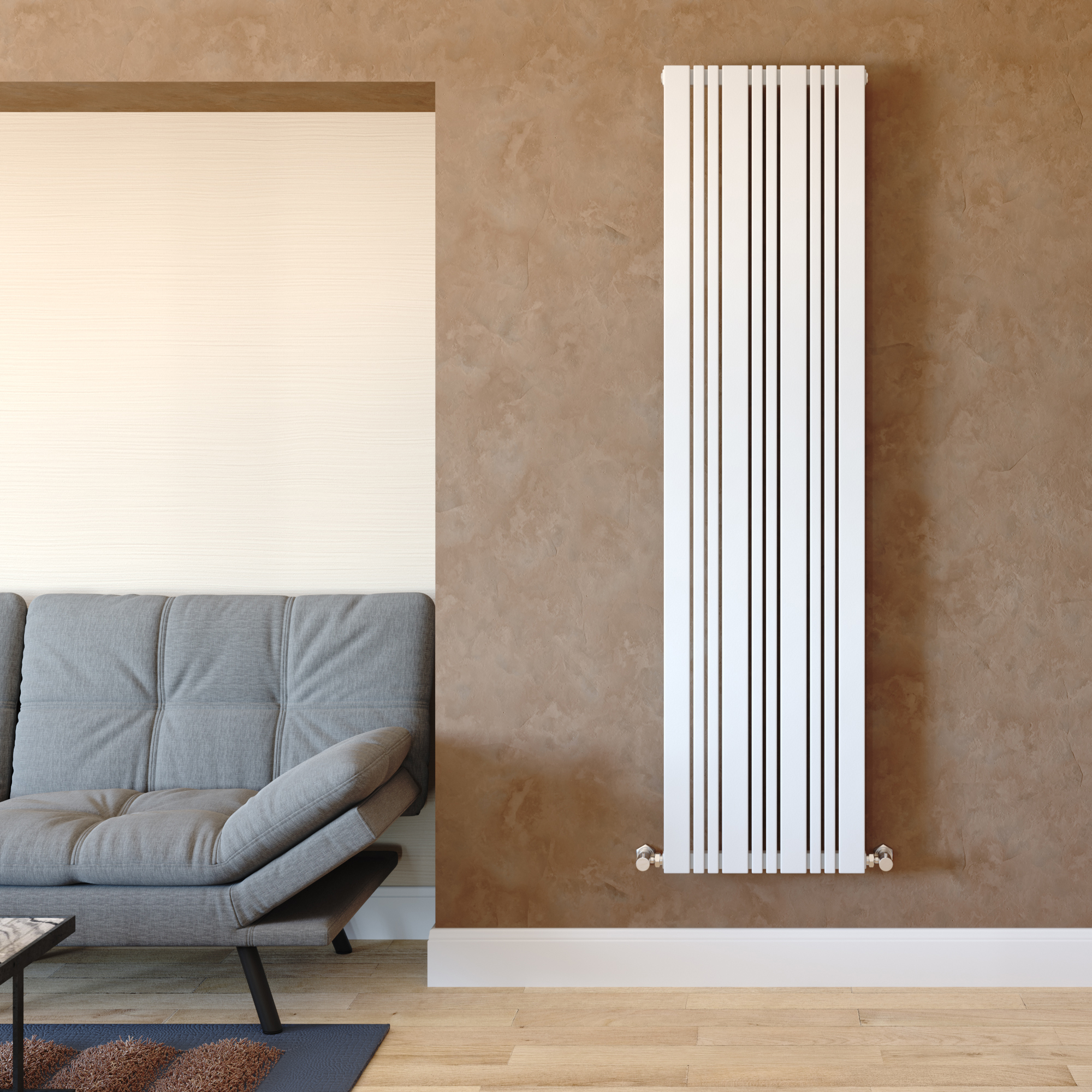

Choice of Finishes: White and Anthracite
Choice of Widths: 324mm and 456mm
Height: 1800mm [180cm]
Wall to Pipe Centres: 65mm [6.5cm]
Distance from Wall: 100mm [10cm]
Suitable for Central Heating Systems Only
Brackets for Radiator Included
For BTU and Watts, Please Refer to the Chart in the PRODUCT VARIATIONS INFO and MFC CODE section
Refer to the Technical Diagram for Complete Technical Details
Valves, Sleeving Kit and Chrome Pipe Kit - [Optional]
The Valves Shown in the Image are not Included

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Bonera
⤷ Colour
: White
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted | Floor Mounted
⤷ Width
: 324

⤷ Height
: 1800
⤷ Orientation
: Vertical
⤷ Barcode
: 5081304259368
⤷ BTU Output
: 50°C - 2509
⤷ Watts
: 50°C - 736
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 65

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Guide Pdf File

Technical Images

Reina Bonera Vertical Mild Steel Flat Designer Radiator 1800mm High - Floorstanding or Wall Mounted

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-243460 - 130mm Anthracite Pipe Kit + £23.18
OP-243461 - 130mm White Pipe Kit + £23.18

£187.00

RRP: ~~£330.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	324mm	456mm
Fuel Type	Central Heating	Central Heating
Height	1800mm	1800mm
Finish	White	White
Pipe Centres	324mm	456mm
Wall To Pipe Centre	65mm	65mm
Wall Distance	100mm	100mm
Tube Quantity	7	10
BTU - Delta-50	2509	3491
Watts - Delta-50	736	1024
BTU - Delta-60	3212	4469
Watts - Delta-60	942	1311
MFC Code	RND-BNR3218W	RND-BNR4518W

Width	324mm	456mm
Fuel Type	Central Heating	Central Heating
Height	1800mm	1800mm
Finish	Anthracite	Anthracite
Pipe Centres	324mm	456mm
Wall To Pipe Centre	65mm	65mm
Wall Distance	100mm	100mm
Tube Quantity	7	10
BTU - Delta-50	2509	3491
Watts - Delta-50	736	1024
BTU - Delta-60	3212	4469
Watts - Delta-60	942	1311
MFC Code	RND-BNR3218A	RND-BNR4518A

6 Features Included In This Product Explained

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Accordance With EN 442

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
