Reina Flat Vertical Designer Radiator - Mild Steel

Reina Flat Details

MFC: RND-FL163WD

Reina Flat Mild Steel Double Panel Vertical Designer Radiator is a must-have because it results from a confluence of functionality and aesthetics. With this subtle and elegant vertically inclined radiator, designed to be wall mounted, the user can warm a room to a comfortable temperature in a contemporary style. This fixtures stainless steel construction leaves no one in doubt about its durability.

Installing this vertical design is a great way to improve heat flow in a space with limited dimensions. It works harder to warm the interior way better than the other models and is also stylish. It gives you every reason to purchase this instead of an aluminium model, making it a wise choice. You may also install it in a white or anthracite finish with your homes central heating system. Valves, Sleeving kit, and chrome pipe kit are optional.

Key Features

✔EN 442 Compliant Product
✔Supplied with Air Vent and End Plug
✔Manufactured using Mild Steel Material
✔5-Year Guarantee from Reina Against Manufacturing Defects

Choice of Finishes: White and Anthracite
Choice of Heights: 1600mm and 180mm
Choice of Widths: 218mm, 292mm, 366mm, 440mm and 514mm
Suitable for Central Heating System Only
Wall to Pipe Centres: 64mm [6.4cm]
Double Panel Vertical Designer Radiator
Pipe Centre: 64mm [6.4cm]
Distance from Wall: 93mm [9.3cm]
Brackets for Radiator Included
Valves, Sleeving Kit and Chrome Pipe Kit - [Optional]

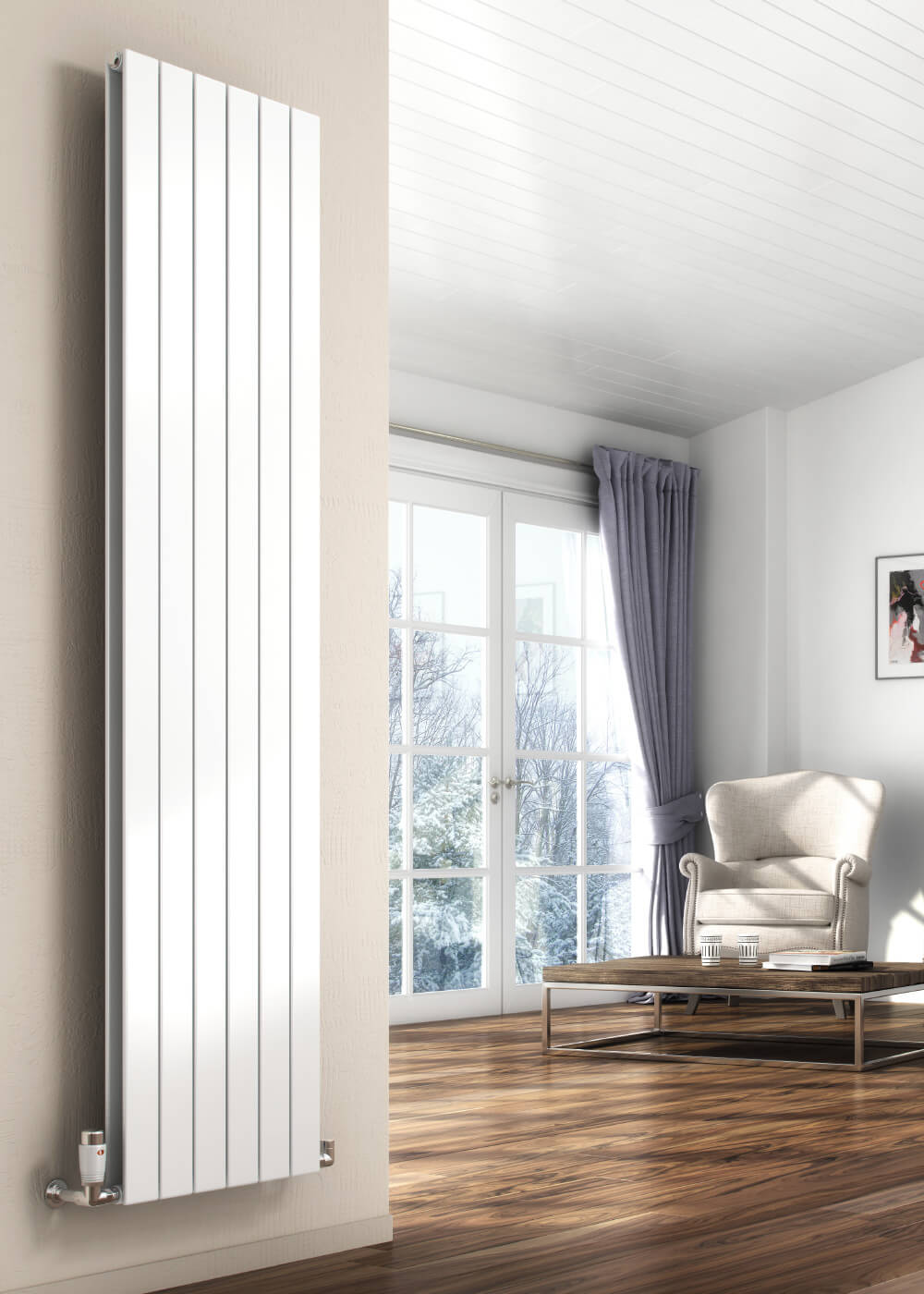

The Image Shown of the Double Panel Radiator is for Illustration Purposes Only
For BTU and Watts, Please Refer to the Chart in the PRODUCT VARIATIONS INFO and MFC CODE section
Download the Customer Data Sheet and Installation Guide PDF File from the Additional Info Section
The Valves Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Flat
⤷ Colour
: White
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: WAll Mounted
⤷ Width
: 218
⤷ Height
: 1600

⤷ Orientation
: Vertical
⤷ Barcode
: 8800161144405
⤷ BTU Output
: 50°C - 1719
⤷ Watts
: 50°C - 504
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 64
⤷ Panel Configuration
: Double

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Guide Pdf File

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-243460 - 130mm Anthracite Pipe Kit + £23.18
OP-243461 - 130mm White Pipe Kit + £23.18

Reina Flat Vertical Designer Radiator - Mild Steel - Double Panel

£133.06

RRP: ~~£237.60~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	218mm	292mm	366mm	440mm	514mm
Height	1600mm	1600mm	1600mm	1600mm	1600mm
Fuel Type	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating
Pipe Centres	218mm	292mm	366mm	440mm	514mm
Wall to Pipe Centres	64mm	64mm	64mm	64mm	64mm
Wall Distance	93mm	93mm	93mm	93mm	93mm
Tube Quantity	6	8	10	12	14
BTU - Delta-50	1719	2291	2888	3528	4041
Watts - Delta-50	504	672	847	1035	1185
BTU - Delta-60	2200	2933	3696	4516	5173
Watts - Delta-60	645	860	1084	1324	1517
White MFC	RND-FL163WD	RND-FL164WD	RND-FL165WD	RND-FL166WD	RND-FL167WD
Anthracite MFC	RND-FL163AD	RND-FL164AD	RND-FL165AD	RND-FL166AD	RND-FL167AD

Width	218mm	292mm	366mm	440mm	514mm
Height	1800mm	1800mm	1800mm	1800mm	1800mm
Fuel Type	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating
Pipe Centres	218mm	292mm	366mm	440mm	514mm
Wall to Pipe Centres	64mm	64mm	64mm	64mm	64mm
Wall Distance	93mm	93mm	93mm	93mm	93mm
Tube Quantity	6	8	10	12	14
BTU - Delta-50	1980	2641	3324	3990	4654
Watts - Delta-50	581	774	975	1170	1365
BTU - Delta-60	2534	3380	4255	5107	5957
Watts - Delta-60	743	991	1248	1498	1747
White MFC	RND-FL183WD	RND-FL184WD	RND-FL185WD	RND-FL186WD	RND-FL187WD
Anthracite MFC	RND-FL183AD	RND-FL184AD	RND-FL185AD	RND-FL186AD	RND-FL187AD

7 Features Included In This Product Explained

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Accordance With EN 442

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
