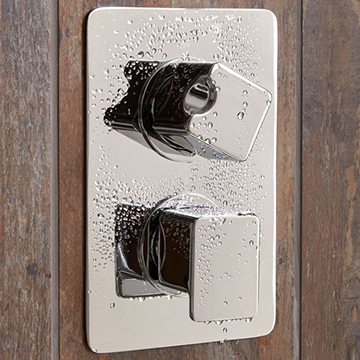

Hudson Reed Reign Rectangular Twin Concealed Thermostatic Shower ValveChrome

Hudson Reed Reign REI3610 Details

This inspirational design from Hudson Reed, the Reign Concealed Thermostatic Shower Valve, is effortlessly stylish and efficient. The valve has an impactful and versatile design that allows vertical or horizontal fitting according to your convenience. The diminutive and subtle valve is most appropriate for low water pressure systems and features integrated thermostatic technology. Crafted for long-term use from highly durable material, it comes with easy to maintain chrome finish. Ideal for low-pressure systems, the minimum water pressure of 0.1 bar is recommended for optimum performance. Convenient to install and use, it comes to you from our online store at a highly competitive price.

Available with or without diverter [Optional].
Size [mm]: 120mm x 135mm x 215mm [Width x Depth x Height].
Size [cm]: 12cm x 13.5cm x 21.5cm [Width x Depth x Height].
Wall cavity required: min. 72mm and max. 85mm.
It comes in a chrome finish.
Minimalist sleek design.
Backplate shape: Rectangular.
Handle design: Lever and Round.
Number of handles: 2.
It can be installed vertically or horizontally.
Pipe size: 15mm (1.5cm) (1/2inch BSP).
Pipe centres: 125mm (12.5cm).
Manufactured using the latest technique of thermostat.

Accurate flow control with excellent flow rate even at low pressure.
Suitable for low water pressure system.
Required minimum 0.1 bar water pressure for smooth working.
Thermostatic control to +/- 2 degrees even if the water pressure fluctuates.
In the event of hot or cold water failure, the valve will shut down the water supply and prevents scalding.
The patented cartridge is highly resistant to calcium buildup - even in hard water areas.
The cartridge is fully reversible; meaning doesn't need re-plumbing if hot and cold supplies are the wrong way around it.
Simply remove the cartridge, turn 180°, and replace.
TMV2 approval no: BC1875/0817.
TMV3 approval no: BC1119/1212.
WRAS approval no: 1703023.
For complete size details, please refer to the technical drawing.
Download the Fitting Instructions and Datasheet PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Solid Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.1bar - 5.5, 0.5bar - 14, 1bar - 20, 2bar - 29, 3bar - 44
⤷ Handle Style
: Lever, Knob
⤷ WRAS Approved
: Yes

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120
⤷ Backplate Height
: 215
⤷ TMV2 Approved
: Yes
⤷ TMV3 Approved
: Yes
⤷ Number of Handles
: 2
⤷ Orientation
: Vertical or Horizontal
⤷ Plumbing Option
: Concealed
⤷ Building-in Depth Required
: 72-85

Additional Info & Downloads

Download the Fitting Instructions Pdf File Download the DataSheet of Shower Valve Pdf File

Total: £162.46 2 Working Days Approx QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V58524	-	Round Rectangular Back Plate	REI3410

Back to QS-V58525 / MFC Code: REI3610

5 Features Included In This Product Explained

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
