Mira Sport Multi-Fit Electric Shower with Slide Rail Kit, 1.1746.833

Mira Sport Details

MFC: 1.1746.833

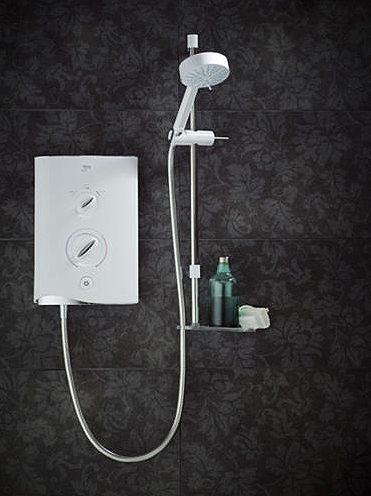

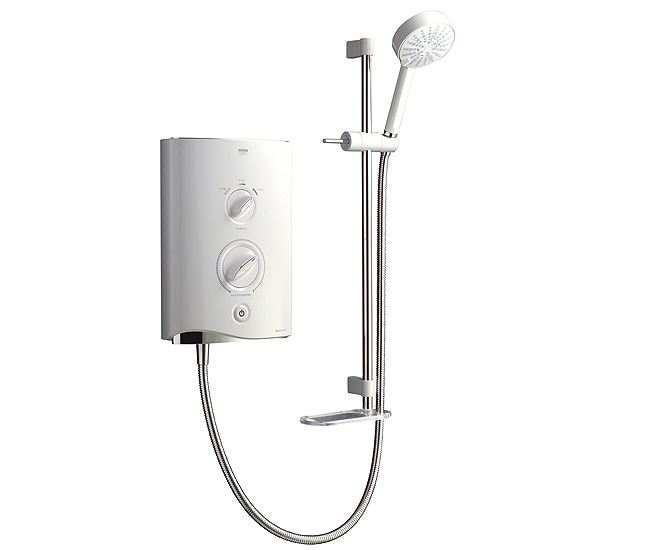

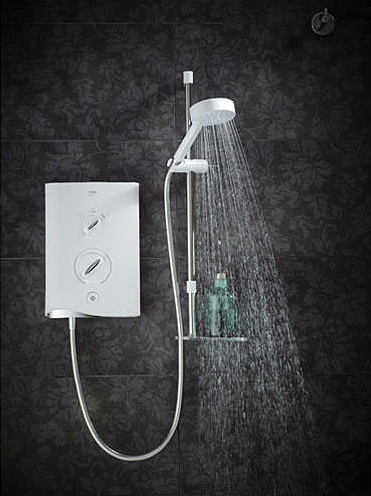

Mira, a name that is synonymous with high quality showers, has now introduced the Sport Multi-fit to turn your washroom into a dream room. In white and chrome finish, this ultra-modern construction looks striking and blends perfectly with any decor. The classy unit comes with clean rub nozzles for easy limescale removal. It includes four spray handsets and an adjustable slide bar; it controls the power and temperatures separately and offers reliable performance.

You will have a safe and soothing showering experience with this masterpiece. Let your bathroom exude an aura of elegance, grandeur and luxury while you enjoy a refreshing and stimulating shower with this product

Key Features

✔Rub-Clean Nozzles for Easy Limescale Removal
✔Opti-Flo™ Optimises Flow Throughout the Year
✔2-Year Warranty from Mira Against Manufacturing Defects
✔Precise Scale™ Technology cuts Limescale by Half for a Better Performing
✔Sensi-Flo™ Prevents Scalding in the Event of a Loss of Water Pressure or if the Showerhead or Hose Becomes Blocked

Choice of Power Option: 9.0kW and 9.8kW
Single Outlet Electric Shower with Multi Spray Handset and Hose
It Comes in a White and Chrome Finish
Shower Unit Size [mm]: 237 x 96 x 343mm [Width x Depth x Height]
Shower Unit Size [cm]: 23.7 x 9.6 x 34.3cm [Width x Depth x Height]

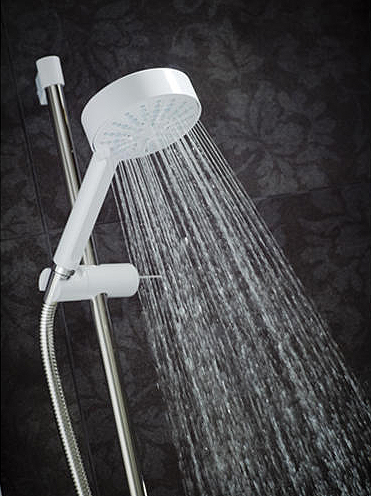

Large 110mm (11cm) 4 Spray Handset and Adjustable Slide Bar
Advanced Pressure Stabilised Temperature Control
Separate Power and Temperature Controls
Suitable to work under Minimum Water Pressure of 0.7 Bar to a Maximum of 10.0 Bar

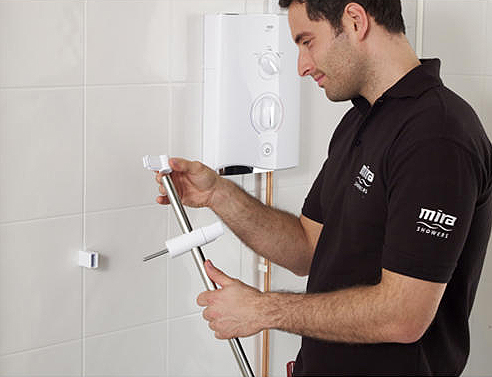

The Adjustable Slide Bar Fits Over Holes Left by a Previous Shower Kit
Push-Button On/Off so you can leave the Power and Temperature Controls at your Preferred Setting
Phased Shutdown Flushes Hot Water from the Tank to Make it Safe
Easy filter access
Easy to clean smooth hose
Power: 9.0 kW 240V AC - (8.3 kW 230V AC), 9.8 kW 240V AC - (9.0 kW 230V AC)
Supply voltage: 230V ± 10%
Supply rating: 40 amp (9.0 kW); 45 amp (10.8 kW)
Terminal block connections: Maximum 16 mm²
Water entry points: Left (rising, falling & rear)
Cable entry points: Left (rising, falling & rear)
Inlet connections: Left - brass inlet connector. 15 mm compression fitting, Right - 15 mm plastic swivel stub compression or push fitting
Outlet connections: 1/2" BSP Male
Temperature stability: ± 6°C
Approved and Certified: BEAB, KIWA, WRAS, CE and UKCA
Download the Installation Instruction and Shower Fitting Guide PDF Files from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: White and Chrome
⤷ Shape
: Rectangle
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 2 Years
⤷ Inlet Connections
: LEFT Brass inlet connector 15mm compression fitting, RIGHT: 15mm plastic swivel stub compression or push fitting
⤷ Spray Setting
: 4
⤷ Configuration
: Shower with Kit and Showerhead
⤷ Outlet Connection
: 1/2" BSP Male
⤷ Compliance/Approvals/Standard
: BEAB | Kiwa | WRAS | CE | UKCA
⤷ Product Type
: Electric shower
⤷ Temperature Control
: Advance Pressure Stabilised
⤷ Plumbing System Compatibility
: Cold Mains
⤷ KW Rating
: 9

⤷ Voltage
: 230V ± 10%
⤷ Showerhead Finish
: White and Chrome
⤷ Riser Rail & Kit Finish
: White / Chrome
⤷ Push button start/stop
: Yes
⤷ Separate temperature and power controls
: Yes
⤷ Phase shutdown
: Yes
⤷ Water Entry Points
: Left (Rising, Falling & Rear)
⤷ Cable Entry Points
: Left (Rising, Falling & Rear)
⤷ Maximum Static Pressure
: 10.0 Bar - (100 Metre Head)
⤷ Unit Width
: 237
⤷ Unit Height
: 343
⤷ Unit Depth
: 96

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Shower Fitting Guide Pdf File

Mira Sport Multi-Fit Electric Shower with Slide Rail Kit - White And Chrome

£331.30

RRP: ~~£436.08~~

STOCK AVAILABLITY: 4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Sarah Asked :
Hi. Could you please let me know the minimum electrical cable diameter requirements for the 9kw Sport model? Could you please also confirm for your other 9.5kw showers? My plumber thought we would need 10mm cabling depending on the shower but, from the information, it looks as though it's only the 10kw+ models than needing the bigger cables. I want to make sure I buy a shower suitable for the current electrics set up. Thanks

Answered By QS Team

Listed below are these various kilowatt ratings alongside the minimum fuse size they require when fed with a 230/240V electrical supply.

7.5kW - 32 Amp supply fuse
8.5kW - 40 Amp supply fuse
9.0kW - 40 Amp supply fuse
9.5kW - 40 Amp supply fuse
9.8kW - 45 Amp supply fuse
10.8kW - 45 Amp supply fuse

We are unable to confirm the required cable size for any of our electric showers. I apologise, but you would need to contact a part P qualified electrician for this information due to building regulations.
