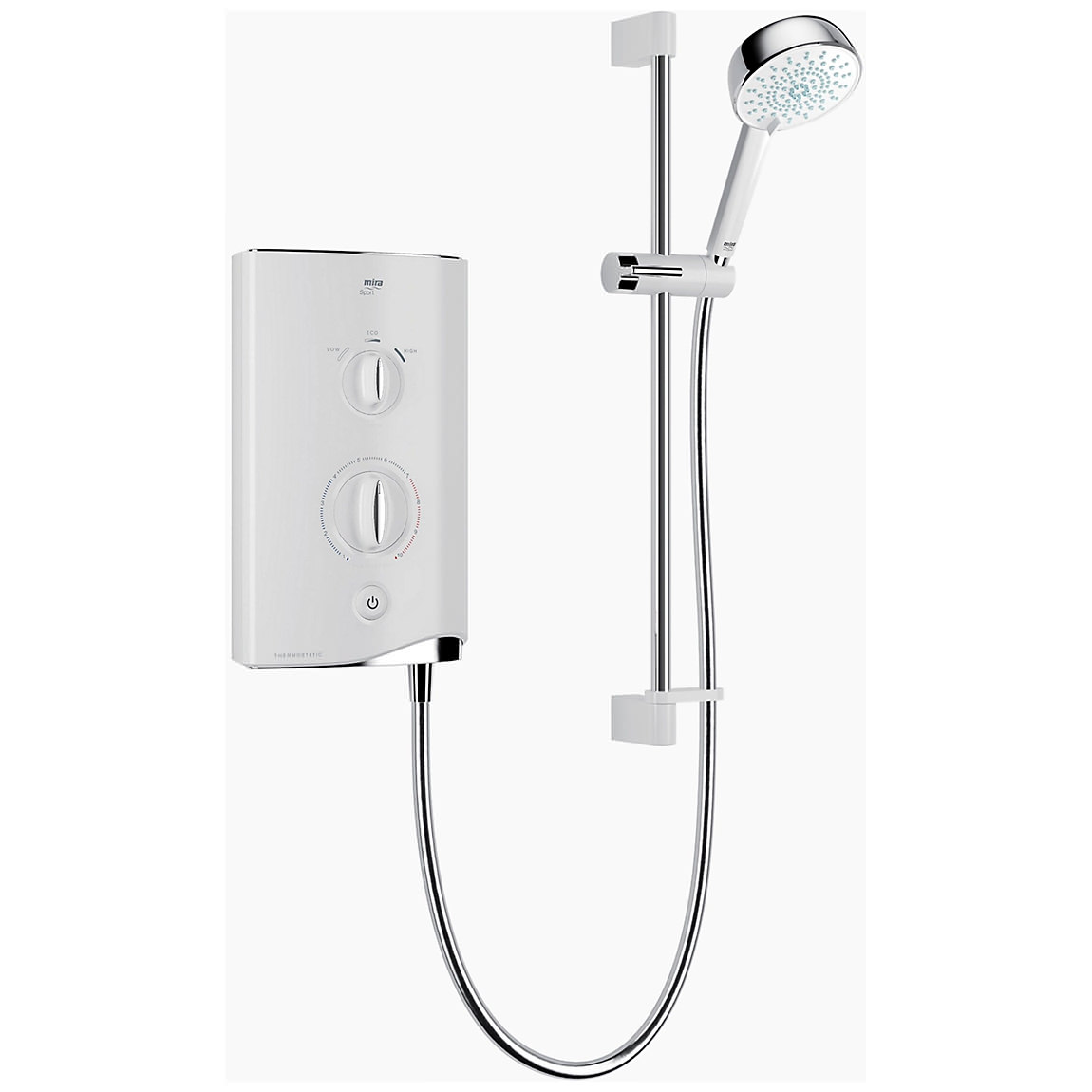

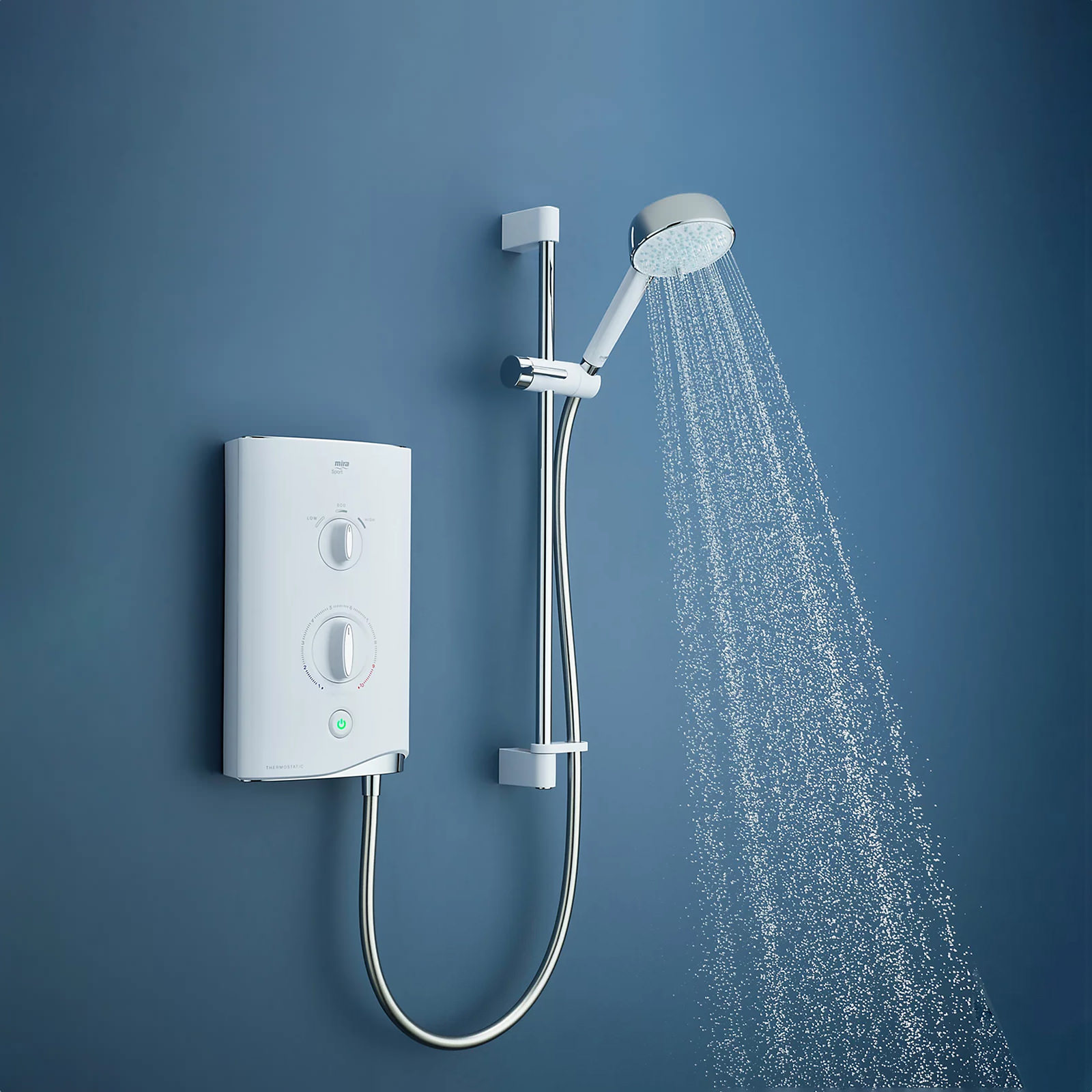

Mira Sport 9.8 KW Thermostatic Single Outlet Electric Shower with Slide Rail and Multi-Mode Handset

Mira Sport 9.8 KW Thermostatic Single Outlet Electric Shower with Slide Rail and Multi-Mode Handset.

• The Manufacturing Code of this Product is 1.1746.832
• It Comes in a White and Chrome Finish
• Shower Unit Size [mm]: 215 x 90 x 358mm [Width x Depth x Height]

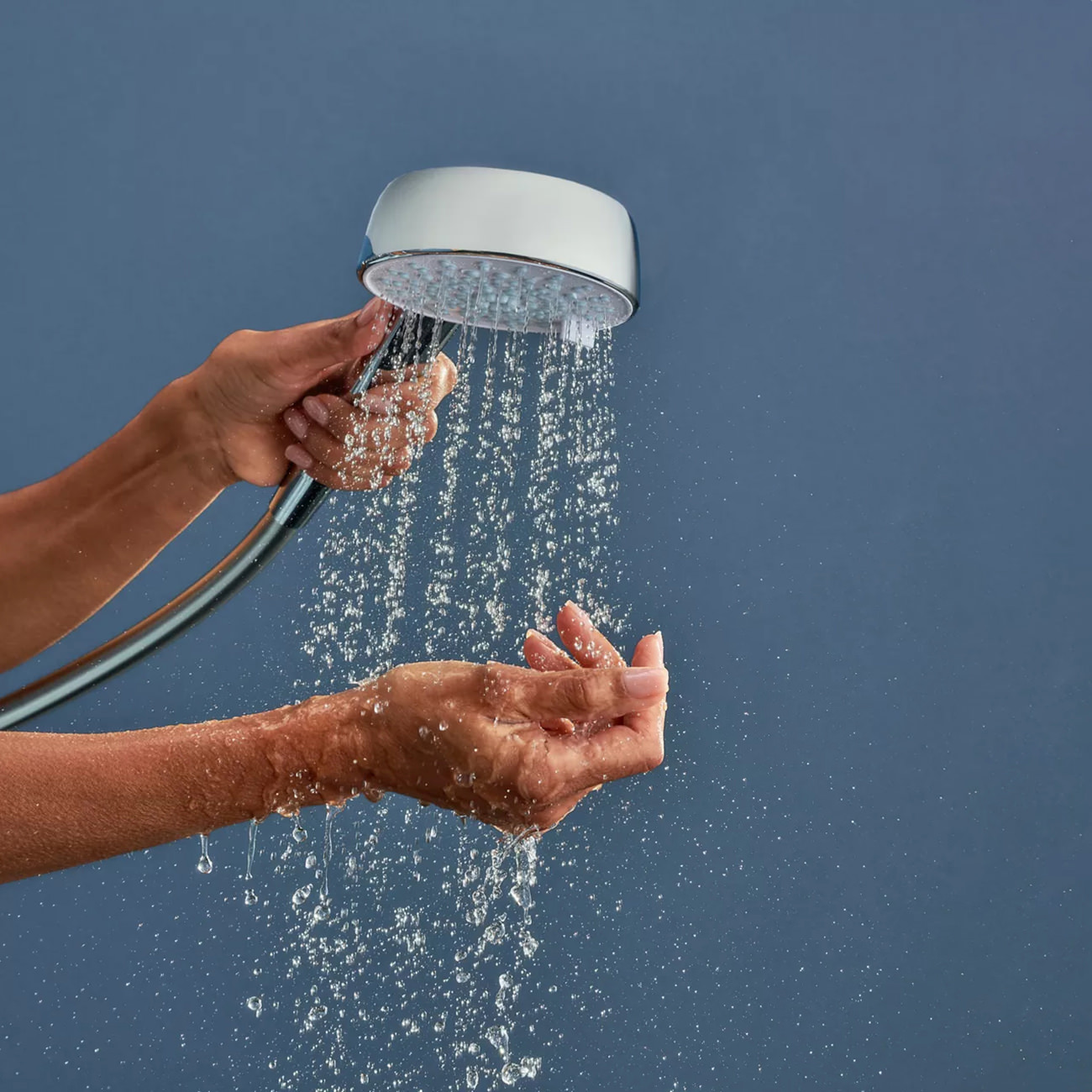

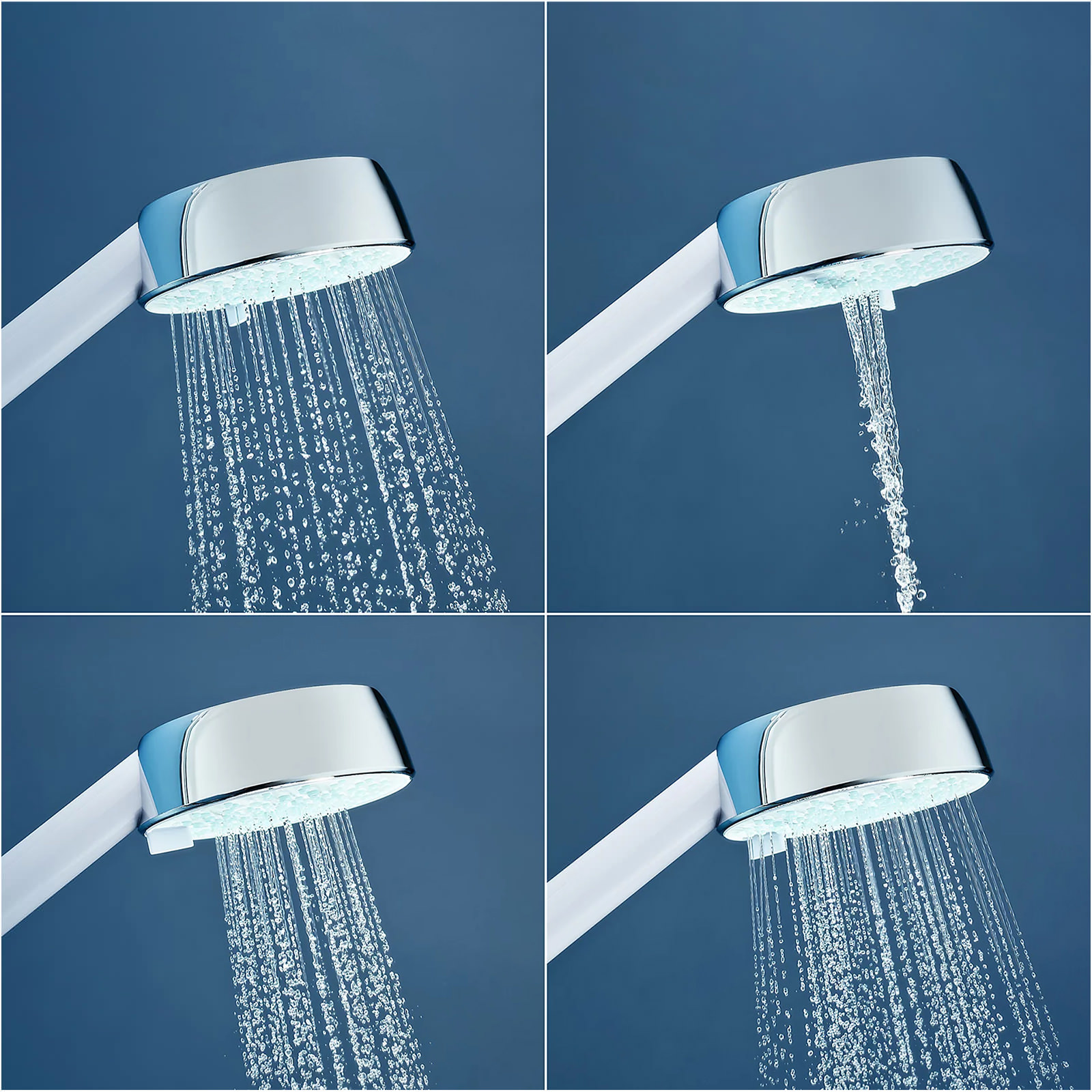

• 120mm Handset with 4 sprays optimised with Rub-Clean Nozzles
• Easy to Clean Smooth Hose
• Supply voltage: 230V ± 10%
• Supply Rating: 45 Amp (10.8 kW)
• Easy to Service and Filter Access

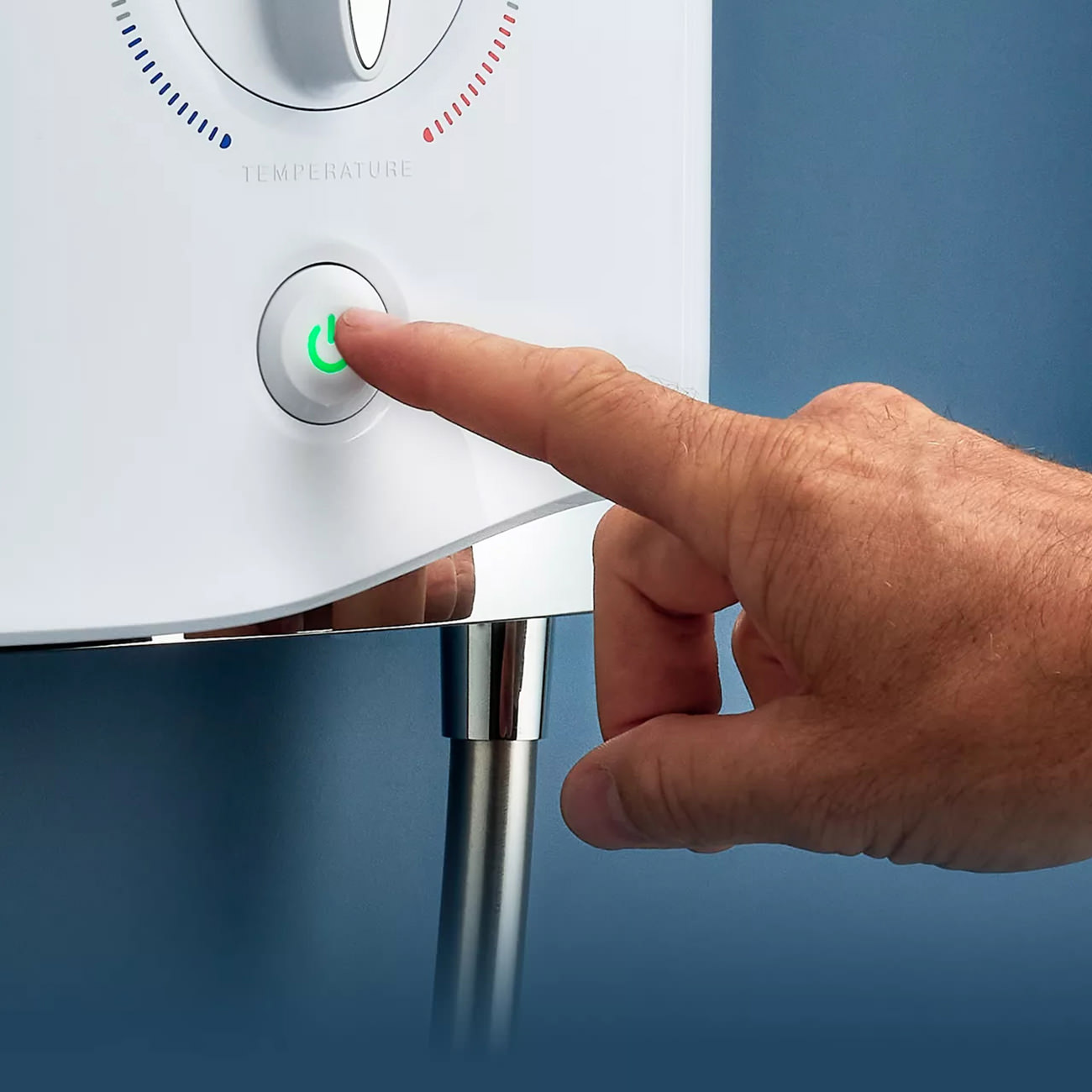

• Operation type: Push Button On/Off
• Temperature Stability: ± 2 Celsius
• Outlet Connections: 1/2 Inch BSP Male

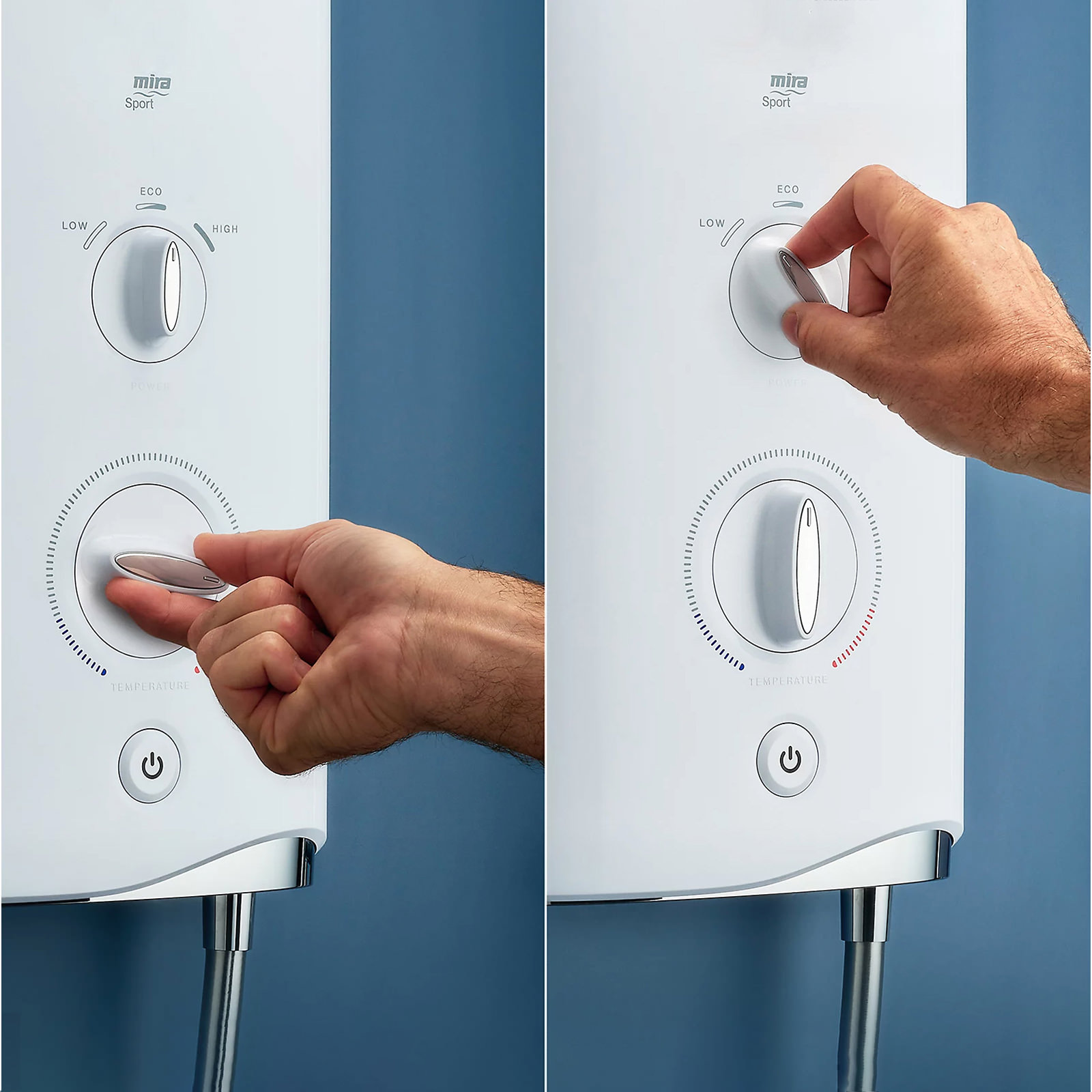

• Separate Power and Temperature Controls
• Power: 9.8 kW 240V AC - (9.0 kW 230V AC)
• Refer Technical Drawing for More Details
• Terminal block Connections: Maximum 16 mm²
• Temperature Control Type: Thermostatic (SMA)
• Factory Set to Safe Max temp: Factory Set at 48°
• Water Entry Points: Left - Rising, Falling and Rear
• Cable Entry Points: Left - Rising, Falling and Rear
• Mira Sensi-flo™ Technology Helps Prevent Scalding
• Easy to Fit onto Inlets of Most Mira Electric Showers
• Maximum static Pressure: 10.0 Bar (100-metre Head)
• Minimum Maintained Pressure: 0.7 Bar (7-metre Head)
• Maximum Maintained Pressure: 5.0 Bar (50-metre Head)
• Approved and Certified: BEAB, Kiwa, WRAS, CE and UKCA
• Inlet Connections: Brass Inlet Connector. 15mm Compression Fitting

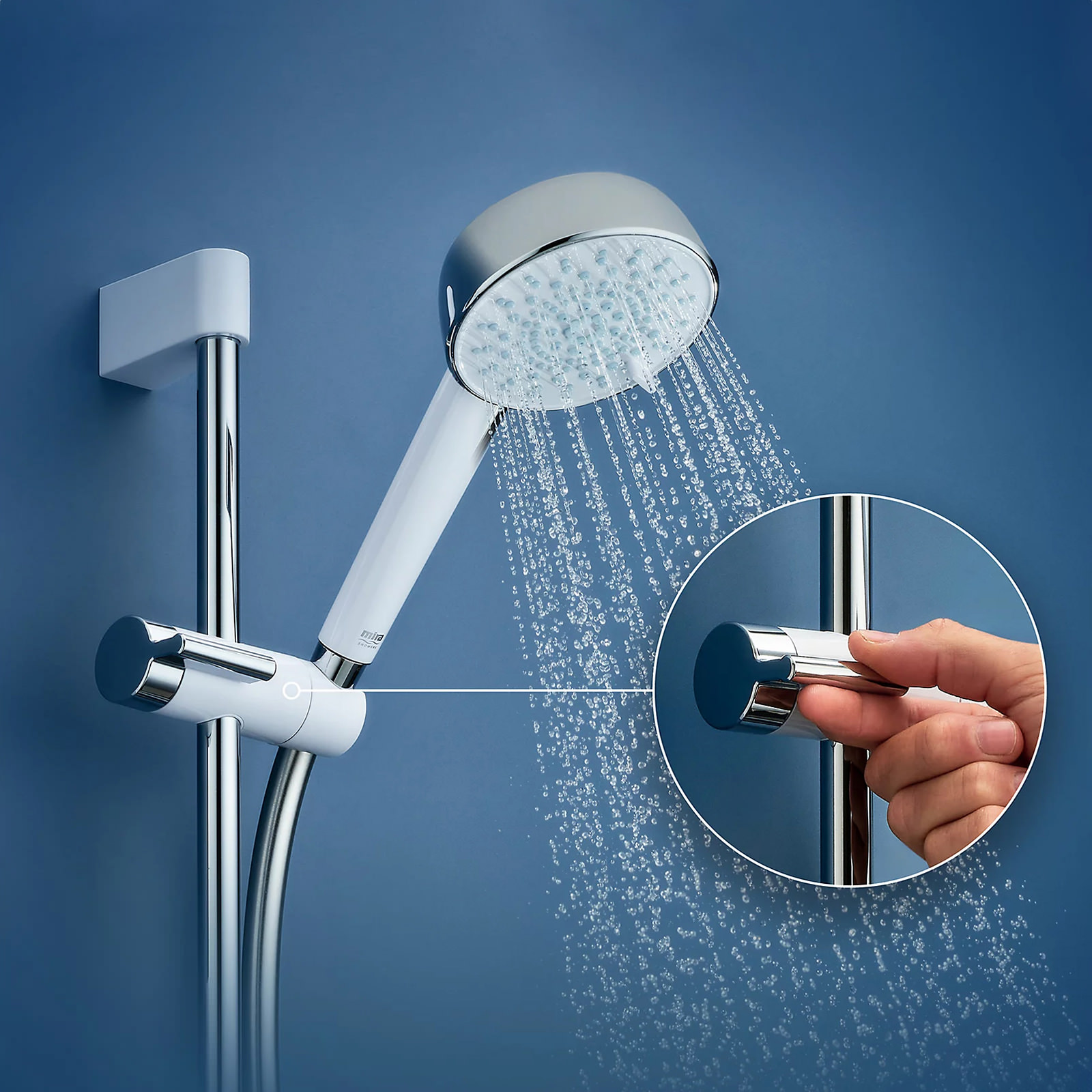

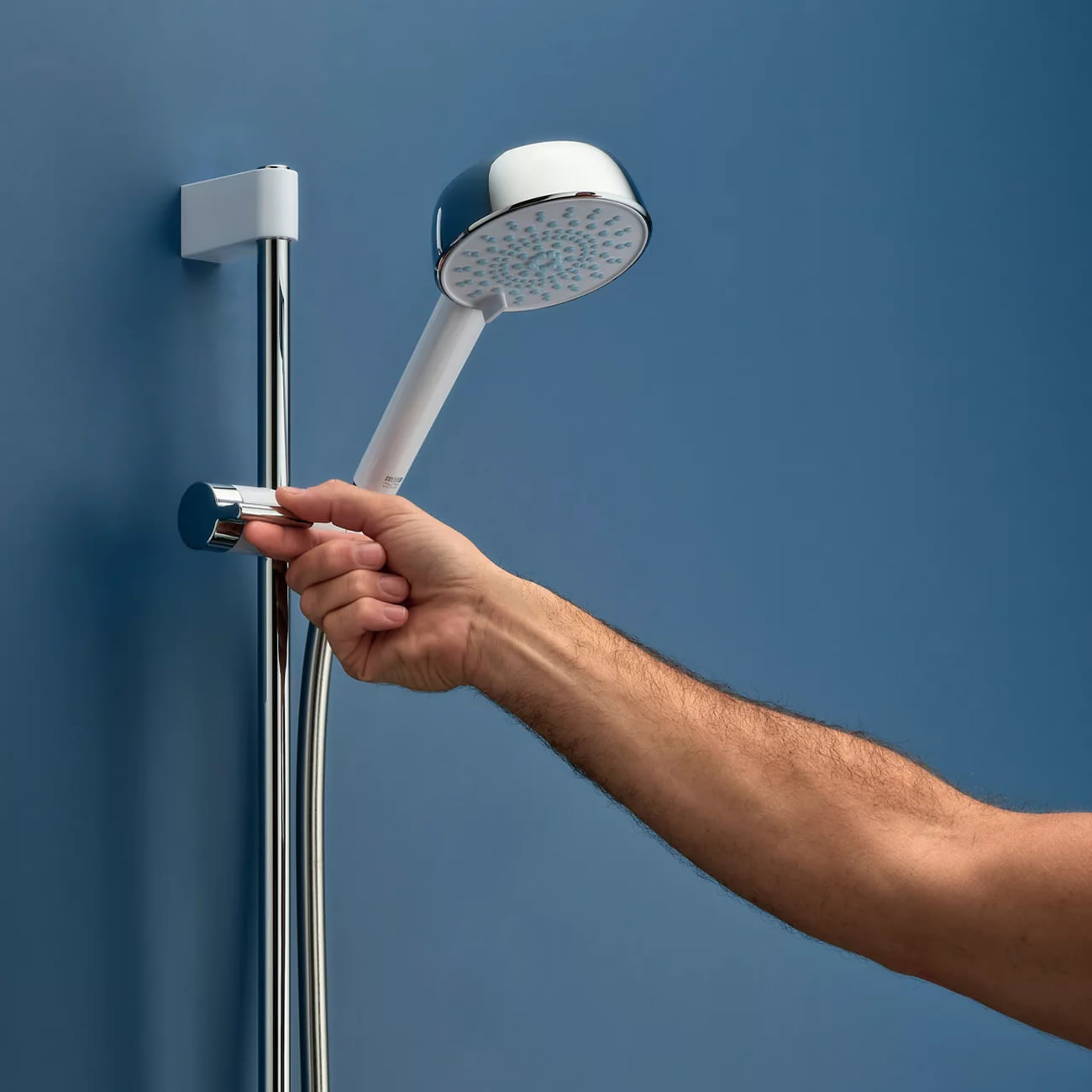

• Adjustable Slide Bars Fit Over Holes Left by the Previous Shower Kit
• Mira Clearscale™ and Dual Element™ Technology reduce Limescale by Up to 50%
• Phased Shutdown flushes Hot Water from the Tank Making it Safe for the next User
