Joseph Miles Millie Basin Mixer Tap, Curved Spout & Waste, Stick Handle, JMQS105786

Joseph Miles Millie Details

MFC: JMQS105786

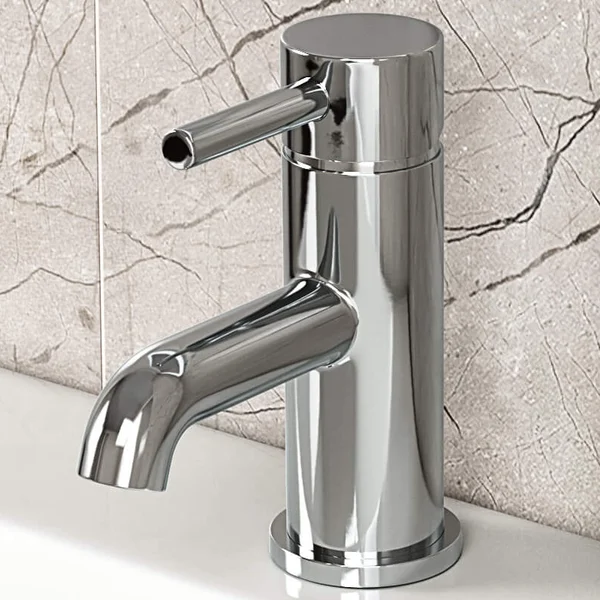

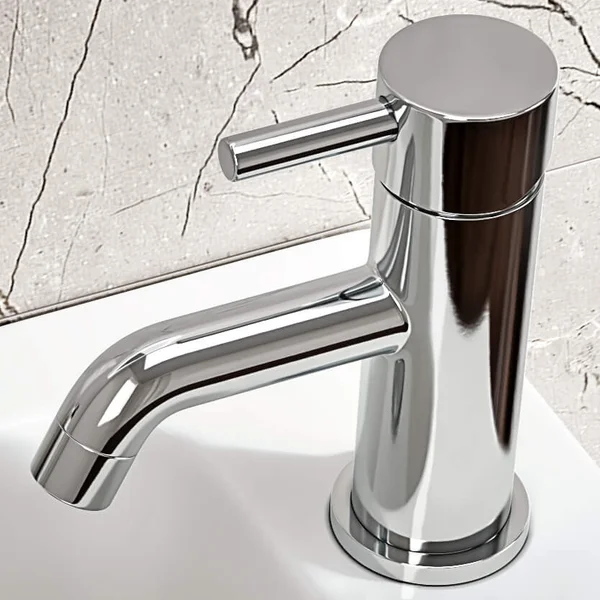

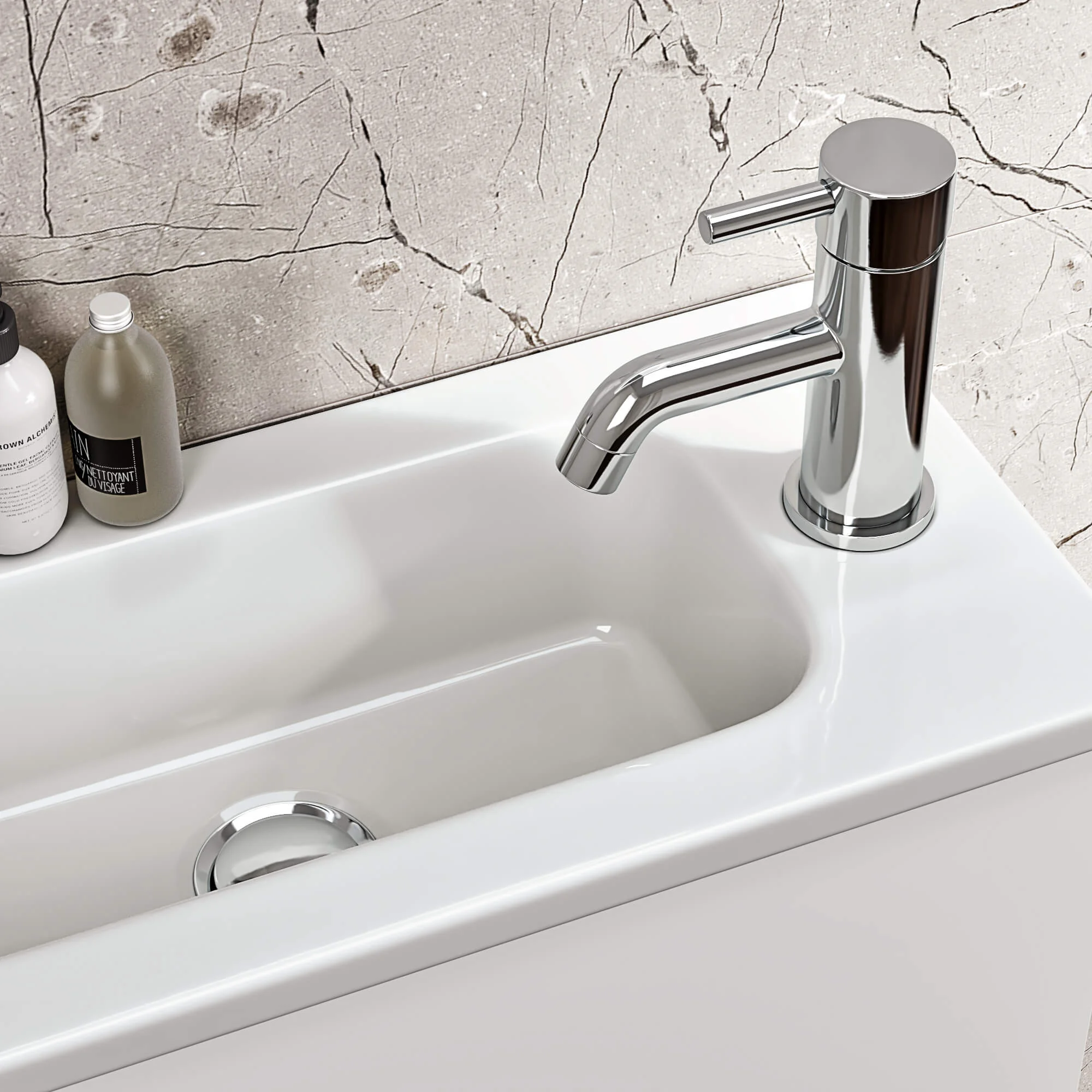

Joseph Miles Millie Basin Mixer Tap with Curved Spout and Waste - Stick Handle - Deck Mounted.

Key Features

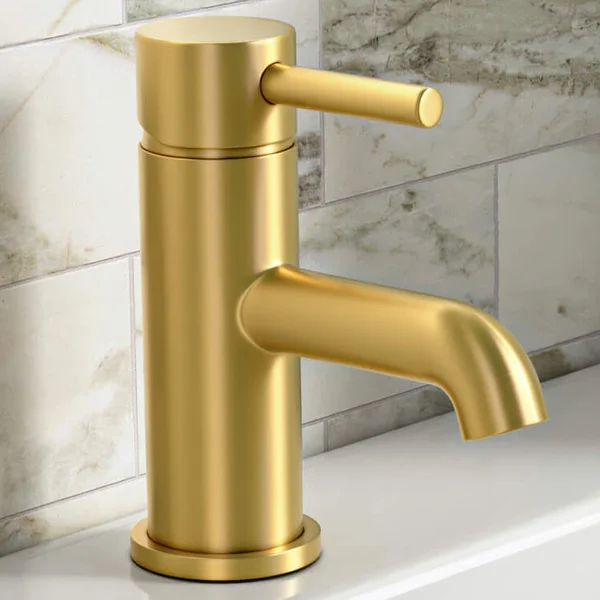

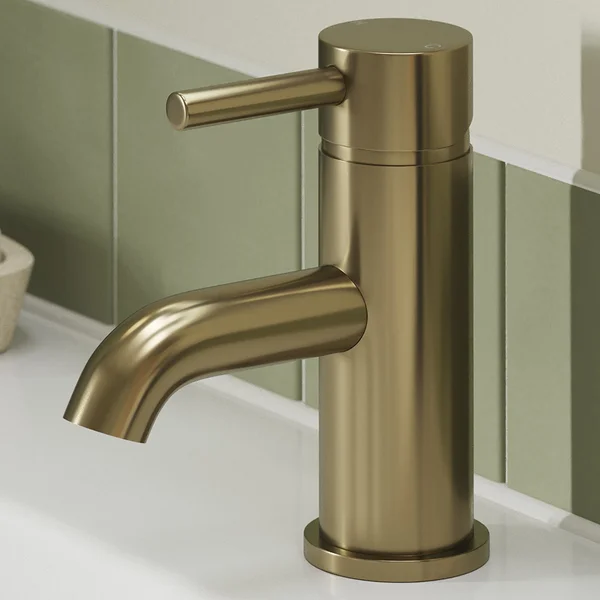

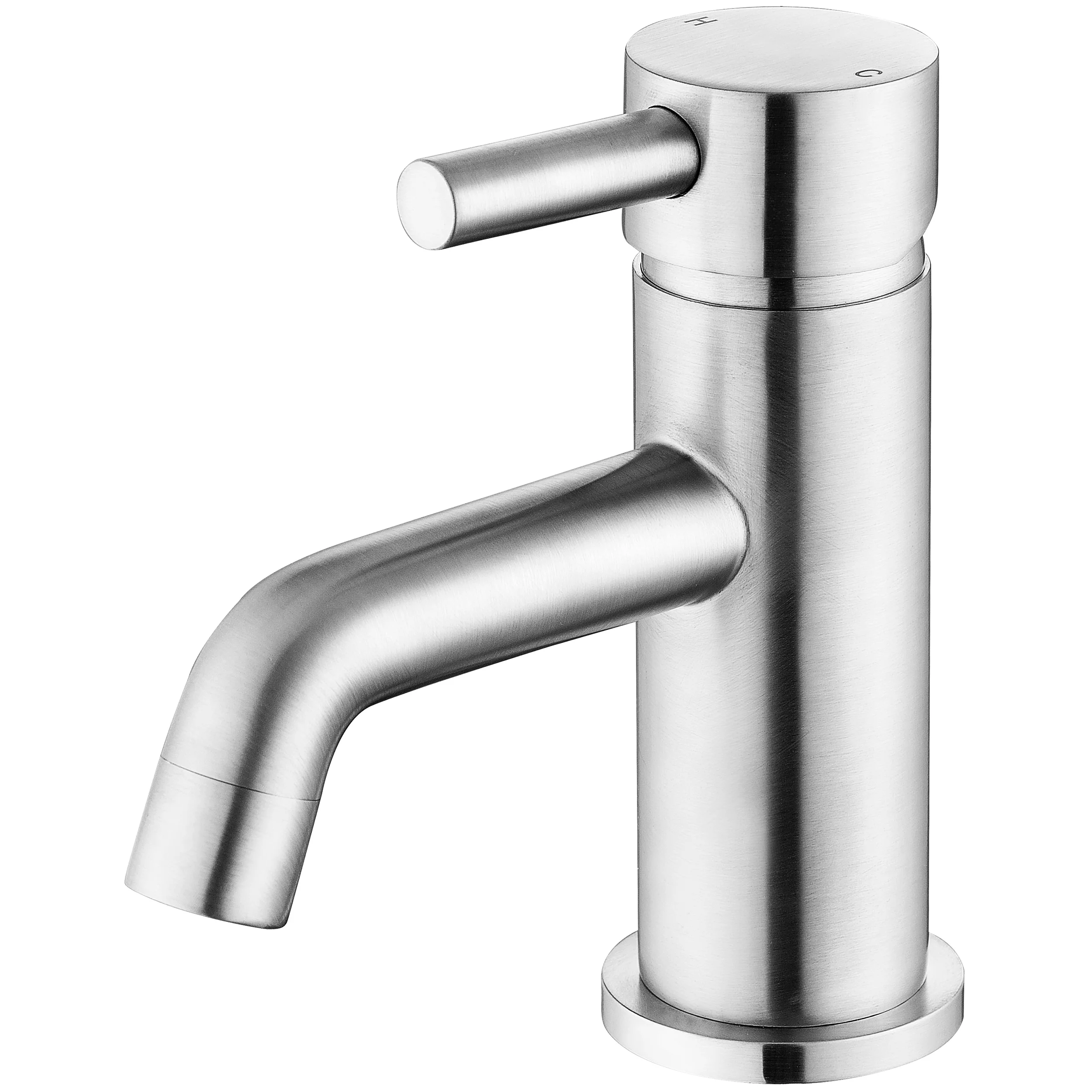

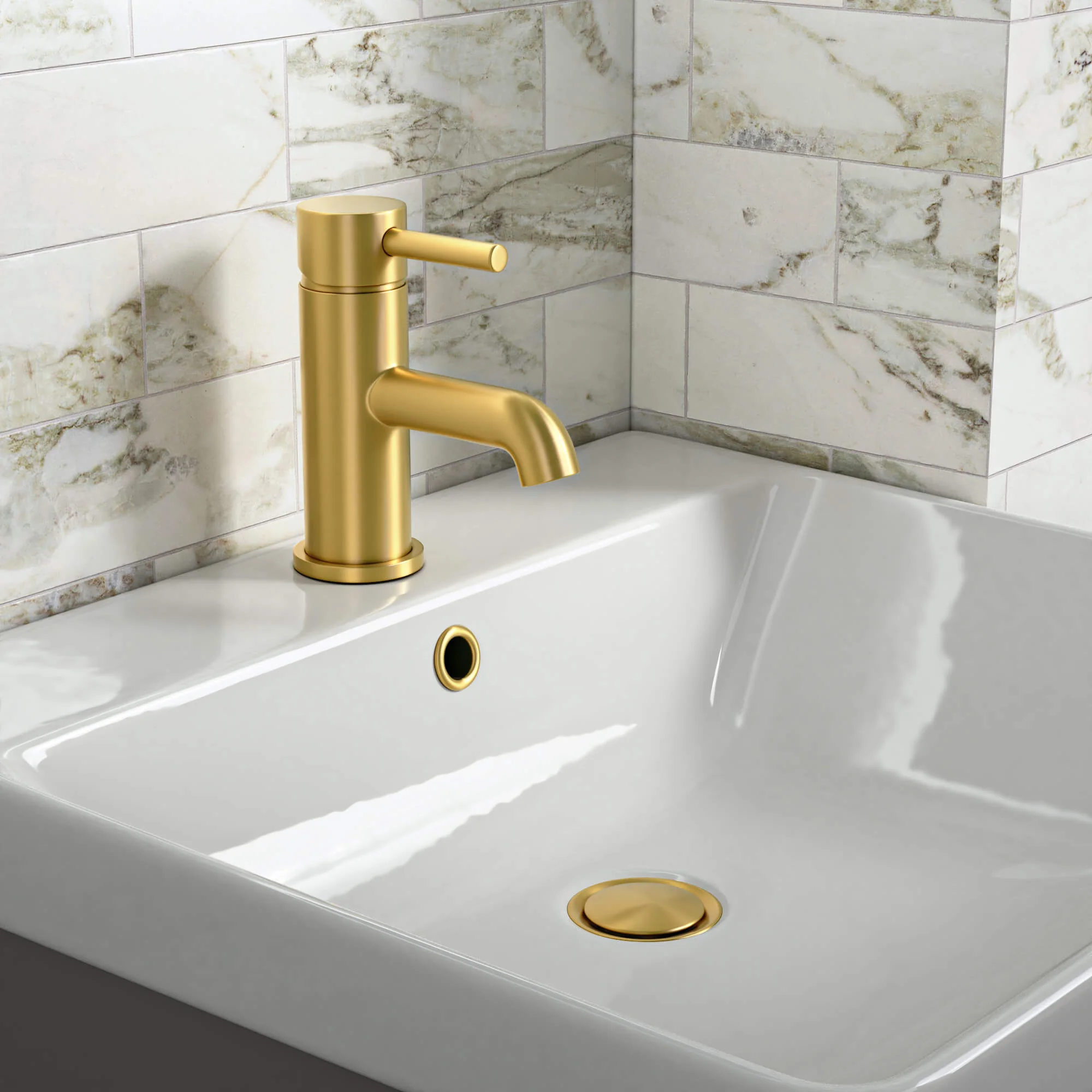

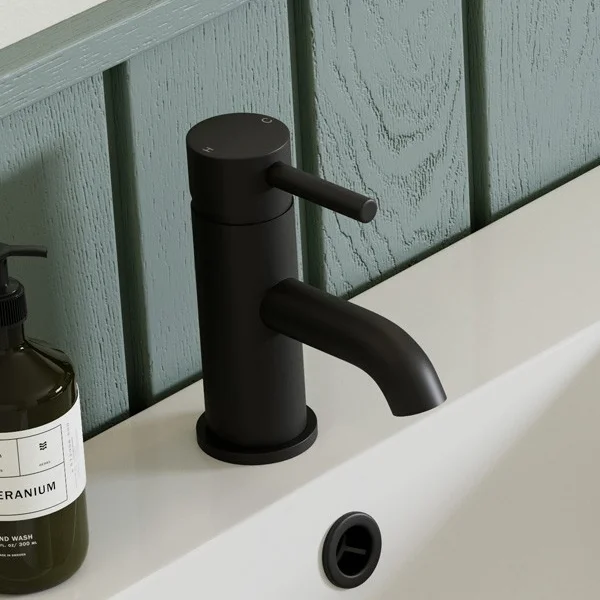

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Bronze
✔Manufactured Using Brass Material
✔Suitable for High-Water Pressure System
✔Waste Included
✔Guarantee: 3-Year On Valve, 5-Year On Body and Finish

Choice of Heights: 138mm, 148mm
Suitable for Deck-Mounted Installation
Connection Type: Flexible Tails
Operation: Single Lever Cartridge
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File From The Additional Info Section

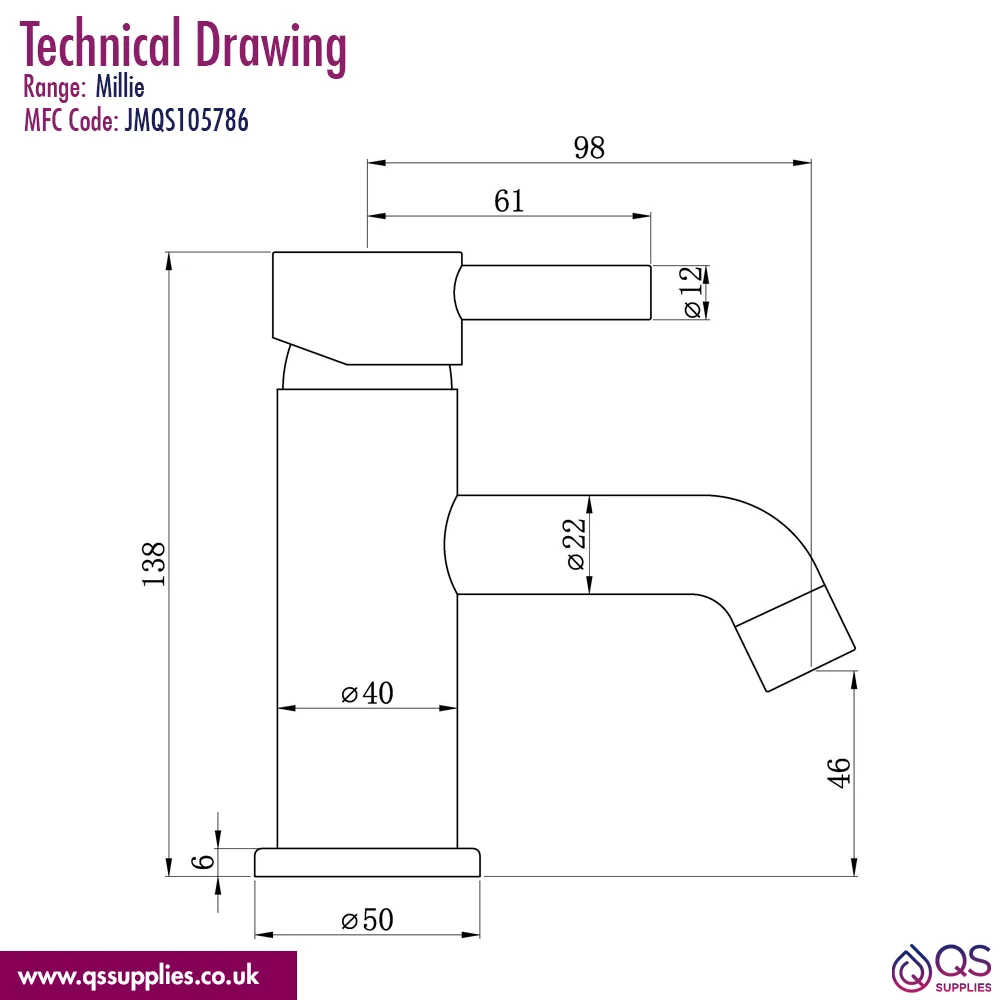

Specification of 138mm Height:
Requires a Minimum of 1.0 Bar of Water Pressure System
Base to Spout: 46mm [4.6cm]
Size [mm]: 50 x 127 x 138mm [Width x Depth x Height]
Size [cm]: 5 x 12.7 x 13.8cm [Width x Depth x Height]
Centre of the Inlet to the Centre of the Outlet: 98mm [9.8cm]
Weight: 1.13kg

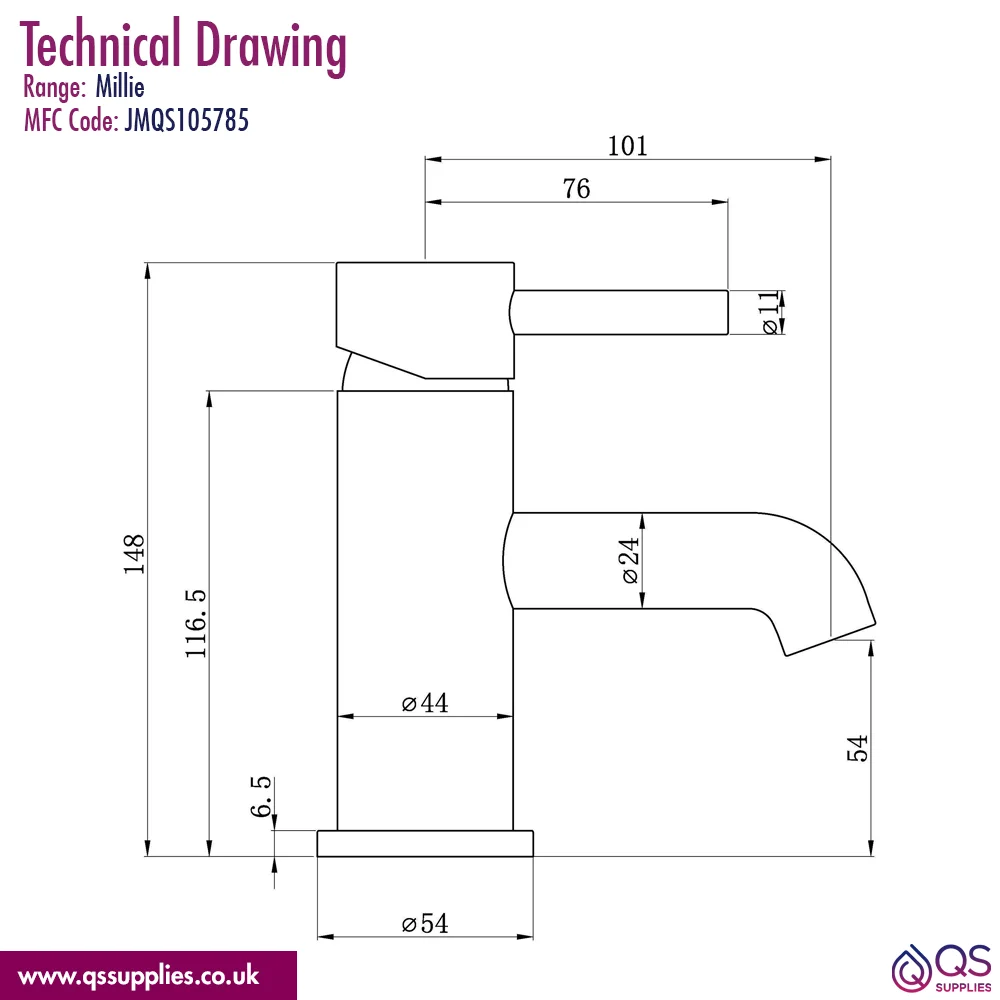

Specification of 148mm Height:
Requires a Minimum of 1.5 Bar of Water Pressure System
Base to Spout: 54mm [5.4cm]
Size [mm]: 54 x 133 x 148mm [Width x Depth x Height]
Size [cm]: 5.4 x 13.3 x 14.8cm [Width x Depth x Height]
Centre of the Inlet to the Centre of the Outlet: 101mm [10.1cm]
Weight: 1.38kg

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Millie
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 3-Year On Valve, 5-Year On Body & Finish
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Base To Spout
: 46, 54
⤷ Spout Reach
: 98, 101
⤷ Overall Height
: 138, 148
⤷ Width
: 50, 54
⤷ Depth
: 127, 133
⤷ Minimum Operating Pressure (Bar)
: 1.0, 1.5
⤷ Handle Style
: Stick
⤷ Waste Included
: Yes
⤷ Barcode
: 5054913488344
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Manual Pdf File

This item can also be found in:

Technical Images

Joseph Miles Millie Basin Mixer Tap with Curved Spout and Waste - Stick Handle - Deck Mounted

138mm High

148mm High

£76.00

RRP: ~~£95.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
