Joseph Miles Millie 2 Hole Basin Mixer Tap, JMQS108984

Joseph Miles Millie Details

MFC: JMQS108984

Joseph Miles Millie 2 Hole Basin Mixer Tap with Curved Spout - Stick Handle - Wall Mounted.

Key Features

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Bronze
✔Manufactured Using Brass Material
✔Operation: Single Lever Cartridge
✔Suitable for High Water Pressure System
✔Guarantee: 3-Year On Valve, 5-Year On Body and Finish

Choice of Spout Projections: 155mm, 220mm
Suitable for Wall-Mounted Installation
Adjustable Flow Direction
Inlet Connection: 3/4 Inch
Requires a Minimum of 1.0 Bar of Water Pressure System

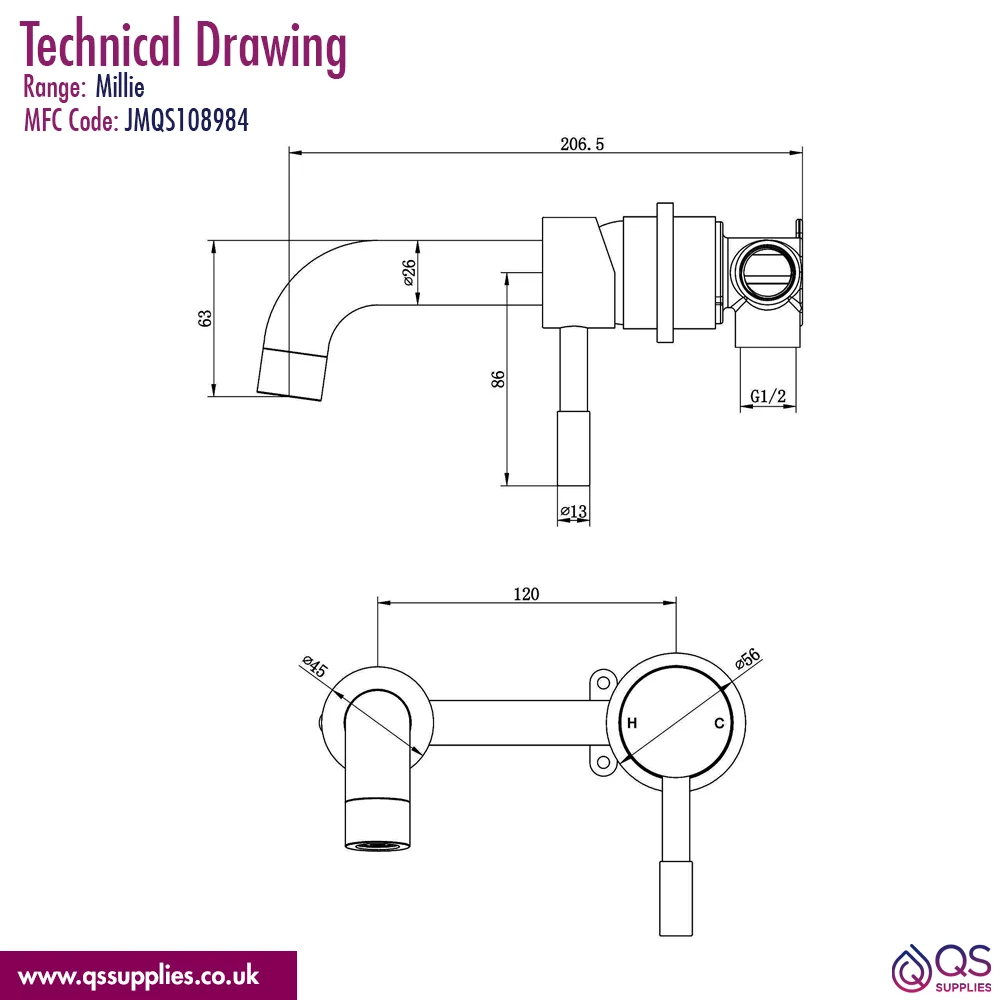

Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File From The Additional Info Section
Specification of Spout Projection 155mm:
Size [mm]: 160 x 206.5 x 100mm [Width x Depth x Height]
Size [cm]: 16 x 20.65 x 10cm [Width x Depth x Height]
Weight: 1.8kg
Spout Height: 63mm [6.3cm]
Inlet Centre: 120mm [12cm]
Specification of Spout Projection 220mm:
Size [mm]: 150 x 272 x 100mm [Width x Depth x Height]
Size [cm]: 15 x 27.2 x 10cm [Width x Depth x Height]
Weight: 1.18kg
Spout Height: 63mm [6.3cm]
Inlet Centre: 120mm [12cm]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting
⤷ Handle Position
: Front
⤷ Range
: Millie
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 3 Years On Valve, 5 Years On Body & Finish
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Spout Reach
: 155, 220
⤷ Inlet Centres
: 120
⤷ Overall Height
: 100
⤷ Width
: 160, 150
⤷ Depth
: 206.5, 272
⤷ Inlet Connections
: 3/4"
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Handle Style
: Stick
⤷ Barcode
: 5054913542527
⤷ Product Type
: 2 or 3 Hole Basin Tap

Additional Info & Downloads

Download the Installation Manual Pdf File Download the Installation Checklist & Warning Document Pdf File

This item can also be found in:

Technical Images

Joseph Miles Millie 2 Hole Basin Mixer Tap with Curved Spout - Stick Handle - Wall Mounted

155mm Long

220mm Long

£132.00

RRP: ~~£165.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
