Tavistock Cohort 3 Hole Basin Mixer Tap with Click Waste, Deck Mounted, TCC79

Tavistock Cohort Details

MFC: TCC79

Tavistock Cohort 3 Hole Basin Mixer Tap with Click Waste - Deck Mounted

Key Features

✔Swivel Spout - can Rotate Fully after Installation
✔Hot and Cold Valves can be Swapped to Change the Handle Rotation Direction
✔Ceramic Cartridge Technology Provides a Smooth and Easy to use Action and Prevents Drip
✔10-Year Guarantee from the Manufacturer

Choice of Finishes: Chrome, Brushed Brass and Gunmetal
Choice of Handles: Crosshead, Stick
Brushed Brass and Gunmetal Options Feature a PVD Hardwearing & Scratch Resistance Coating
Supplied with Click Waste
Flexible Hoses with 1/2" BSP Captive Nut Connections
Recommended to use 15mm with G-1/2" Plumbing Fittings
Height: 292mm (29.2cm)
Centre of Inlet to Centre of Outlet: 182mm (18.2cm)
Base to Spout: 177mm (17.7cm)
Suitable for Medium Water Pressure System
Minimum Recommended Pressure 0.5 Bar
Refer technical Drawing for Complete Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Cohort
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 3
⤷ Valve/Cartridge Type
: Ceramic
⤷ Spout Swivel
: Yes

⤷ Base To Spout
: 177
⤷ Spout Reach
: 182
⤷ Overall Height
: 292
⤷ Handle Height
: 45
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Waste Type
: Click
⤷ Handle Style
: Crosshead
⤷ Waste Included
: Yes
⤷ Barcode
: 5016519758634

Additional Info & Downloads

Download the Technical Data Sheet for Crosshead Handle Pdf File Download the Technical Data Sheet for Stick Handle Pdf File

This item can also be found in:

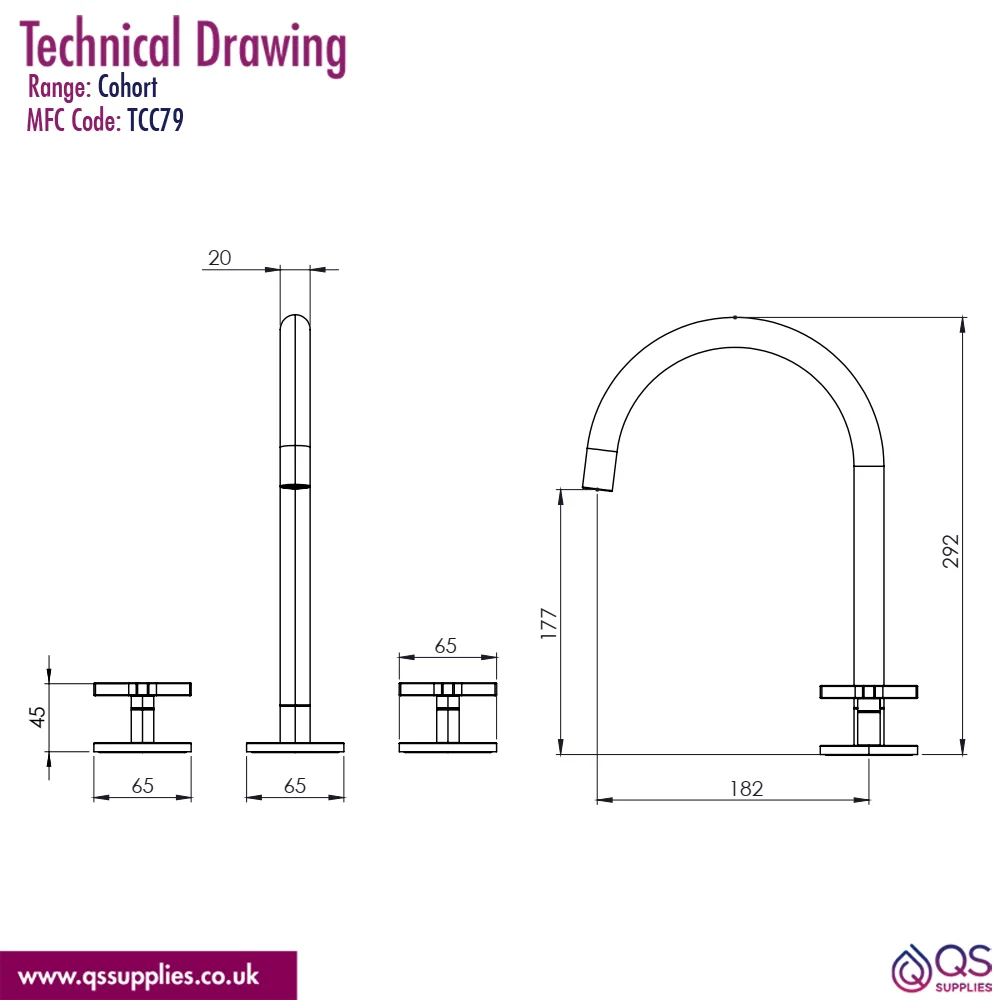

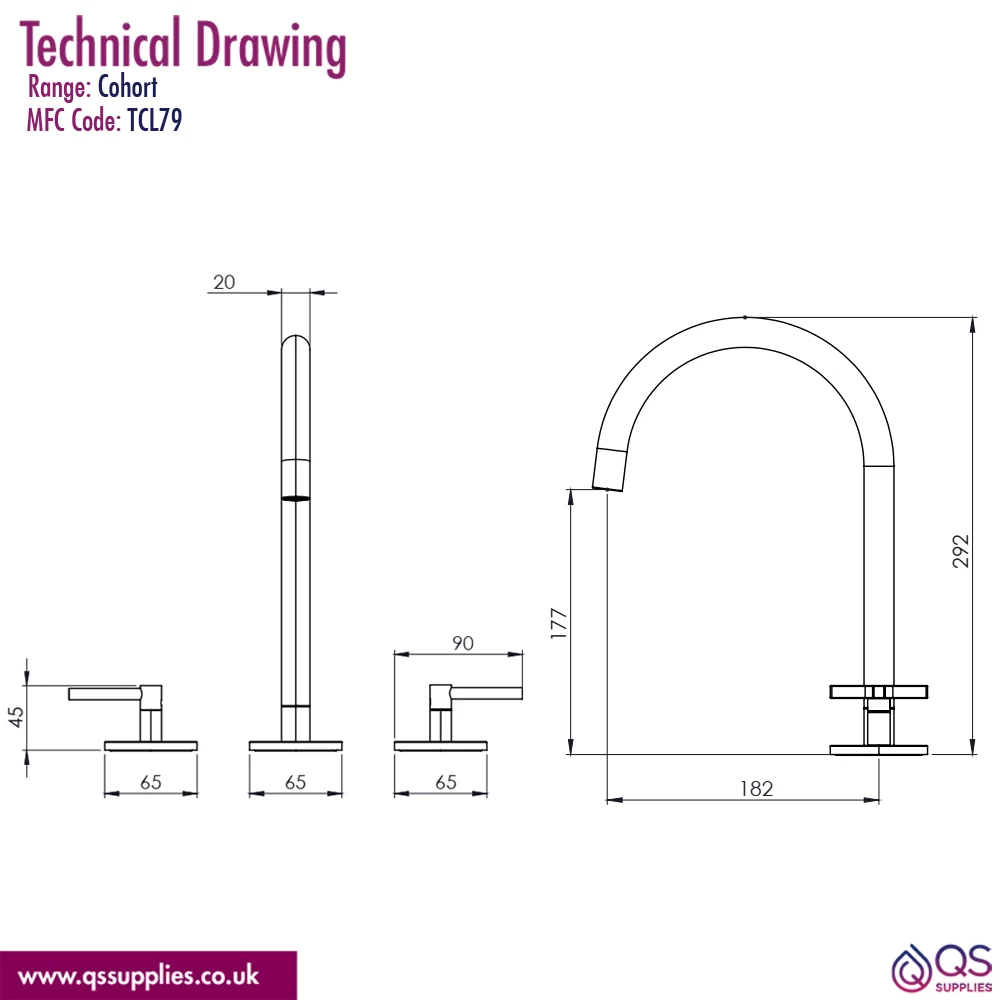

Technical Images

Tavistock Cohort 3 Hole Basin Mixer Tap with Click Waste - Deck Mounted

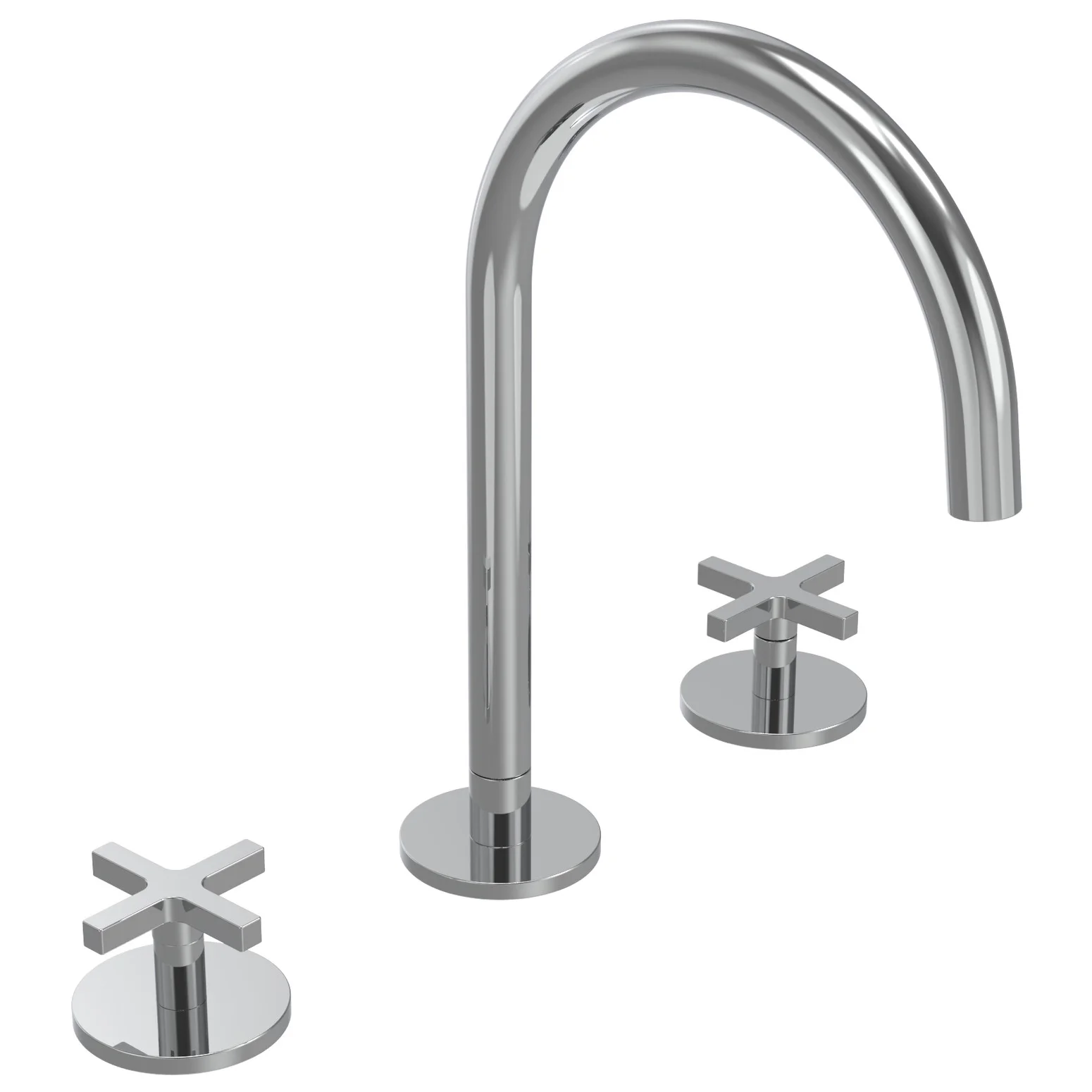

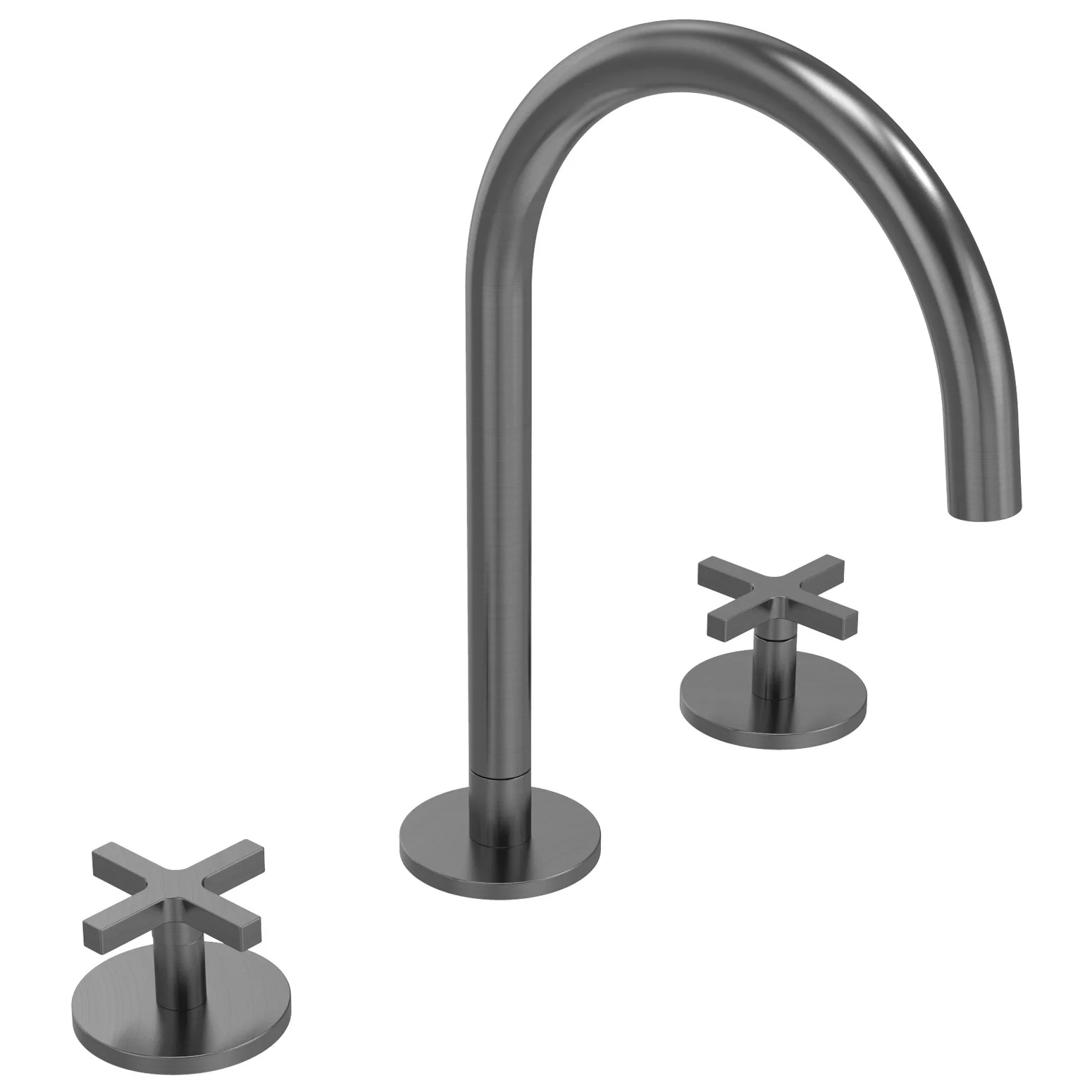

Crosshead Handle

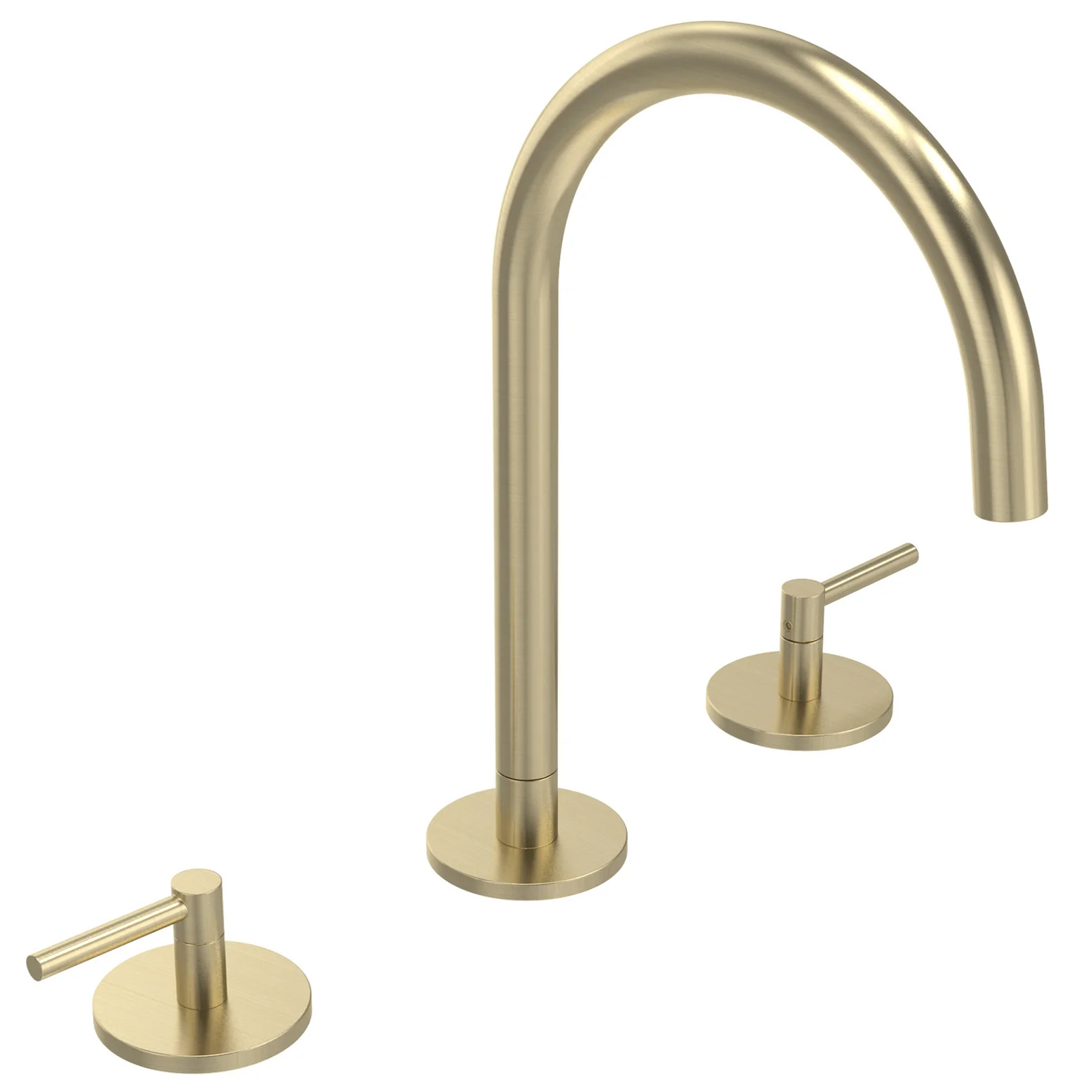

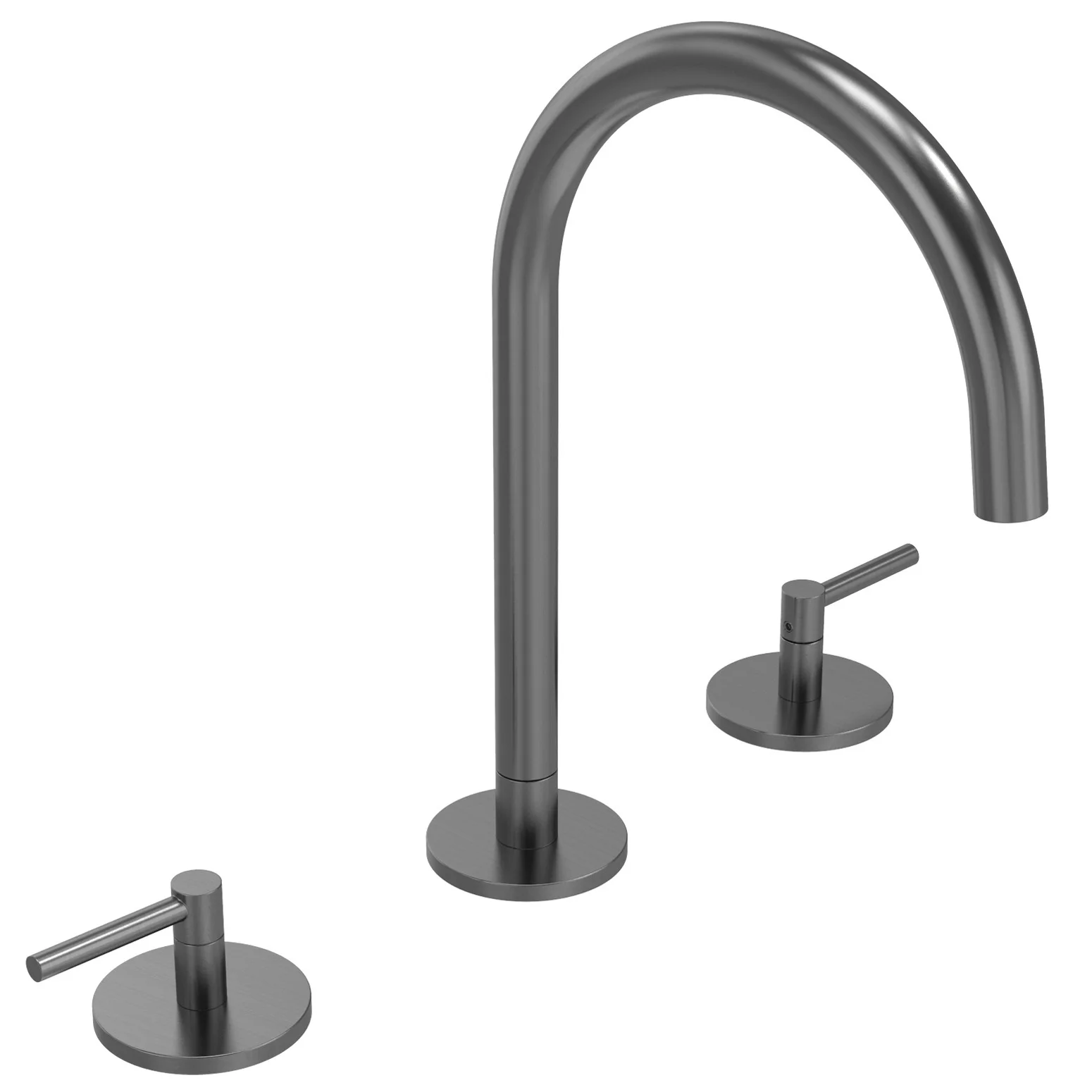

Stick Handle

£184.39

RRP: ~~£230.50~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
