Methven Motu Contemporary Bridge Bath Mixer Tap, Stick Handles, MTBFCP

Methven Motu Details

MFC: MTBFCP

Methven Motu Contemporary Bridge Bath Mixer Tap - Stick Handles

Key Features

✔Contemporary Design
✔WRAS and KIWA Approved
✔Supplied with Brass Backnuts
✔20-Year Warranty on Chrome Finish, 5-Years on Other Finishes from the Manufacturer

Choice of Finishes: Chrome, Matt Black, Brushed Brass
Choice of Variations: Without Handset, With Handset
Easy-to-Use Lever Handle
Easy To Use By All The Family
Inlet Centre: 180mm [18cm]
Inlet Connections: 3/4 Inch BSP
Cartridge/Valve Type: 1/4 Turn Ceramic Disc
Ceramic Disc Handles Ensure A Smooth Operation
Operation: Separate Handles For Hot & Cold Flow Control
Water Efficient Without Compromising Showering Performance
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.3 Bar to a Maximum of 5.0 Bar Water Pressure

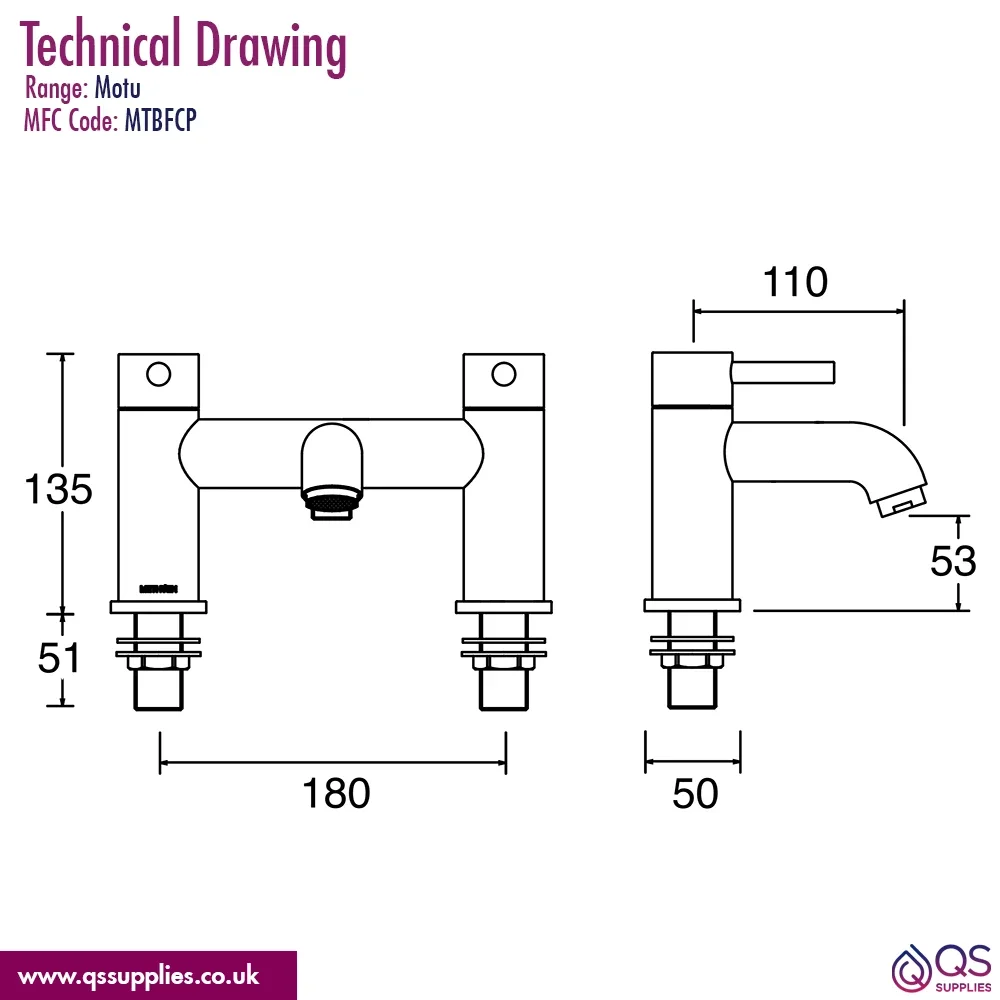

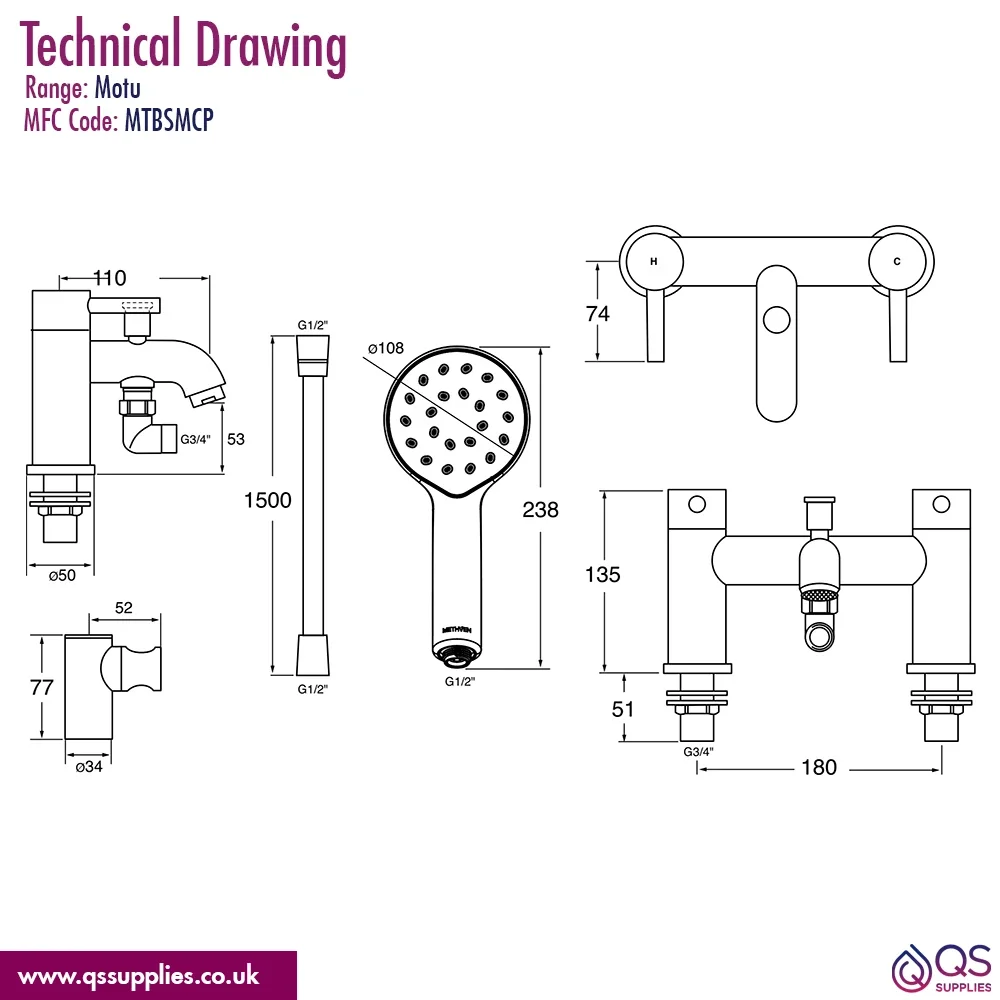

Refer to the Technical Diagram for Complete Technical Dimensions

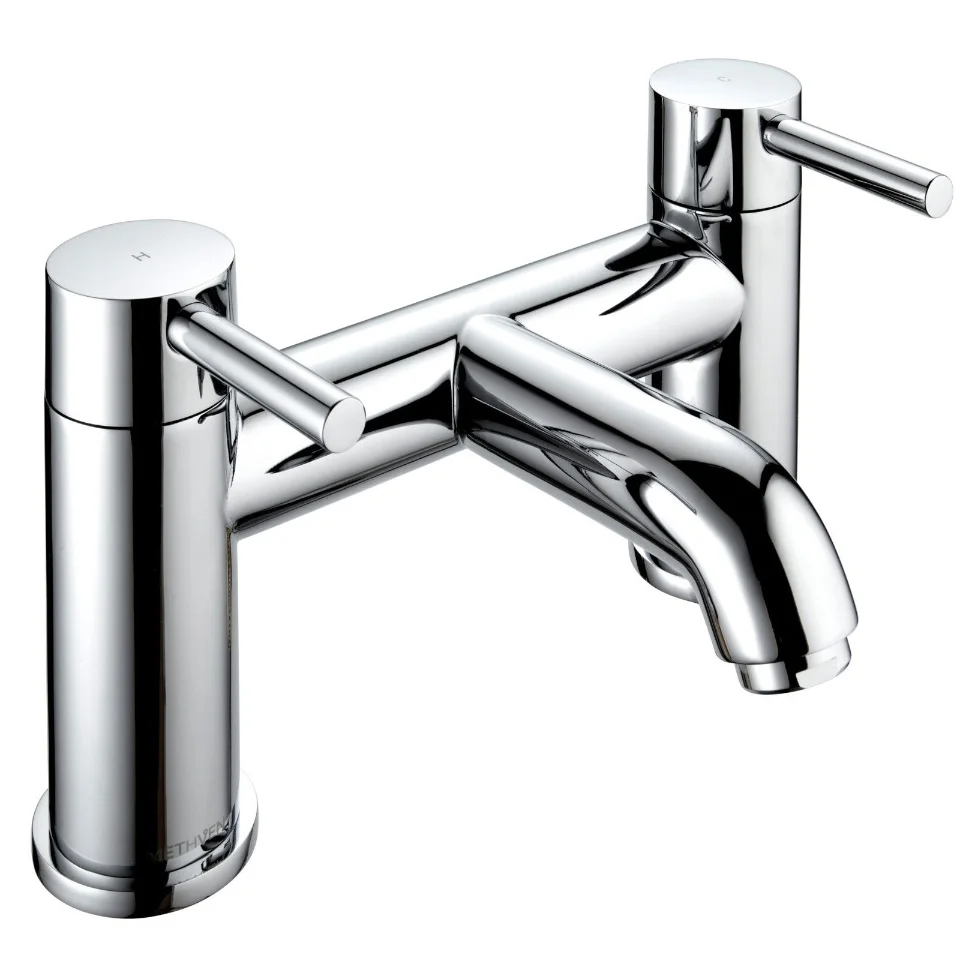

Details of Tap Only:
Manufactured Using Brass Material
Height: 135mm [13.5cm]
Base To Spout: 53mm [5.3cm]
Centre of the Inlet to Centre of the Outlet: 110mm [11cm]

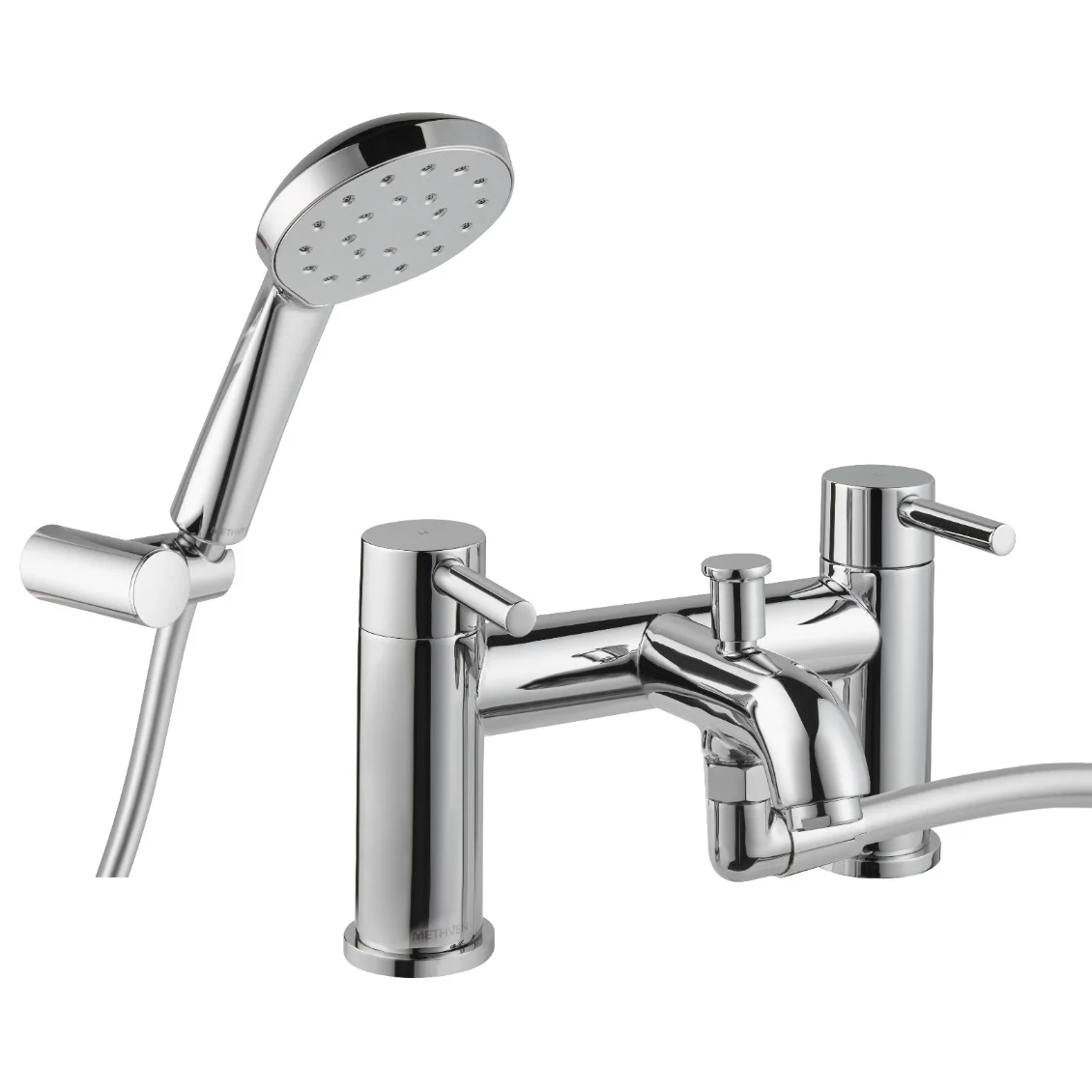

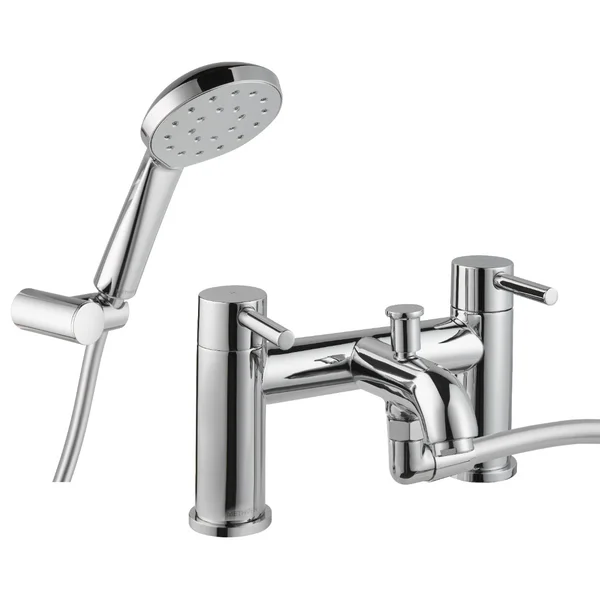

Details of Tap with Kit:
Manufactured Using Brass & ABS Material
Lockable, Self-cancelling Diverter
Height: 135mm [13.5cm]
Base To Spout: 53mm [5.3cm]
Centre of the Inlet to Centre of the Outlet: 110mm [11cm]
Hose Length: 1500mm [150cm]
Size of Handset [mm]: 108 x 238cm [Diameter x Height]
Size of Handset [cm]: 10.8 x 23.8cm [Diameter x Height]
Feature Twist Free 360° Swivel Hose Adapter
Complete with Kiri Satinjet Handset Regulated To 8 l/m & Wall Bracket

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Position
: Left, Right
⤷ Range
: Motu
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years on Chrome, 5 Years on Other Finish
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Base To Spout
: 53
⤷ Spout Reach
: 110
⤷ Inlet Centres
: 180
⤷ Max. Deck Thickness
: 51
⤷ Inlet Connections
: G 1/2, G 3/4 inch
⤷ Minimum Operating Pressure (Bar)
: 0.3

⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Optional
⤷ Hand-Shower Function
: 1
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Height
: 135
⤷ Number of Handles
: 2
⤷ Diverter Included
: Optional
⤷ Compliance/Approvals/Standard
: KIWA
⤷ Barcode
: 5057199906045
⤷ Product Type
: Bath Mixer Tap
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic Disc

Additional Info & Downloads

This item can also be found in:

Technical Images

Methven Motu Contemporary Bridge Bath Mixer Tap - Stick Handles

£195.60

RRP: ~~£245.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...
