Methven Waipori Thermostatic Cool Touch Chrome Bar Shower Valve with Slide Rail Kit

Methven Waipori Details

MFC: WAIBS

Methven Waipori Thermostatic Cool Touch Chrome Bar Shower Valve with Slide Rail Kit.

Manufacturing Code of this Product: WAIBS
It Comes in a Chrome Finish
Cartridge/Valve Type: Thermostatic
38ºC Temperature Hot Stop with Override Facility
Operation: Separate Flow and Temperature Controls
Riser Rail, Valve, Handset, Hose and Soap Dish Included
Patented Satinjet Showering Technology is Optimised at 8 Litres Per Minute
Size of Rail [mm]: 50 x 684mm [Depth x Height]
Size of Rail [cm]: 5 x 68.4mm [Depth x Height]
Width of Valve: 260mm [26cm]
Inlet Centre: 150mm [15cm]
Size of Handset [mm]: 120 x 219mm [Width x Height]
Size of Handset [cm]: 12 x 21.9cm [Width x Height]
Flexible Rail Installation with Adjustable Mounting Brackets for Easy Retrofit Installation
1500mm Twist-Free Hose - Easy to Use and Clean
Includes Easy-Fit Connections
Inlet Connection: 15mm Compression
Certified to NSF and TMV2
Suitable for High Water Pressure System
Requires a Minimum of 0.5 Bar and a Maximum of 5.0 Bar of Water Pressure
Water-Efficient - The Water Flow Rate is Optimised to be Water-Efficient Without Compromising the Luxurious Spray Performance

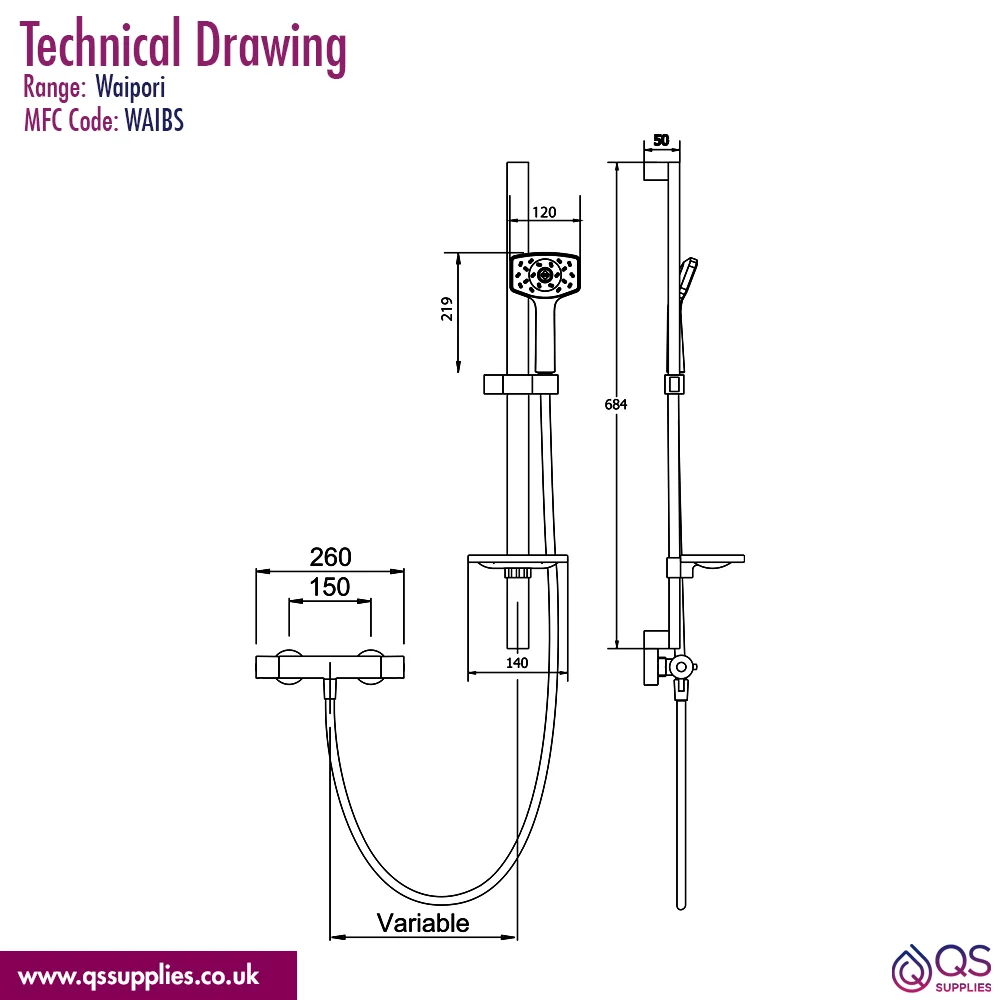

Refer to the Technical Drawing For Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: ABS & Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Technologies
: Satinjet
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: WRAS, TMV2, NSF
⤷ Product Type
: Thermostatic Showers
⤷ Soap Dish Included
: Yes
⤷ Hose Type
: Twist-Free
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Separate temperature and power controls
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: 260
⤷ Rail Length
: 684
⤷ Adjustable Height
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File

Methven Waipori Thermostatic Cool Touch Chrome Bar Shower Valve with Slide Rail Kit

£164.23

RRP: ~~£301.84~~

Stock Availablity: 5 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Satinjet

Satinjet® uses unique twin-jet technology to modify the water droplets' size and pressure while creating more than 300,000 droplets per second. The resulting sensation during the shower is so thrilling that it can be considered the perfect showering experience. These come in many variations, both gentle and invigorating.

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
