Methven Wai Concealed Thermostatic Shower Valve, 2 Controls, WA1D

Methven Wai Details

MFC: WA1D

Methven Wai Contemporary Concealed Thermostatic Shower Valve - 2 Controls - Rectangular Trim.

Key Features

✔WRAS and TMV2 Approved
✔Includes Diverter Cartridge
✔5-Year Warranty from the Manufacturer
✔Choice of Finishes: Chrome and Matt Black

Choice of Outlets: 1 Outlet, 2 Outlets and 3 Outlets
Crafted using Premium-Quality Material
38°C Temperature Hot Stop With Override Facility
Front Access Filters - No Need To Disconnect Shower From Water Supply During Maintenance
Slimline Concealing Plate
Includes Covers To Protect Valve During Installation
Inlet Connections: 3/4-Inch
Separate Flow and Thermostatic Controls
Suitable for Low-Pressure Water System
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar Water Pressure
Refer to the Technical Diagram for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Wai
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Knob Handles
⤷ WRAS Approved
: Yes
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 120
⤷ TMV2 Approved
: Yes
⤷ Number of Handles
: 2
⤷ Diverter Included
: Yes
⤷ Orientation
: Portrait
⤷ Barcode
: 5057199882295
⤷ Product Type
: Shower Valves
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Separate Flow and Temperature Controls
: Yes

Additional Info & Downloads

Download the Technical Datasheet For 1 Outlet Valve Pdf File Download the Installation Instruction For 1 Outlet Valve Pdf File Download the Technical Datasheet For 2 Outlet Valve Pdf File Download the Installation Instruction For 2 Outlet Valve Pdf File Download the Technical Datasheet For 3 Outlet Valve Pdf File Download the Installation Instruction For 3 Outlet Valve Pdf File

This item can also be found in:

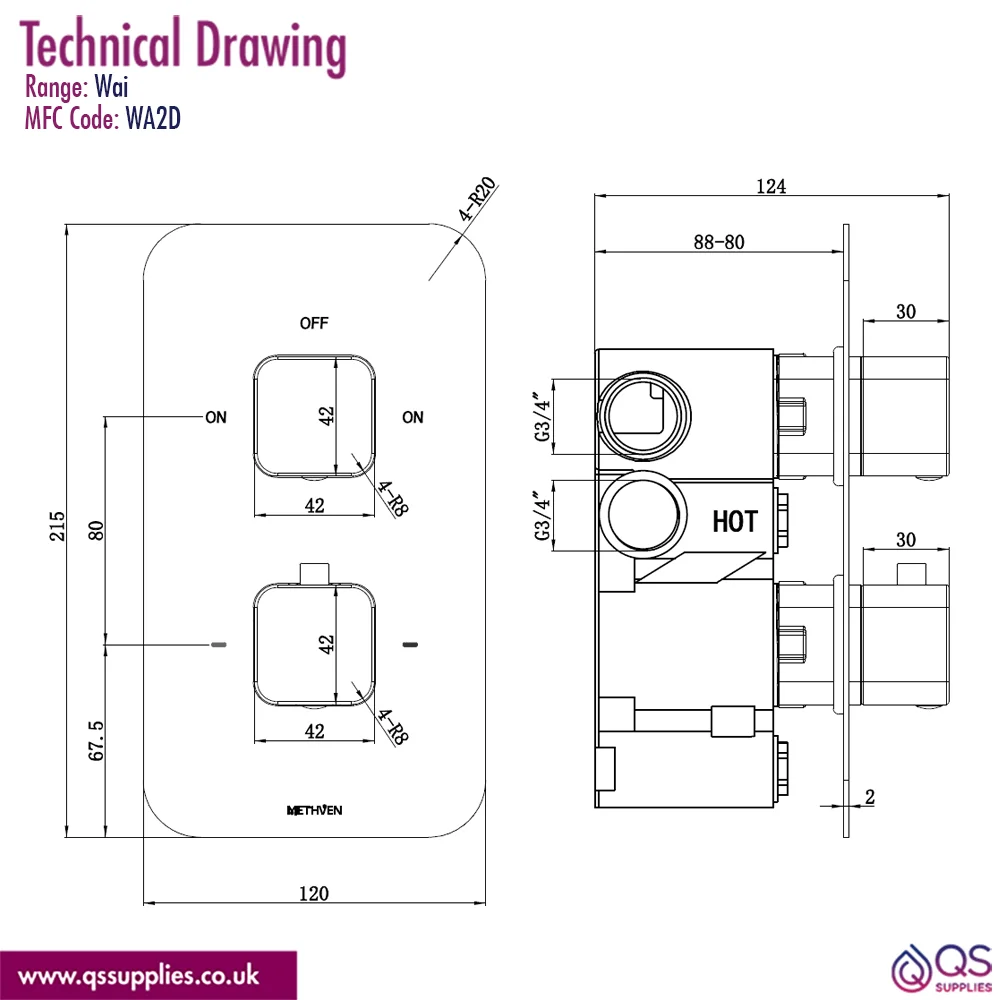

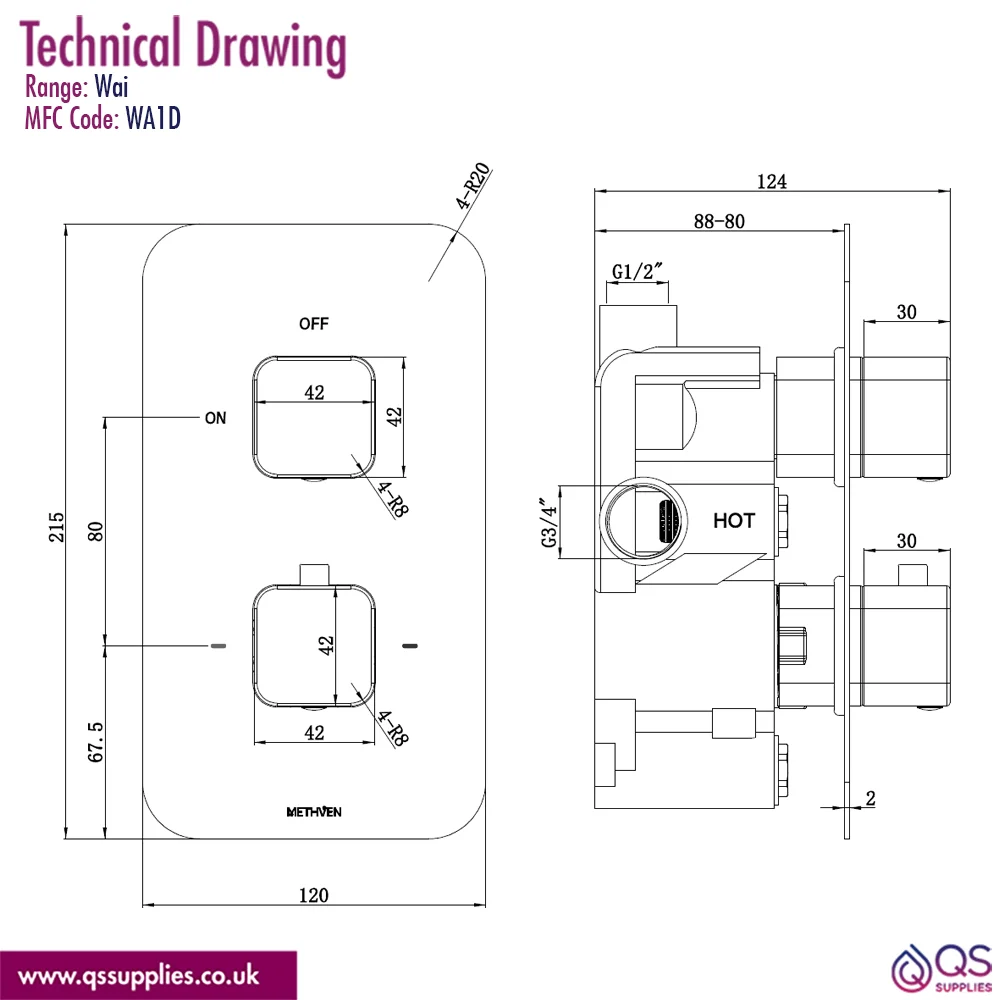

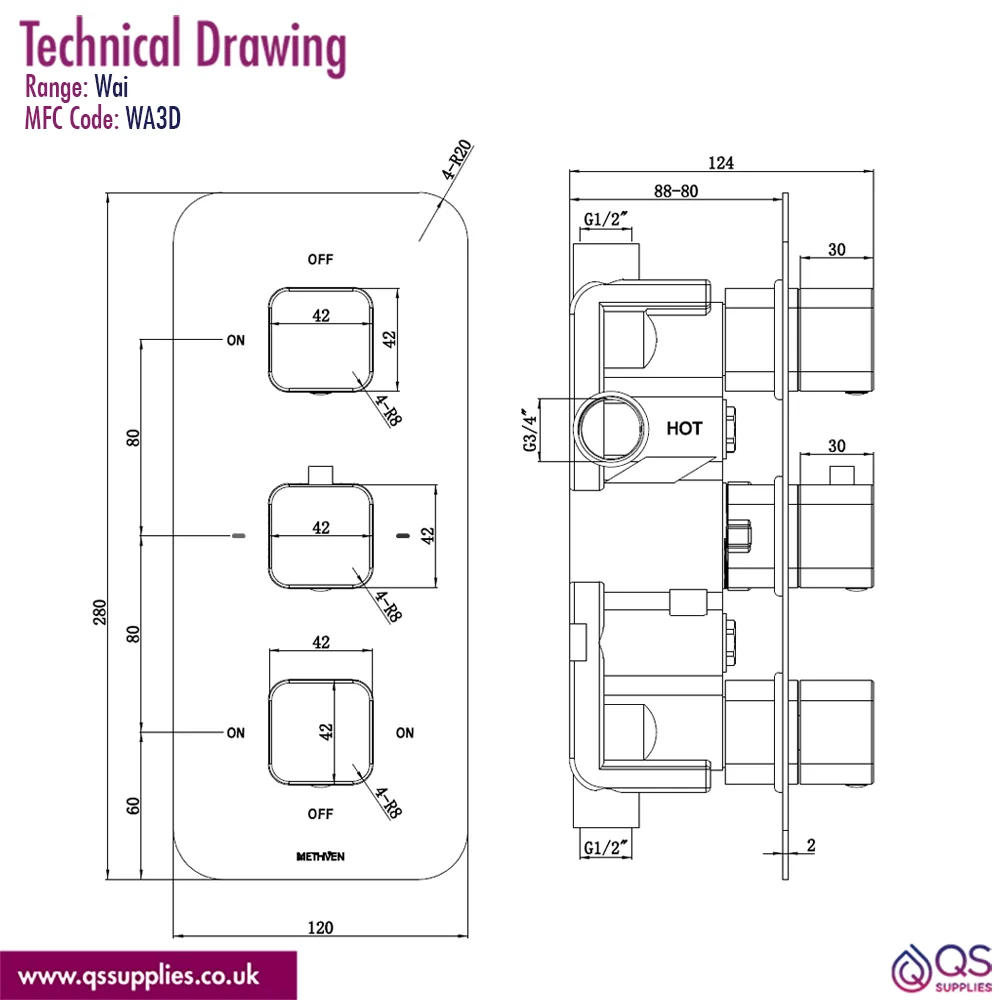

Technical Images

Methven Wai Contemporary Concealed Thermostatic Shower Valve - 2 Controls - Rectangular Trim

1 Outlet Valve

2 Outlet Valve

3 Outlet Valve

£339.91

RRP: ~~£424.88~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Methven Wai Contemporary Concealed Thermostatic Shower Valve - 2 Controls - Rectangular Trim
