Methven Wai 3 Hole Bath Shower Mixer Tap, Handset, Lever Handle, WAI3BSMCP

Methven Wai Details

MFC: WAI3BSMCP

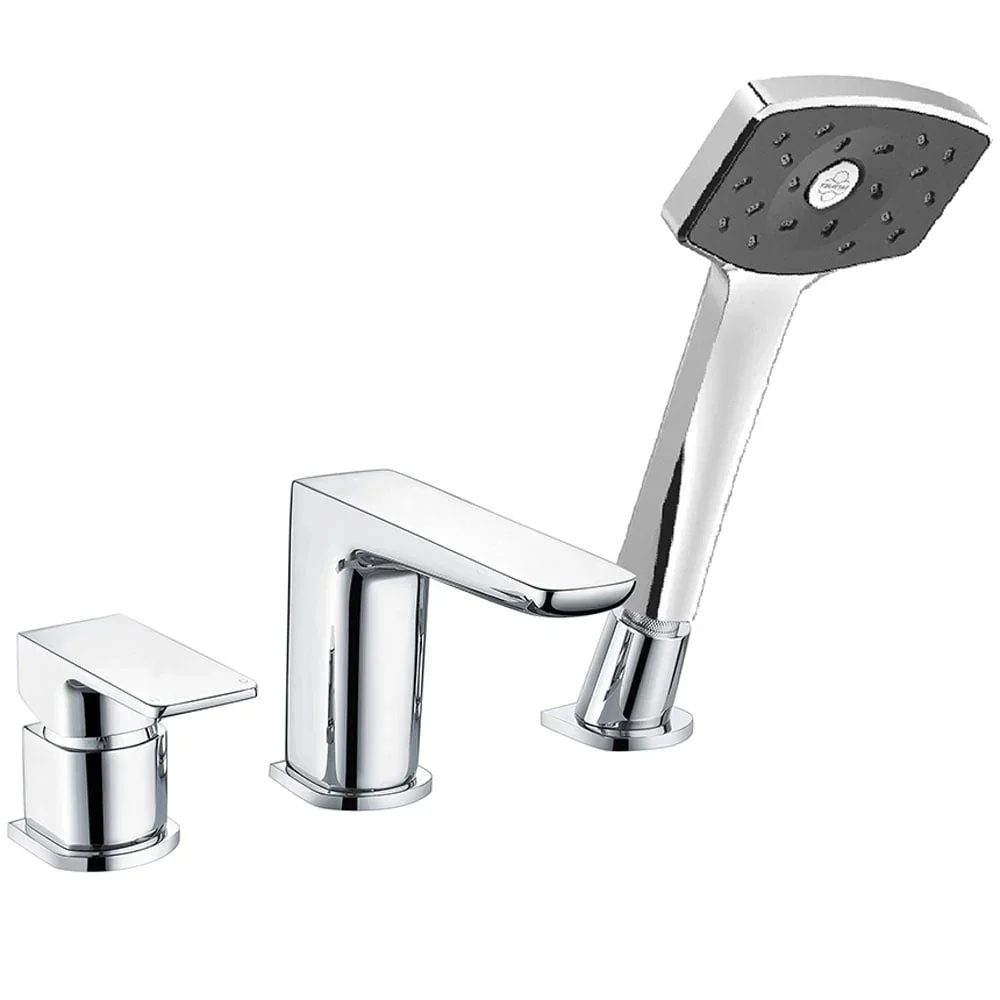

Methven Wai 3 Hole Chrome Bath Shower Mixer Tap with Handset - Flat Lever Handle.

The Manufacturing Code of the Product is WAI3BSMCP
Deck-Mounted Installation
Inlet Connections: 3/4-Inch BSP
Water Efficient Without Compromising Performance
Complete with Satinjet Waipori Handset Regulated to 8 Litres Per Minute and Twist Free Hose
Ceramic Disc Handles Ensure A Smooth Operation
Cartridge/Valve Type: 35mm Ceramic Cartridge
Suitable for Low-Pressure Water System
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar Water Pressure

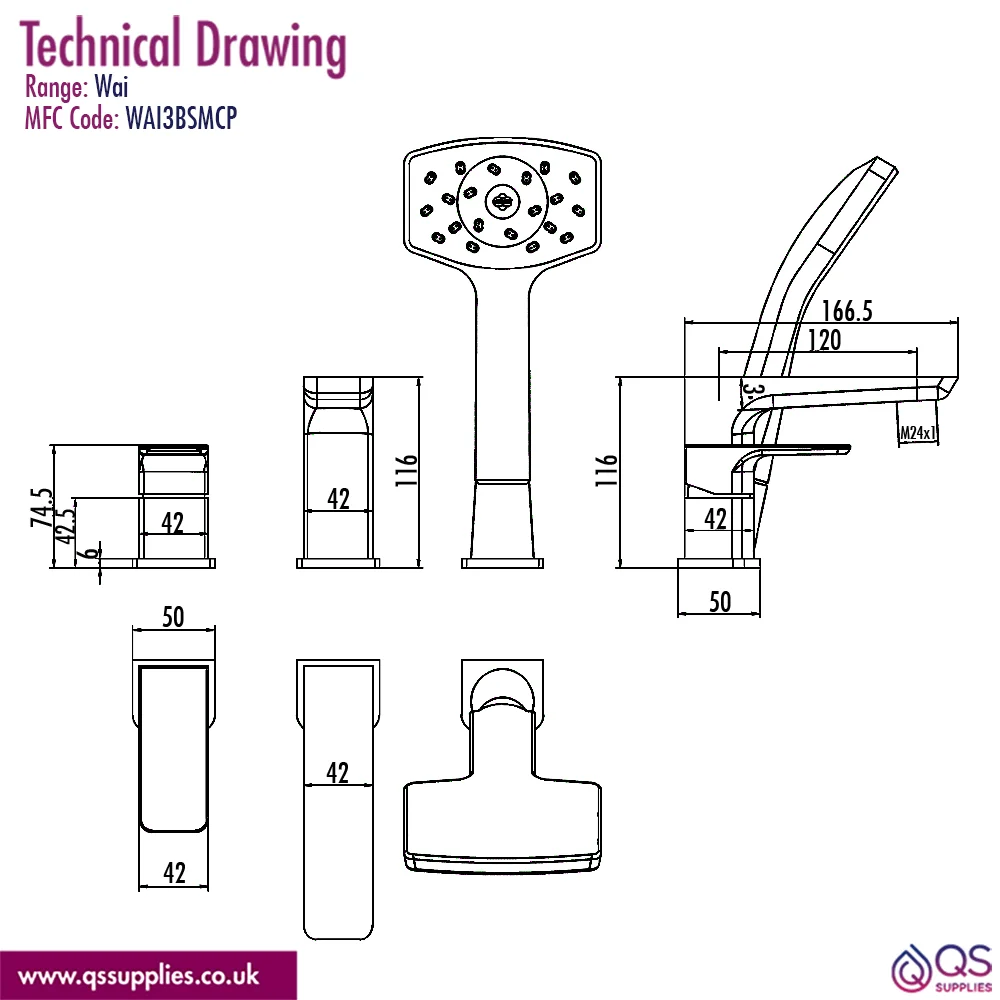

Refer to the Technical Diagram for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left
⤷ Range
: Wai
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ Spout type
: Fixed
⤷ Handle Height
: 74.5
⤷ Inlet Connections
: 3/4-Inch
⤷ Minimum Operating Pressure (Bar)
: 0.1

⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Hand-Shower Included
: Yes
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Flow Regulator Included
: Yes
⤷ No. of Tap Holes
: 3
⤷ Barcode
: 5057199882424
⤷ Product Type
: Bath Shower Mixer Tap
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Technical Data Sheet Pdf File

This item can also be found in:

Methven Wai 3 Hole Chrome Bath Shower Mixer Tap with Handset - Flat Lever Handle

£243.11

RRP: ~~£303.89~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Satinjet

Satinjet® uses unique twin-jet technology to modify the water droplets' size and pressure while creating more than 300,000 droplets per second. The resulting sensation during the shower is so thrilling that it can be considered the perfect showering experience. These come in many variations, both gentle and invigorating.
