Deva Clifden Chrome Bridge Bath Mixer Tap, Curved Lever Handles, CLF108

Deva Clifden Details

MFC: CLF108

Deva Clifden Chrome Bridge Bath Mixer Tap with Curved Lever Handles - Deck Mounted.

Key Features

✔Manufactured Using Brass Material
✔WRAS & KIWA Approved Product
✔Valve/Cartridge Type: 1/4 Turn Ceramic Disc
✔Ceramic Disc Handles Ensure a Smooth Operation and Longer Life
✔12-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variations: Tap Without Kit, Tap With Kit
It Comes in a Chrome Finish
Comes Complete with Brass Backnuts
Easy Identifiable Hot and Cold Water Selection
Inlet Connections: 3/4 Inch BSP
Suitable for All Plumbing Systems
Suitable For Low and High Pressure Systems
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar of Water Pressure
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

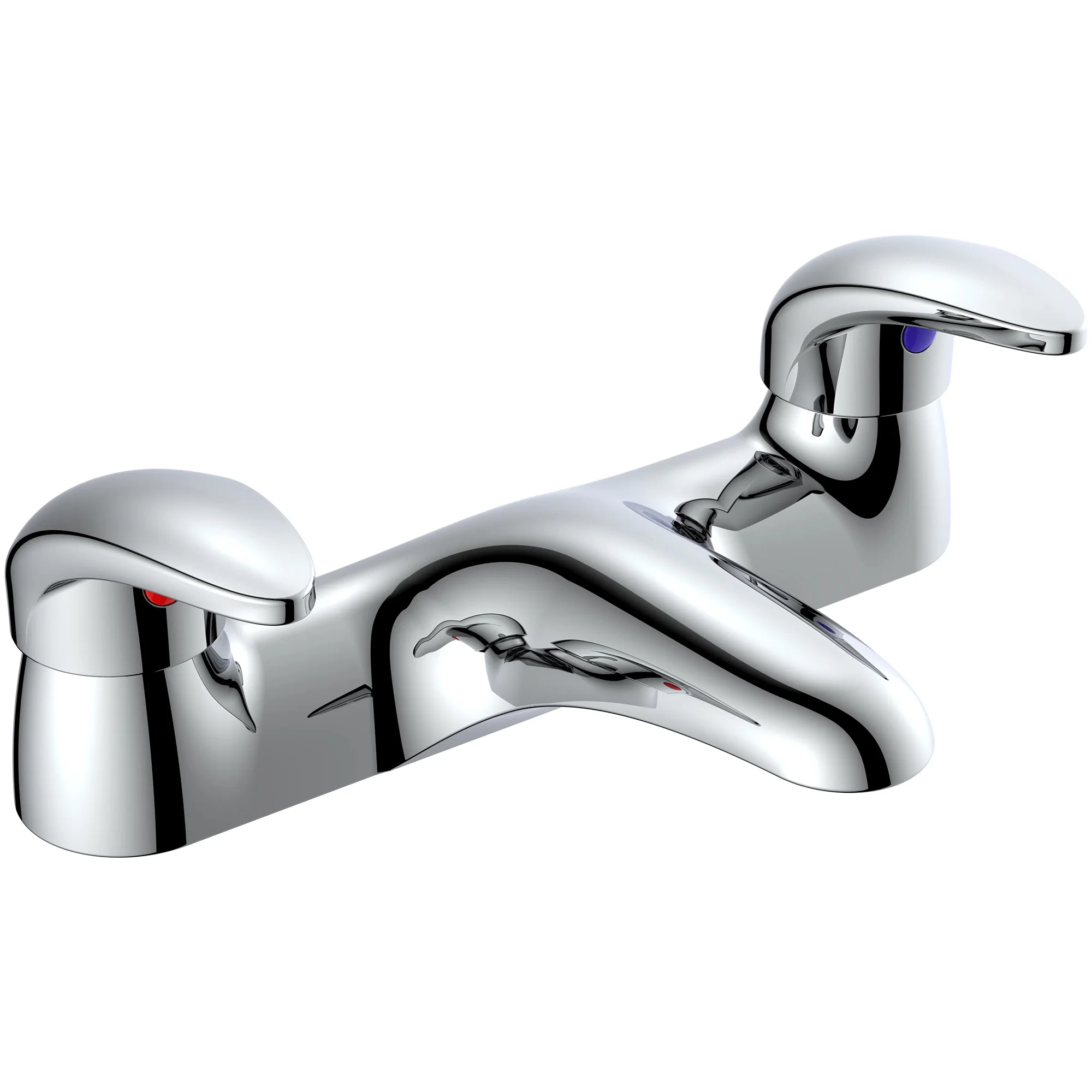

Details of Tap Without Kit:
Size [mm]: 225 x 144mm [Width x Height]
Size [cm]: 22.5 x 14.4cm [Width x Height]
Base to Spout: 32mm [3.2cm]
Centre of the Inlet to Centre of the Outlet: 105mm [10.5cm]
Inlet Centre: 180mm [18cm]

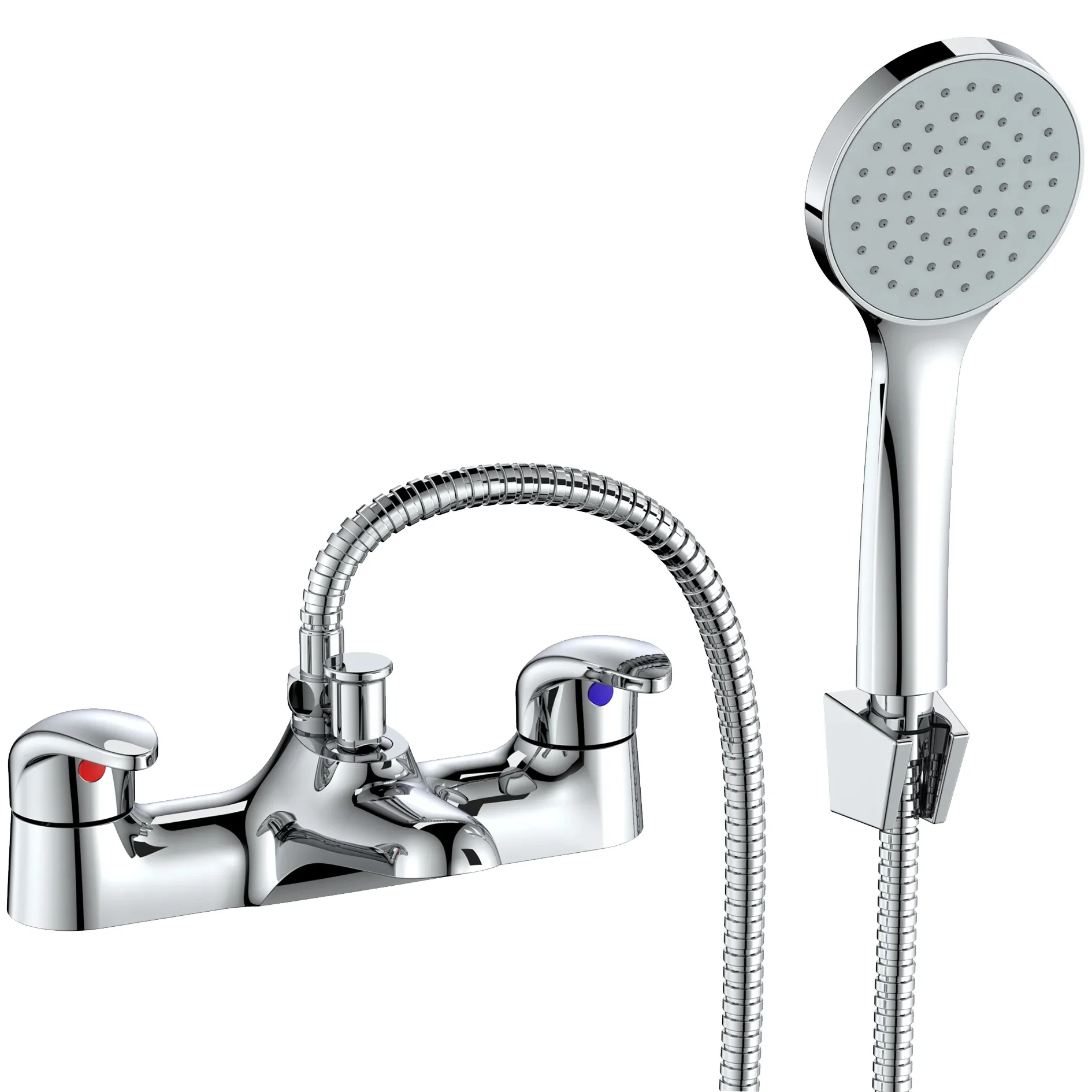

Details of Tap With Kit:
Size [mm]: 225 x 143.5mm [Width x Height]
Size [cm]: 22.5 x 14.35cm [Width x Height]
Base to Spout: 32mm [3.2cm]
Centre of the Inlet to Centre of the Outlet: 97mm [9.7cm]
Inlet Centre: 180mm [18cm]
Size of Handset [mm]: 102 x 48 x 243mm [Width x Depth x Height]
Size of Handset [cm]: 10.2 x 4.8 x 24.3cm [Width x Depth x Height]
Comes Complete With Single Mode Handset, 1.5m Shower Hose and Wall Bracket

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Clifden
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 32

⤷ Spout Reach
: 105
⤷ Inlet Centres
: 180
⤷ Overall Height
: 144
⤷ Width
: 225
⤷ Inlet Connections
: G 3/4"
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Number of Handles
: 2
⤷ No. of Tap Holes
: 2
⤷ Compliance/Approvals/Standard
: KIWA Approved
⤷ Barcode
: 5057199881342
⤷ Product Type
: Bath Mixer Tap
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Product Data Sheet Of Tap Only Pdf File Download the Installation Instruction Of Tap Only Pdf File Download the Product Data Sheet Of Tap With Kit Pdf File Download the Installation Instruction Of Tap With Kit Pdf File

This item can also be found in:

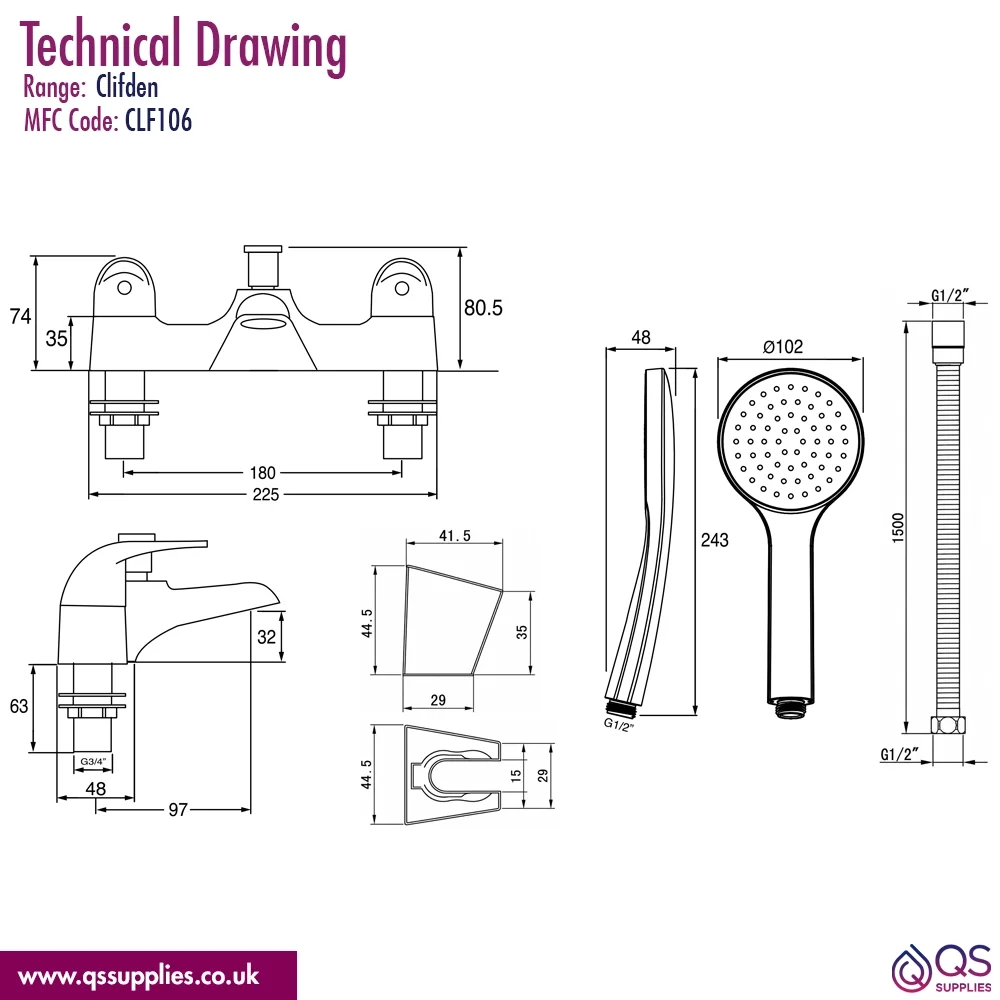

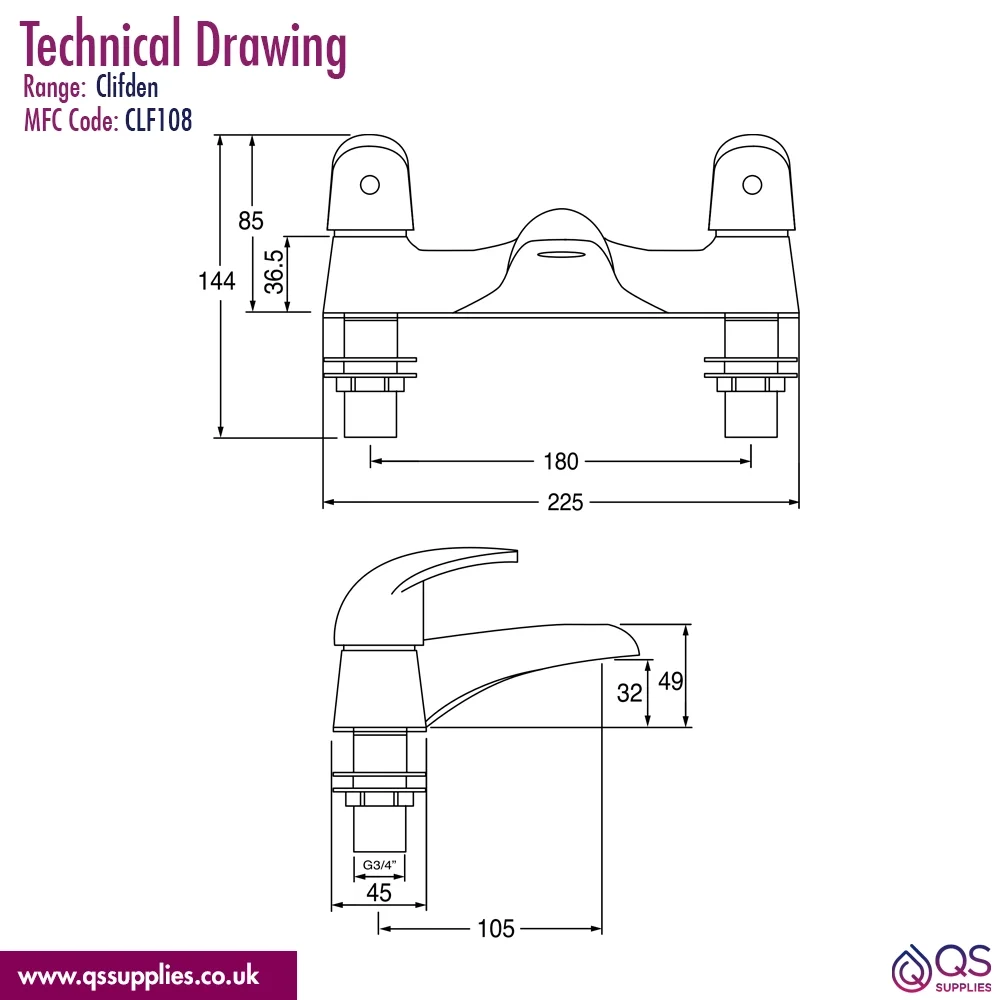

Technical Images

Deva Clifden Chrome Bridge Bath Mixer Tap with Curved Lever Handles - Deck Mounted

Tap Only

Tap With Kit

£126.29

RRP: ~~£157.86~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...
