Methven Wai Bridge Bath Mixer Tap, Flat Handles and Spout, WAIBFCPUK

Deva Wai Details

MFC: WAIBFCPUK

Methven Wai Bridge Bath Mixer Tap - Flat Handles and Spout will add a dash of dazzle to your bathroom. Its charming contemporary profile makes it just right for all kinds of bathrooms. Crafted with care from the finest material, its smooth lines and sparkling surfaces exude a distinct glamour element while being practical and easy to clean. Featuring ceramic disc handles and metal back nuts, the square mixer needs a minimum 0.5 bar and maximum 5.0 bar water pressure for smooth working. Excellent addition to your bathroom is easy to install and comes with a warranty of 20 years from the manufacturer.

Key Features

✔Supplied Complete with Brass Back Nuts
✔Choice of Finishes: Chrome and Matt Black
✔Ceramic Disc Handles Ensure a Smooth Operation
✔20-Year Warranty for Chrome Finish and 5-Year for Matt Black Finish from the Manufacturer

Choice of Variations: Tap Only And Tap With Kit
Width: 215mm (21.5cm)
Height: 135mm (13.5cm)
Depth: 153.5mm (15.35cm)
Inlet Centre: 180mm (18cm)
Suitable for Low Water Pressure System
Requires a Minimum of 0.1 Bar and a Maximum of 5.0 Bar Water Pressure
1/4-Turn Ceramic Disc Technology Ensures a Smooth ‘On’ and ‘off Operation
Water-Efficient without Compromising Showering Performance
Refer to the Technical Diagram for Size Details
Features Of Tap Only
Inlet Connections: 3/4 Inch BSP
Requires a Minimum of 0.5 Bar and a Maximum of 5.0 Bar of Water Pressure
Features Of Tap With Kit
Centre of the Inlet to Centre of the Outlet: 110mm (11cm)
Size of Handset: 120 x 219 x 77mm [Width x Height x Depth]
Complete with Waipori Satin Jet Handset and Wall Bracket
Supplied with 8l/min Flow Regulator
Twist-free Hose, Easy to Use and Clean
Twist-Free Hose Features a 360-Degree Swivel Hose Adapter to Make Showering Easier

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left
⤷ Tap Body Shape
: Square
⤷ Range
: Wai
⤷ Colour
: Chrome
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Handle Material
: Ceramic

⤷ Spout Reach
: 110
⤷ Inlet Centres
: 180
⤷ Overall Height
: 135
⤷ Width
: 216
⤷ Inlet Connections
: G3/4-Inch
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Lever
⤷ Number of Handles
: 2
⤷ Barcode
: 5057199940872
⤷ Product Type
: Bath Mixer Tap
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Technical Datasheet For Tap Only Pdf File Download the Technical Datasheet For Tap With Kit Pdf File

This item can also be found in:

Technical Images

Methven Wai Contemporary Bridge Bath Mixer Tap - Flat Handles and Spout - Deck Mounted

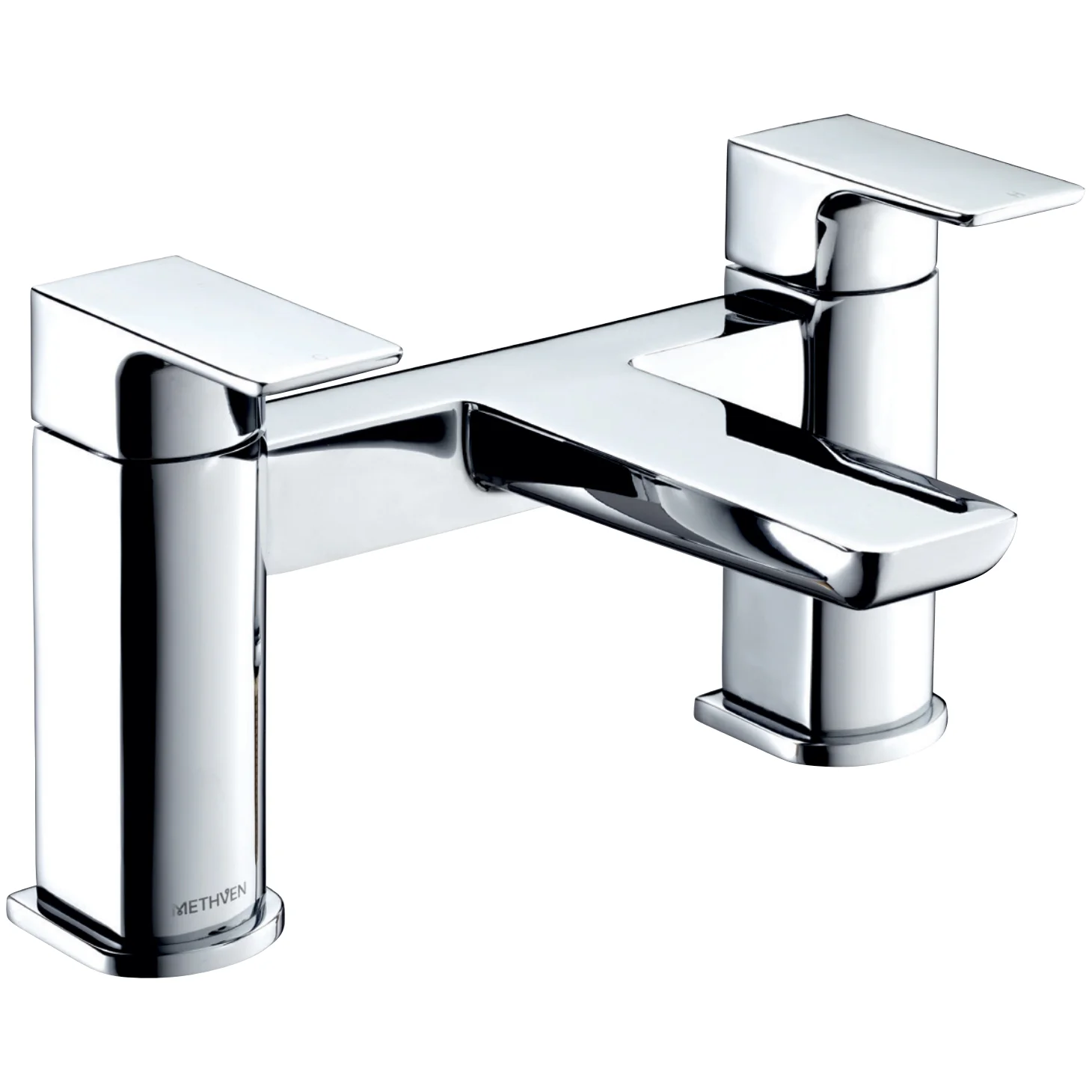

Tap Only

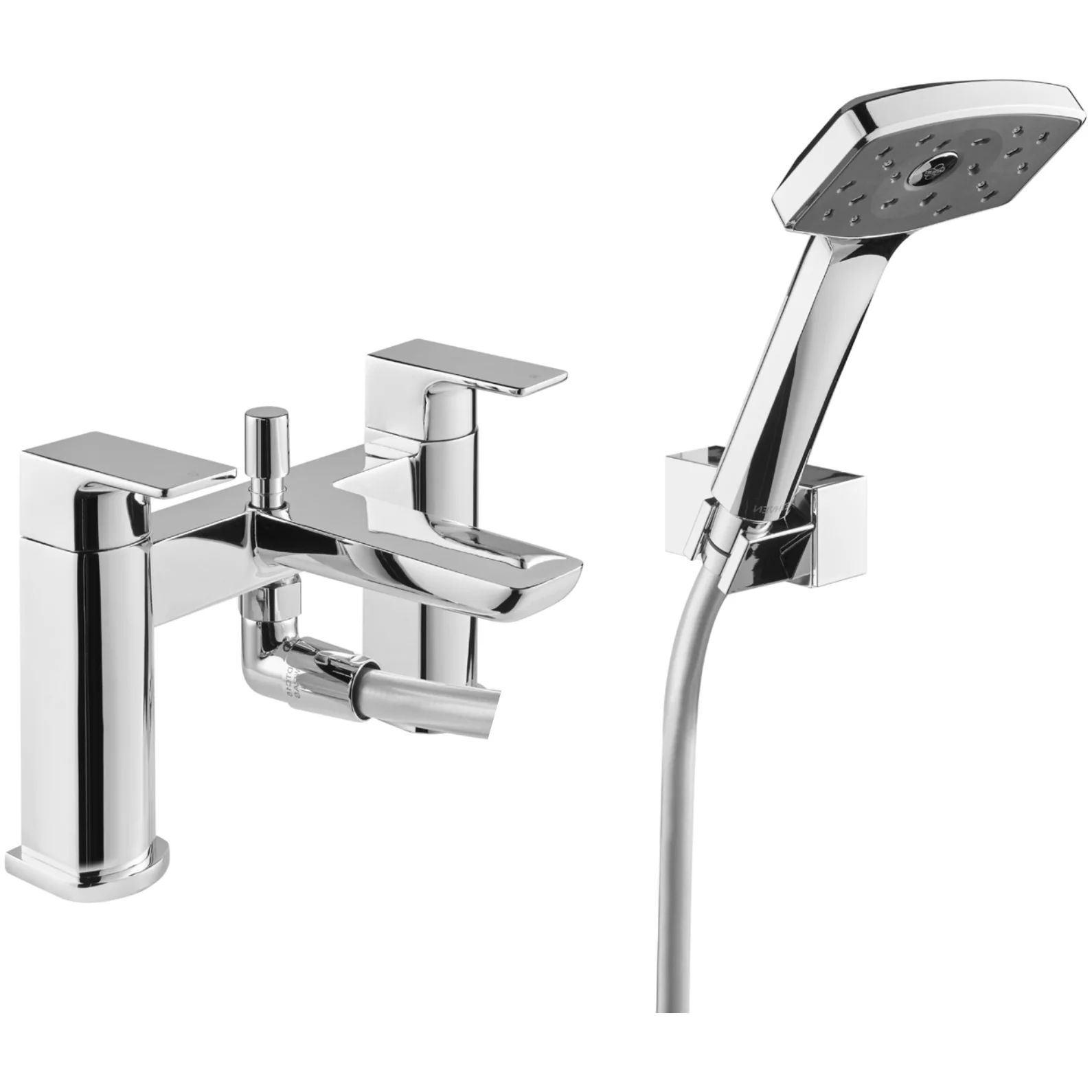

Tap With Handset

£104.03

RRP: ~~£225.49~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
