Deva Coronation Traditional Bridge Bath Mixer Tap, Long Spout, CR26

Deva Clifden Details

MFC: CR26

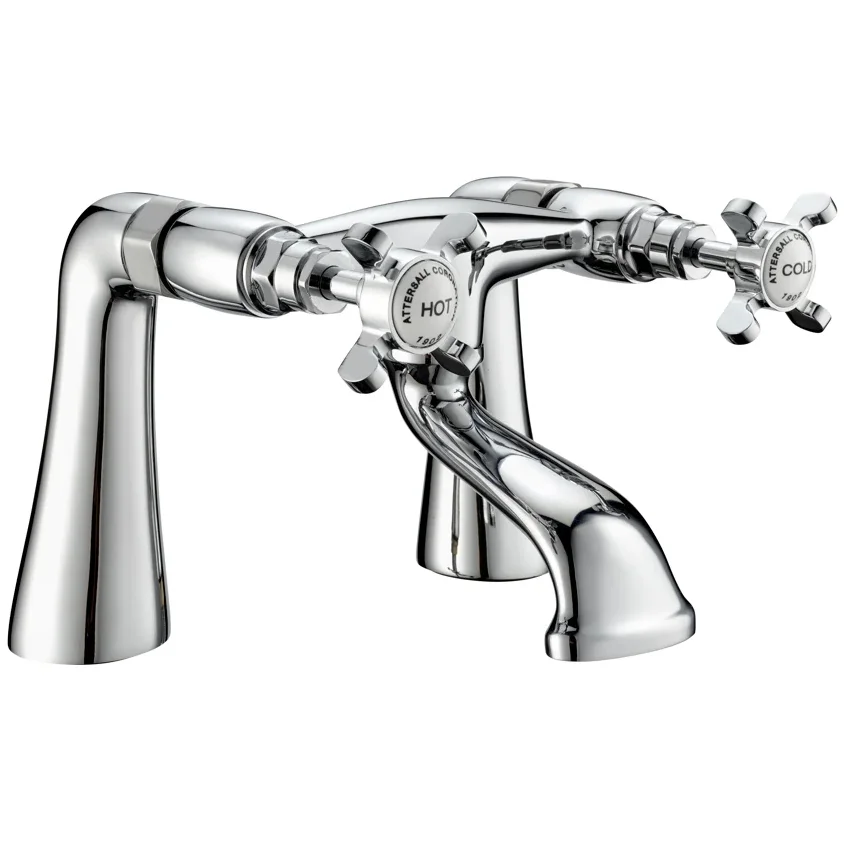

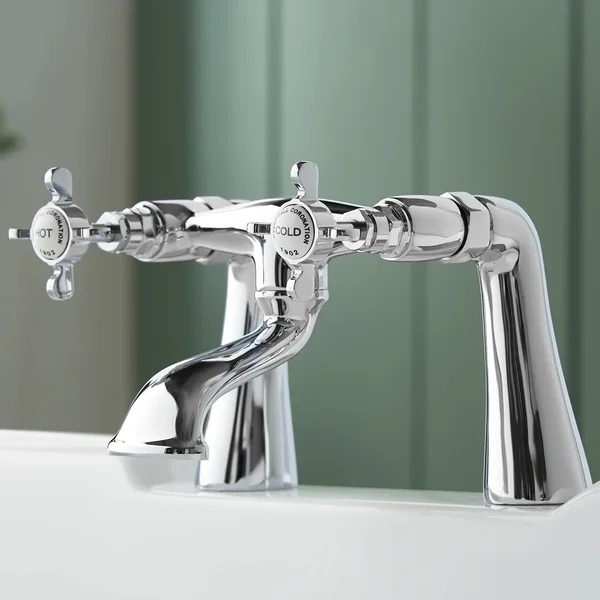

Deva Coronation Traditional Bridge Bath Mixer Tap with Long Spout - Crosshead Handles - Deck Mounted.

Key Features

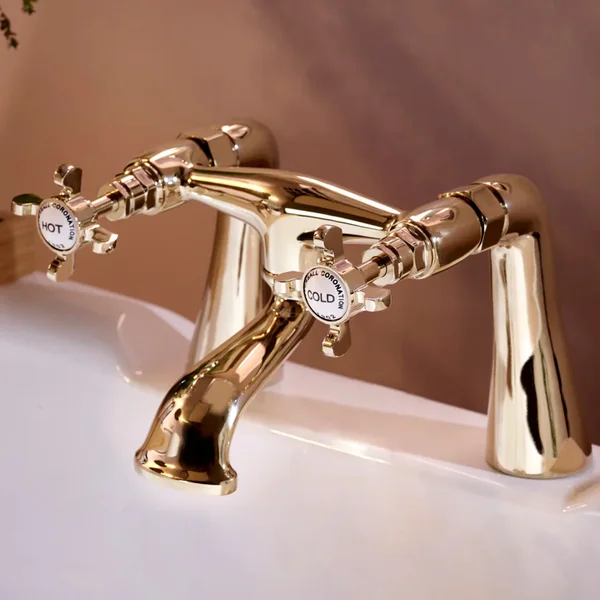

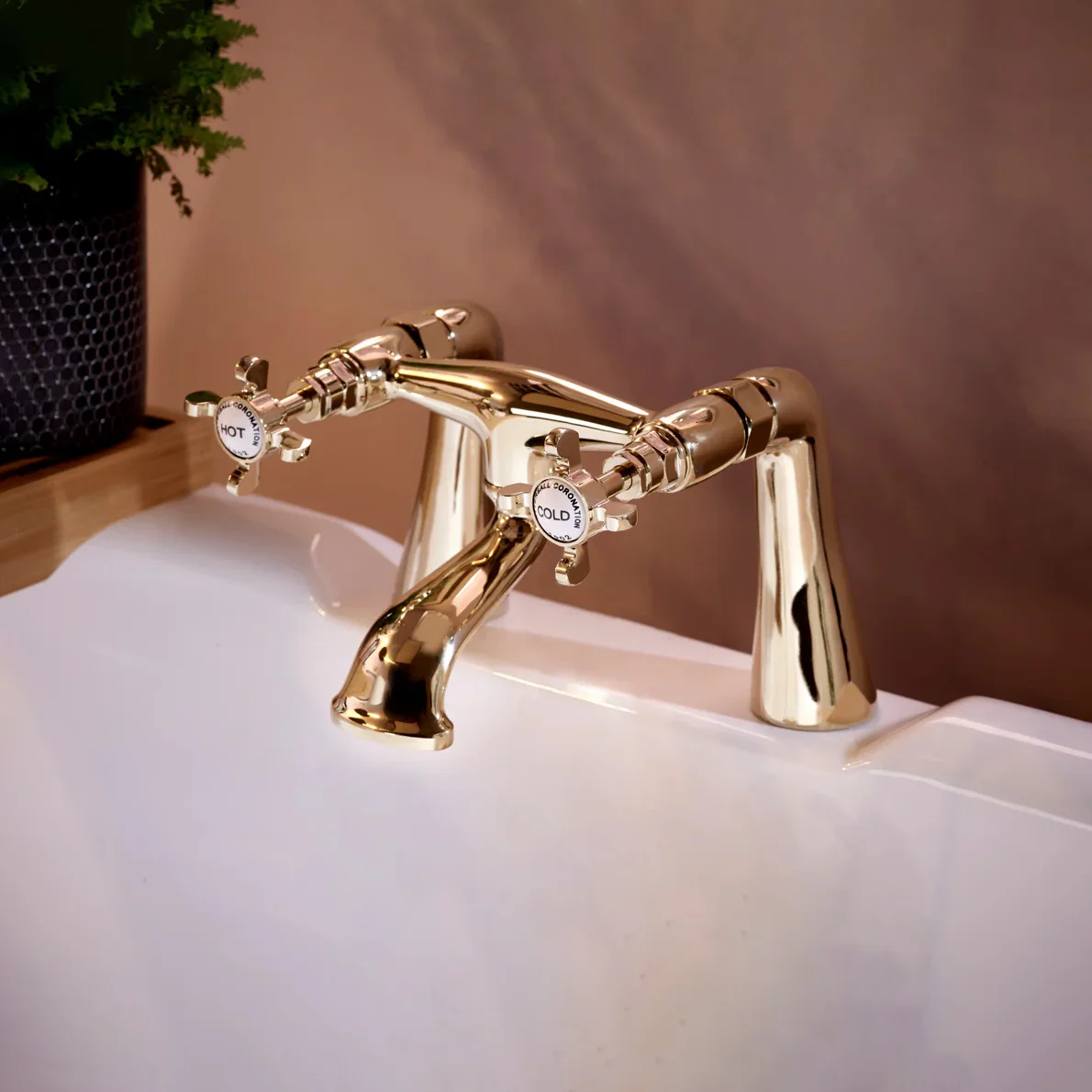

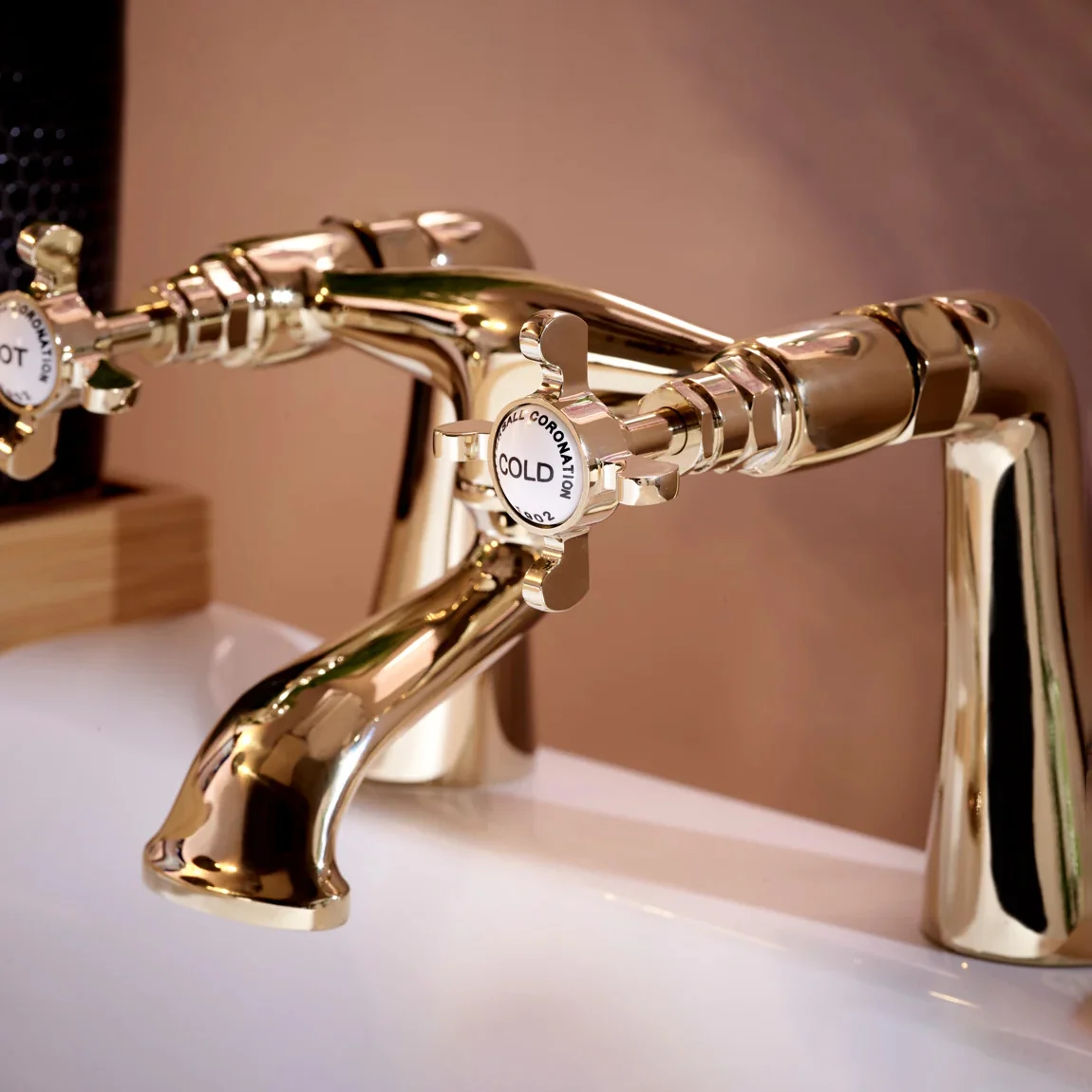

✔Choice of Finishes: Chrome, Gold
✔Manufactured using Brass and Resin Material
✔WRAS & KIWA Approved Product
✔Valve/Cartridge Type: Standard
✔Warranty: 12-Year for Chrome, 5-Year for Gold from the Manufacturer

Choice of Variations: Without, With Shower Kit
Supplied with Brass Backnuts
Inlet Connections: 3/4 Inch BSP
Suitable for All Plumbing Systems
Suitable For Low and High Pressure Systems
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar of Water Pressure

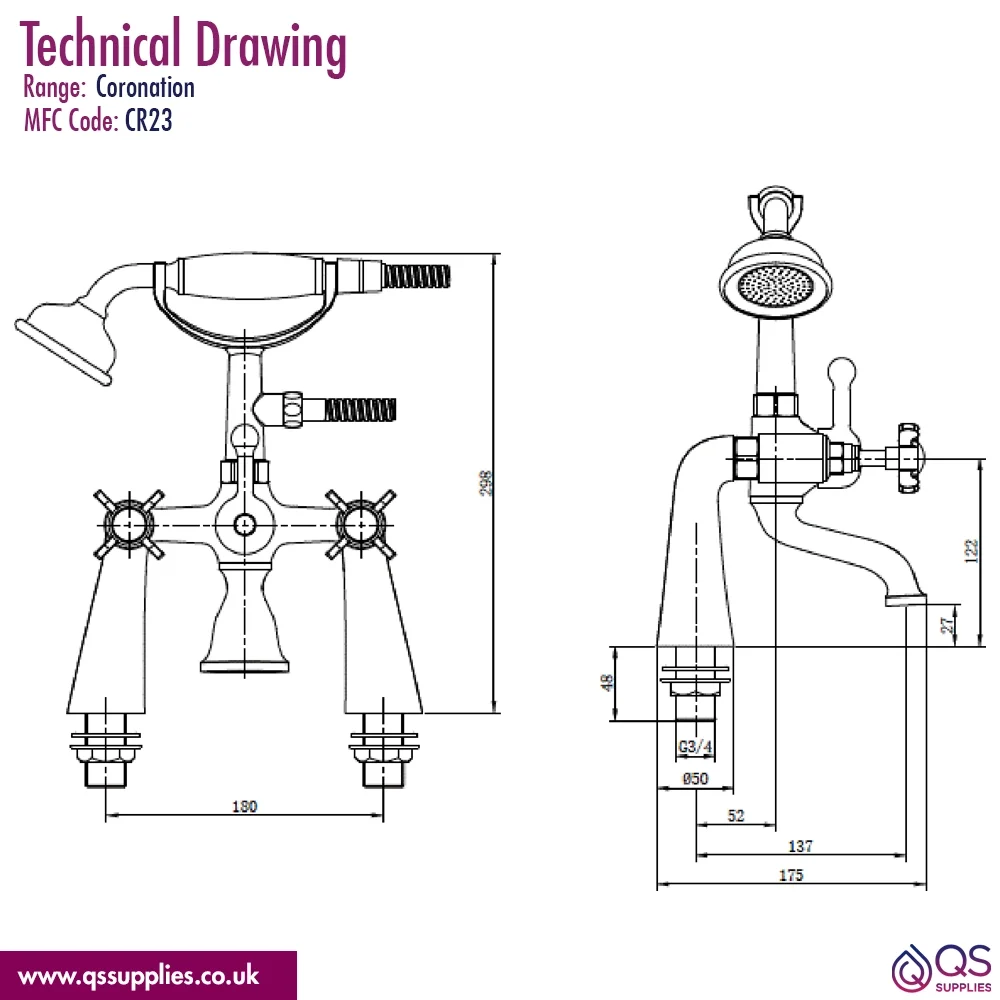

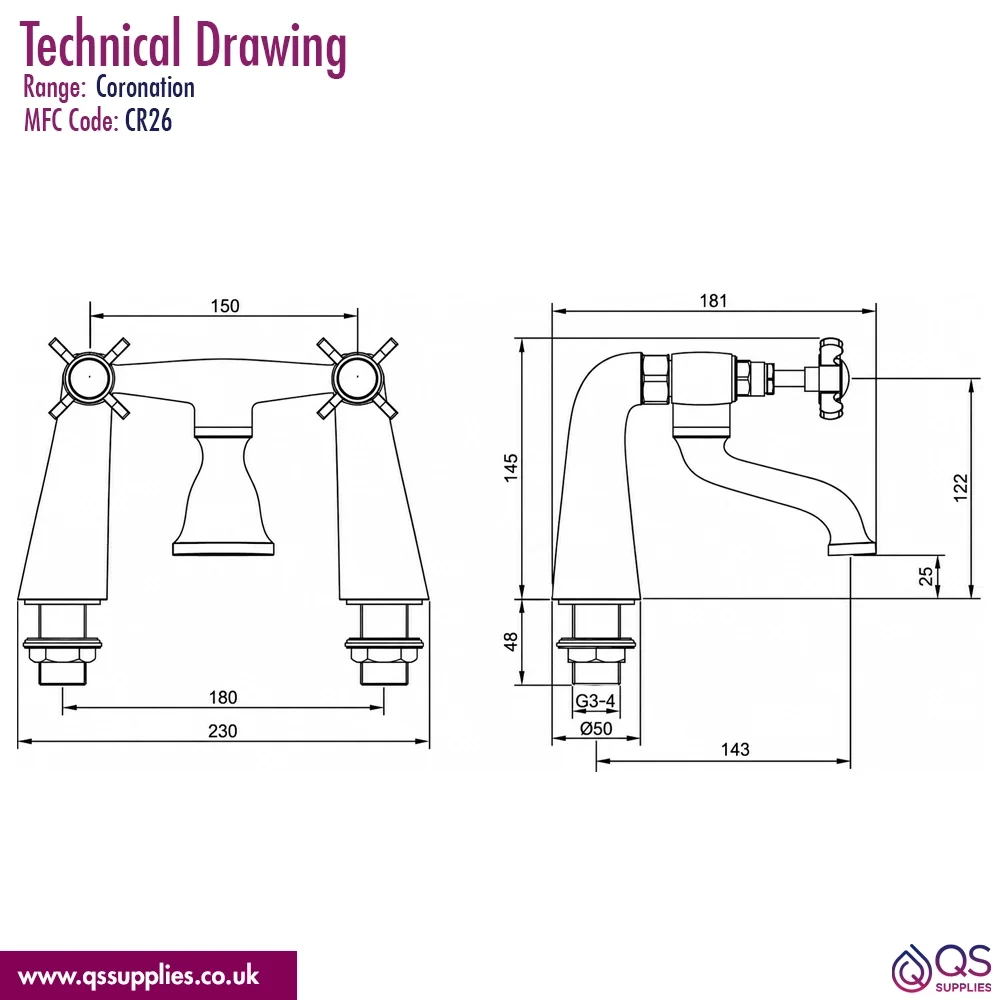

Refer to the Technical Drawing for Size Details
Download the Product Data Sheet and Installation Instruction PDF File from the Additional Info Section
Details of Without Kit:
Size [mm]: 230 x 181 x 145mm [Width x Depth x Height]
Size [cm]: 23 x 18.1 x 14.5cm [Width x Depth x Height]
Base to Spout: 25mm [2.5cm]
Centre of the Inlet to Centre of the Outlet: 143mm [14.3cm]
Inlet Centre: 180mm [18cm]

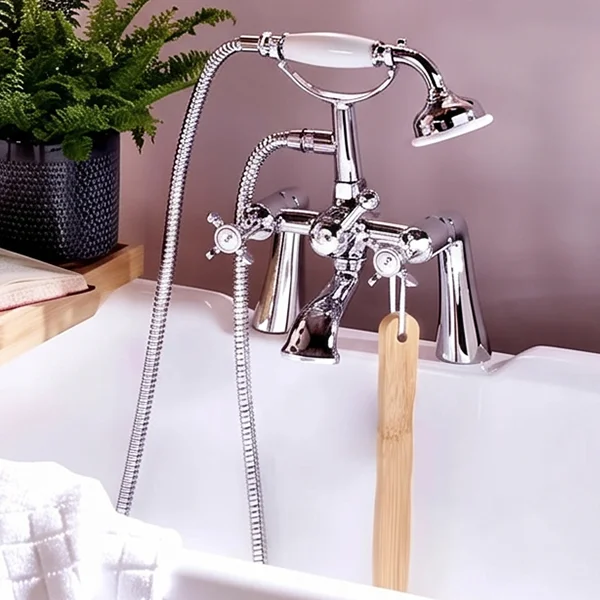

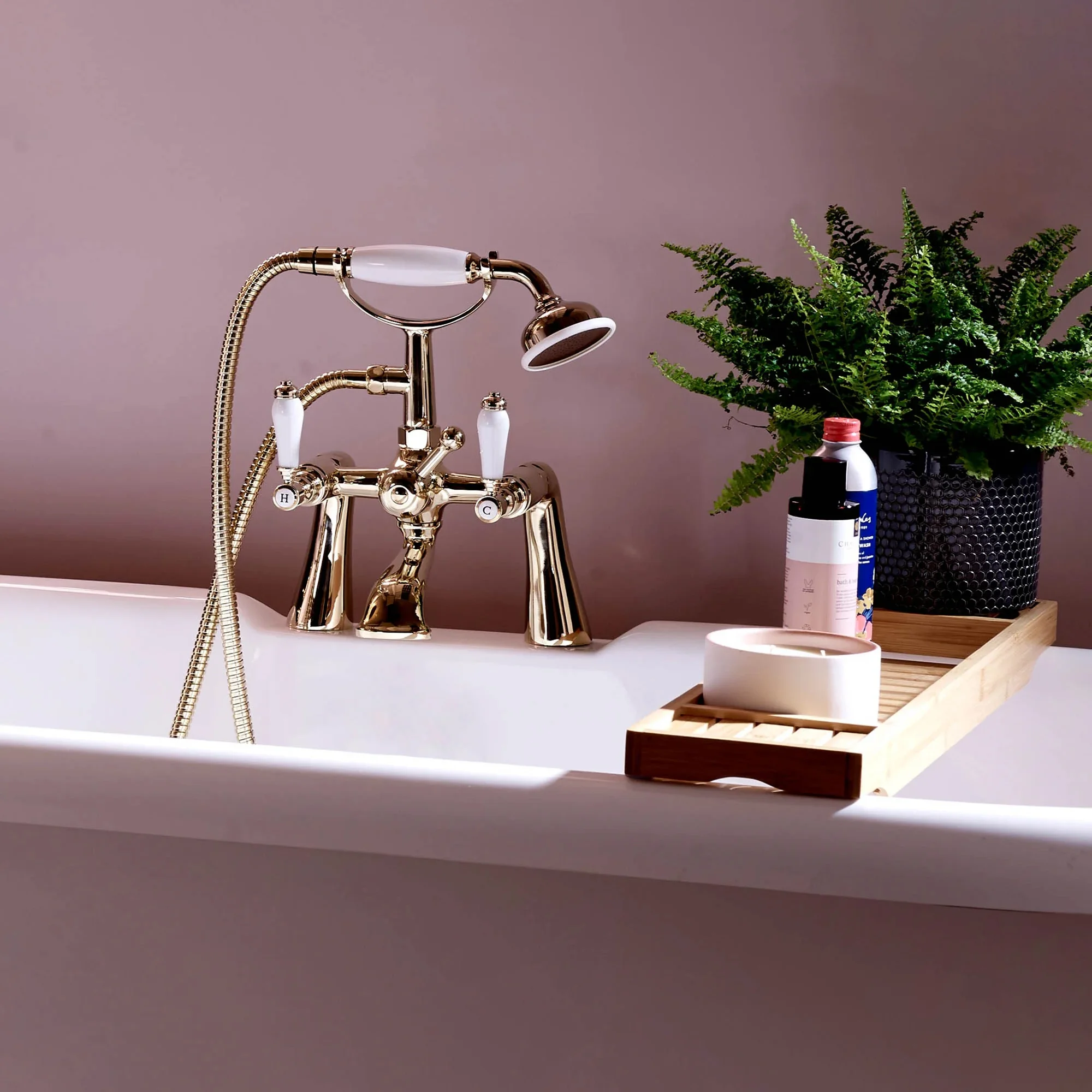

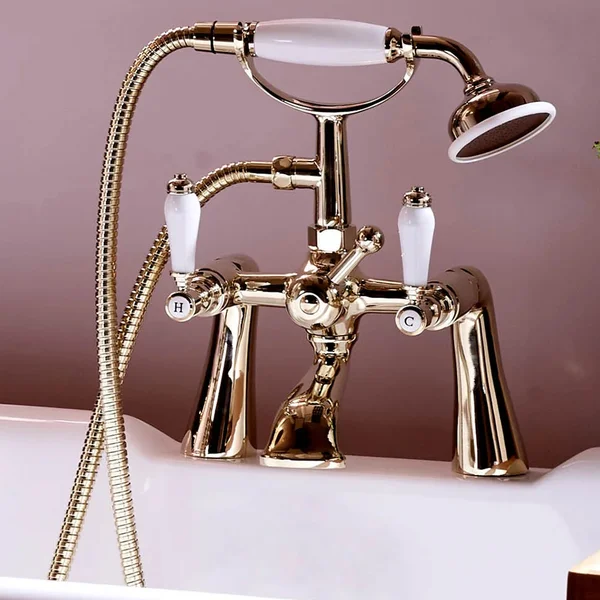

Details of With Shower Kit:
Size [mm]: 175 x 298mm [Depth x Height]
Size [cm]: 17.5 x 29.8cm [Depth x Height]
Base to Spout: 27mm [2.7cm]
Centre of the Inlet to Centre of the Outlet: 137mm [13.7cm]
Inlet Centre: 180mm [18cm]

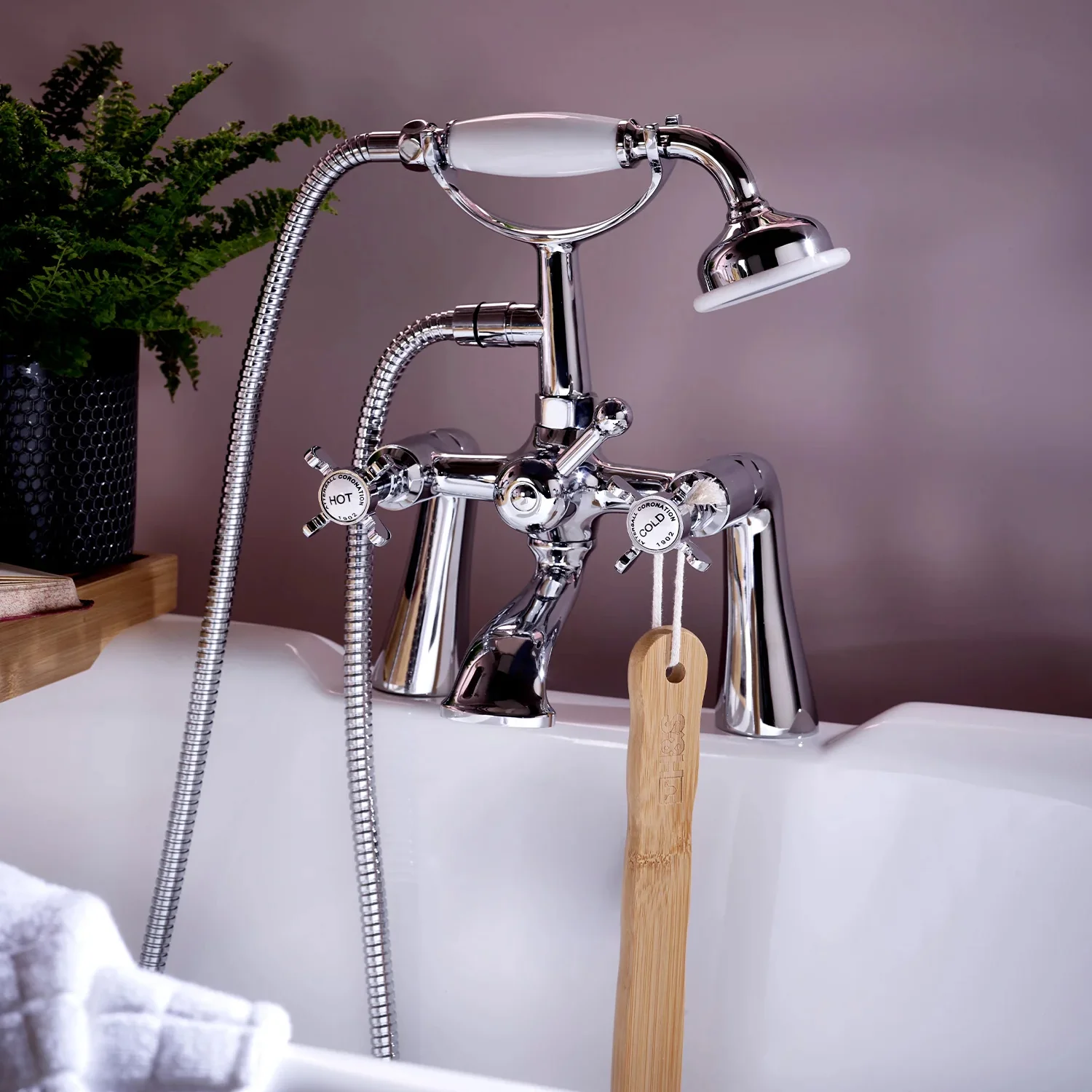

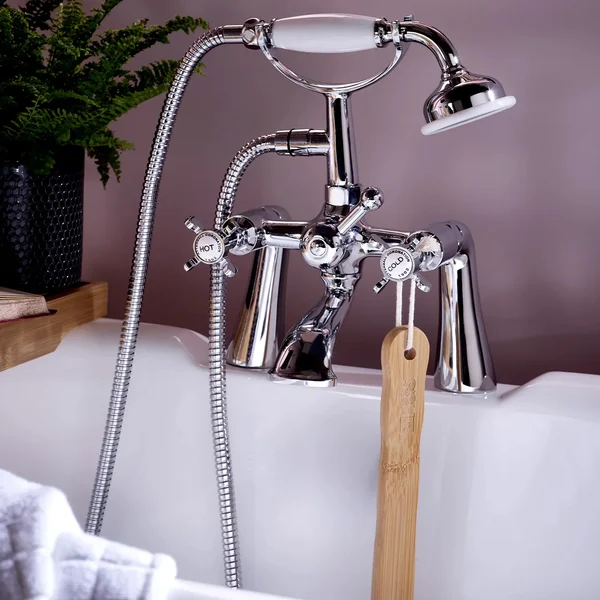

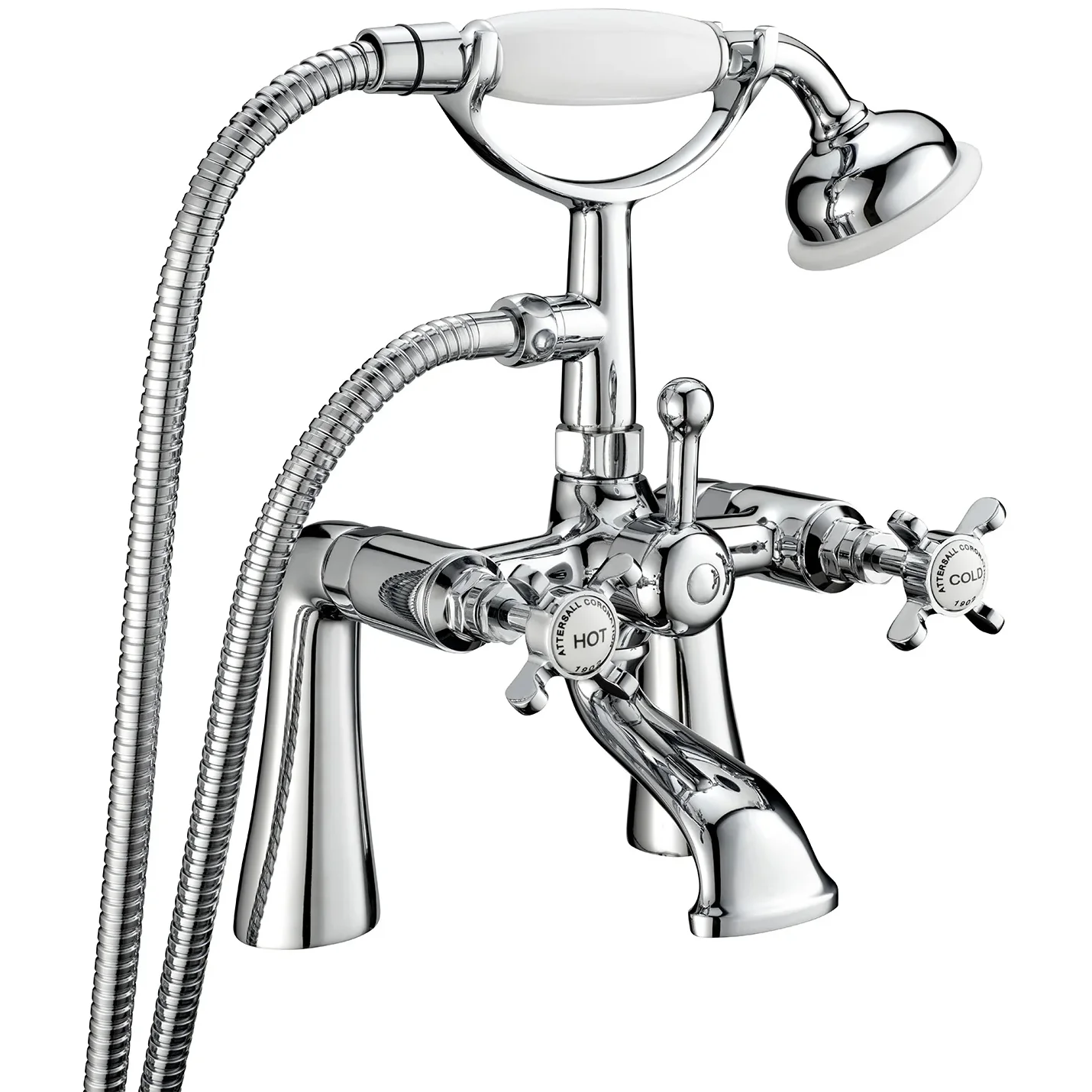

Comes Complete with Single Mode Handset, 1.5m Metal Interlocked Shower Hose
Handset Bracket Can be Mounted Facing Left or Right

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Coronation
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years for Chrome, 5 Years for Gold
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Standard
⤷ Base To Spout
: 25, 27

⤷ Inlet Centres
: 180
⤷ Overall Height
: 145, 298
⤷ Width
: 230
⤷ Depth
: 181, 175
⤷ Inlet Connections
: G 3/4"
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes
⤷ Number of Handles
: 2
⤷ No. of Tap Holes
: 2
⤷ Compliance/Approvals/Standard
: KIWA Approved
⤷ Barcode
: 5057199881397
⤷ Product Type
: Bath Mixer Tap
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Product Data Sheet Of Without Kit Pdf File Download the Installation Instruction Of Without Kit Pdf File Download the Product Data Sheet Of With Kit Pdf File Download the Installation Instruction Of With Kit Pdf File

This item can also be found in:

Technical Images

Deva Coronation Traditional Bridge Bath Mixer Tap with Long Spout - Crosshead Handles - Deck Mounted

Without Kit

With Kit

£262.99

RRP: ~~£328.74~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
