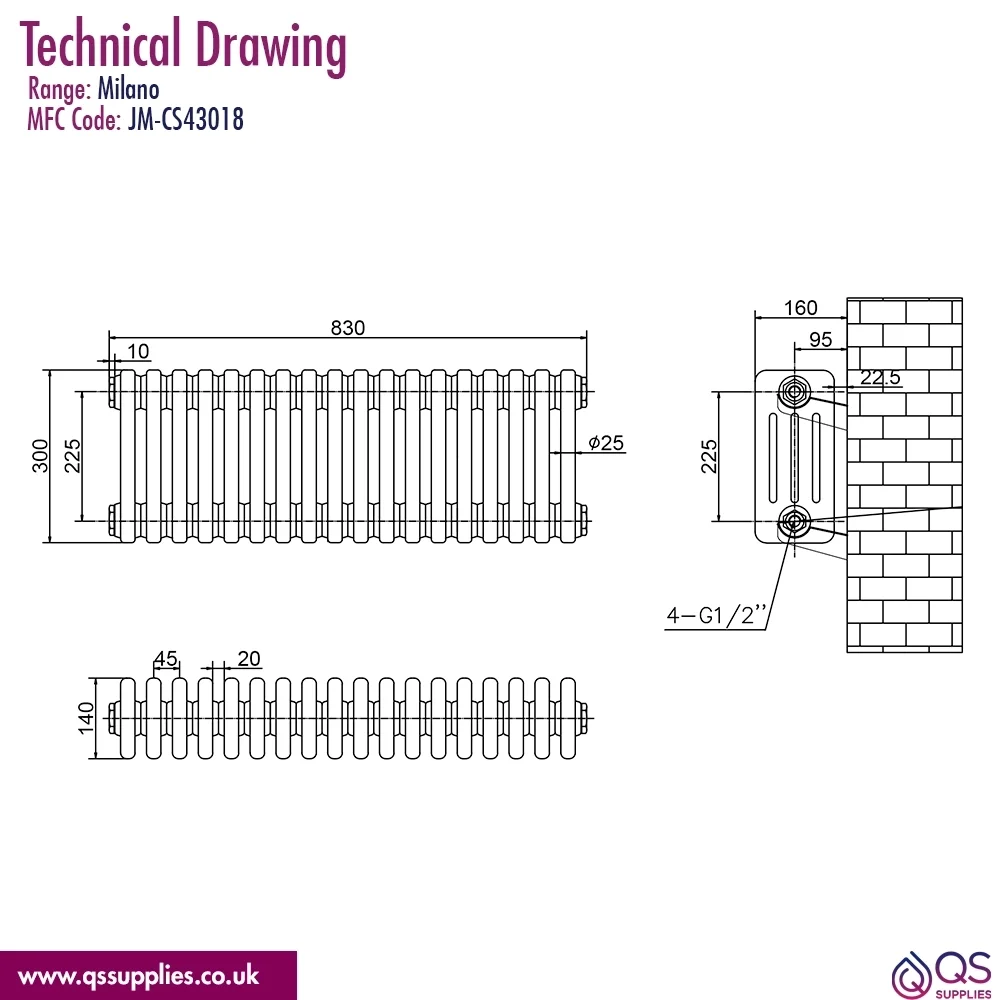

Joseph Miles Milano Details MFC: JM-CS43018 Compatible Valves Delivery & Returns Review this Product Ask a Question Joseph Miles Milano Horizontal Traditional 4-Column Radiator - Mild Steel - 300mm High. Key Features ✔Finish: White ✔Orientation: Horizontal / Wall Mounted ✔Manufactured using Mild Steel ✔Style: Traditional ✔Column: 4 ✔5-Year Guarantee from Reina Against Manufacturing Defects Choice of Widths: 830mm, 965mm, 1190mm and 1370mm Suitable for Central Heating, Dual Fuel and Electric Systems [Optional] Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly and Square Thermostatic Wifi Height: 300mm [30cm] Wall to Pipe Centres: 95mm [9.5cm] Distance from Wall: 160mm [16cm] Section: 830mm: 18, 965mm: 21 and 1190mm: 26, 1370mm: 30 EN442 Compliant Product Brackets for Radiator Included Supplied with Air Vent and End Plug Suitable to use with Reina Valves and Heating Elements [Optional] For the Dual Fuel and Electric Model, Heating Elements are Highly Recommended in Combination with T-Piece For Electric Models, Optional Liquid Filling is Required with a Heating Element The Image Shown is for Illustration Purposes Only Full Heat Output Data (Watts/BTU Across ΔT Values) is Provided in the Manufacturer Technical Datasheet - Please Refer to the PDF Below Refer to the Technical Diagram for Complete Technical Details The Valves Shown in the Image are not Included Technical Specifications Please note all the measurements are in 'mm' ⤷ Range : Milano ⤷ Colour : White ⤷ Weight in kg : 20.4 ⤷ Warranty/Guarantee : 5 Years ⤷ Material : Mild-Steel ⤷ Theme : Traditional ⤷ Installation Type : Wall Mounted ⤷ Projection (Depth) : 160 ⤷ Width : 830 ⤷ Height : 300 ⤷ Fixings included : Yes ⤷ Orientation : Horizontal ⤷ Compliance/Approvals/Standard : EN442 Complaint ⤷ Barcode : 8800161382265 ⤷ Tapping / Pipe Centres : 830 ⤷ Valves Included : Sold Separately ⤷ Fuel Type : Central Heating | Dual Fuel | Electric ⤷ Heating Element Included : Sold Separately ⤷ Brackets Included : Yes ⤷ No. of Columns : 4 ⤷ No. of Sections : 18 Additional Info & Downloads Download the Manual Pdf File Download the Customer DataSheet Pdf File This item can also be found in: Tubular Column Radiators White Column Radiators Steel Radiators Technical Images 830mm 965mm 1190mm 1370mm £191.25 RRP: £255.00 Stock Availablity: 2-3 Working Days Approx QS Supplies ADD TO BASKET - £191.25 ADD TO BASKET - £191.25 Product Variations Info & MFC Code Details Of Radiators Size 830 x 300mm 965 x 300mm 1190 x 300mm 1370 x 300mm Colour White White White White Orientation Horizontal Horizontal Horizontal Horizontal Height (mm) 300 300 300 300 Width (mm) 830 965 1190 1370 Column No 4 4 4 4 Section/Tube Qty 18 21 26 30 Pipe Centres (mm) 830 965 1190 1370 Wall To Pipe Centres (mm) 95 95 95 95 Wall Distance (mm) 160 160 160 160 Weight (KG) 20.4 23.6 29.07 33.79 Fuel Type Central heating | Dual Fuel | Electric Central heating | Dual Fuel | Electric Central heating | Dual Fuel | Electric Central heating | Dual Fuel | Electric BTU - Delta 30 1278 1491 1846 2130 Watts - Delta 30 375 437 541 625 BTU - Delta 50 2453 2862 3543 4089 Watts - Delta 50 719 839 1039 1199
