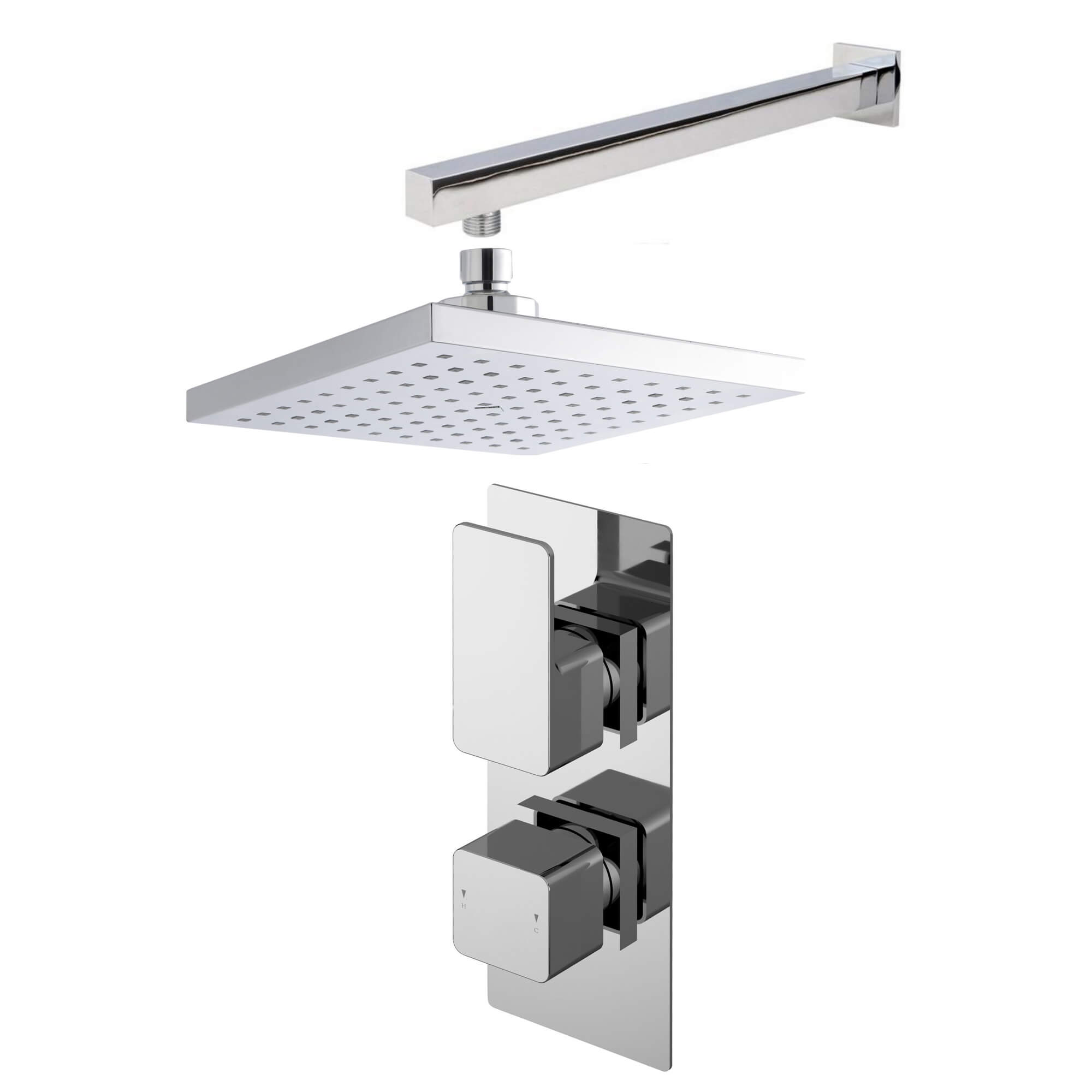

Nuie Windon Twin Thermostatic Shower Valve, Shower Arm and Head

Details

MFC: SBS34TW1

Nuie Windon Twin Thermostatic Shower Valve with Shower Arm and Head - Chrome

Manufacturing Code of this Product: SBS34TW1
Complete Set in a Chrome Finish
Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
5-Year Guarantee from Nuie Against Manufacturing Defects
Specifications Of Thermostatic Shower Valve:
WRAS and TMV2 Approved
Size in [mm]: 80 x 135 x 215mm [Width x Depth x Height]
Size in [cm]: 8 x 13.5 x 21.5mm [Width x Depth x Height]
Weight: 2.57kg
Manufactured using Brass and ABS material
Mount type: Wall, Recessed
No of Handles: 2
Valve Cartridge: 1/4 Turn Cartridge
Suitable for Low Water Pressure System
Required Minimum 0.1 Bar Water Pressure
Specifications Of Shower Arm:
Length: 350mm
Weight: 0.5kg
Manufactured using Brass material
Mount type: Surface, Wall
No of Outlet: 1
Specifications of Shower Head:
Size [mm]: 200 x 200 x 60mm [Width x Depth x Height]
Size [cm]: 20 x 20 x 6cm [Width x Depth x Height]
Weight: 0.72kg
Manufactured using Brass and ABS material
Mount type: Wall, Surface
Suitable for Low Water Pressure System
Required Minimum 0.2 Bar Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn Ceramic Disc
⤷ Minimum Operating Pressure (Bar)
: 0.1

⤷ Configuration
: Thermostatic Shower Valve | Shower Head | Arm
⤷ Temperature Control
: Themostatic
⤷ Showerhead Finish
: Chrome
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

Download the Data Sheet Pdf File

Nuie Windon Twin Thermostatic Shower Valve with Shower Arm and Head - Chrome

£264.80

RRP: ~~£662.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
