Nuie Traditional Concealed Thermostatic with Fixed Head & Arm, 2 Control, SBT58TW1

Nuie Details

MFC: SBT58TW1

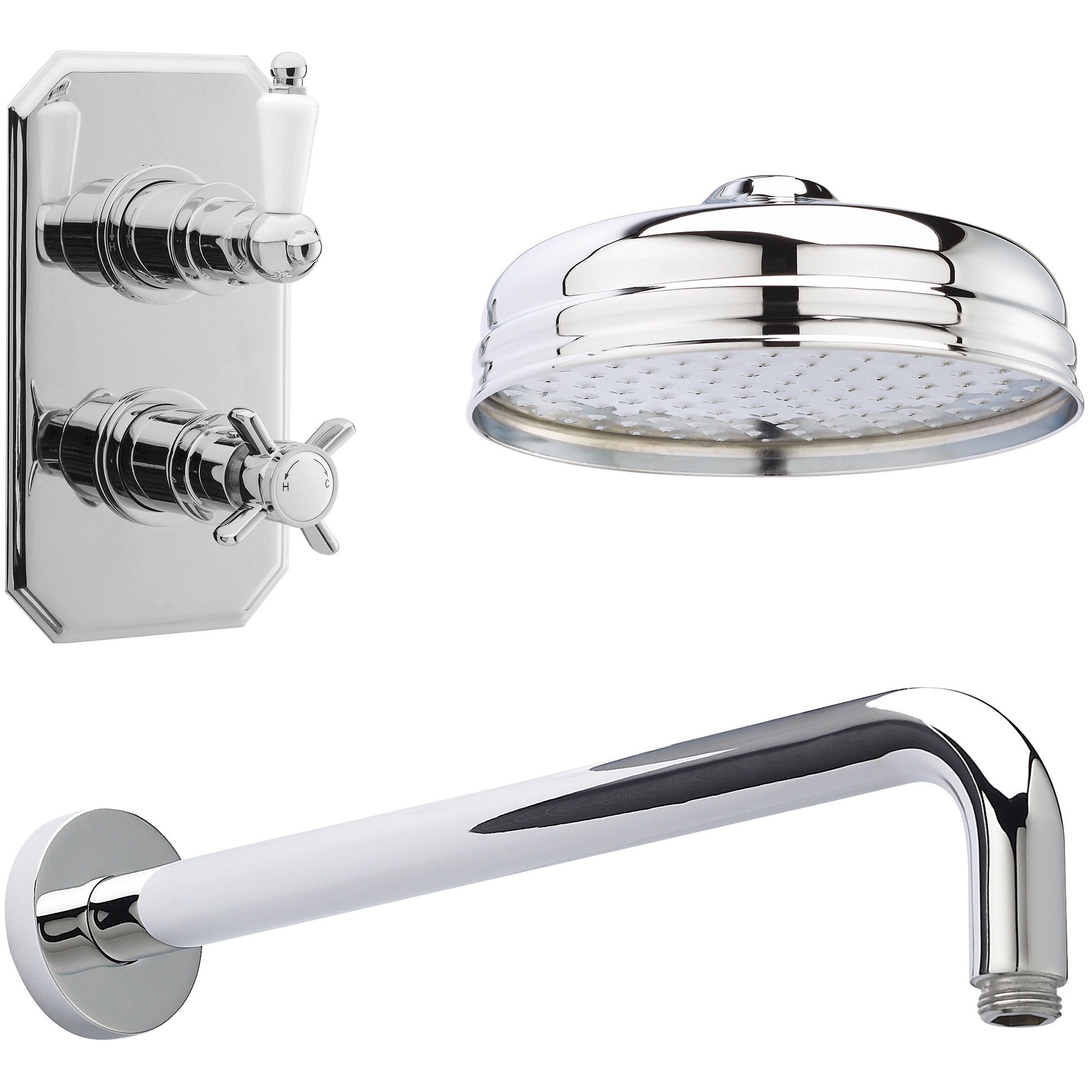

Nuie Traditional Chrome Concealed Thermostatic with Fixed Head and Arm - 2 Control.

Manufacturing Code of this Product: SBT58TW1
Traditional Round Design
Features Stain and Rust-Resistance The Minimum Water Pressure Recommended for Smooth Working is 0.1 Bar [LP-Low Pressure] and a Maximum of 3.0 Bar [HP-High Pressure]
Refer to the Technical Drawing for Size Details
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Specification of Valve:
WRAS and TMV2 Approved
Number of Outlet: 1
Number of Handle: 2
Handle Type: Crosshead / Lever
Made in Britain
Manufactured using ABS and Brass Material
Backplate Size [mm]: 120 x 135 x 210mm [Width x Depth x Height]
Backplate Size [cm]: 12 x 13.5 x 21cm [Width x Depth x Height]
Pipe Size: 15mm [1/2-Inch BSP]
Control Type: Manual
Can be Fitted Vertically or Horizontally [Portrait or Landscape]
Suitable for Wall or Recessed Installation
Accurate Flow Control
1/4-Turn Ceramic Disc Cartridge
Flow Rates: 0.1 Bar - 5.5, 0.2 Bar - 7.1, 0.5 Bar - 14, 1 Bar - 20, 2 Bar - 29, 3 Bar - 44
Weight: 2.18kg
Features:
Thermostatic Control to +/- 2 to 3° Celsius even if the Water Pressure Fluctuates
In the event of Hot or Cold Water Failure, the Valve Will Shut Down the Water Supply providing Complete Thermal Protection and Preventing Scalding
The Patented Cartridge is Highly Resistant to Calcium Buildup - Even in Hard Water Areas
Suitable for Use with All Systems: Gravity-Fed Pumped Unvented High-Pressure or Fully Modulated Combi-Boilers
Excellent Flow Rates Even at Low Pressure
Features Cartridge is Fully Reversible - If Hot and Cold Supplies are the Wrong Way Round, it doesn't Need Re-Plumbing
Simply Remove the Cartridge Turn 180°, and Replace
Specification of Fixed Shower Head:
8 Inch Apron Single Head Function Head
Manufactured Using Solid Brass Material
Size [mm]: Ø200 x 115mm [Diameter x Height]
Size [cm]: Ø20 x 11.5cm [Diameter x Height]
Installation Type: Wall or Surface Mounted
Inlet Connection: G 1/2 Inch
Weight: 0.3kg
Specification of Wall-Mounted Arm:
Manufactured Using Solid Brass Material
Size [mm]: 400 x 62 x 104mm [Length x Width x Height]
Size [cm]: 40 x 6.2 x 10.4cm [Length x Width x Height]
Connection Thread: G 1/2 Inch
Weight: 0.32kg

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass | ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn Ceramic Disc
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.1 bar-5.5 | 0.2 bar-7.1 | 0.5 bar-14 | 1 bar-20 | 2 bar-29 | 3 bar-44
⤷ Temperature Control
: Theromstatic
⤷ Backplate Width
: 120

⤷ Backplate Height
: 210
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS | TMV2
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Suitable For Shower Pumps | Combi Boilers And Gravity-Fed Systems
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Of Valve Pdf File Download the Fitting Instruction Of Shower Head Pdf File Download the Fitting Instruction Of Shower Arm Pdf File

This item can also be found in:

Nuie Traditional Chrome Concealed Thermostatic with Fixed Head and Arm - 2 Control

£332.00

RRP: ~~£830.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

9 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Unvented System

The unvented water systems usually have a separate hot water cylinder, which is pre-heated via a combi boiler or other heating sources to store a quantity of hot water at mains pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
