Nuie Chrome Concealed Thermostatic Shower Set, 3 Control, SBT57TR2

Nuie Details

MFC: SBT57TR2

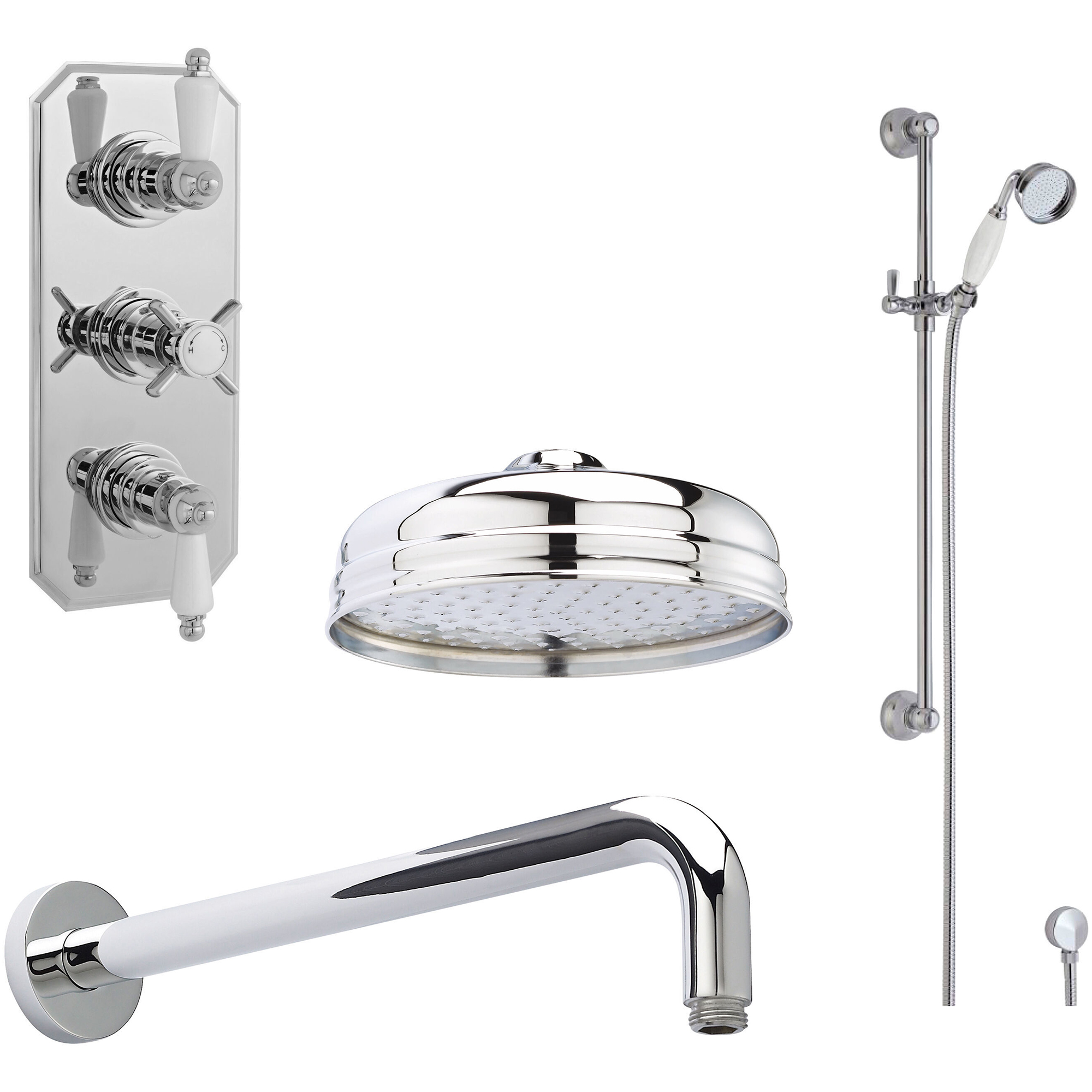

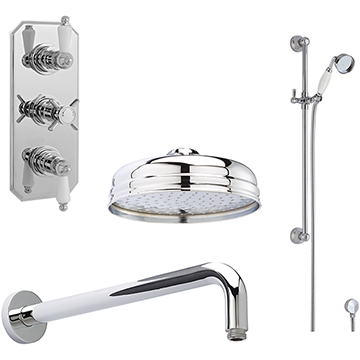

Nuie Chrome Concealed Thermostatic Shower Set - 3 Control.

Manufacturing Code of this Product: SBT57TR2
Comes in a Chrome Finish
Features Easy to Clean
Traditional Round Design
Stain- and Rust-Resistant
Refer to the Technical Drawing for Size Details
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Specification of Shower Valve:
Number of Outlets: 2
Number of Handles: 3
WRAS and TMV2 Approved
Manufactured Using Brass and ABS Material
Installation Type: Concealed
Mount Type: Recessed and Wall
Supplied with Valve and Cartridge
Made in Britain
1/4-Turn Ceramic Cartridge Disc
Handle Type: Crosshead / Lever
Size of Backplate [mm]: 120 x 124 x 280mm [Width x Depth x Height]
Size of Backplate [cm]: 12 x 12.4 x 28cm [Width x Depth x Height]
Control Type: Manual
Can be Installed Vertically or Horizontally [Portrait or Landscape]
Inlet and Outlet Connection: G 1/2 Inch
Separate Controls for Temperature and Flow [Operates 2 Shower Accessories Separately or Simultaneously: Fixed Head and Slide Rail Kit, Fixed Head Body Jets or Slide Rail Kit and Body Jets]
Suitable for All Plumbing System
Suitable for Low-Pressure Water System
The Minimum Water Pressure recommended for Smooth Working is 0.1 Bar [LP-Low Pressure] and a Maximum of 4.0 Bar [HP-High Pressure]
Flow Rates: 0.1 Bar - 5.5, 0.5 Bar - 14, 1 Bar - 20, 2 Bar - 29, 3 Bar - 44
Features:
Complete Thermal Protection to Prevent Scalding in the event of Hot or Cold Water Shut-Off
Even if the Water Pressure Fluctuates, the Thermostatic Valve Control to +/- 2 to 3° Celsius
In case of Hot and Cold Water Supplies Come in the Wrong Way - No Need for Re-Plumbing [Remove the Cartridge, 180° and Replace]
Cartridge Fitted is Patented and is Highly Resistant to Calcium Buildup even in Hard Water Areas
Anti-scald - Built-In Anti-scald Device allows Hot Water to be Blended to a Safe Temperature and Will Shut Down Automatically in 1.5 Seconds in case of Cold Water Failure
Suitable for All Plumbing Systems, Including Gravity-Fed, Pumped, Unvented High-Pressure, and Fully Modulated Combi-Boilers
Specification of Slide Rail Kit with Outlet Elbow, Handset:
Includes: Handset, Hose and Outlet Elbow
Manufactured Using Brass and ABS Material
Size of Rail Kit [mm]: 70 x 150 x 750mm [Width x Depth x Height]
Size of Rail Kit [cm]: 7 x 15 x 75cm [Width x Depth x Height]
Diameter of Handset: Ø68mm [6.8cm]
Hose Length: 1500mm [150cm]
Single Setting Function Handset
Suitable for Low Water Pressure System
Requires a Minimum of 0.1 Bar of Water-Pressure
Mount Type: Wall or Surface
Pipe Size: 15mm [1.5cm] [1/2-Inch BSP]
Specification of Fixed Shower Head:
8 inch Apron Single Function Fixed Head
Manufactured Using Stainless Steel Material
Size [mm]: Ø200 x 115mm [Diameter x Height]
Size [cm]: Ø20 x 11.5cm [Diameter x Height]
Suitable for Wall Mounted or Ceiling Arms
Inlet Connection: G 1/2 Inch
Suitable for Medium Water Pressure System
Requires a Minimum of 0.5 Bar or Above Water Pressure
Specification of Wall-Mounted Arm:
Manufactured from Solid Brass Material
Length: 400mm [40cm]
Connection Thread: G 1/2 Inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass | ABS | Stainless Steel
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn Ceramic Disc
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Flow Rates (l/min)
: 0.1 bar-5.5 | 0.2 bar-7.1 | 0.5 bar-14| 1 bar-20 | 2 bar-29 | 3 bar-44
⤷ Configuration
: Valve, Head, Arm, Outlet, Handset & Hose
⤷ Temperature Control
: Theromstatic
⤷ Backplate Width
: 120
⤷ Backplate Height
: 280
⤷ Anti-Scald
: Yes

⤷ Compliance/Approvals/Standard
: WRAS | TMV2
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Suitable For Shower Pumps | Combi Boilers And Gravity-Fed Systems
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Hose Type
: Flex
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Separate temperature and power controls
: Yes
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Rail Length
: 750
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Of Valve Pdf File Download the Fitting Instruction Of Slide Rail Kit Pdf File Download the Fitting Instruction Of Shower Head Pdf File Download the Fitting Instruction Of Shower Arm Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Nuie Chrome Concealed Thermostatic Shower Set - 3 Control

£453.60

RRP: ~~£1134.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

10 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Easy Clean Nozzles

Shower heads and handsets can be easily cleaned with a damp cloth, preventing limescale build-up.
