Saneux Cromwell 2-Way Concealed Thermostatic Valve Kit with Slider Rail and Shower Head

Not Yet Rated No Rating

£719.20

RRP: £899.00
SKU: QS-V114203
Select Handle Style
Selected: OP-250655 - Lever and Crosshead
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

7 Working Days Approx.

Saneux Cromwell Details

MFC: CRSP02L

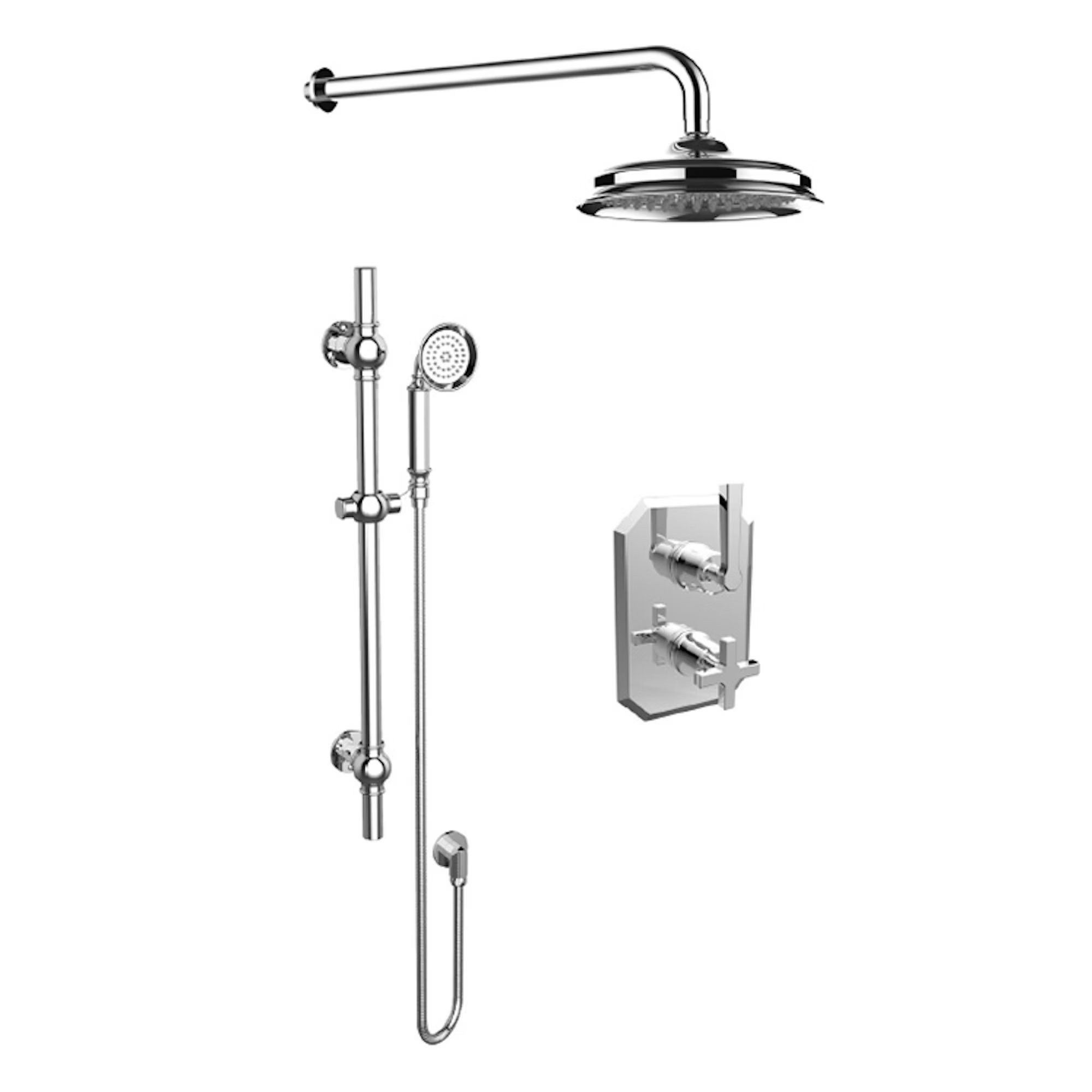

Saneux Cromwell 2-Way Concealed Thermostatic Valve with Slider Rail and Shower Head.

Key Features
  • Complete kit includes: trim plate, valve body, shower hose, shower handset, slider rail, shower arm, shower head, and outlet elbow
  • Supplied in a chrome finish
  • Handle options available: Lever Crosshead or Crosshead (Optional)
  • WRAS approved for compliance with water regulations
  • Backed by a 5-year guarantee from Saneux against manufacturing defects
  • Download Customer Datasheet PDF from the Additional Info & Download Section
  • Refer to the Technical Drawing for more technical details
  • Details of Shower Valve
  • Comes with Concealed Valve Body and Trim-set
  • Size of Trim Set: Width 140 x Height 200mm
  • Inlet Centres: 80mm
  • Dual outlet design
  • Requires 2 tap holes
  • Suitable for controlling two outlets: Shower head & handset, Handset & bath filler or Shower head & bath filler
  • The Top handle controls the on / Off Function of the components.
  • The Bottom handle adjusts water temperature
  • Rounded rectangular Shape
  • Required Wall Cavity: Minimum 67mm and Maximum 92mm
  • Flow Rate (l/min): 1Bar - 21, 2Bar - 28.5, 3Bar - 35
  • Details of Slider Rail
  • Projection from wall: 50mm
  • Length: 750mm
  • Completes with Moveable Brackets
  • Adjustable Handset Holder
  • Suitable for wall mount installation
  • Weight: 2.3 Kg
  • Details of Hand Shower
  • Size: Ø83mm x Depth 97mm x Height 211mm
  • Single Function Handset
  • Weight: 3.7 Kg
  • Flow Rate (l/min): 0.5 Bar - 3.8, 1Bar - 5.9, 3Bar - 6.3, 5Bar - 8.9
  • Details Of Shower Hose
  • Material: Stainless Steel
  • Length: 1500mm
  • Braided Shower Hose
  • G1/2 Inch Outlet Connection
  • Details OF Outlet Elbow
  • Shape: Round
  • Traditional Angular Design
  • Size: Ø55x Depth 40mm
  • Material: Brass
  • Weight: 0.14 Kg
  • G1/2 Inch Inlet and Outlet Connection
  • Details Of Shower Arm
  • Installation Type: Wall Mounted
  • Projection from wall: 402.5mm
  • Material: Brass
  • Weight: 0.37 Kg
  • Height: 72.5mm
  • G1/2 Inch Inlet and Outlet Connection
  • Details Of Showerhead
  • Shape: Round
  • Size: Ø220mm x Height 78mm
  • G1/2 Inch Inlet Connection
  • Flow Rate (l/min): 0.5 Bar - 4.4, 1Bar - 6.6, 3Bar - 12.4, 5Bar - 16.9
  • Material: Brass

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Stainless Steel | Brass
  • ⤷ Theme
  • : Traditional
  • ⤷ Valve Included
  • : Yes
  • ⤷ Inlet Centres
  • : 80
  • ⤷ Inlet Connections
  • : G1/2 Inch
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.5
  • ⤷ Hose Included
  • : Yes
  • ⤷ Hose Length
  • : 1500
  • ⤷ Configuration
  • : Shower Valve | Shower Arm & Head | Slide Rail Kit
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ Backplate Width
  • : 140
  • ⤷ Backplate Height
  • : 200
  • ⤷ Compliance/Approvals/Standard
  • : WRAS
  • ⤷ Product Type
  • : Shower Set
  • ⤷ Showerhead Type
  • : Fixed
  • ⤷ Hose Type
  • : Braided
  • ⤷ Handset Included
  • : Yes
  • ⤷ Spray Patterns (Shower Handset)
  • : Single
  • ⤷ Spray Patterns (Shower Head)
  • : Single
  • ⤷ Shower Head Included
  • : Yes
  • ⤷ Shower Head Size
  • : 220
  • ⤷ Rail Length
  • : 750
  • ⤷ Outlet Elbow Included
  • : Yes

Additional Info & Downloads

Download PDFDownload the Lever & Crosshead Handle Pdf File Download PDFDownload the Crosshead Handles Pdf File

Technical Images

£719.20
RRP: £899.00
STOCK AVAILABLITY: 7 Working Days Approx
QS Supplies

5 Features Included In This Product Explained

WRAS Approved Component

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.

2-Outlet

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Medium Water Pressure

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
