Saneux Cromwell Chrome Handle and Plate Finish Kit - Rectangular Trim

Not Yet Rated No Rating

£103.20

RRP: £129.00
SKU: QS-V107772
Product Variants
Select Outlet Design Step 1
Select Handle Style Step 2
Pay in 3-Interest Free Payments
Shipping

Shipping: FREE * Check Postcodes

Stock Availability

Stock Availability:

6 Working Days Approx.

Saneux Cromwell Details

MFC: KCR019L

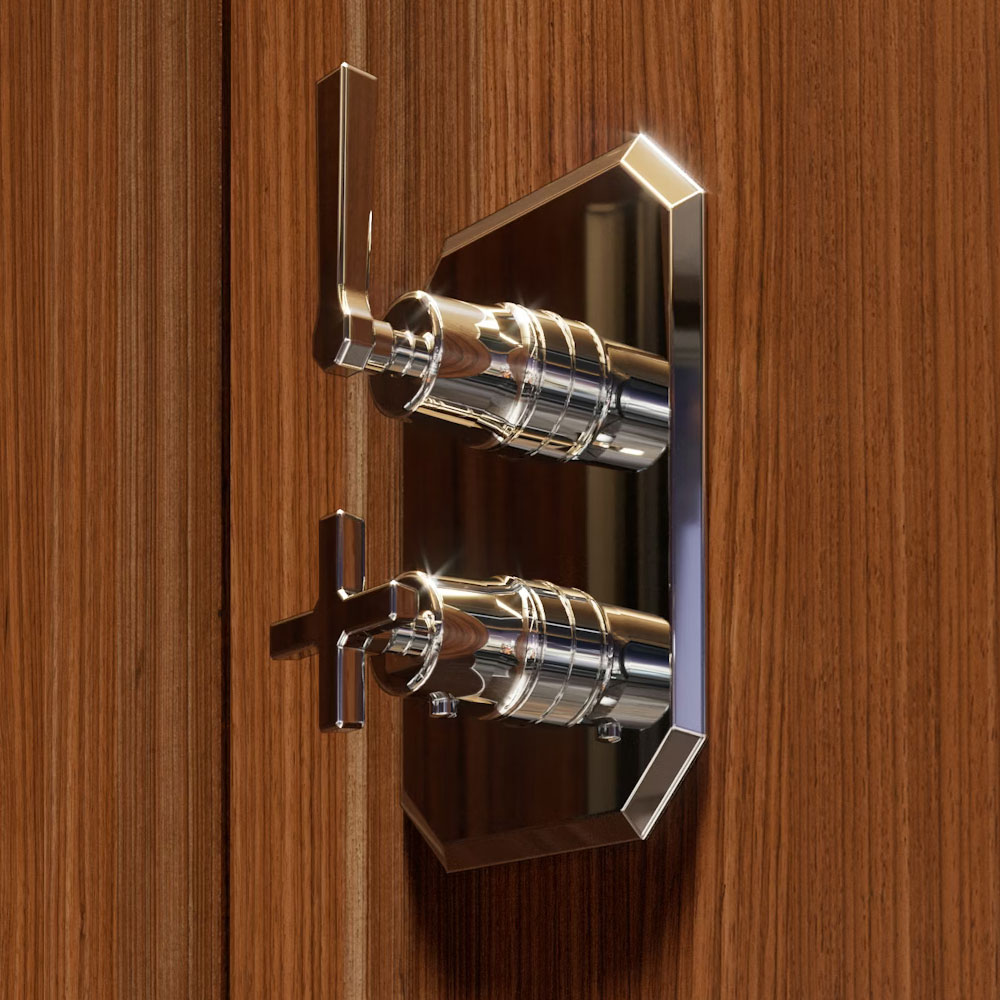

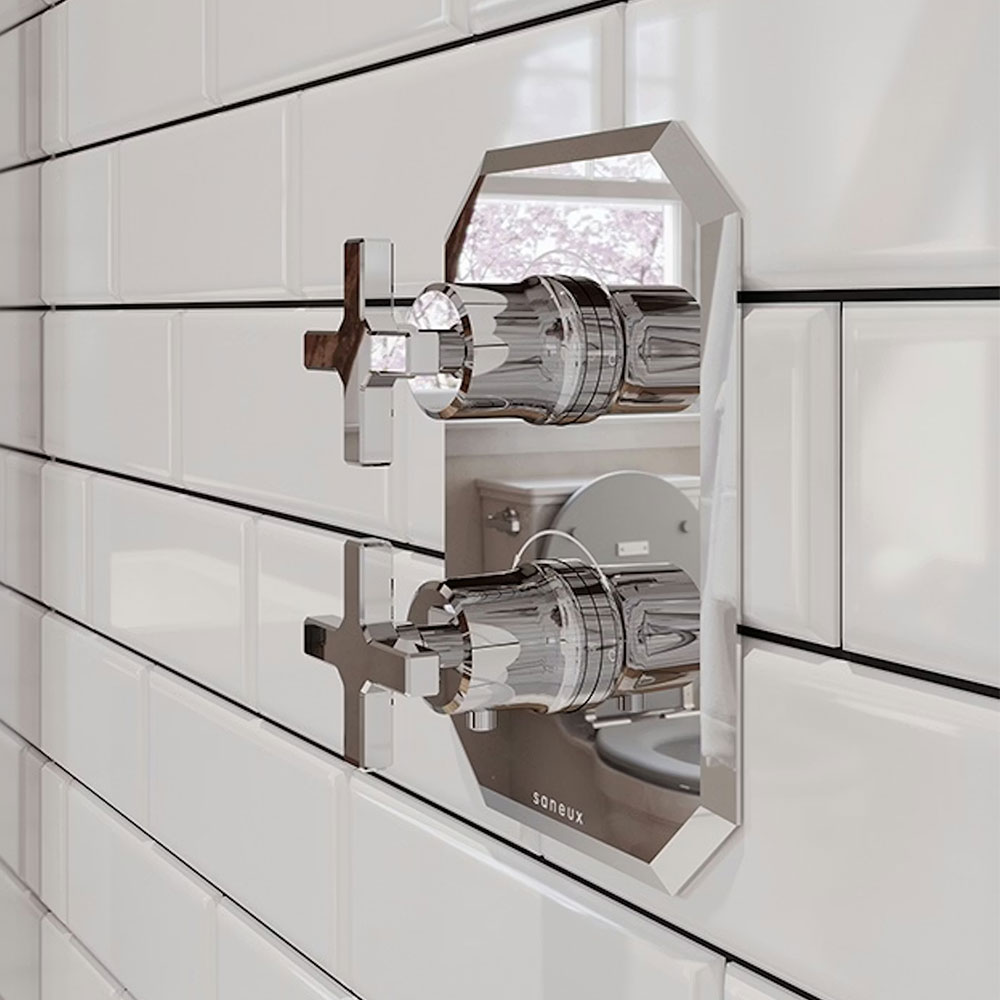

Saneux Cromwell Chrome Handle and Plate Finish Kit - Rectangular Trim.

Key Features
  • 1-Way or 2 Way Outlet design [Optional]

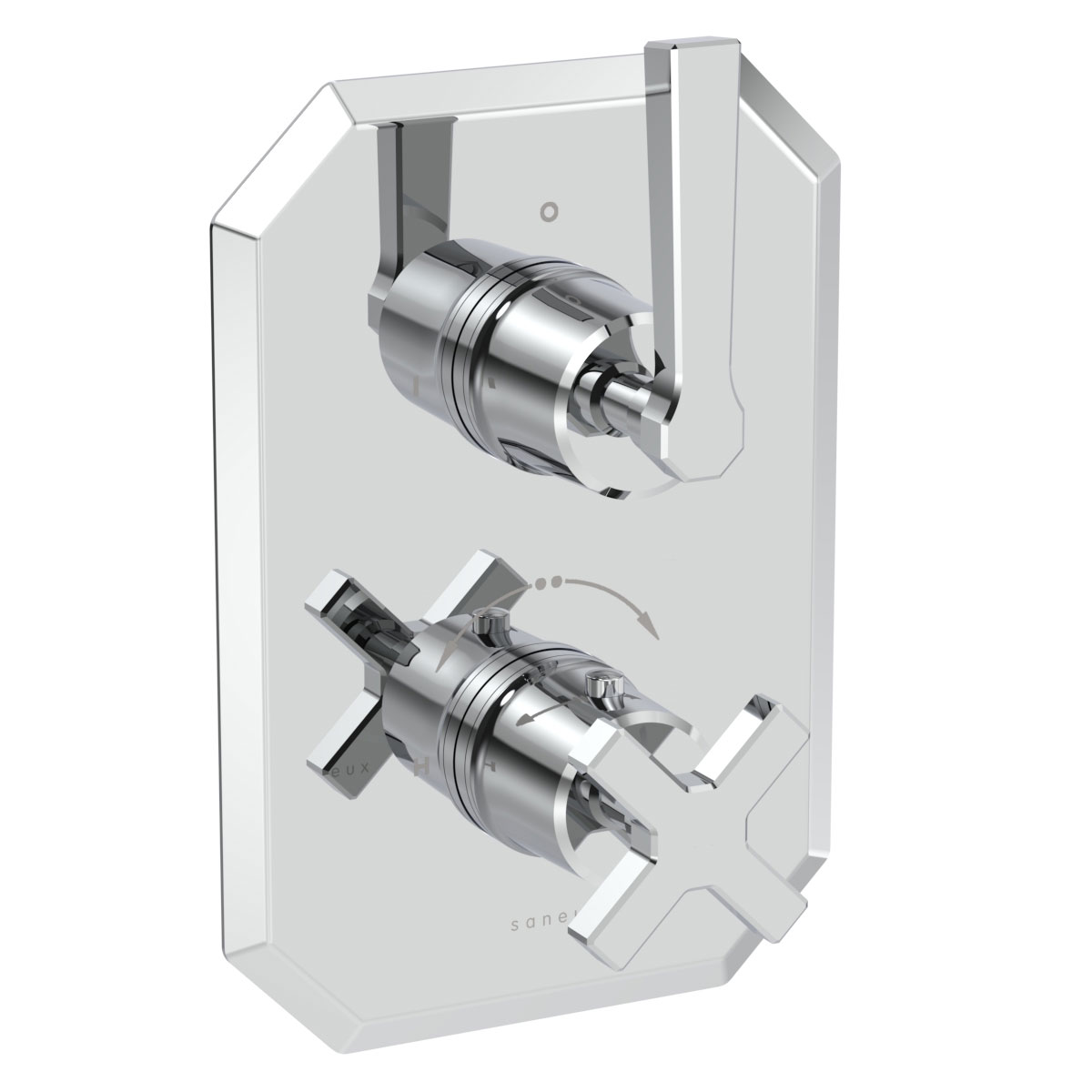

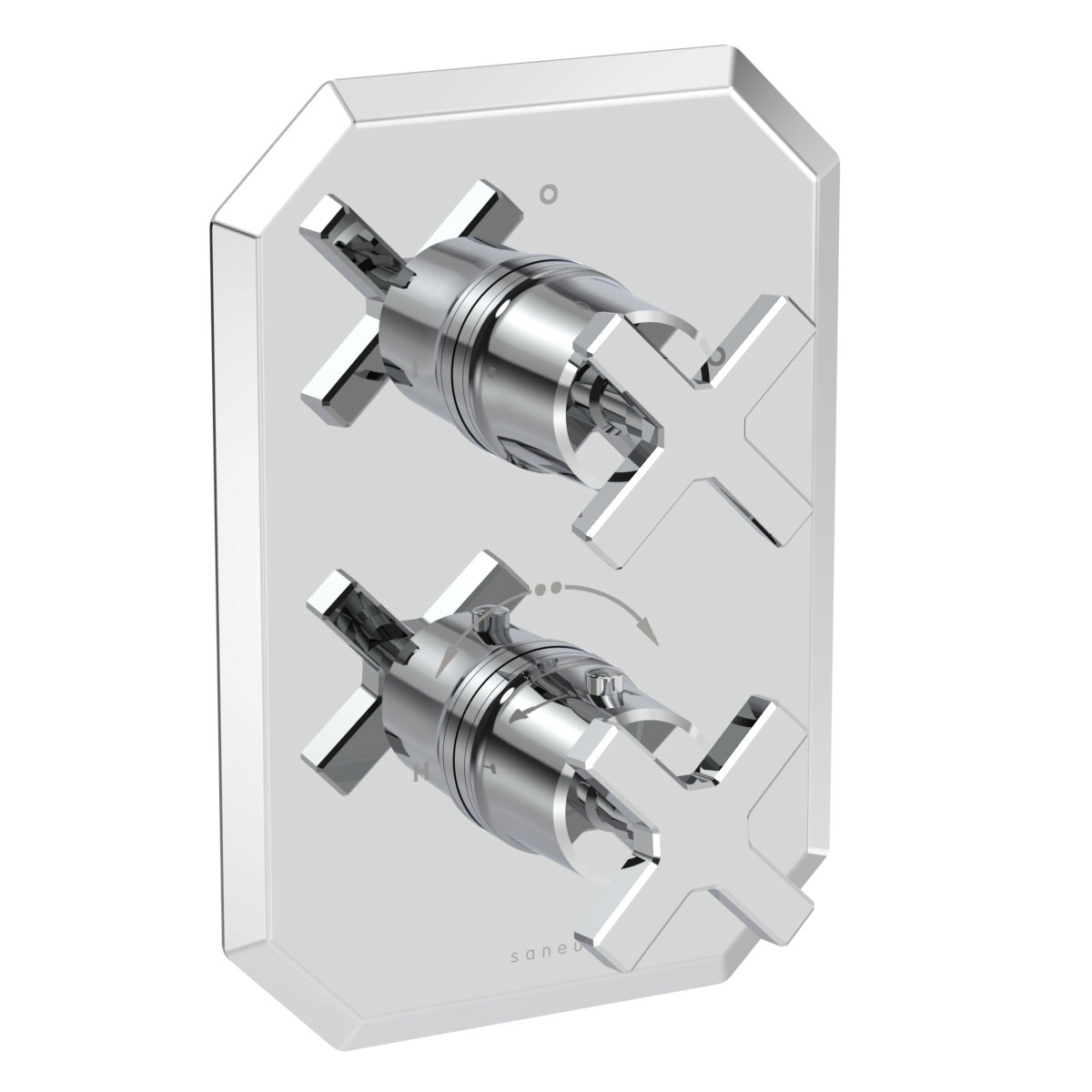

  • Lever and Crosshead or Crosshead Handle [Optional]
  • Material: Brass and Stainless-Steel
  • Traditional yet Modern design look and feel
  • 5 Years guarantee from Saneux against manufacturing defects
  • Size: Width 140 x Height 200mm
  • Rounded rectangular Shape
  • Comes in a Chrome finish
  • WRAS Approved
  • Required Wall Cavity: Minimum 67mm and Maximum 92mm
  • Flow Rate (l/min): 1Bar - 21, 2Bar - 28.5, 3Bar - 35
  • Refer to the Technical Drawing for more Technical Details
  • Download the Customer Datasheet PDF and Manual Instruction PDF from the Additional Info & Download section
  • Details of 1-Way Shower - Trim Only
  • Single outlet design
  • Requires 2 tap holes
  • Suitable for controlling one outlet: shower head, handset, or bath filler
  • The Top-hand handle operates the water on/off
  • The Bottom handle adjusts water temperature
  • Details of 2-Way Shower - Trim Only
  • Dual outlet design
  • Requires 2 tap holes
  • Suitable for controlling two outlets: Shower head & handset, Handset & bath filler or Shower head & bath filler
  • The Top handle controls On / Off Function of the Components
  • The Bottom handle adjusts water temperature
  • External Trim-set only - Valve Body not included

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting / Tilting
  • ⤷ Range
  • : Cromwell
  • ⤷ Colour
  • : Chrome
  • ⤷ Shape
  • : Rectangular
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Stainless Steel | Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ No. of Holes Required
  • : 2
  • ⤷ Valve Included
  • : No
  • ⤷ Min-Max Wall Mount
  • : 65-92
  • ⤷ Flow Rates (l/min)
  • : 1Bar - 21 | 2Bar - 28.5 | 3Bar - 35
  • ⤷ Handle Style
  • : Lever and Crosshead | Crosshead
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ Backplate Width
  • : 140
  • ⤷ Backplate Height
  • : 200
  • ⤷ Number of Handles
  • : 2
  • ⤷ Number of Outlet
  • : 1 | 2
  • ⤷ Orientation
  • : Portrait
  • ⤷ Barcode
  • : 5057199862839
  • ⤷ Product Type
  • : Shower Valve Trim

Additional Info & Downloads

Download PDFDownload the Customer Datasheet Pdf File Download PDFDownload the Manual Instruction Pdf File Download PDFDownload the AfterCare & Guarantee Pdf File

£103.20
RRP: £129.00
Stock Availablity: 6 Working Days Approx
QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

2-Outlet

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

WRAS Approved Component

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.
