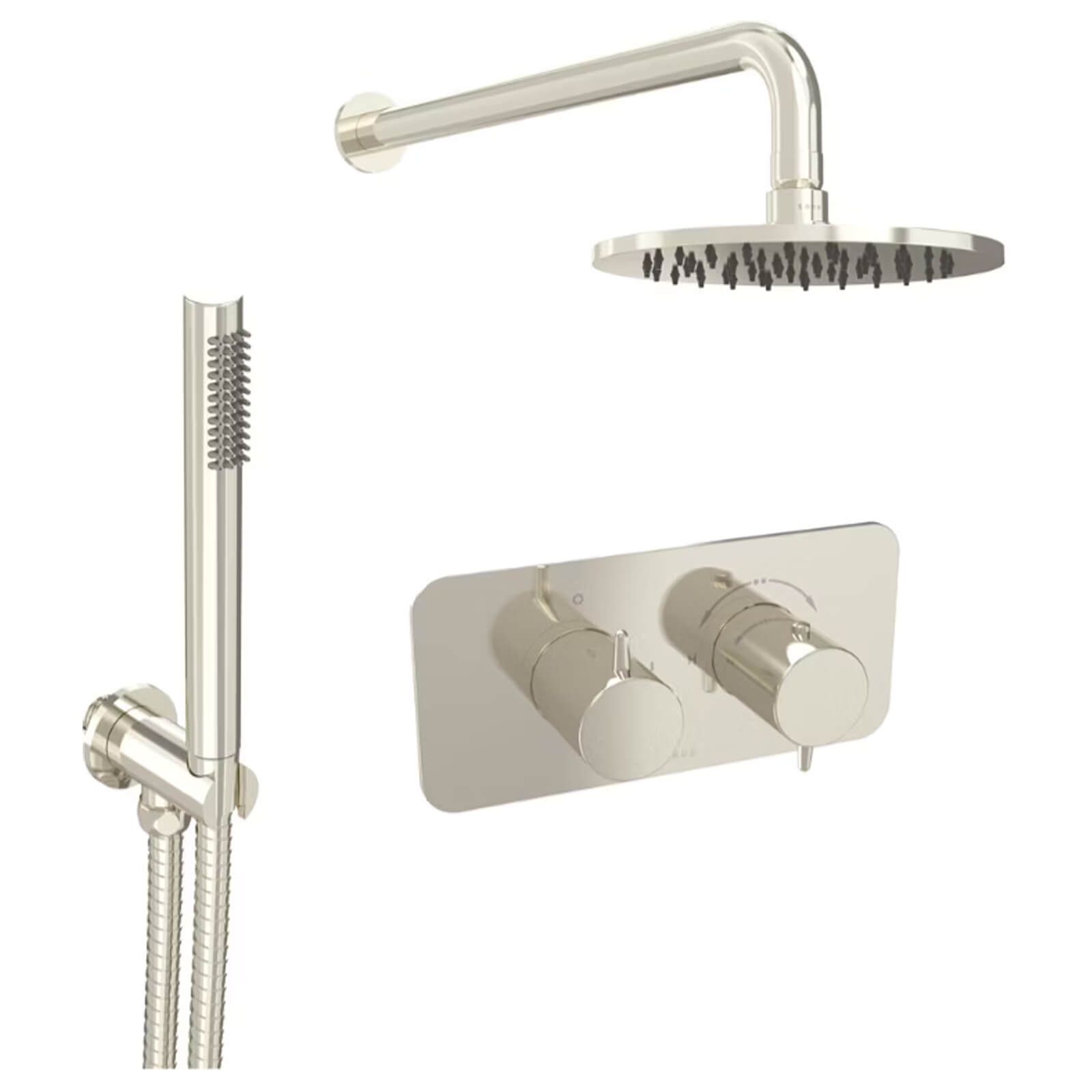

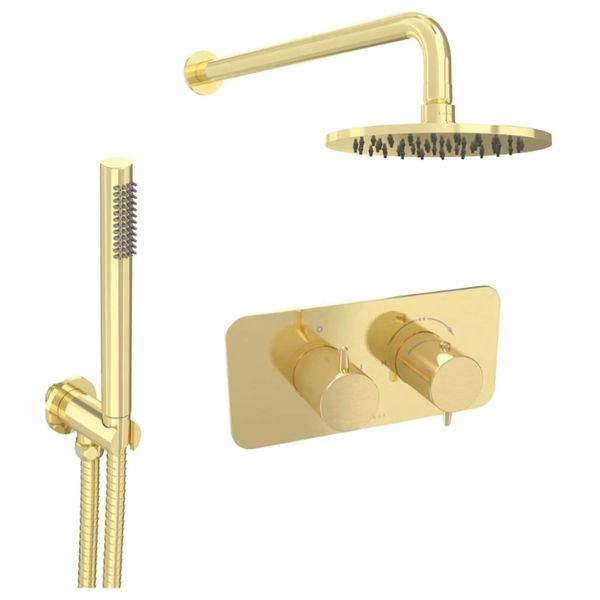

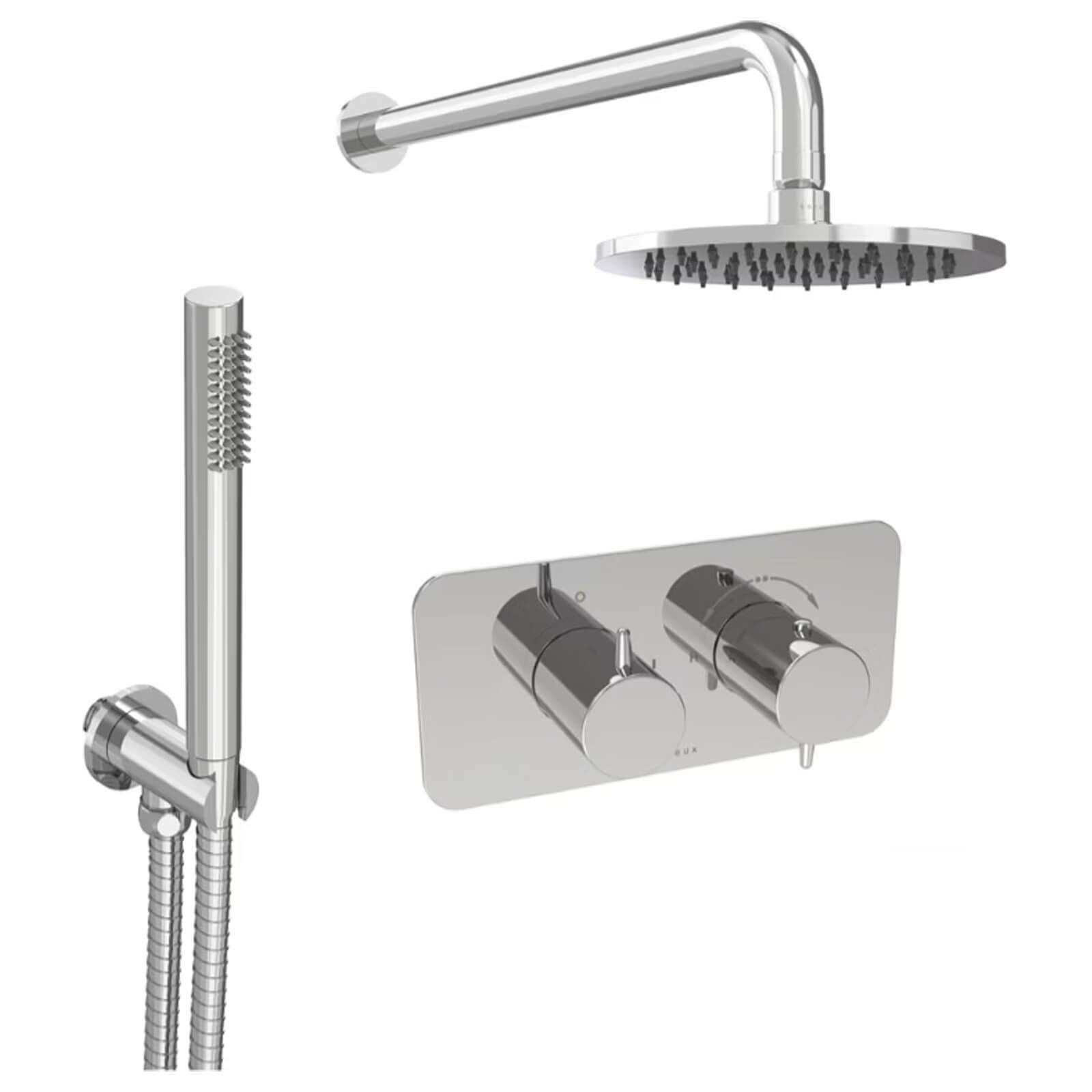

Saneux Eden Concealed Thermostatic Shower Kit with Slim Handset - 2 Control - 2 Outlet

Saneux Eden Concealed Thermostatic Shower Kit with Slim Handset - 2 Control - 2 Outlet.

• Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
• Refer to the Technical Diagram for Complete Technical Details
• Pack Includes:
• 2 Way Thermostatic Shower Valve
• 200mm Shower Head
• 400mm Wall Shower Arm
• Slim Handset
• 1500mm Shower Hose
• Outlet Elbow and Holder
• Detail for Thermostatic Shower Valve:
• Manufactured using Zinc, Stainless Steel and Brass Materials
• Thermostatic Mechanism
• Backplate Size [mm]: 100 x 215mm [Width x Height]
• Backplate Size [cm]: 10 x 21.5cm [Width x Height]
• Outlet: 2
• WRAS Approved
• Portrait Thermostatic Valve Features 2 Outlet, Controlling a Shower Head and Handset or a Bath Filler
• The Top Handle Controls the On/Off of the Two Components, and the Bottom Handle Controls the Water Temperature
• Flow Rate: 1 Bar - 16.1 l/min, 2 Bar - 22.5 l/min, 3 Bar - 28.5 l/min
• Detail for Shower Arm:
• Manufactured using Brass Material
• Size [mm]: 402.5 x 72.5mm [Length x Height]
• Size [cm]: 40.25 x 7.25cm [Length x Height]
• Weight: 0.37kg
• Detail for Shower Head:
• Manufactured using Brass Material
• Diameter: Ø200mm (20cm)
• Weight: 0.95kg
• WRAS Approved
• Flow Rate: 0.5 Bar - 4.5 l/min, 1 Bar - 13.5 l/min, 2 Bar - 19.8 l/min, 3 Bar - 23.6 l/min, 4 Bar - 23.1 l/min, and 5 Bar - 31.5 l/min
• Detail for Shower Handset:
• Slim Round Shower Handset
• Size [mm]: 24 x 210mm [Width x Height]
• Size [cm]: 2.4 x 21 [Width x Height]
• Weight: 0.20kg
• WRAS Approved
• Flow Rate: 0.5 Bar - 4 l/min, 1 Bar - 6.5 l/min, 2 Bar - 13.8 l/min, 3 Bar - 17.8 l/min, 4 Bar - 19.5 l/min, and 5 Bar - 21.2 l/min
• Weight: 0.2kg
• Detail for Shower Hose:
• Manufactured using Stainless Steel Material
• Length: 1500mm (150)
• Weight: 0.24kg
• WRAS Approved
• Detail for Outlet Elbow and Holder:
• Manufactured using Brass Material
• Size [mm]: 50 x 5 x 210mm [Width x Depth x Height]
• Size [cm]: 5 x 5 x 21 [Width x Depth x Height]
• Weight: 0.35kg
• WRAS Approved
