Crosswater Module Plus 2 Outlet Thermostatic Push Button Shower Set

Crosswater Module Plus Details

MFC: MPLUSSET7C

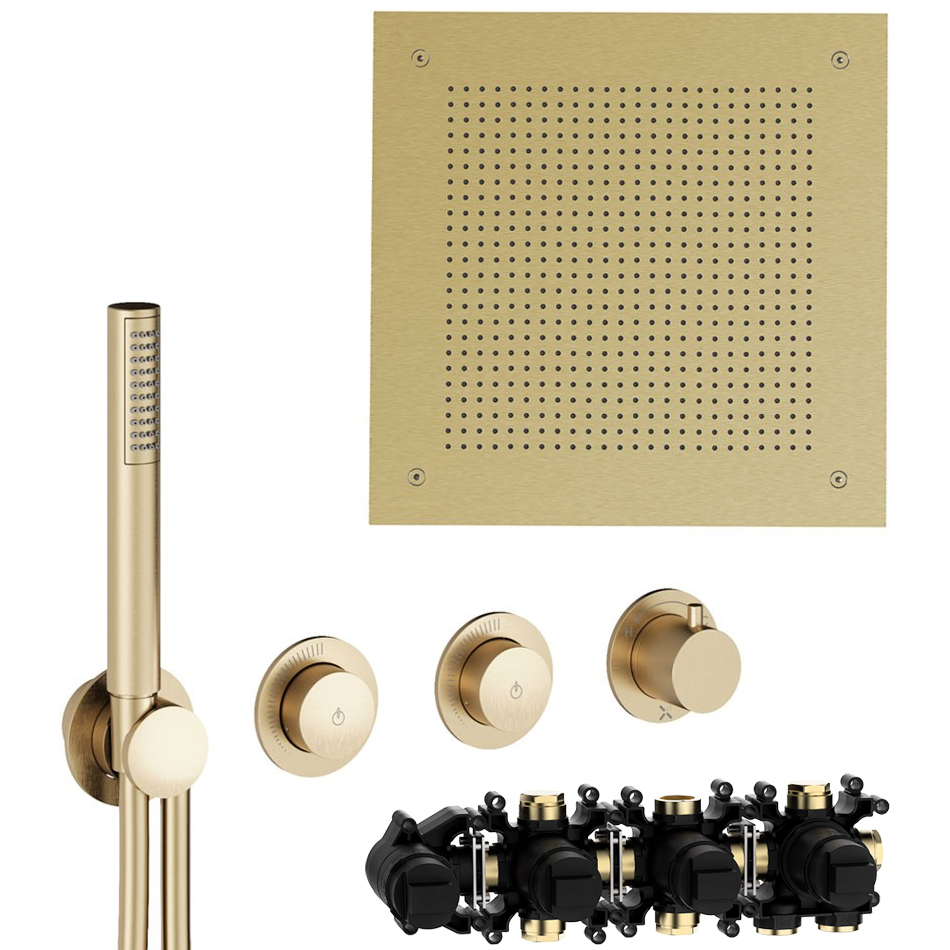

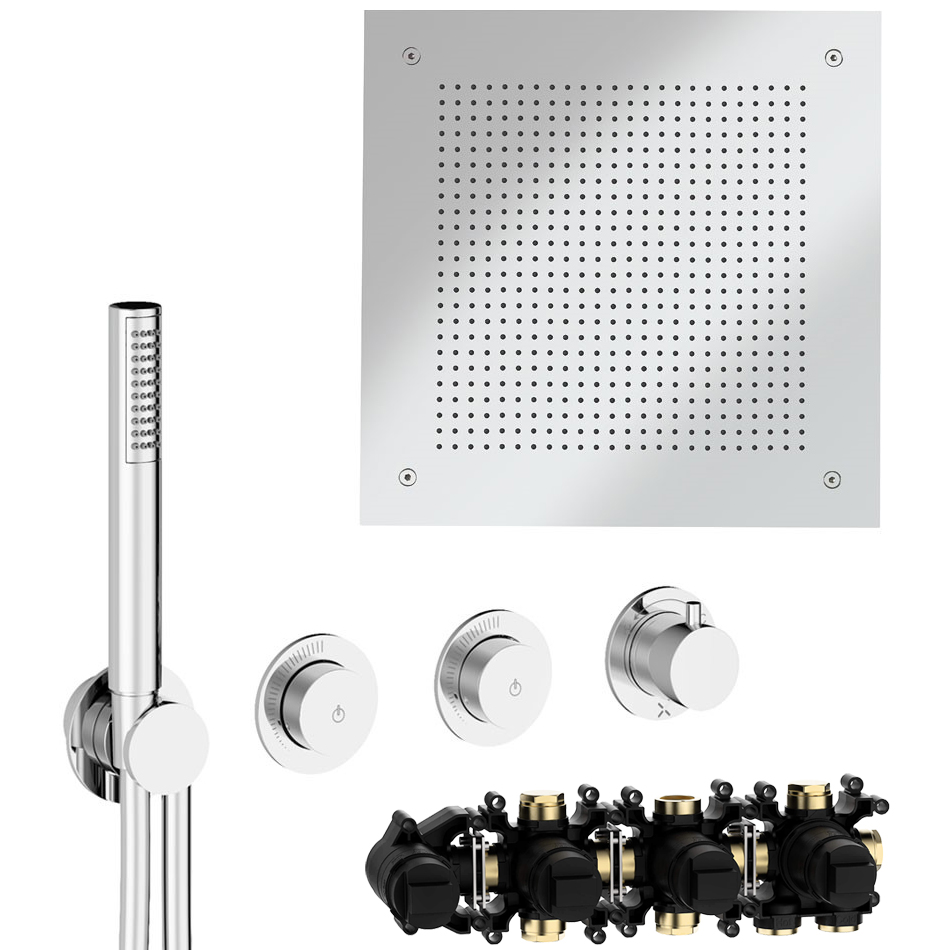

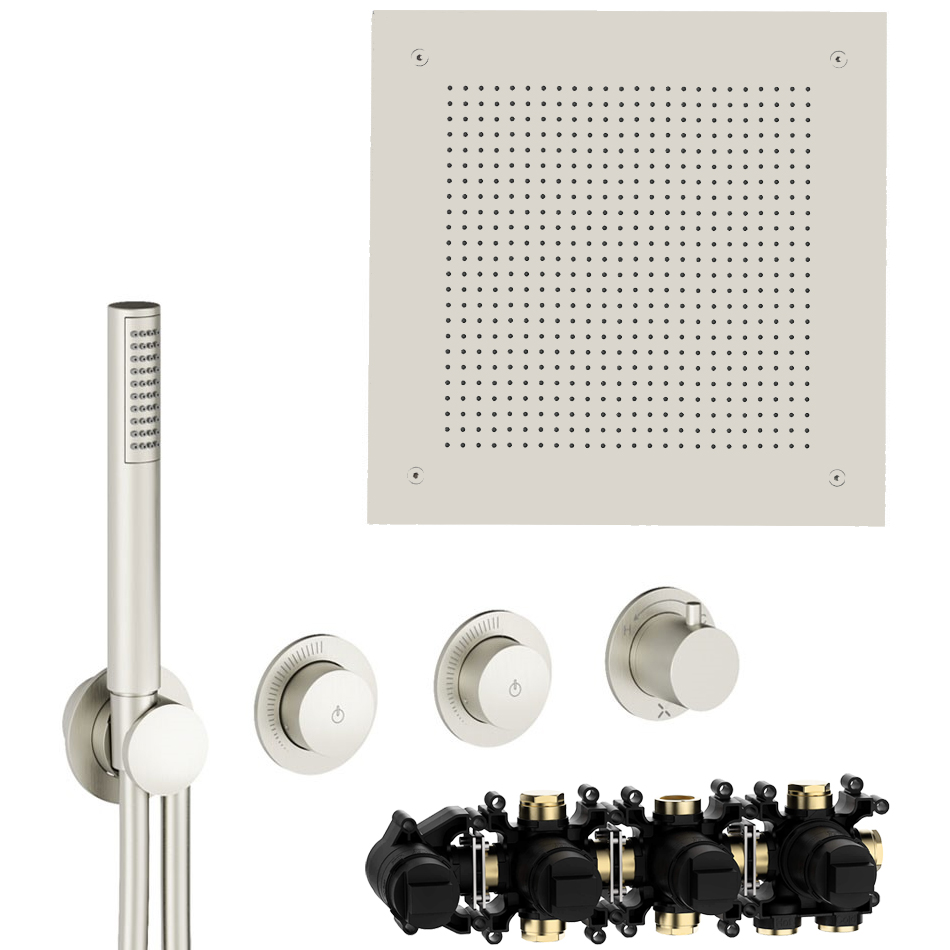

Crosswater Module Plus 2 Outlet Thermostatic Push Button Shower Set - Tranquil Square Head.

Key Features

✔Pack Includes:
✔Round Contemporary 2 Control Concealed Trim Set
✔2 Outlet Thermostatic Shower Valve
✔Tranquil Square Single Mode Shower Head

Choices of Finishes: Chrome, Brushed Nickel, Brushed Brass
15-Year of Guarantee from the Manufacturer Against any Manufacturing Defects
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Specification Of Round 2 Control Concealed Trim Set:
Manufactured Using Zamac Material
Number of Outlets: 2
Number of Functions: 2
Wall-Mounted Installation
Size [mm]: 70 x 62mm [Width x Depth]
Size [cm]: 7 x 6.2cm [Width x Depth]
Suitable for High Water Pressure System
Requires Minimum 1.0 Bar and Maximum 5.0 Bar Operating Water Pressure
Features Water-Saving Flow Control without Compromising On Performance
Push-Button On/Off Controls, Module Push is Easy to Use Without the Need to Grip a Lever
Thermostatically-Controlled for 100% Safety
Weight: 2.2kg
Specification Of Module MPRO Push 2 Outlet Shower Valve:
Material: Brass
KIWA Approved Product
Anti-Scald
Size [mm]: 401 x 97 x 119mm [Width x Depth x Height]
Size [cm]: 40.1 x 9.7cm x 11.9cm [Width x Depth x Height]
Inlet and Outlet Connections: G 3/4 Inch
Features: Neoperl FSG Cartridge, Vernet Thermostatic Element and Easy Installation
Specification Of Tranquil Recessed Shower Head:
Material: Stainless Steel
Incorporates with Tranquil Rainfall
Single Mode Function
Weight: 5kg
Ceiling Mounted Installation
Size [mm]: 380 x 78 x 380mm [Width x Depth x Height]
Size [cm]: 38 x 7.8 x 38cm [Width x Depth x Height]
Standards: EN 1112:2008
Inlet Connection: G 1/2 Inch
Suitable for High-Water Pressure System
Requires Minimum 1.0 Bar and Maximum 5.0 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic

⤷ Anti-Scald
: Yes
⤷ Diverter Included
: Yes
⤷ Showerhead Type
: Fixed
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 300

Additional Info & Downloads

Download the Installation Instruction Of Trimset Pdf File Download the Installation Instruction Of Shower Valve Pdf File Download the Installation Instruction Of Shower Head Pdf File Download the Product Data Sheet Of Trimset Pdf File Download the Product Data Sheet Of Valve Pdf File Download the Product Data Sheet Of Shower Head Pdf File

Technical Images

2 Control Trim Set

Shower Valve

Shower Head

Crosswater Module Plus 2 Outlet Thermostatic Push Button Shower Set - Tranquil Square Head

£1649.25

RRP: ~~£2199.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.
