Crosswater Module Thermostatic Shower Set 8 with Ceiling Mounted Arm, MODSET8C200CL

Crosswater Module Details

MFC: MODSET8C200CL

Crosswater Module Thermostatic Shower Set 8 with Ceiling Mounted Arm

Key Features

✔Available in 6 Finishes
✔Choice of Shower Head Diameters: 200mm, 300mm
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Powered by our Exclusive Crossbox Technology for Reliable, High-Performance Showering
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section

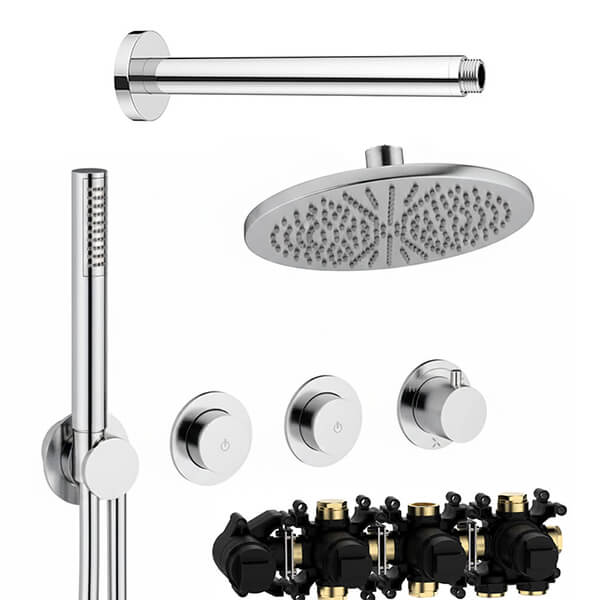

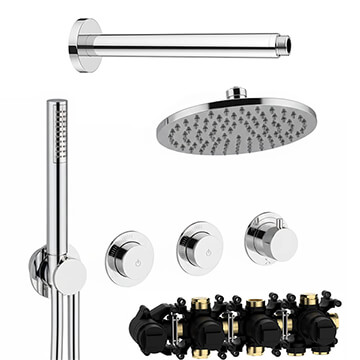

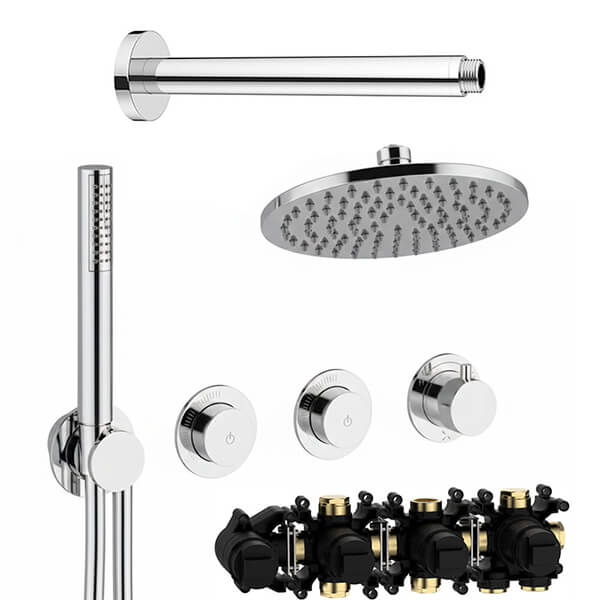

Pack Includes:
Module MRPO Push 2 Outlet Trimset with Handset & Hose
Module MPRO Push 2 Outlet Rough
Ceiling-Mounted Shower Arm
Round Fixed Shower Head
Details Of Trimset with Handset & Hose:
Push-Button On/Off Control
Precise Flow Control
Precise Temperature Control
Size [mm]: 385 x 70 x 70mm [Length x Width x Height]
Size [cm]: 38.5 x 7 x 7cm [Length x Width x Height]
Weight: 2.2kg
Number of Functions: 2
Primary Material: Zamac
Secondary Material: Plastic
Shower Hose & Handset are Included
Suitable for High Water Pressure System
Works On a Minimum of 1.0 Bar to a Maximum of 5.0 Bar Water Pressure
Featuring a Sleek, Minimalist Design, Module Push Elevates any Modern Showering Space
Features Water-Saving Flow Control Without Compromising Performance
The Precise Water Flow and Thermostatic Controls Provide the Opportunity to Tailor Your Showering Experience to Your Needs
With the Push-Button On/Off Controls, Module Push is Easy to Use Without the Need to Grip a Lever
This Functionality Allows You to Leave Your Temperature and Pressure Controls in Place, Ready for the Next Time You Step in
Enjoy Water Flow from Multiple Outlets at the Same Time with its Multi-Button Design
Incorporates with an MPRO Handset, Achieve a Stylish Showering Set-Up with Multiple Functionalities
Details of Concealed Valve:
Easy Installation
Product Headwork: Neoperl FSG Cartridge
Vernet Thermostatic Element
Size [mm]: 401 x 97 x 119mm [Width x Depth x Height]
Size [cm]: 40.1 x 9.7 x 11.9cm [Width x Depth x Height]
Weight: 3.4kg
Primary Material: Brass
Secondary Material: Plastic
Anti-Scald: Yes
Number of Outlets: 3
Number of Functions: 3
Headwork: Neoperl FSG VC
Inlet and Outlet Connections Thread: G 3/4 Inch
Details Of Ceiling-Mounted Shower Arm:
KIWA Approved
Ceiling-Mounted Installation
Crafted Using High-Quality Material
Overall Length: 252mm [25.2cm]
Inlet/Outlet Connection: G 1/2 Inch
Details Of Round Fixed Shower Head:
WRAS and KIWA Approved
Style: Round
Head Thickness: 5.8mm
Weight: 1kg
Inlet Connection: G 1/2 Inch
Ceiling- or Wall-Mounted Installation
Manufactured Using High-Quality Brass Material
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Zamac, Brass, Plastic
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Inlet Connections
: G 1/2, G 3/4
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes

⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS, KIWA
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200, 300
⤷ Hose Retainer Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Of Handset And Trimset Pdf File Download the Installation Instructions Of Trimset Pdf File Download the Product Data Sheet Of Rough-In-Set Pdf File Download the Installation Instructions Of Rough-In-Set Pdf File

Technical Images

Crosswater Module Thermostatic Shower Set 8 with Ceiling Mounted Arm

Shower Valve & Handset

Rough In Set

Shower Arm

200mm Shower Head

300mm Shower Head

£1011.75

RRP: ~~£1349.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.
