Crosswater Module Shower Set 5, MODSET5C

Crosswater Module Details

MFC: MODSET5C

Crosswater Module Shower Set 5

Key Features

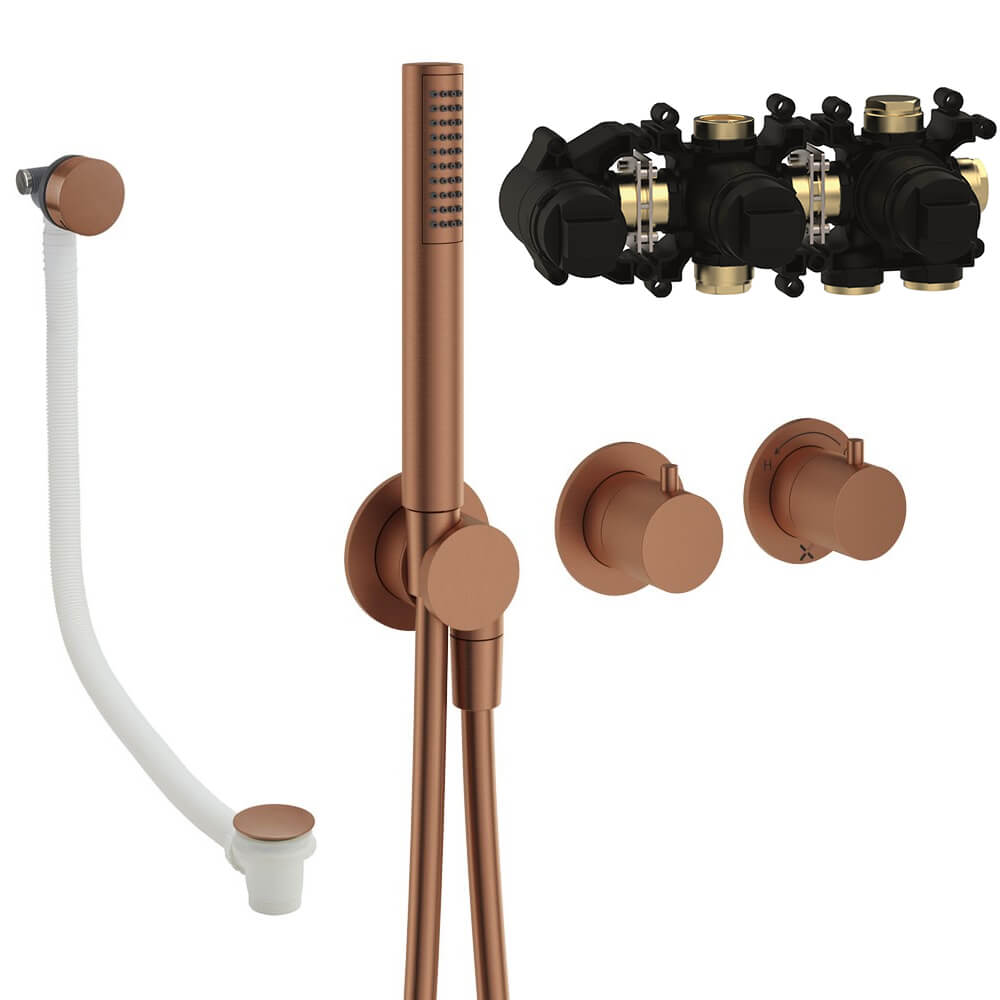

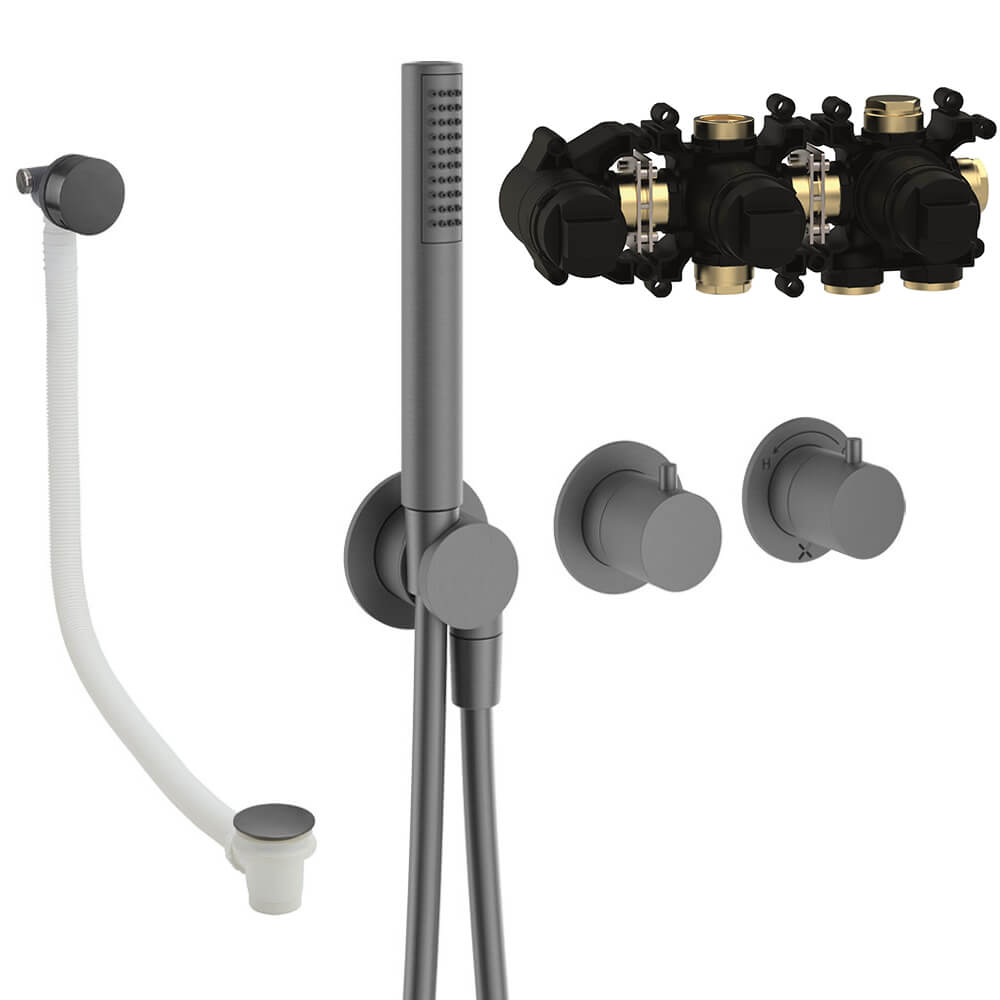

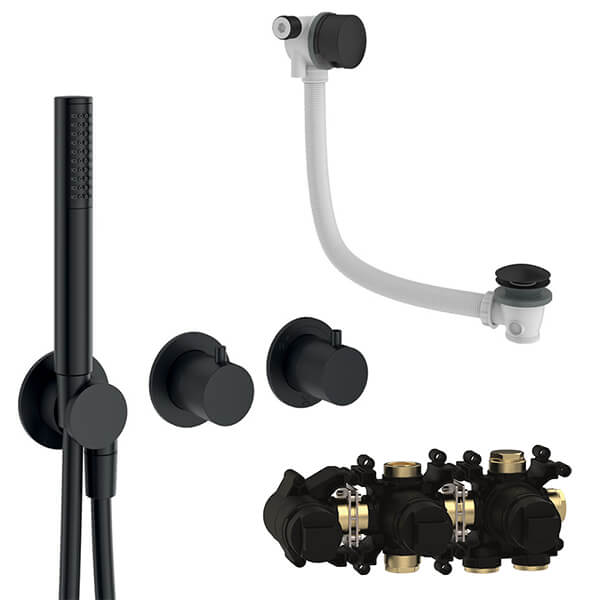

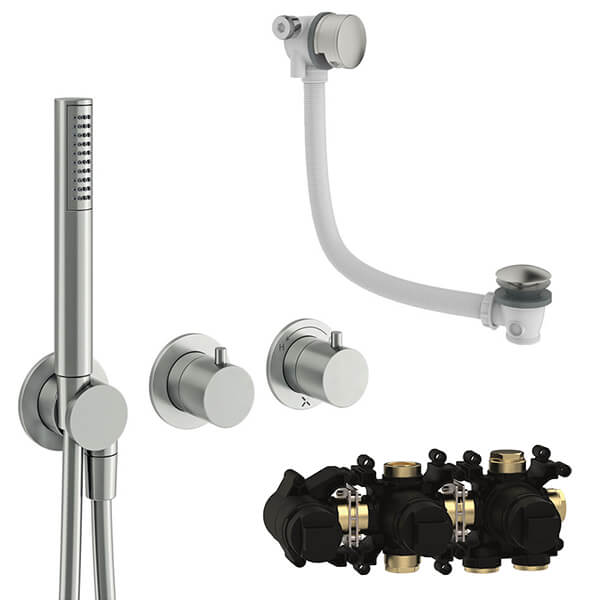

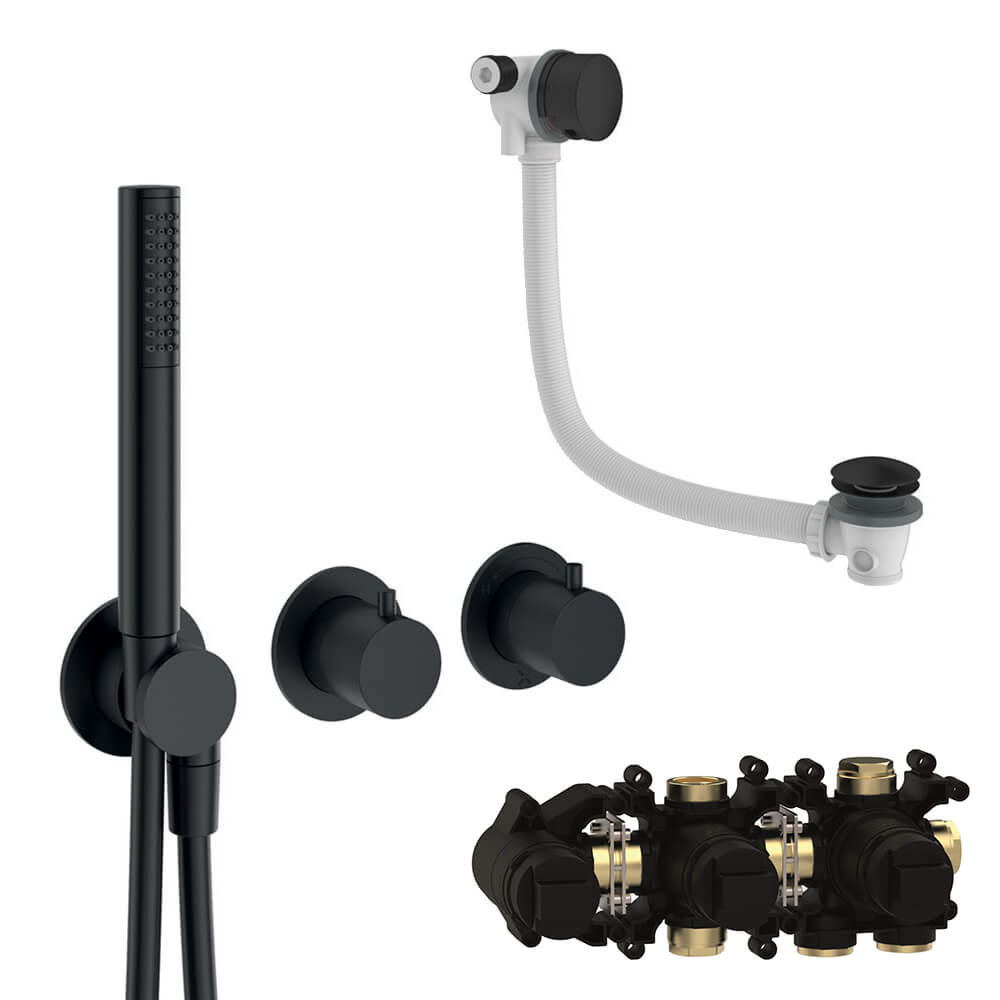

✔Available in 6 Finishes
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Suitable for High Water Pressure System
Requires Min. 1.0 bar and Max. 5.0 bar Operating Water Pressure
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section

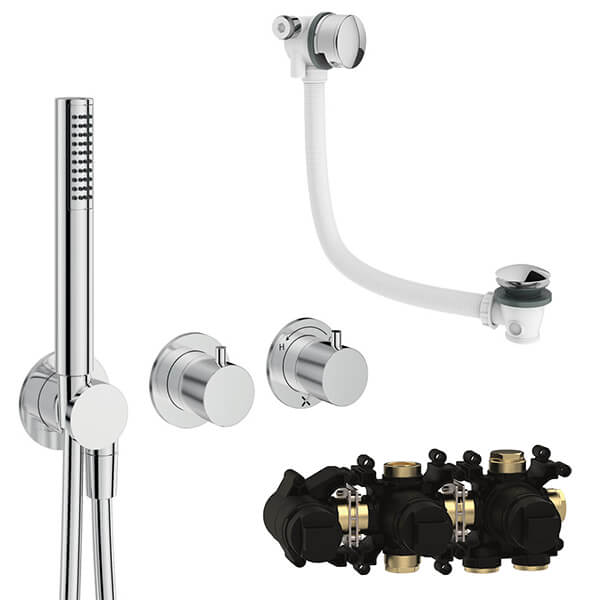

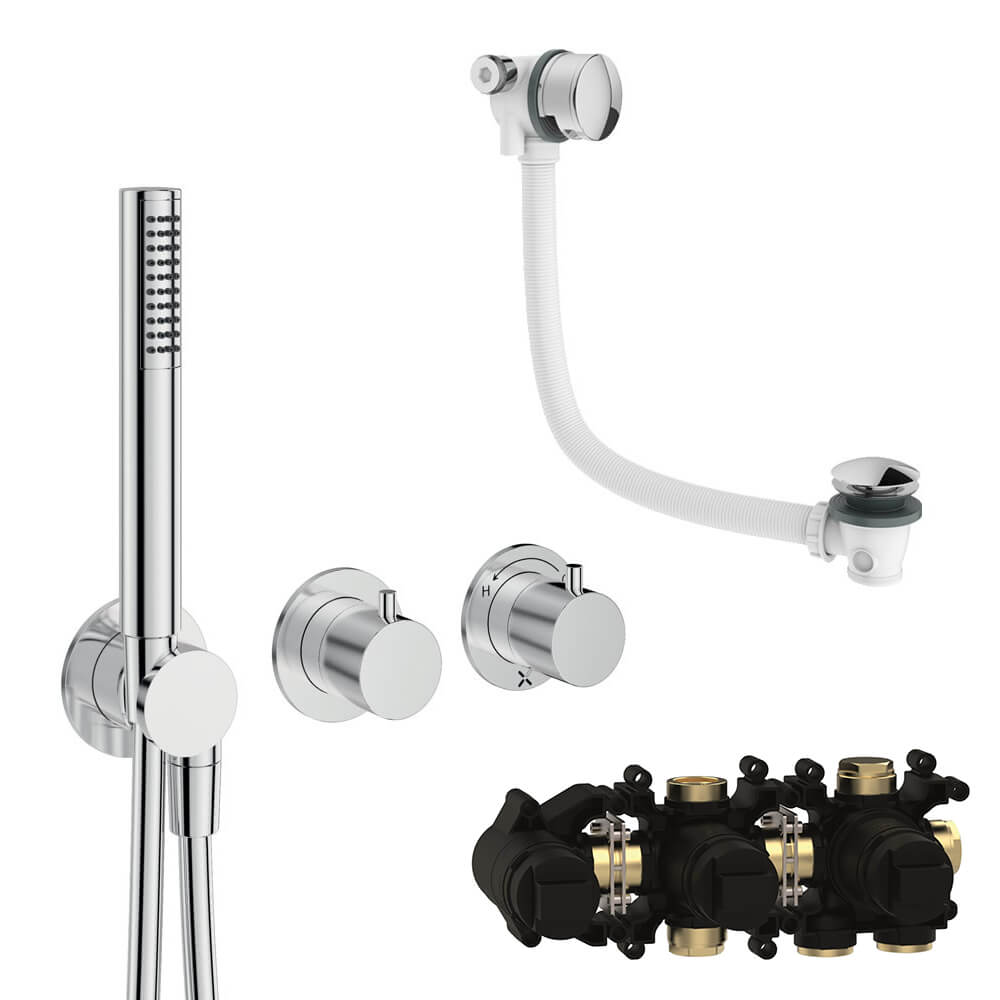

Pack Includes:
Module Concealed Thermostatic Shower Valve with Handset
Module 2 Outlet Valve With Outlet For Bath Spout Or Handshower
Crosswater Bath Filler with Click-Clack Waste
Details of 2 Handle Shower Valve & Handset:
Wall-Mounted Installation
Durable PVD Finish on Colours
Manufactured using Brass material
Weight: 1.9kg
Thermo Type: Thermostatic
Diameter of Trim-Set: Ø70mm [7cm]
Spout Height: 185mm [18.5cm]
Standards: EN 1111:2008
Details of Bath Filler with Click Clack Waste:
Manufactured using ABS material
Length: 1340mm [134cm]
Projection: 44mm [4.4cm]
3-in-1 Inlet/Outlet and Overflow Function
Smooth and Simple Cable Waste Operation or Click-Clack Waste - Press with Your Foot
Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
Ideal for Shower and Bath Combinations
Outlet Connections Thread Waste/Trap: G 1.1/2
Details of Valve:
Outlet: 2
Anti-Scald: Yes
KIWA Approved Product
Size [mm]: 296 x 141 x 119mm [Width x Depth x Height]
Size [cm]: 29.6 x 14.1 x 11.9cm [Width x Depth x Height]
Weight: 3kg
Standards: EN 1111:2017
Manufactured using Brass material
Headwork: Thermo Cartridge, Flow Controls
Inlet and Outlet Connections Thread: G 3/4 inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 5.69
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermo Cartridge
⤷ Inlet Connections
: G 1.1/2, G 3/4 Inch

⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: KIWA
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Hose Retainer Included
: Yes

Technical Images

2 Handle Shower Valve & Handset

2 Outlet Valve

Bath Filler with Waste

£879.60

RRP: ~~£1099.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Click-Clack Waste

Also called the Push button or Sprung waste, this waste needs a push down on the stopper to close and a click to open it back again. It is the most commonly used waste due to the ease of its operation.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
