Crosswater Module 2 Outlet Thermostatic Shower Set with Head & Ceiling Mounted Arm

Crosswater Module Details

MFC: MODSET3C200CL

Crosswater Module 2 Outlet Thermostatic Shower Set with Head and Ceiling Mounted Arm

Key Features

✔Shower Head Size Available: Ø 200mm and Ø 300mm
✔Choice of Finishes Available: Chrome, Matt Black, Brushed Bronze, Brushed Brass, Brushed Nickel and Slate
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

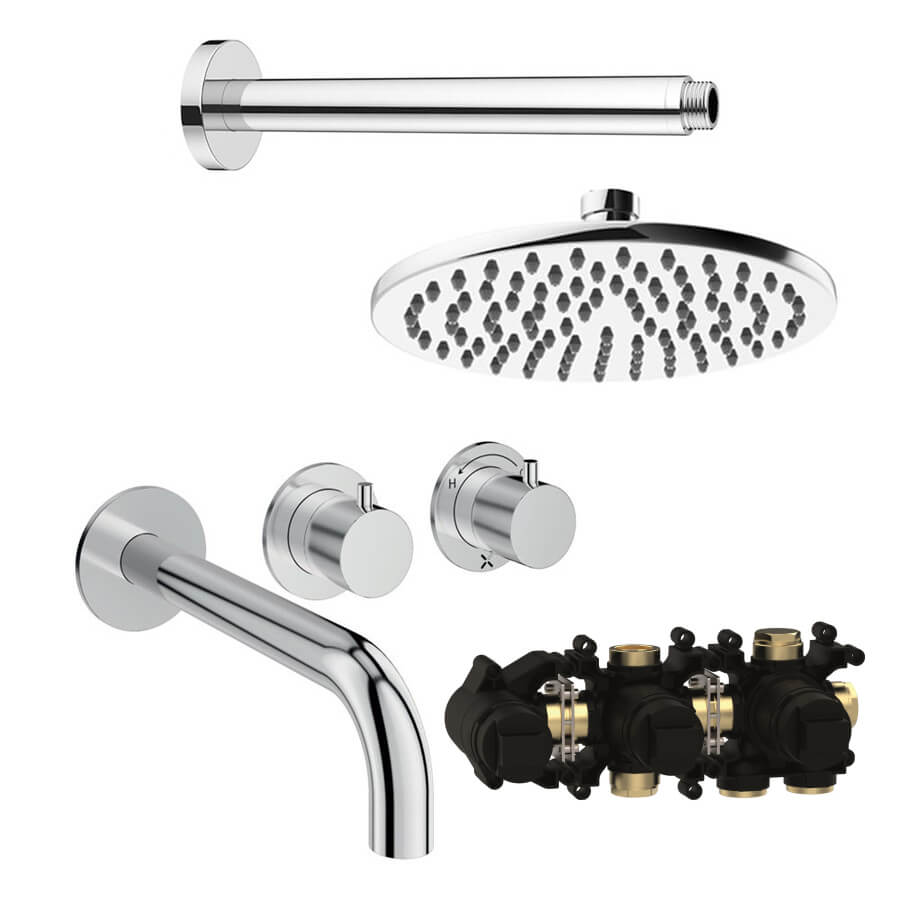

Pack Includes: 2 Handle Shower Valve, Bath Spout, Shower Head, and Arm
Installation Type: Wall Mounted
Suitable for High Water Pressure System
Requires Min. 1.0 bar and Max. 5.0 bar Operating Water Pressure
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet PDF Files from the Additional Info Section
Specifications of Shower Valve (Concealed Part):
Material: Brass
Size: 296 x 141 x 119mm [Width x Depth x Height]
Number of Outlets: 2
Number of Functions: 2
Thermostatic Cartridge + Flow Controls
Inlet Connection Thread: G3/4"
Outlet Connection Thread: G3/4"
Weight Kg: 4
Standards: EN 1111:2017
Specifications of Bath Spout Trim:
2 Control Trimset with Bath Spout
Finish Application: Electroplating
Material: Brass
Weight Kg: 1.55
Specifications of Shower Head:
Finish Application: Electroplated
Material: Brass
Size: 200 x 200 x 58mm [Width x Depth x Height]
Inlet Connection Thread: G1/2"
Number of Outlets: 1
Number of Functions: 1
Weight Kg: 0.9
WRAS Approved 1909388
Specifications of Shower Arm:
Material: Brass
KIWA Approved
Ceiling-Mounted Installation
Overall Length: 252mm [25.2cm]
Inlet/Outlet connection: G 1/2 Inch
Number of Outlets: 1
Number of Functions: 1

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic

⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Technical Images

Crosswater Module 2 Outlet Thermostatic Shower Set with Head and Ceiling Mounted Arm

Trimset

Shower Valve

200mm Head

300mm Head

Shower Arm

£786.75

RRP: ~~£1049.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.
