Crosswater Module Plus 2 Outlet Thermostatic Shower Set with Revive Multi Mode Head

Details

MFC: MPLUSSET3C

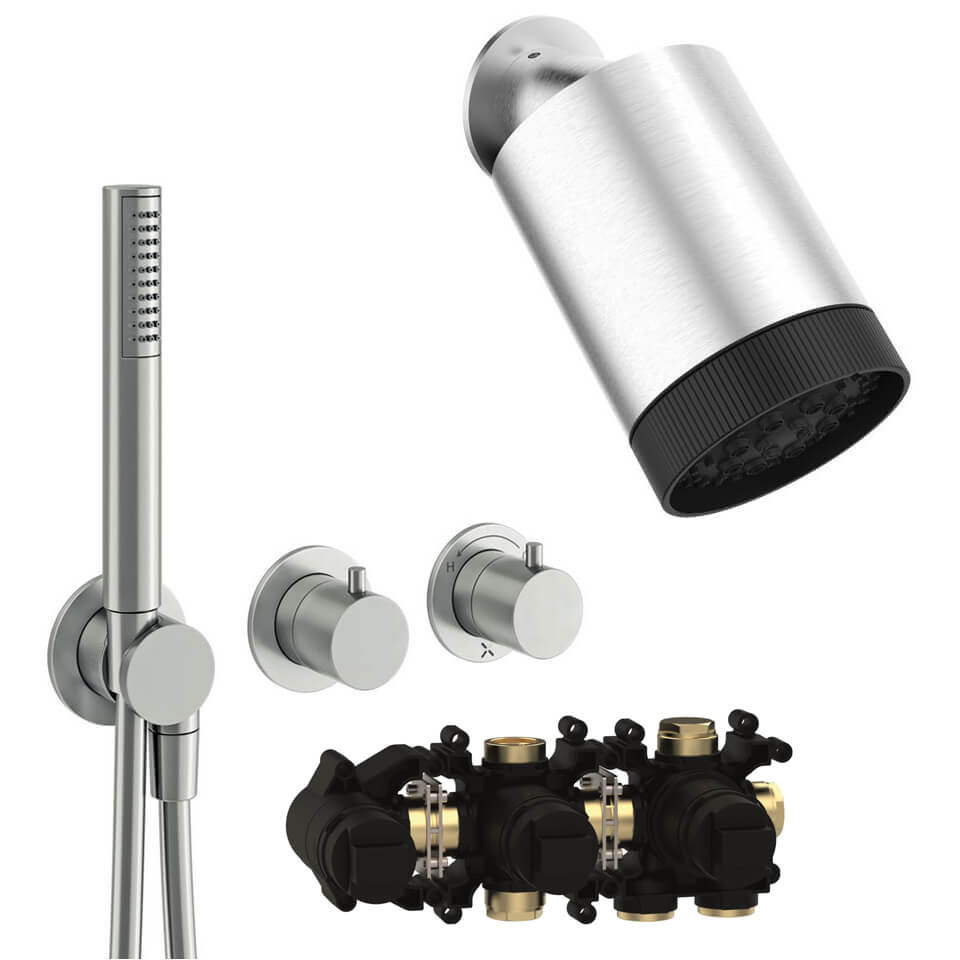

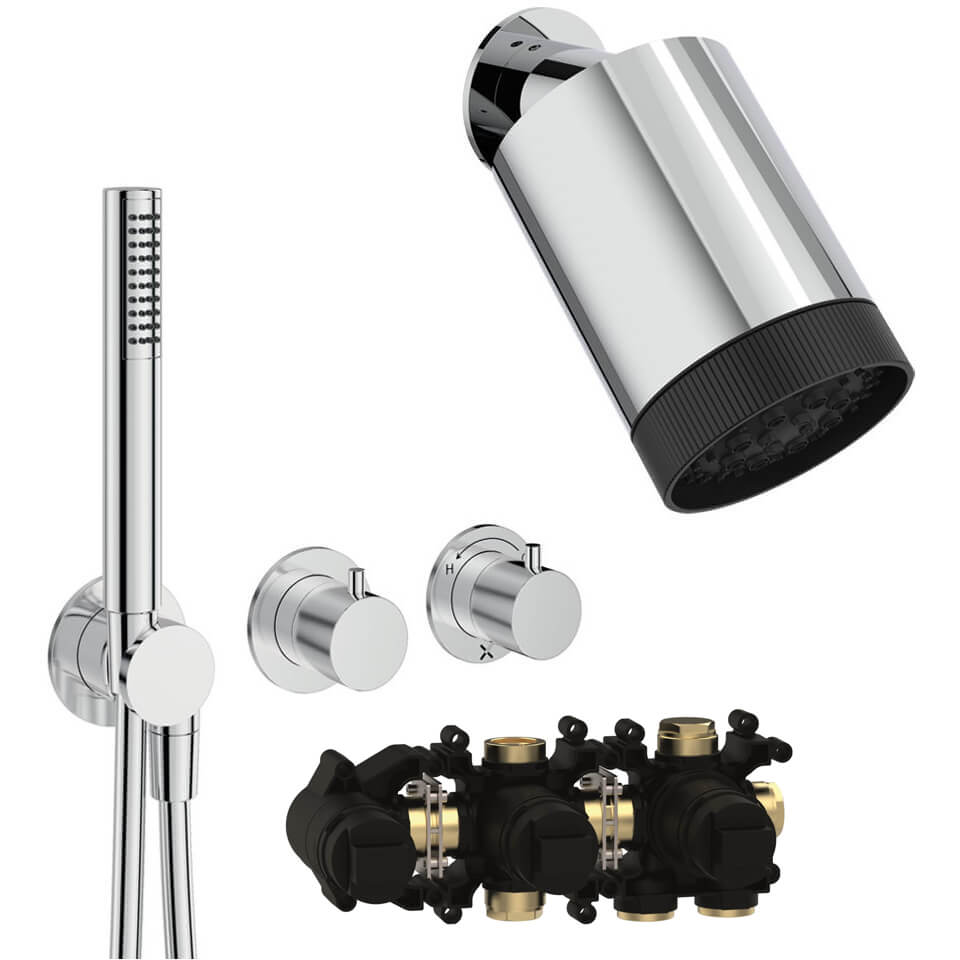

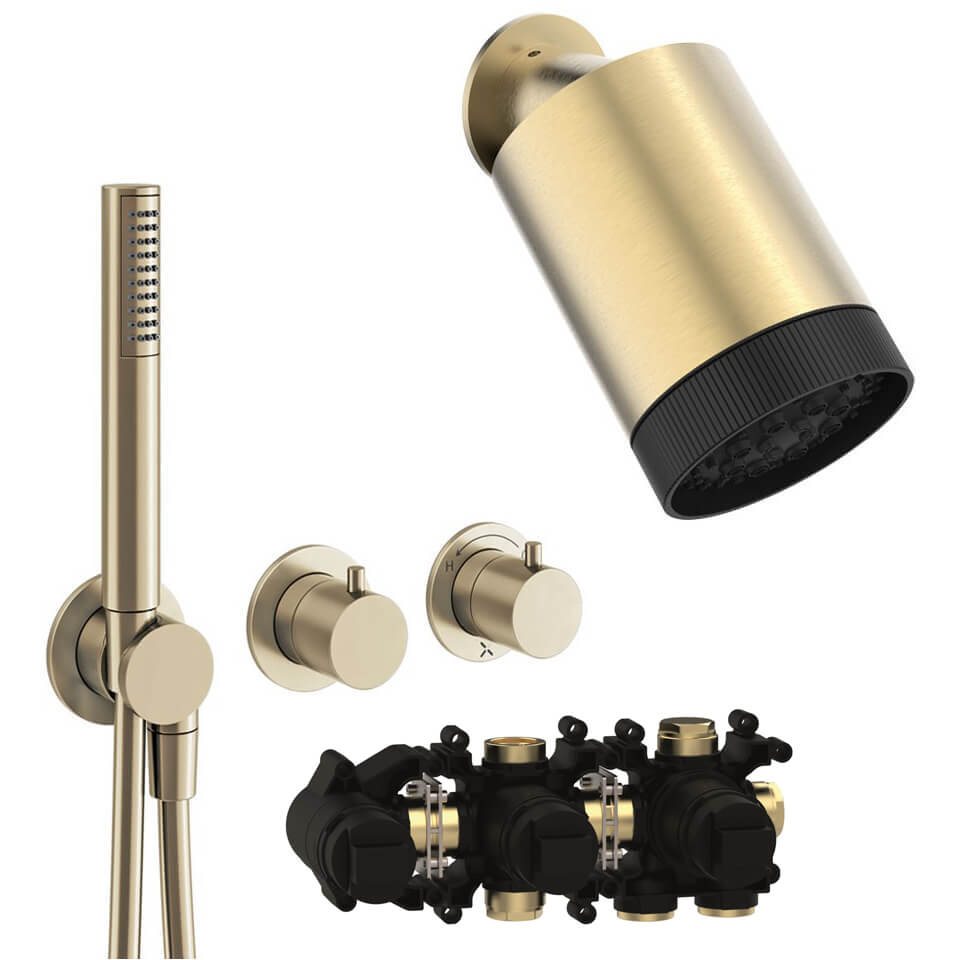

Crosswater Module Plus 2 Outlet Thermostatic Shower Set with Revive Multi Mode Head.

Key Features

Pack Includes:
✔Round Contemporary 2 Control Concealed Trim Set
✔2 Outlet Thermostatic Shower Valve
✔Revive Wall-Mounted Multi-Mode Shower Head

Choices of Finishes: Chrome, Brushed Nickel, Brushed Brass
Refer to The Technical Diagram for Complete Technical Dimensions
15-Years of Guarantee from the Manufacturer Against any Manufacturing Defects
5-Years of Guarantee from the Manufacturer for the Cartridge
Features Of Round Contemporary 2 Control Concealed Trim Set:
Manufactured Using Brass Material
Number of Outlets: 2
Number of Functions: 2
Wall-Mounted Installation
Suitable for High Water Pressure System
Requires Minimum 1.0 Bar and Maximum 5.0 Bar Operating Water Pressure
Standard: EN 1111:2008
Thermostatically-Controlled for 100% Safety
Easy-to-Use without the Need of Grip a Lever
Enjoy Water from Multiple Outlets at the Same Time
Easy-to-Use Multi-Button Design for Full Control
Allows You to Leave Temperature and Flow Controls in Place, Ready for the Next Use
Weight: 1.9kg
Features Of 2 Outlet Thermostatic Shower Valve:
KIWA-Approved Product
Inlet and Outlet Connections: G 3/4-Inch
Headword: Thermo Cartridge, Flow Controls
Weight: 4kg
Features Of Revive Wall Mounted Multi Mode Shower Head:
Suitable for High Water Pressure System
Works On Minimum 2.0 Bar Water Pressure
Spray Pattern: 3 Modes [Rainfall, Massage, Soft Flow]
Manufactured Using Brass Material
Size [mm]: Ø100 x 183 x 172mm [Diameter x Depth x Height]
Size [cm]: Ø10 x 18.3 x 17.2cm [Diameter x Depth x Height]
Rainfall: For When You Want a Luxurious Shower, Perfect for those Moments You Need to Wash Away the Day
Massage: For When You Need an Energising Shower, Featuring a Strong Jet with an Intermittent Massaging Action
Soft Flow: For When You Need a Relaxing Shower, Where a Soothing Mix of Air and Water Envelopes You in a Cocoon of Water

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 1.0

⤷ Temperature Control
: Thermostatic
⤷ Showerhead Type
: Wall Mounted
⤷ Showerhead Finish
: Chrome
⤷ Spray Patterns (Shower Head)
: 3
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø100

Additional Info & Downloads

Download the Installation Instructions Of Trim Set Pdf File Download the Installation Instructions Of Valve Pdf File Download the Installation Instructions Of Shower Head Pdf File

Technical Images

Crosswater Module Plus 2 Outlet Thermostatic Shower Set with Revive Multi Mode Head

2 Control Trim Set

2 Outlet Valve

Shower Head

£979.30

RRP: ~~£1399.00~~

STOCK AVAILABLITY: 10-14 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
