Crosswater Crossbox 3 Outlet Thermostatic Shower Set with Ceiling Mounted Arm

Crossbox Details

MFC: CBSET10C200CL

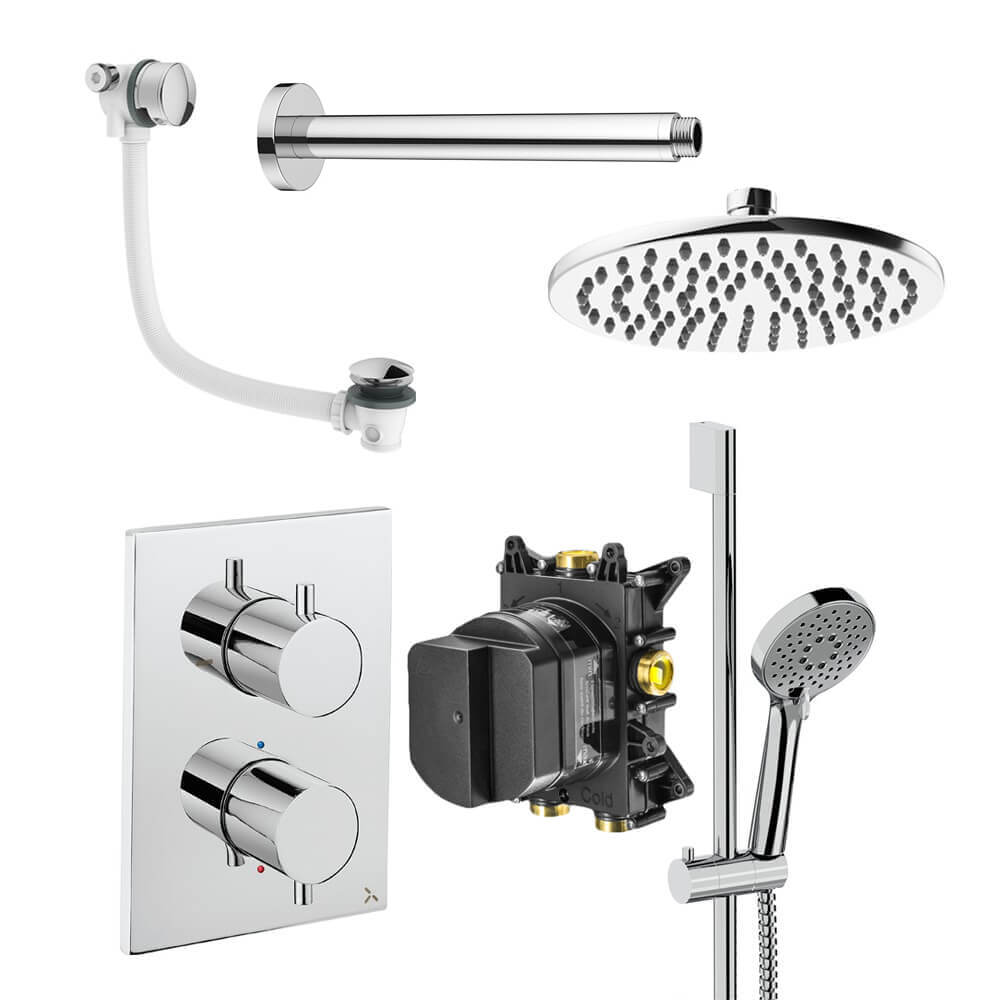

Crosswater Crossbox 3 Outlet Thermostatic Shower Set with Ceiling Mounted Arm.

Key Features

Pack Included:
✔MPRO Crossbox-2500 Concealed Thermostatic Shower Valve:
✔Crosswater Crossbox Universal Box:
✔Contemporary 200mm Length Ceiling Mounted Shower Arm:
✔MPRO Contemporary Round Fixed Shower Head:
✔Slide Rail Kit with Handset, Hose and Outlet Elbow:
✔Bath Filler with Click Clack Waste:

Refer to The Technical Diagram for Complete Technical Dimensions
15-Years of Guarantee from the Manufacturer Against any Manufacturing Defects
5-Years of Guarantee from the Manufacturer for the Cartridge
Features of MPRO Crossbox-2500 Concealed Thermostatic Shower Valve:
WRAS-Approved
3 Outlets Shower Valve
Cartridge - Thermo Cartridge + Flow Control/s
Wall-Mounted Installation
Thermo Type: Recessed
Size of Backplate In [mm]: 130 x 180mm [Width x Height]
Size of Backplate In [cm]: 13 x 18cm [Width x Height]
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately Reducing Possible On Site Damage
'Flush-block' Testing Plate Included for Easy Pressure Testing
Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
CrossBox Universal Box - CROSSBOX [Optional]
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above Water Pressure
Features of Crosswater Crossbox Universal Box:
Easy-Fix 2nd stage Trim Sets Reduce Installation Times
Built-In, 'Easy-Switch' Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage 'Flush-Block' Testing Plate Included for Easy Pressure Testing
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Suitable for High Water Pressure System
Works On a Minimum of 1.0 Bar or Above Water Pressure
Features of Contemporary 200mm Length Ceiling Mounted Shower Arm:
KIWA-Approved
Manufactured Using High-Quality Material
Ceiling-Mounted Installation
Style: Modern
Length: 198mm (19.8cm)
Inlet/Outlet connection: G1/2-Inch
Features of MPRO Contemporary Round Fixed Shower Head:
Manufactured Using High-Quality Brass Material
WRAS- and KIWA-Approved
Choice of Diameters: 200mm, 300mm
Style: Round
Head thickness: 5.8mm
Weight: 1kg
Inlet Connection: G1/2 Inch
Ceiling or Wall-Mounted Installation
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above Water Pressure
Features of Slide Rail Kit with Handset, Hose and Outlet Elbow:
Shape: Round
Comes with Handset Holder
Completes with Shower Hose
WRAS Approved
Material: ABS
3 Function Shower Handset
G1/2 inch Inlet Connection
Size of Rail: Depth 45 x Height 698mm
Size of Handset: Ø102 x Height 265mm
Size of Outlet Elbow: Ø51 x Depth 23mm
Suitable for high-pressure water systems
Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Features of Bath Filler with Click Clack Waste:
Length: 1340mm (134cm)
Projection: 44mm (4.4cm)
3-in-1 Inlet/Outlet and Overflow Function
Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
Ideal for Shower and Bath Combinations
Various Styles of Visible Waste and Overflow Fittings
The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 130
⤷ Backplate Height
: 180

⤷ Showerhead Type
: Ceiling Mounted
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200, Ø300
⤷ Rail Length
: 698
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Installation Instructions of Valve Pdf File Download the Installation Instructions of Crossbox Pdf File Download the Installation Instructions of Head Pdf File Download the Installation Instructions of Slide Rail Kit Pdf File Download the Installation Instructions Of Bath Waste Pdf File

Technical Images

Crosswater Crossbox 3 Outlet Thermostatic Shower Set with Ceiling Mounted Arm

Shower Valve

Crossbox

Shower Arm

200mm Shower Head

300mm Shower Head

Slide-Rail-Kit

Bath Waste

£861.75

RRP: ~~£1149.00~~

Stock Availablity: 10-14 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
