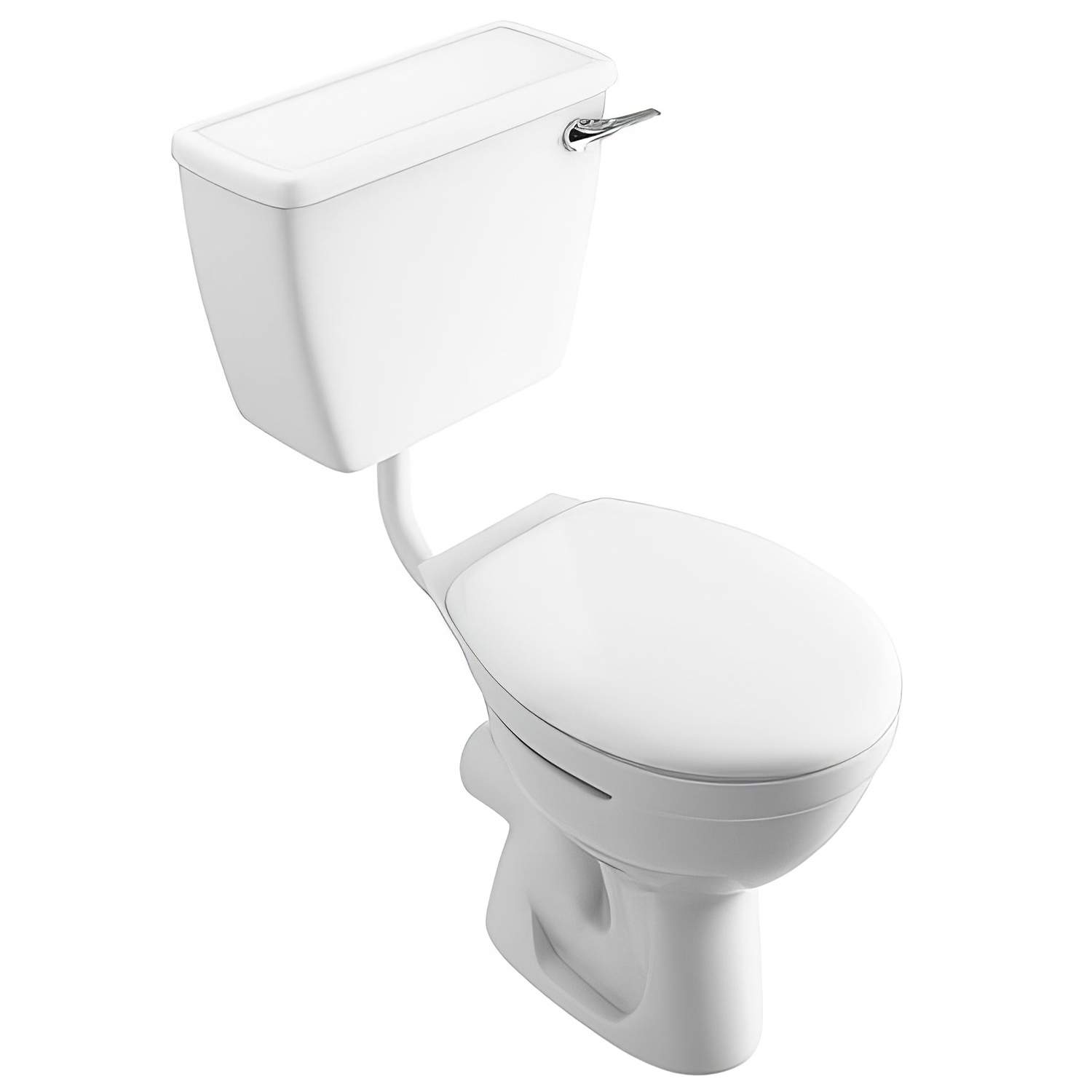

Lecico Atlas DocM Low Level Comfort Height WC Pan and Cistern White

Lecico Atlas Details

MFC: DOCMLLPAN|ASWHDLLBCI

Lecico Atlas DocM Low Level Comfort Height WC Pan and Cistern White.

Key Features

✔Material: Vitreous China
✔Weight: 15 Kg
✔Comes in a White Finish
✔Overall Size: Width 460 x Projection 790 x Height 1033mm
✔Lifetime Guarantee from the Manufacturer

Comfort height WC meets DocM accessibility standards
Raised height makes it easier to transfer to and from a wheelchair
When used with other Lecico Doc M products and installed as per the official Doc M layout, it ensures full compliance

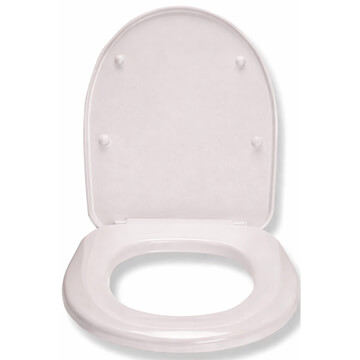

Toilet Seat Shown in the Image is Not included
Refer to the Technical Drawing for more technical details
Download the Customer Datasheet PDF from the Additional Info & Download section
Details of the Toilet
Manufacturing Code: DOCMLLPAN
Size of Toilet (mm): Width 360 x Projection 464 x Height 458mm
Size of Toilet (cm): Width 36 x Projection 46.4 x Height 45.8mm
Horizontal Output
UKCA Compliant
Comfort Height Toilet
Details OF Cistern
Manufacturing Code: ASWHDLLBCI
Size of Cistern (mm): Width 460 x Depth 201 x Height 361mm
Size of Cistern (cm): Width 46 x Depth 20.1 x Height 36.1cm
Single Flush Cistern
Easy to Operate
Flushing Volume: 6 ltr
DocM Features
DocM is designed for people with limited mobility
Disabled or less-abled users
Elderly people
Patients recovering from illness or surgery
Wheelchair users

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas
⤷ Toilet Design
: Open Back
⤷ Coating
: Standard
⤷ Colour
: White
⤷ Weight in kg
: 15
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor-Standing
⤷ Pan Width
: 360
⤷ Pan Height
: 458
⤷ Toilet Overall Height
: 1033
⤷ Projection (Depth)
: 790
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 460

⤷ Cistern Height
: 361
⤷ Flush Type
: Single
⤷ Full Flush Volume in litres
: 6
⤷ Cistern Lever Or Button Placement
: Front
⤷ Outlet
: Horizontal
⤷ Comfort Height
: Yes
⤷ Configuration
: Pan And Cistern
⤷ Compliance/Approvals/Standard
: UKCA
⤷ Barcode
: 5057199861450
⤷ Bowl Shape
: Round
⤷ Product Type
: Low Level Toilet
⤷ Cistern Depth (projection)
: 201
⤷ Front Of Bowl To Centre Of Seat Holes
: 464
⤷ Outlet Diameter
: 100
⤷ Base to centre of outlet
: 192

Additional Info & Downloads

Download the Customer DataSheet Pdf File

This item can also be found in:

Lecico Atlas DocM Low Level Comfort Height WC Pan and Cistern White

£471.00

Stock Availablity: 5 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

DOC M

It is an assortment of sanitary ware compliant with disabled washroom provisions in Document M of the UK Building Regulations. These regulations apply to new commercial spaces but can also be installed in older buildings. People with disabilities may need to use washrooms in different kinds of buildings-both old and new. These packs are comforting and offer ease of use for wheelchair-bound and elderly users, and also come with ergonomic design and attractive colours.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.
