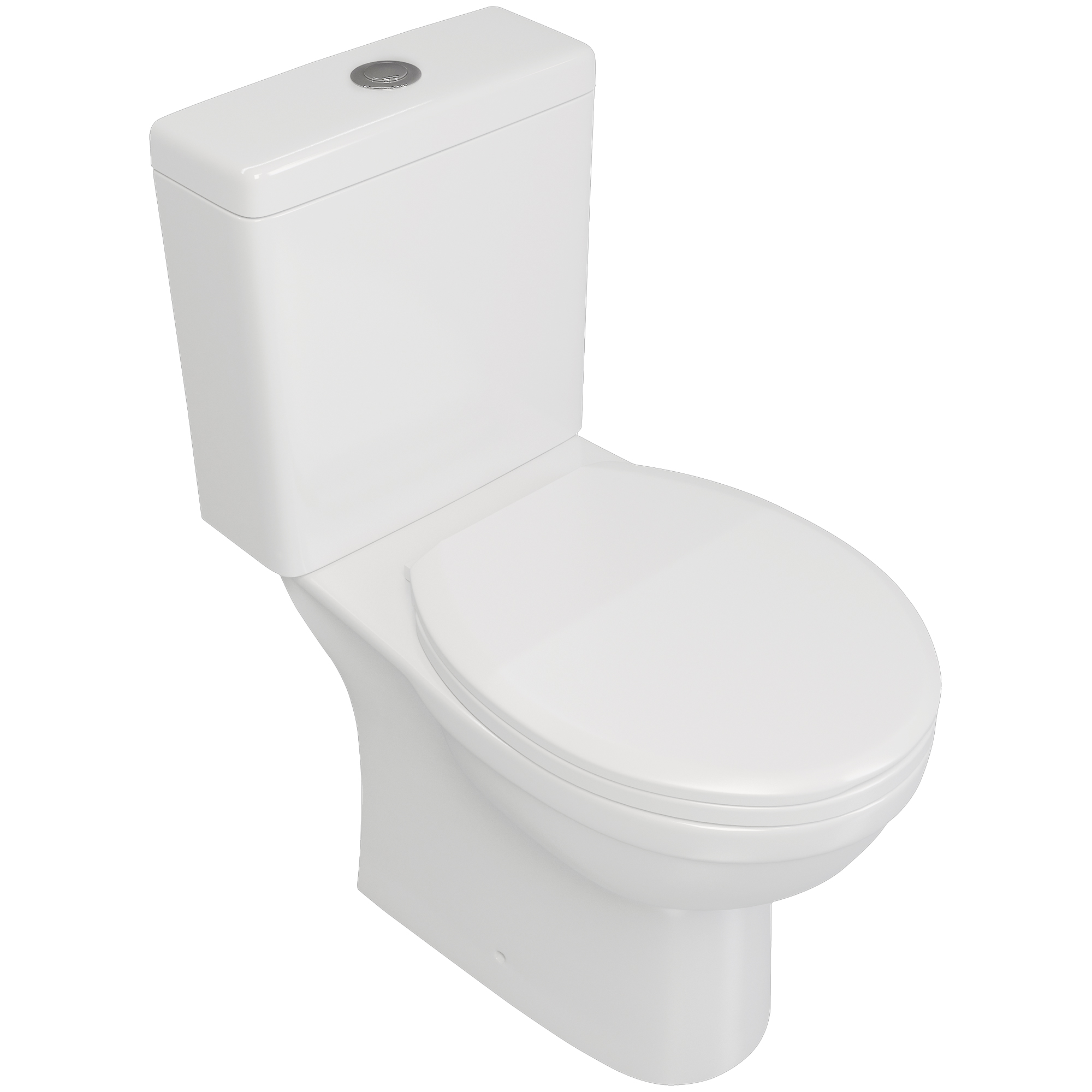

Lecico Atlas White Rimless Close Coupled WC Pan with Cistern and Seat

Not Yet Rated No Rating

£165.00

RRP: £395.54
SKU: QS-V110246
Key Features
  • Manufactured using Vitreous China Material
  • Space Saving Design
  • WC Pan with Horizontal Outlet
  • Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

5 Working Days Approx.

Lecico Atlas Details

MFC: ASWHRIMSPSET

Lecico Atlas White Rimless Close Coupled WC Pan with Cistern and Seat.

  • Includes: WC Pan, Cistern and Soft Close Seat
  • Manufacturing Code of this Product is ASWHRIMSPSET
  • Comes in a White Finish
  • UKCA Compliant
  • Water-Saving Option
  • Weight: 28.5kg
  • For Complete Size Details, Please refer to the Technical Drawing
  • Pan fixes to floor using side fixing bracket supplied with pan
  • Size of Pan [mm]: 364 x 398mm [Width x Height]
  • Size of Pan [cm]: 36.4 x 39.8cm [Width x Height]
  • Projection: 619mm - [61.9cm]
  • Overall Height: 768mm - [76.8cm]
  • Size of Cistern [mm]: 344 x 150 x 370mm [Width x Depth x Height]
  • Size of Cistern cm]: 34.4 x 15 x 37cm [Width x Depth x Height]
  • Features: Dual Flush Push Button Mechanism
  • Inlet: Right-Hand Bottom Inlet
  • Flush Volume: Standard 6/4ltr and Adjustable Down to 4/2.6ltr

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Atlas
  • ⤷ Toilet Design
  • : Open Back
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 28.5
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Standing
  • ⤷ Pan Width
  • : 364
  • ⤷ Pan Height
  • : 398
  • ⤷ Toilet Overall Height
  • : 768
  • ⤷ Projection (Depth)
  • : 619
  • ⤷ Rimless Bowl
  • : Yes
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Width
  • : 344
  • ⤷ Cistern Height
  • : 370
  • ⤷ Flush Type
  • : Dual Flush
  • ⤷ Full Flush Volume in litres
  • : 6
  • ⤷ Half Flush Volume in litres
  • : 4
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Fixings included
  • : Yes
  • ⤷ Compliance/Approvals/Standard
  • : UKCA
  • ⤷ Barcode
  • : 5057199982667
  • ⤷ Bowl Shape
  • : Oval
  • ⤷ Product Type
  • : Close Coupled WC
  • ⤷ Cistern Depth (projection)
  • : 150
  • ⤷ Front Of Bowl To Centre Of Seat Holes
  • : 410
  • ⤷ Base to centre of outlet
  • : 178
£165.00
RRP: £395.54
Stock Availablity: 5 Working Days Approx
QS Supplies

8 Features Included In This Product Explained

Rimless

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

UKCA Certified

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Dual-Flush

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Push-Button Flush Valve Cistern

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Soft-Close Seat

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Open-Back Toilet

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.
