Lecico Atlas Economy Low Level WC Pan DocM Pack, 460 x 790mm, LLEDOCM

Atlas Economy Details

MFC: LLEDOCM

Lecico Atlas Economy Low Level WC Pan DocM Pack - 460 x 790mm.

Key Features

✔Choice of Finishes: White and Grey
✔Refer to the Technical Diagram for Complete Technical Dimensions
✔Lifetime Guarantee Against any Manufacturing Defects

Pack Includes:
Low Lever WC Pan with a Ringed Seat and Single Flush Cistern and Fittings Including Spatula Lever
Sequential Lever Chrome Tap
460mm wide Two Tap Hole Basin with a Tap Hole Stopper, Granted Waste and Brackets
5x 600mm Wide Grab Rails and 1x Hinged Grab Rail and 1x Back Rest
Details Of Pack:
UKCA Compliant and WRAS Approved
Cistern Features 6ltr Single Flush Mechanism
Sataryware Manufactured Using Vitreous China Material
Weight: 55kg
Basin Width: 460mm [46cm]
Size of Cistern in [mm]: 460 x 201 x 361mm [Width x Depth x Height]
Size of Cistern in [cm]: 46 x 20.1 x 36.1cm [Width x Depth x Height]
Size of Pan in [mm]: 360 x 464 x 458mm [Width x Projection x Height]
Size of Pan in [cm]: 36 x 46.4 x 45.8cm [Width x Projection x Height]
Overall Projection: 790mm [79cm]
Overall Height with Cistern: 1033mm [103.3cm]
Document M of the Building Regulations (2004) and BS 8300-2009 Provide Government Guidance On the Layouts of an Accessible Wash-Room in Non-Domestic Settings
Download Product Data Sheet PDF from the Additional Info Section

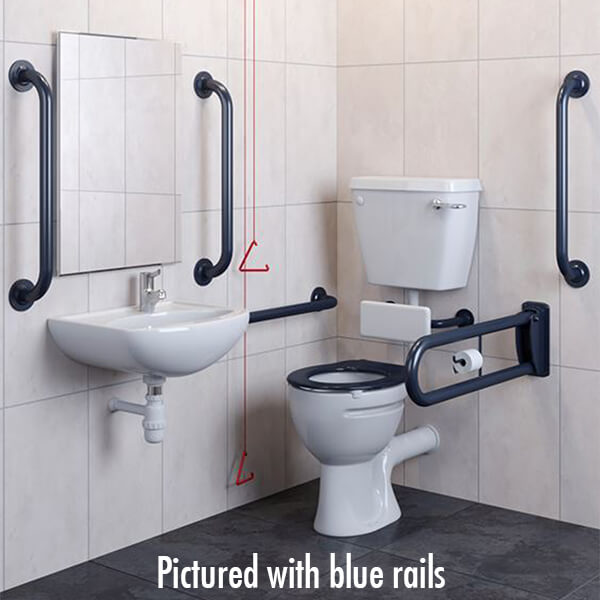

Mirror Shown in the Image is Not Included Sold Separately

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas
⤷ Colour
: White
⤷ Weight in kg
: 55
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 360
⤷ Pan Height
: 458
⤷ Toilet Overall Height
: 1033
⤷ Projection (Depth)
: 790
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 460

⤷ Cistern Height
: 361
⤷ Flush Type
: Single Flush
⤷ Full Flush Volume in litres
: 6ltr
⤷ Flush Mechanism
: Lever Handle
⤷ Cistern Lever Or Button Placement
: Right Side
⤷ Seat Included
: Yes
⤷ Seat Type
: Ringed Seat
⤷ Bowl Shape
: Oval
⤷ Product Type
: DocM Pack
⤷ Cistern Depth (projection)
: 201
⤷ Front Of Bowl To Centre Of Seat Holes
: 420
⤷ Outlet Diameter
: Ø100
⤷ Base to centre of outlet
: 192

Lecico Atlas Economy Low Level WC Pan DocM Pack - 460 x 790mm

£759.08

RRP: ~~£949.00~~

STOCK AVAILABLITY: 10-14 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.
