Reina Resia Horizontal Flat Panel Radiator - Aluminium - 600mm High

Not Yet Rated No Rating

£287.04

SKU: QS-V107717
Product Variants
Select Finish Step 1
Select Width Step 2
Select Radiator Type Step 3
Select Heating Element Step 4
Select Accessory Step 5
Pay in 3-Interest Free Payments
Shipping

Shipping: £26.99

Stock Availability

Stock Availability:

5 Working Days Approx.

Reina Resia Details

MFC: A-RSA060047A

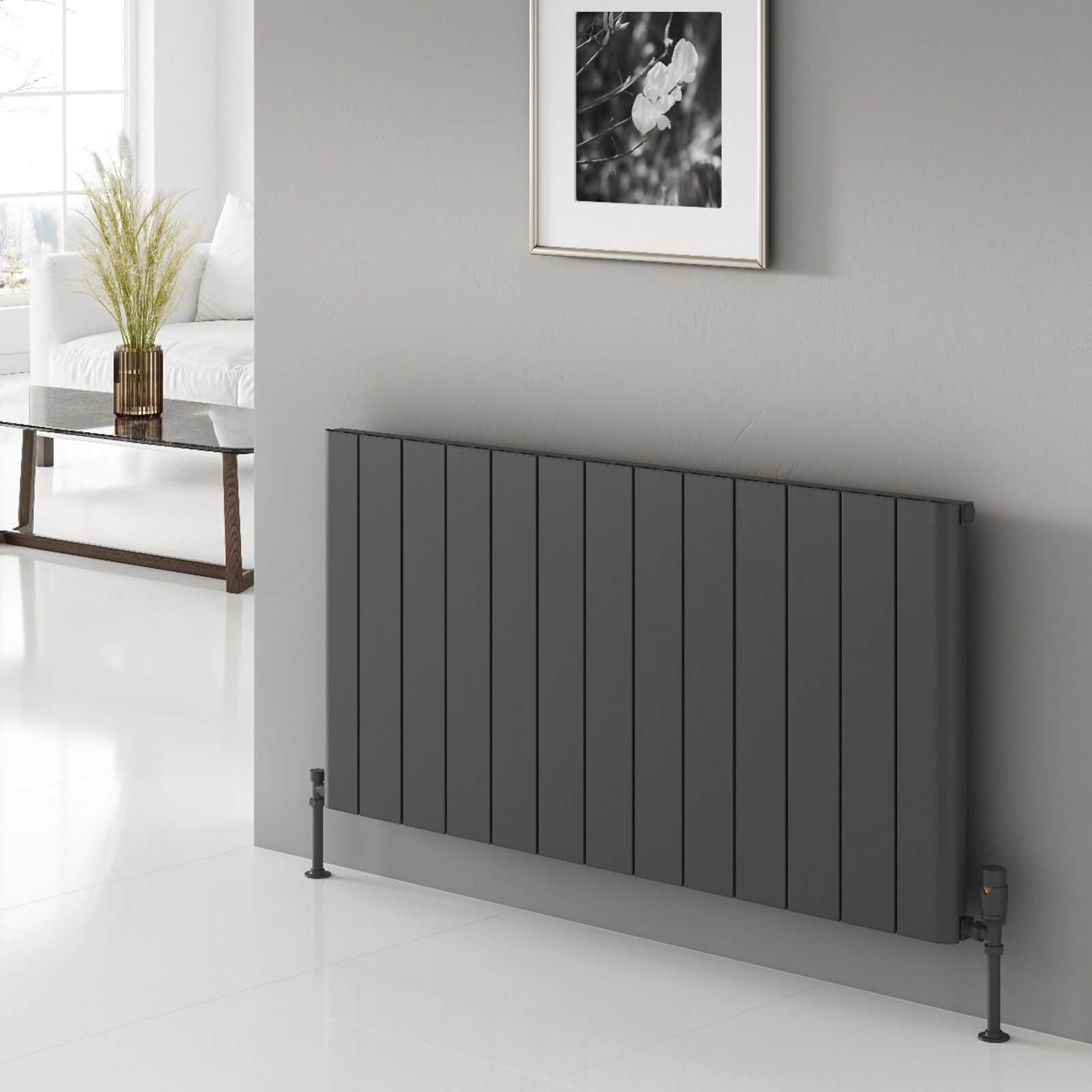

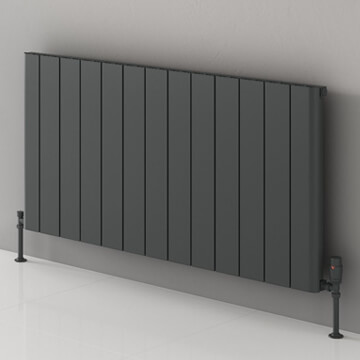

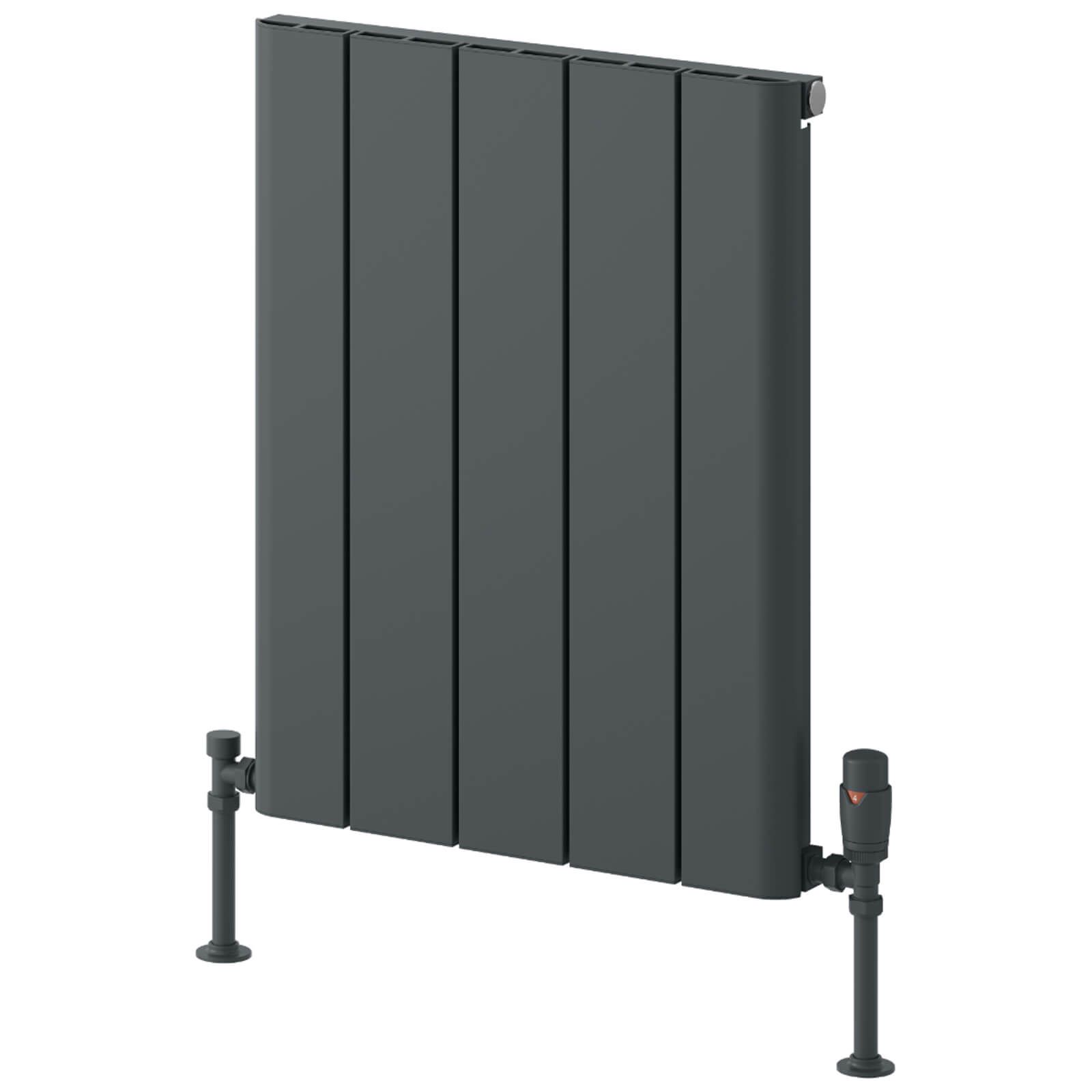

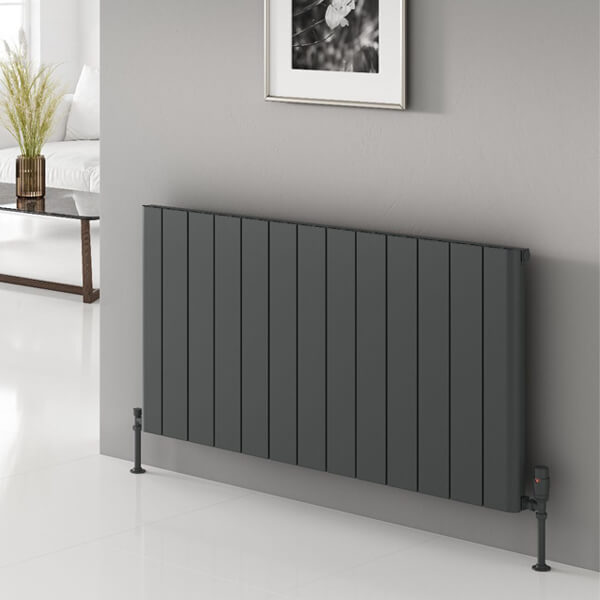

Reina Resia 600mm High Horizontal Flat Panel Aluminium Radiator.

Key Features
  • Brackets for Radiator Included
  • Supplied with Air Vent and End Plug
  • Manufactured using Aluminium Material
  • 5-Year Guarantee from Reina Against Manufacturing Defects
  • Choice of Finishes: Anthracite and White
  • Choice of Widths: 470mm, 660mm, 850mm, 1040mm, 1230mm and 1420mm
  • Choice of Variants: Central Heating, Dual Fuel and Electric

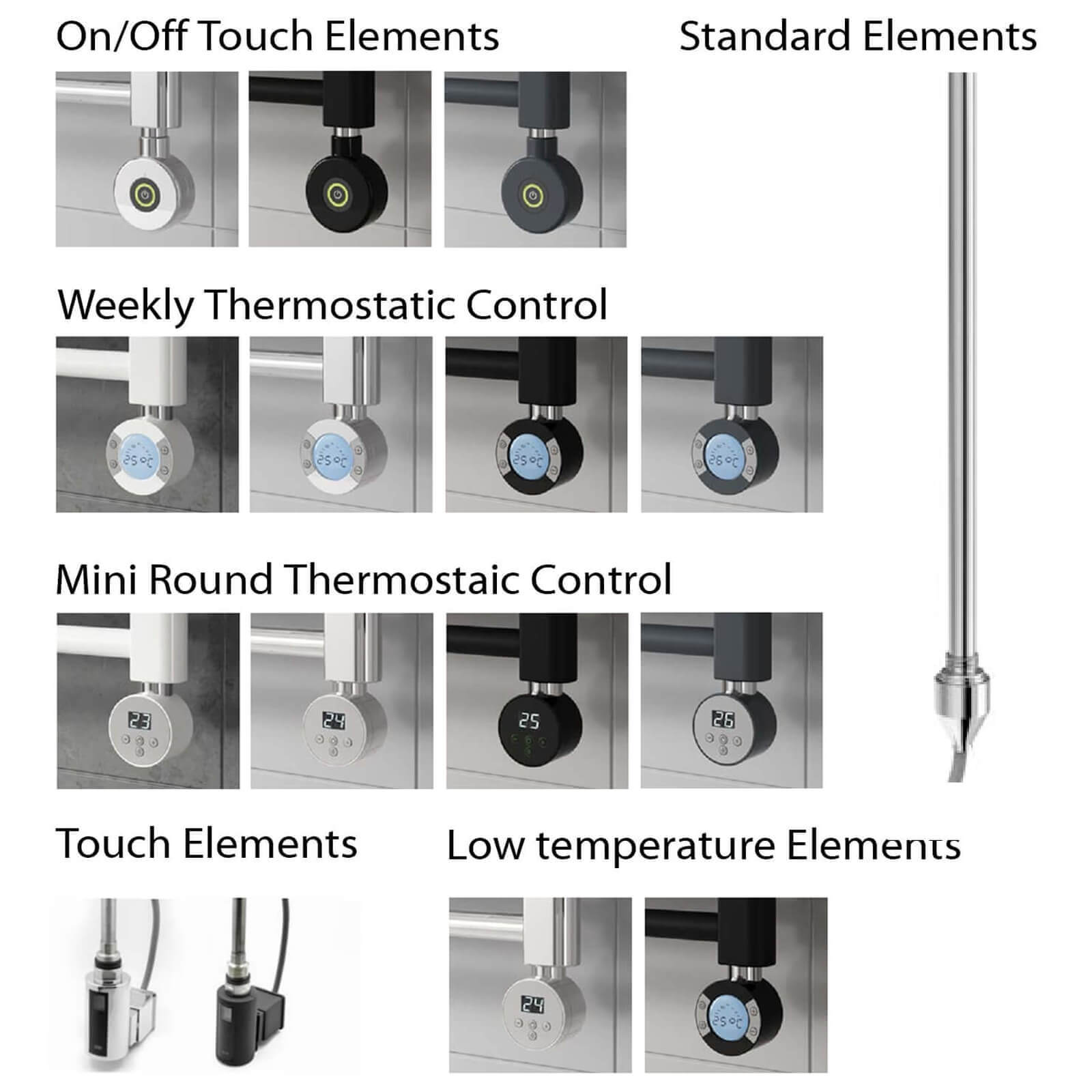

  • Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly, Square Wifi
  • EN 442 Compliant Product
  • Height: 600mm (60cm)
  • Wall to Pipe Centres: 50mm (5cm)
  • Distance from Wall: 90mm (9cm)
  • The Image Shown is for Illustration Purposes Only
  • Valves, Sleeving Kit and Pipe Kit - [Optional]

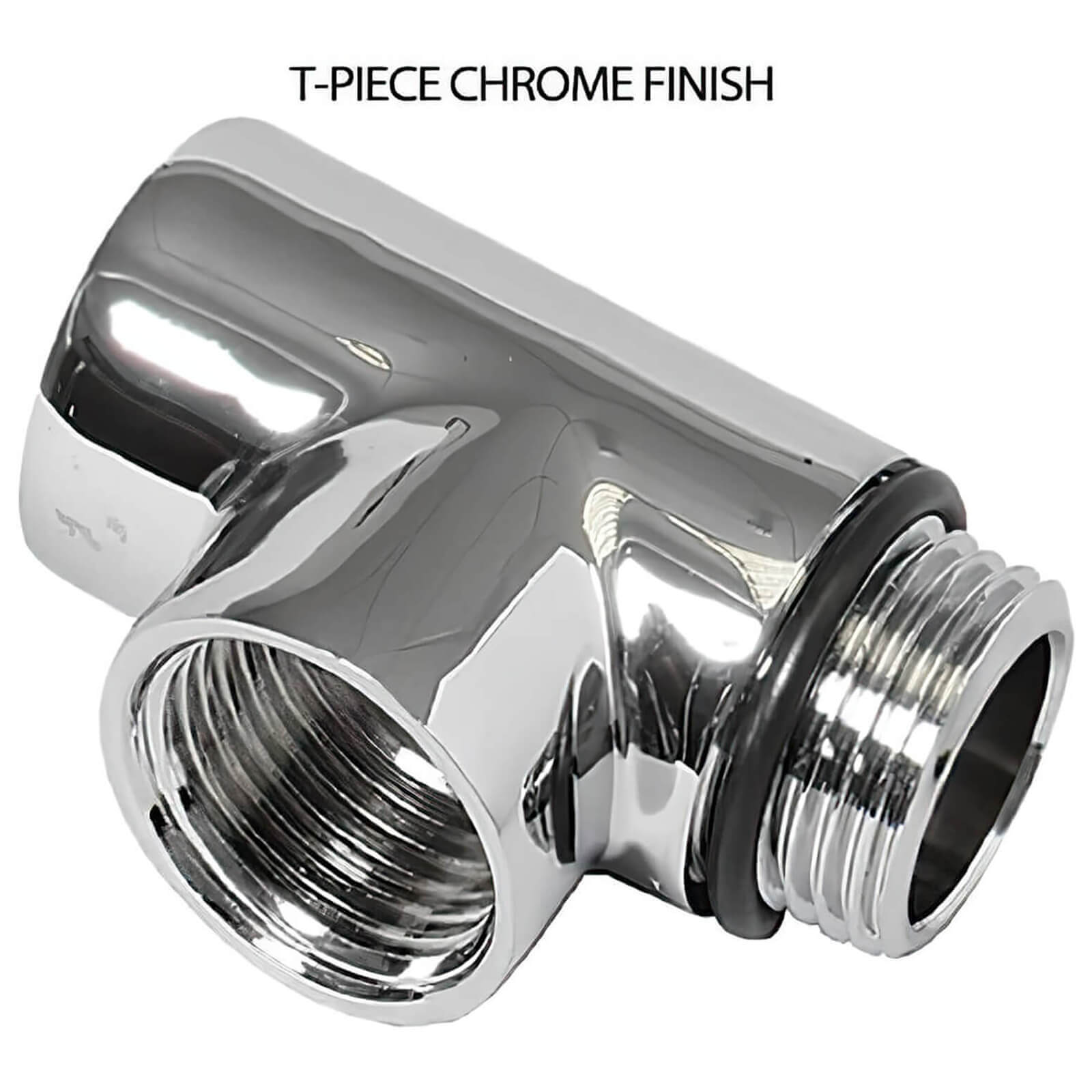

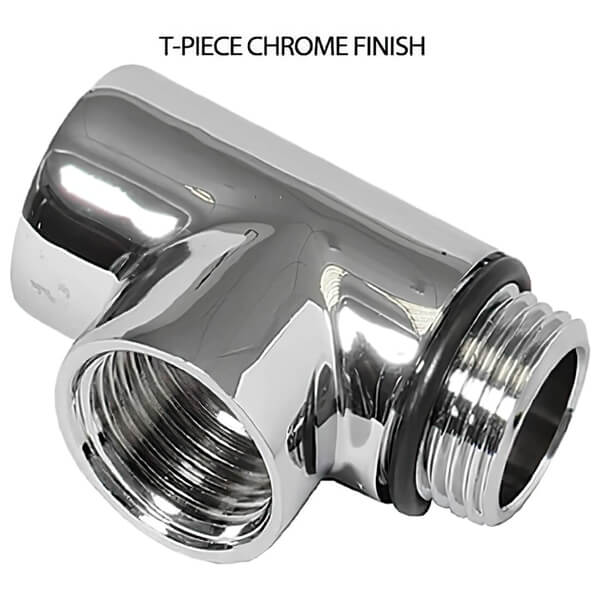

  • For the Dual Fuel and Electric Model, Heating Elements are Highly Recommended in Combination with the T-Piece
  • For Electric Models, Optional Liquid Filling is Required with the Heating Element
  • For BTU and Watts, Please Refer to the Chart in the PRODUCT VARIATIONS INFO and MFC CODE Section
  • Download the Customer Data Sheet and Installation Guide PDF File from the Additional Info & Download Section
  • Download the Heating Elements and Manual Instruction PDF File from the Additional Info & Download Section
  • Refer to the Technical Diagram for Complete Technical Details
  • The Valves Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Resia
  • ⤷ Barcode
  • : 8800161341415

Additional Info & Downloads

Download PDFDownload the Customer Data Sheet Pdf File Download PDFDownload the Detail For Heating Element Pdf File Download PDFDownload the Heating Element Manual Instructions Pdf File

Add-Ons

Optional Accessories
Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

£287.04
Stock Availablity: 5 Working Days Approx
QS Supplies

Product Variations Info & MFC Code

Detail For Anthracite Radiator
Width 470mm 660mm 850mm 1040mm 1230mm 1420mm
Fuel Type Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric
Finish Anthracite Anthracite Anthracite Anthracite Anthracite Anthracite
Height 600mm 600mm 600mm 600mm 600mm 600mm
Pipe Centres 470mm 660mm 850mm 1040mm 1230mm 1420mm
Wall to Pipe Centres 50mm 50mm 50mm 50mm 50mm 50mm
Wall Distance 90mm 90mm 90mm 90mm 90mm 90mm
Tube Quantity 5 7 9 11 13 15
BTU - Delta-50 1605 2225 2860 3496 4132 4769
Watts - Delta-50 471 652 839 1025 1212 1398
BTU - Delta-60 2054 2848 3661 4475 5289 6104
Watts - Delta-60 602 835 1074 1312 1551 1790
MFC A-RSA060047A A-RSA060066A A-RSA060085A A-RSA060104A A-RSA060123A A-RSA060142A
Detail For White Radiator
Width 470mm 660mm 850mm 1040mm 1230mm 1420mm
Fuel Type Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric Central Heating/Duel Fuel/Electric
Finish White White White White White White
Height 600mm 600mm 600mm 600mm 600mm 600mm
Pipe Centres 470mm 660mm 850mm 1040mm 1230mm 1420mm
Wall to Pipe Centres 50mm 50mm 50mm 50mm 50mm 50mm
Wall Distance 90mm 90mm 90mm 90mm 90mm 90mm
Tube Quantity 5 7 9 11 13 15
BTU - Delta-50 1605 2225 2860 3496 4132 4769
Watts - Delta-50 471 652 839 1025 1212 1398
BTU - Delta-60 2054 2848 3661 4475 5289 6104
Watts - Delta-60 602 835 1074 1312 1551 1790
MFC A-RSA060047W A-RSA060066W A-RSA060085W A-RSA060104W A-RSA060123W A-RSA060142W

7 Features Included In This Product Explained

Optional: Dual Fuel

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Electric Only

Electric Only

Electric Only options are independent units requiring a fused spur electric connection. These radiators and towel warmers are powered by the mains electrical supply instead of a gas boiler. You can turn on each radiator or towel warmer as and when you need them.
Read more...

BTU Output

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Air Vent

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Accordance With EN 442

Accordance With EN 442

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

Optional: Radiator Valve

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional Sleeving Kit

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
